Battery Temperature Sensor: Description

The Battery Temperature Sensor (BTS) is mounted in the front of the car near the battery (Fig 1 ).

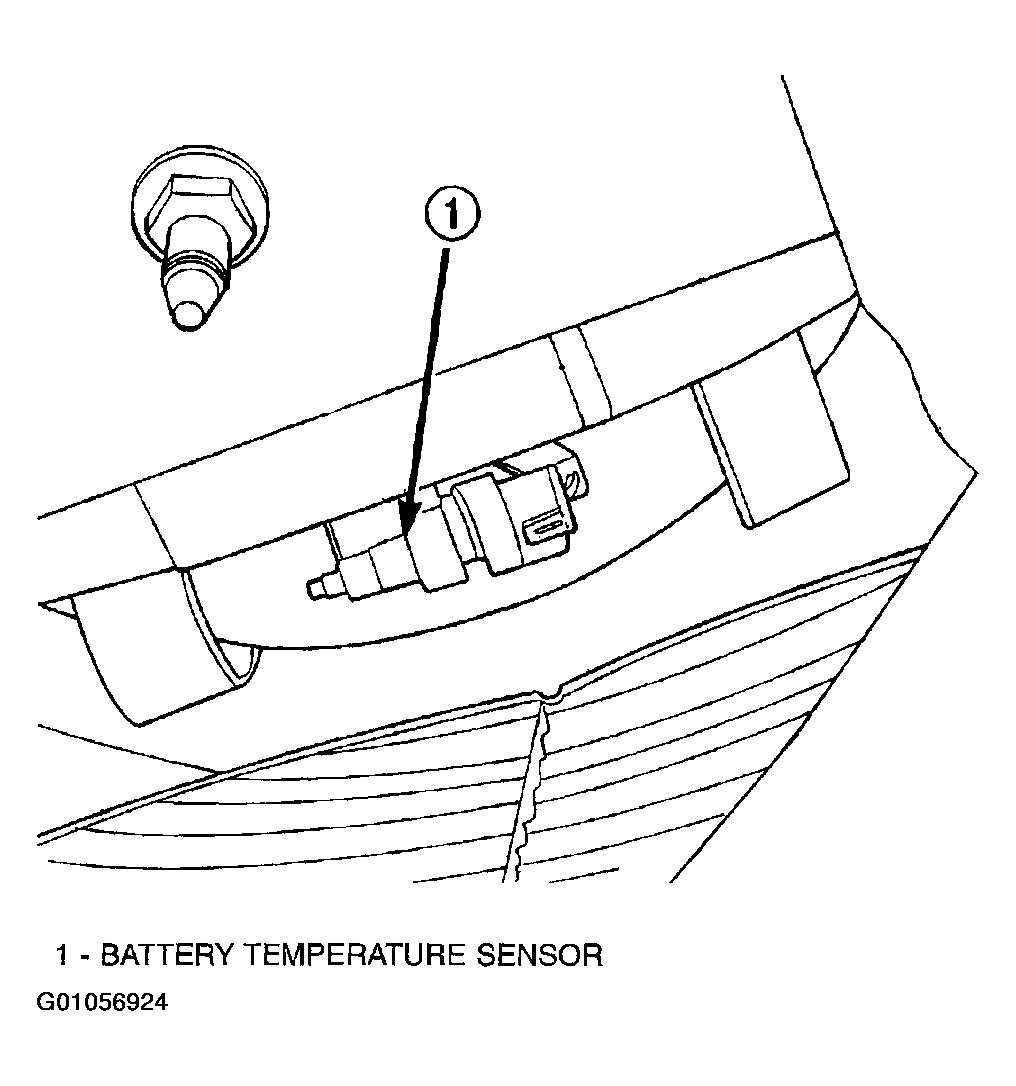

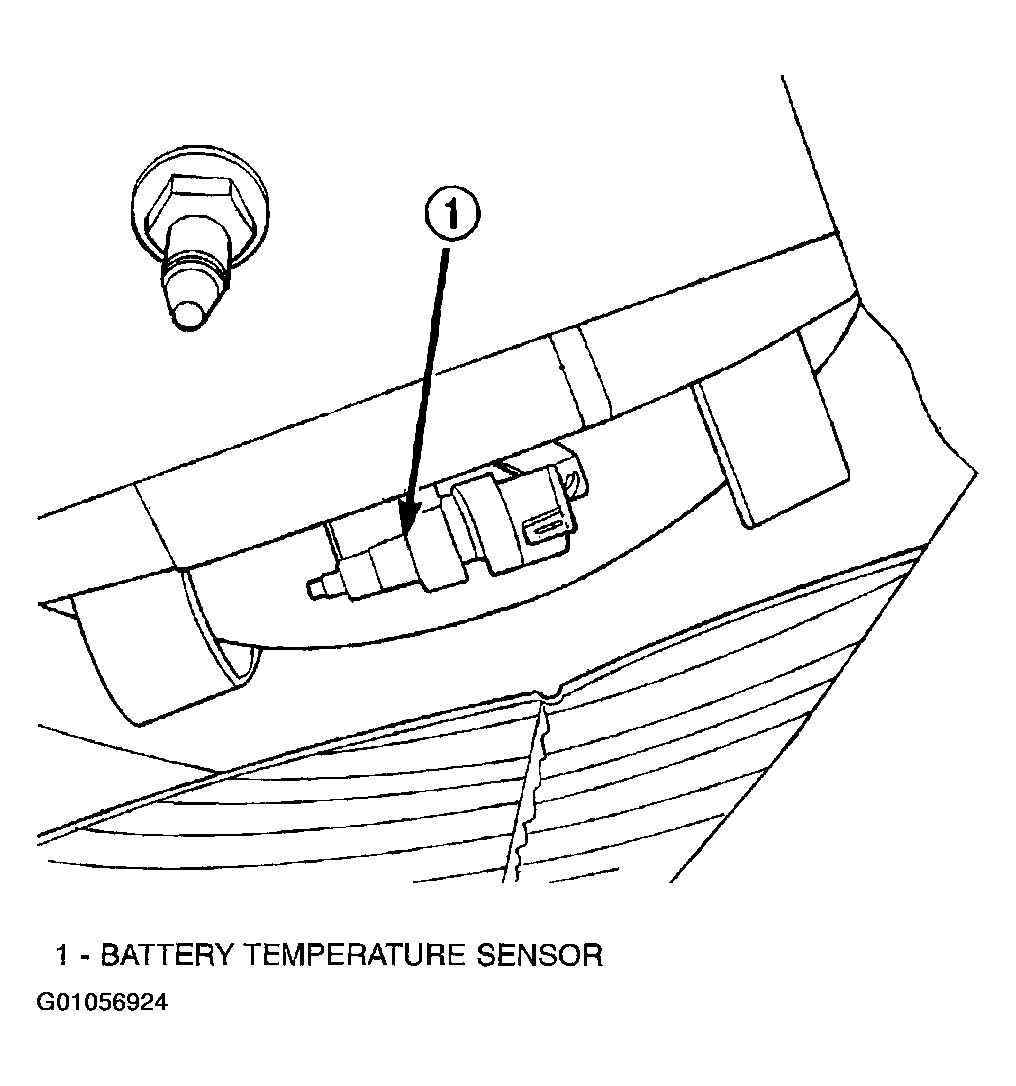

Fig 1: Identifying Battery Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.
