Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

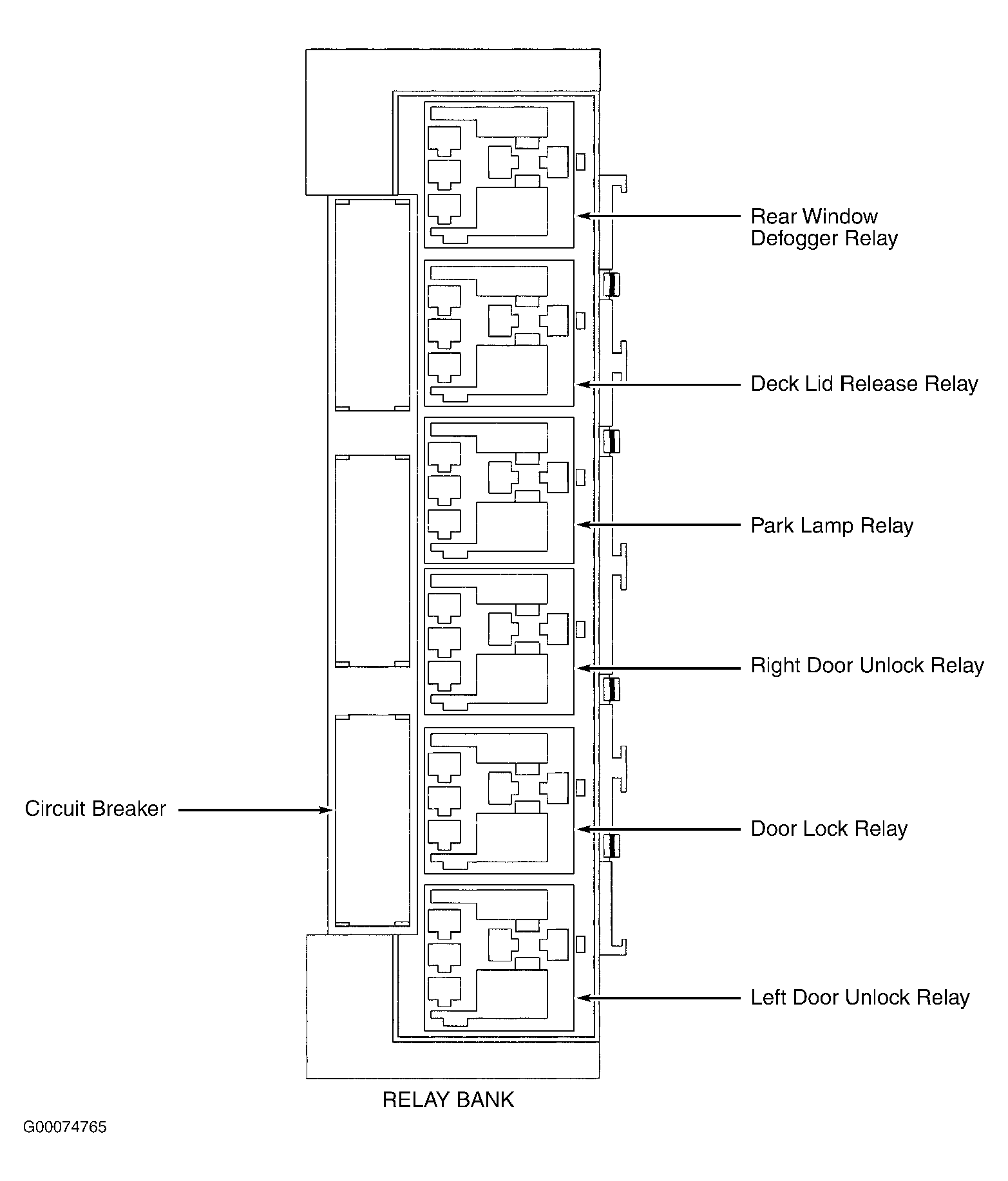

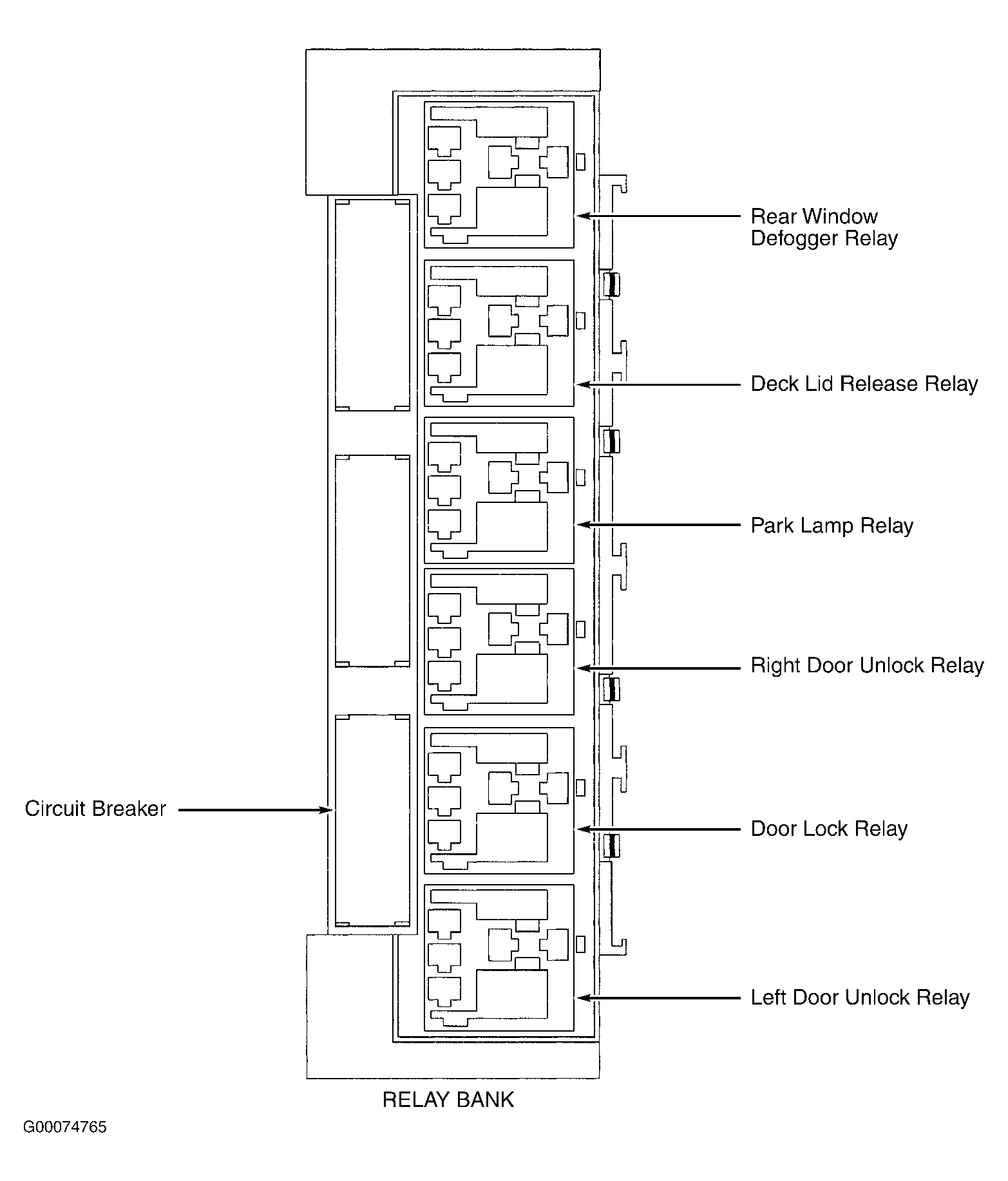

| Circuit Breaker |
In relay bank, behind glove compartment. See Figure. |
| Fuse Block |
In left end cap of dash. |
| Power Distribution Center |
On left side of engine compartment. See Figure. |
| Relay Bank |
In right side of dash, behind glove compartment. |
