Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Below center of dash, on tunnel floor pan, forward of shifter. |
| Body Control Module | In passenger compartment, on left side cowl. |

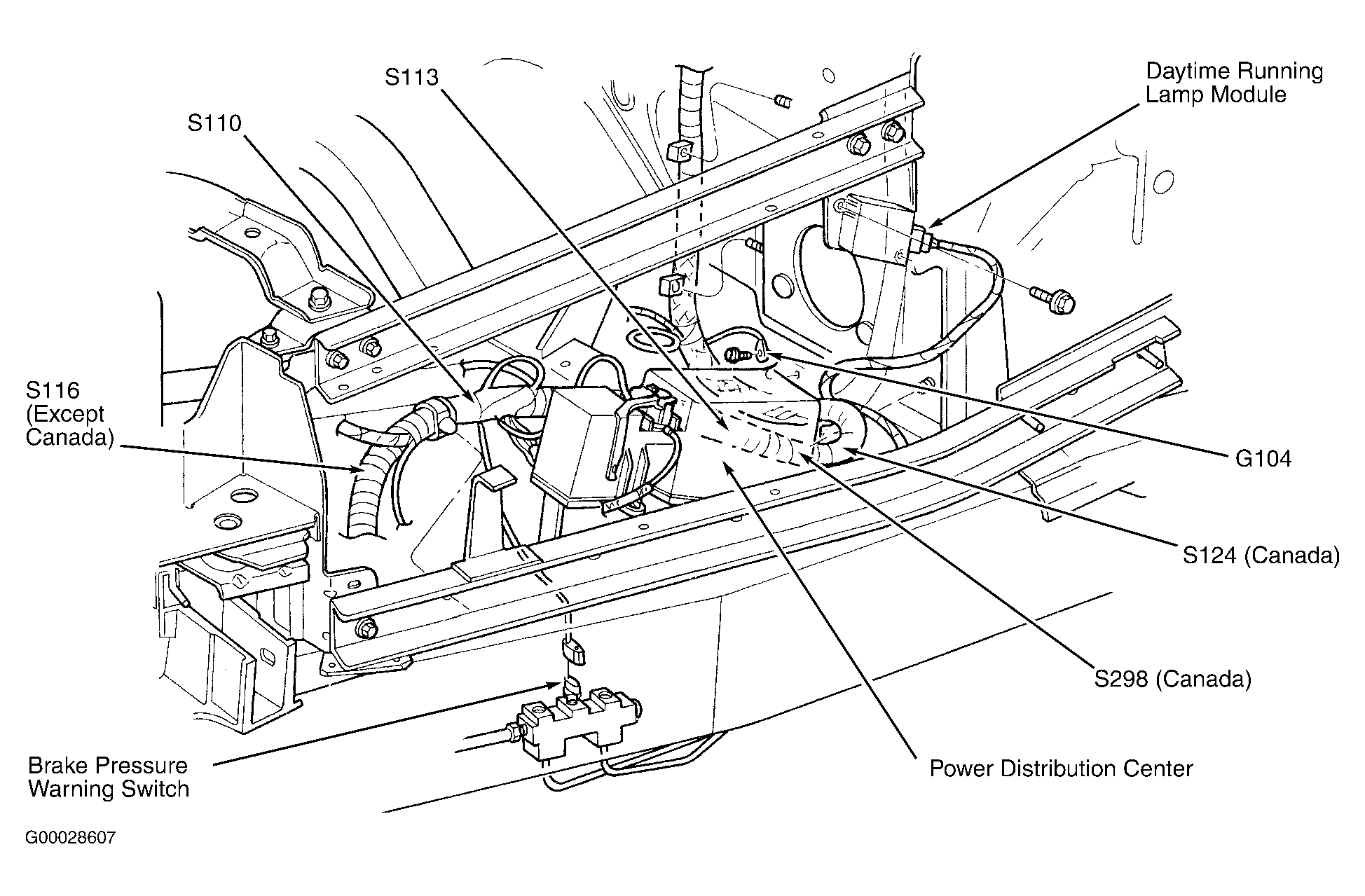

| Daytime Running Lamp Module | On left side of engine compartment. See Figure. |
| Fuel Pump Module | In top of fuel tank. |
| Low Tire Pressure Warning Module | Behind left side of dash. |

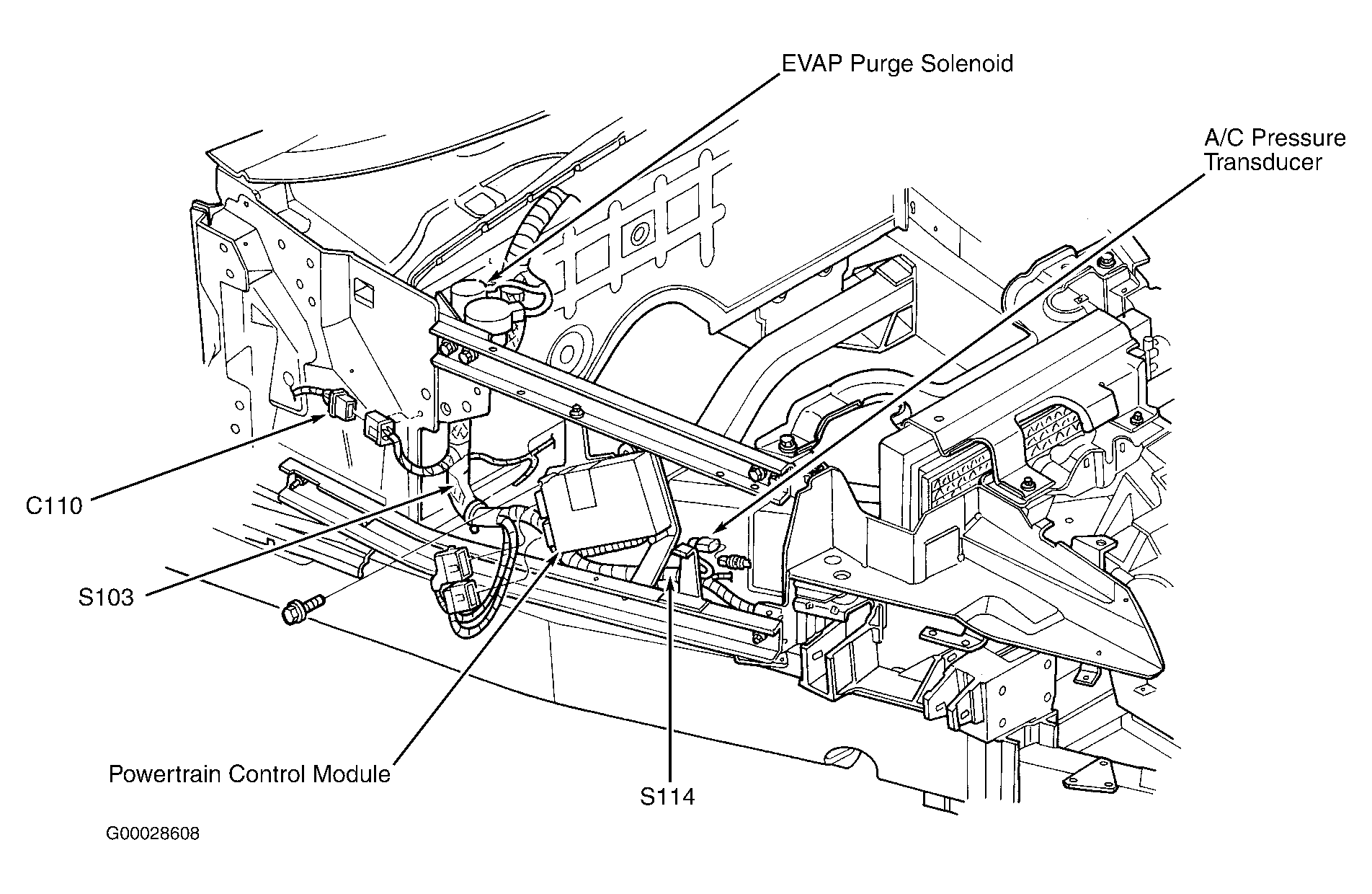

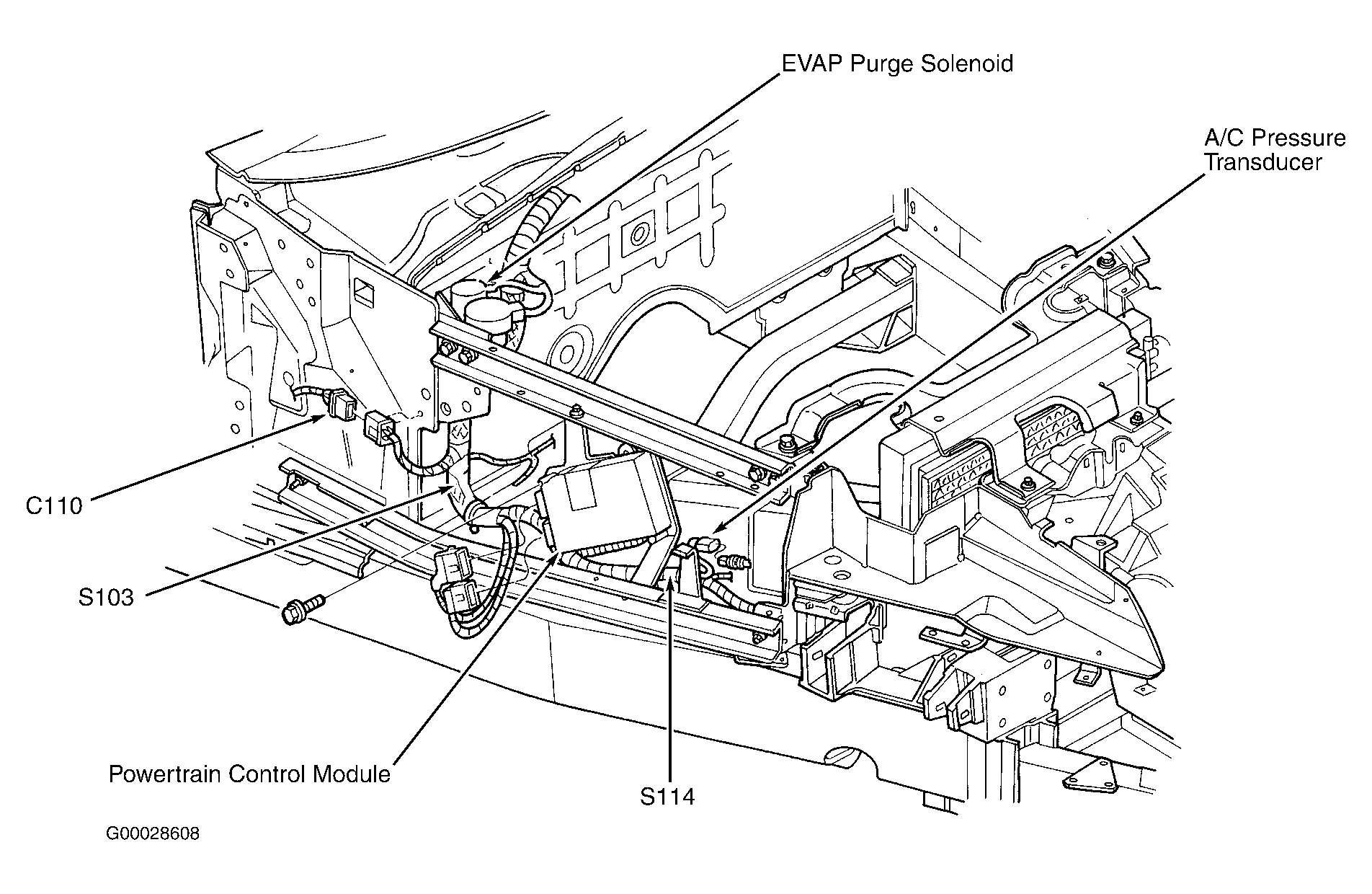

| Powertrain Control Module | On right frame rail. See Figure. |
| Remote Keyless Entry Module | Behind upper center of dash. |
| Transmission Control Module | On right side of trunk compartment. |
