Special Tools: Fuel

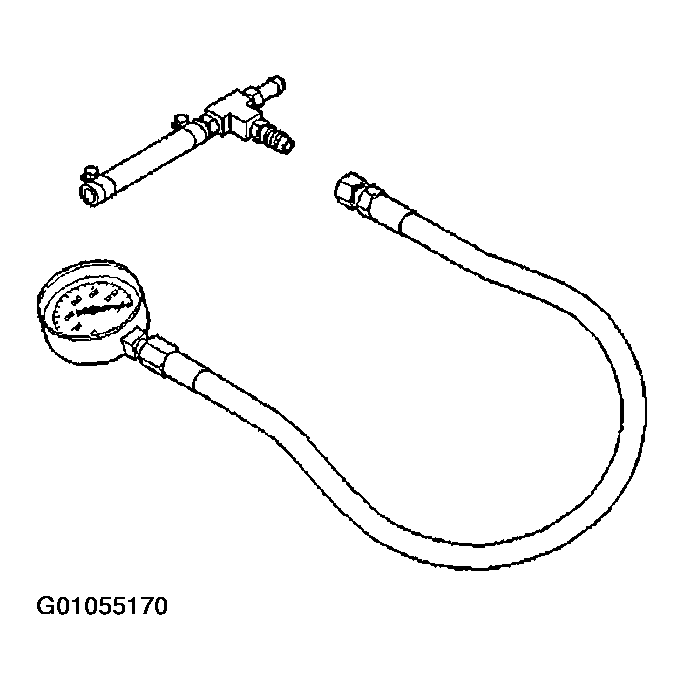

Fig 1: Identifying Pressure Gauge Assembly Tool

Courtesy of DAIMLERCHRYSLER CORP.

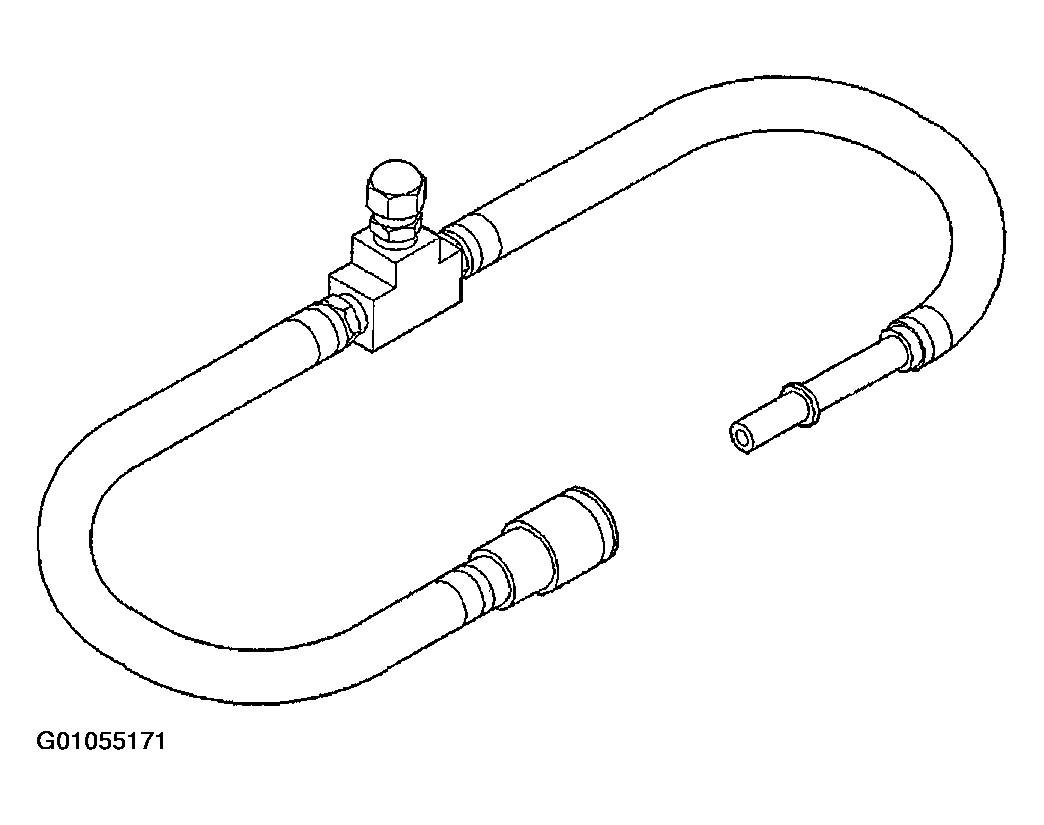

Fig 2: Identifying Fuel Pressure Test Adapter Tool

Courtesy of DAIMLERCHRYSLER CORP.

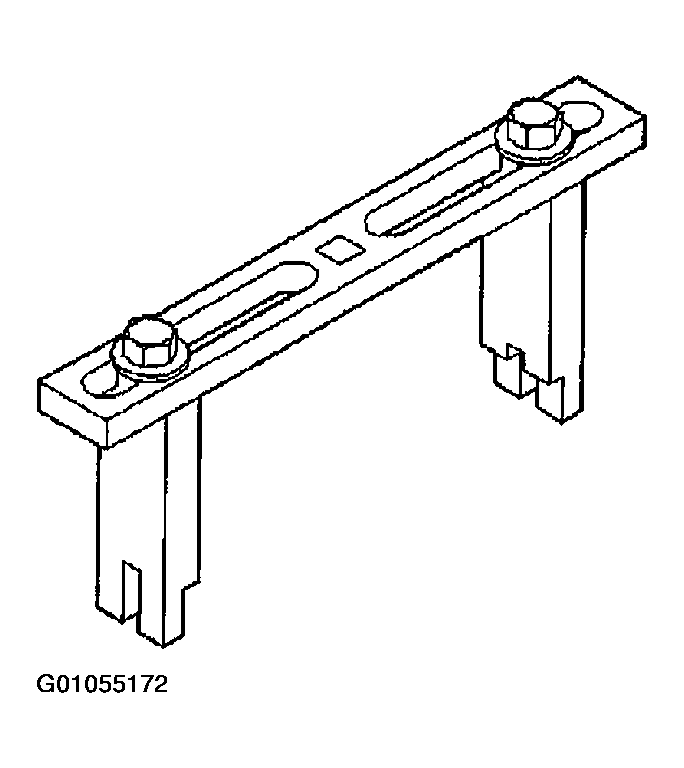

Fig 3: Identifying Spanner Wrench Tool

Courtesy of DAIMLERCHRYSLER CORP.

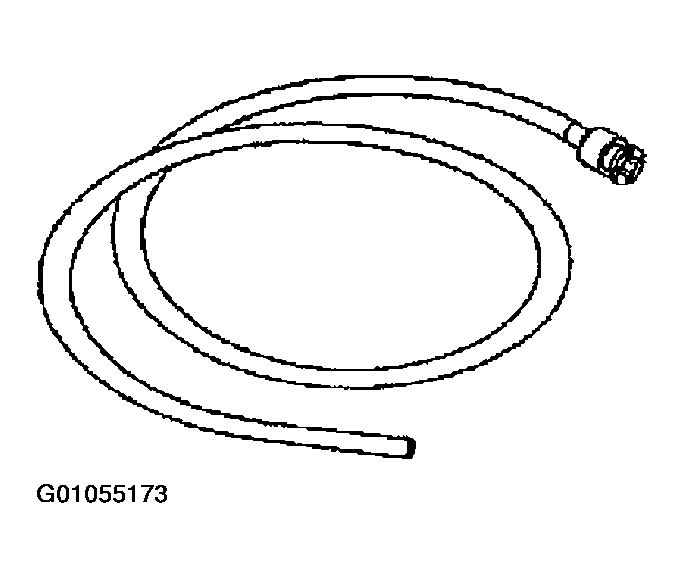

Fig 4: Identifying Fuel Line Adapter Tool

Courtesy of DAIMLERCHRYSLER CORP.

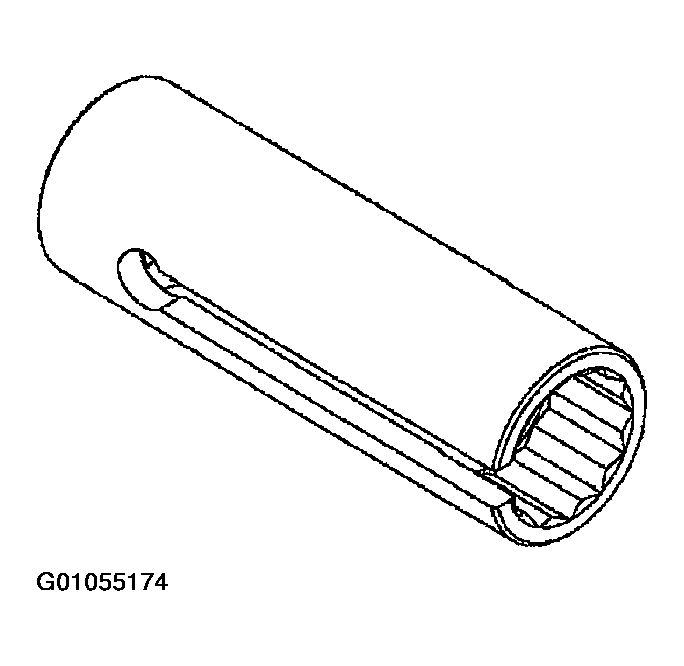

Fig 5: Identifying O2S (Oxygen Sensor) Remover/Installer Tool

Courtesy of DAIMLERCHRYSLER CORP.

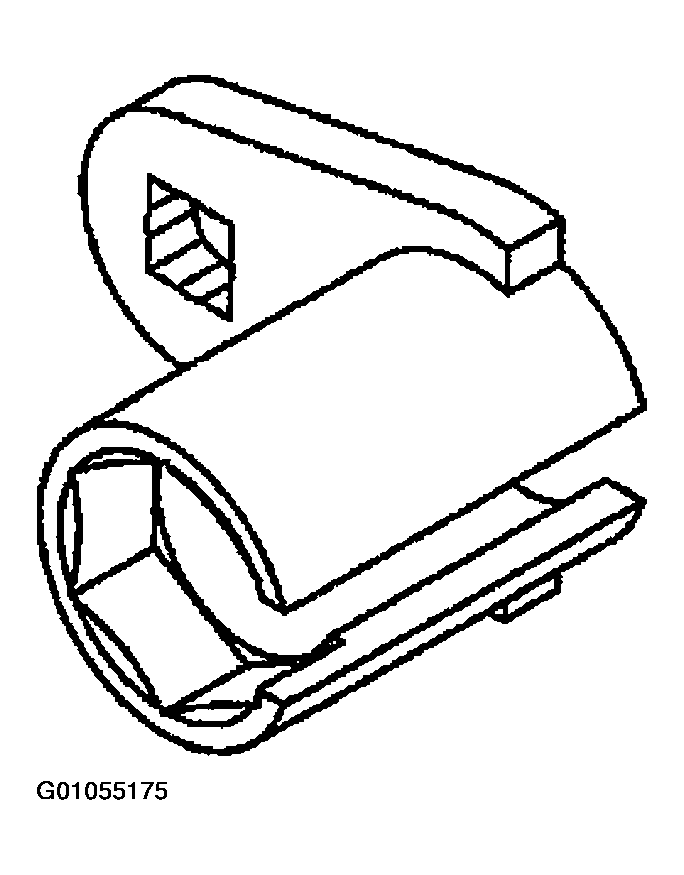

Fig 6: Identifying O2S (Oxygen Sensor) Remover/Installer Tool-8439

Courtesy of DAIMLERCHRYSLER CORP.
