Fuel Level Sending Unit / Sensor: Removal

Remove fuel pump module (Refer to FUEL PUMP MODULE - REMOVAL ).

NOTE: The pump module harness on TOP of flange is not serviceable or removable.

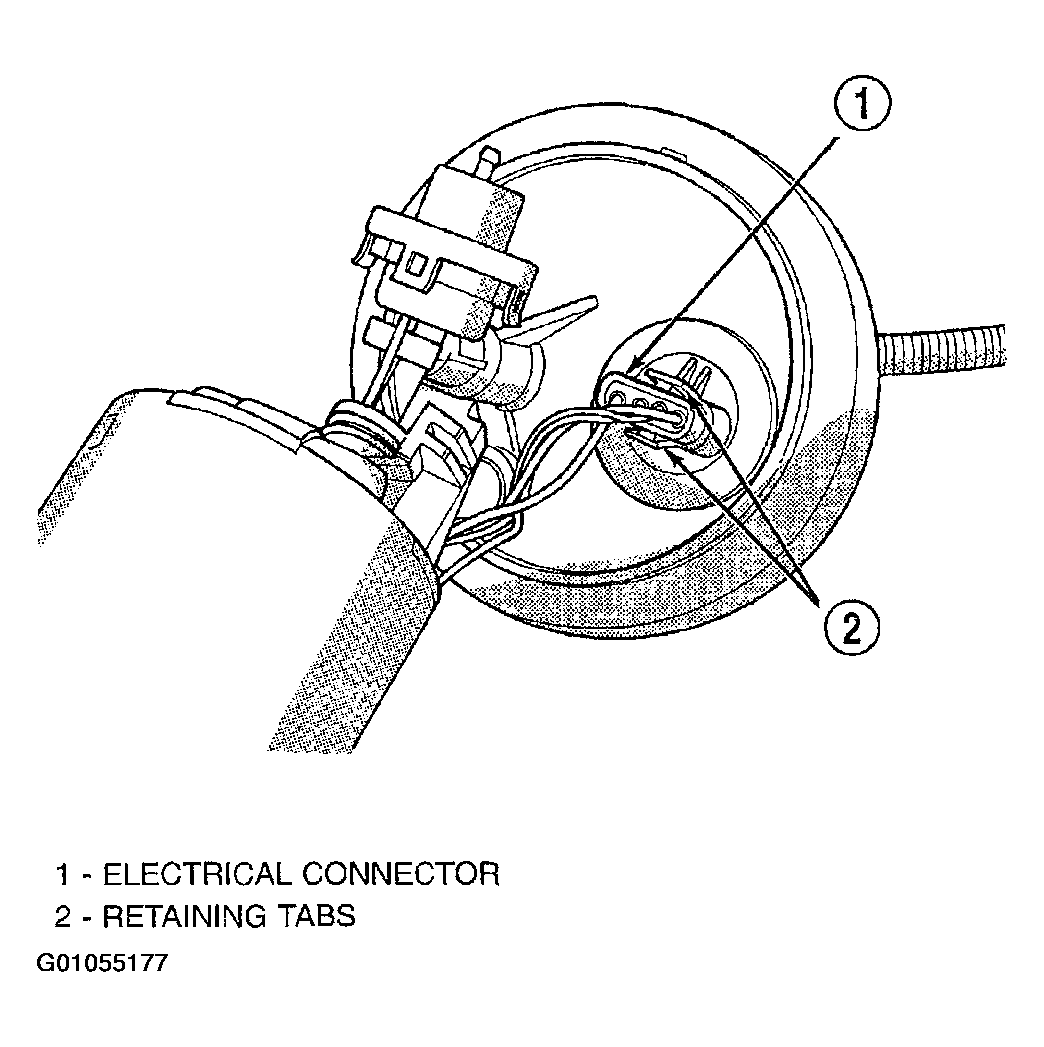

Fig 1: Identifying Fuel Pump/Level Sensor Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.
1. Depress retaining tab and remove the fuel pump/level sensor connector from the BOTTOM  of the fuel pump module electrical connector (Fig 1).
2. Using Special Tool C-4334 terminal remover or equivalent, remove terminals from level sensor connector (Fig 2).

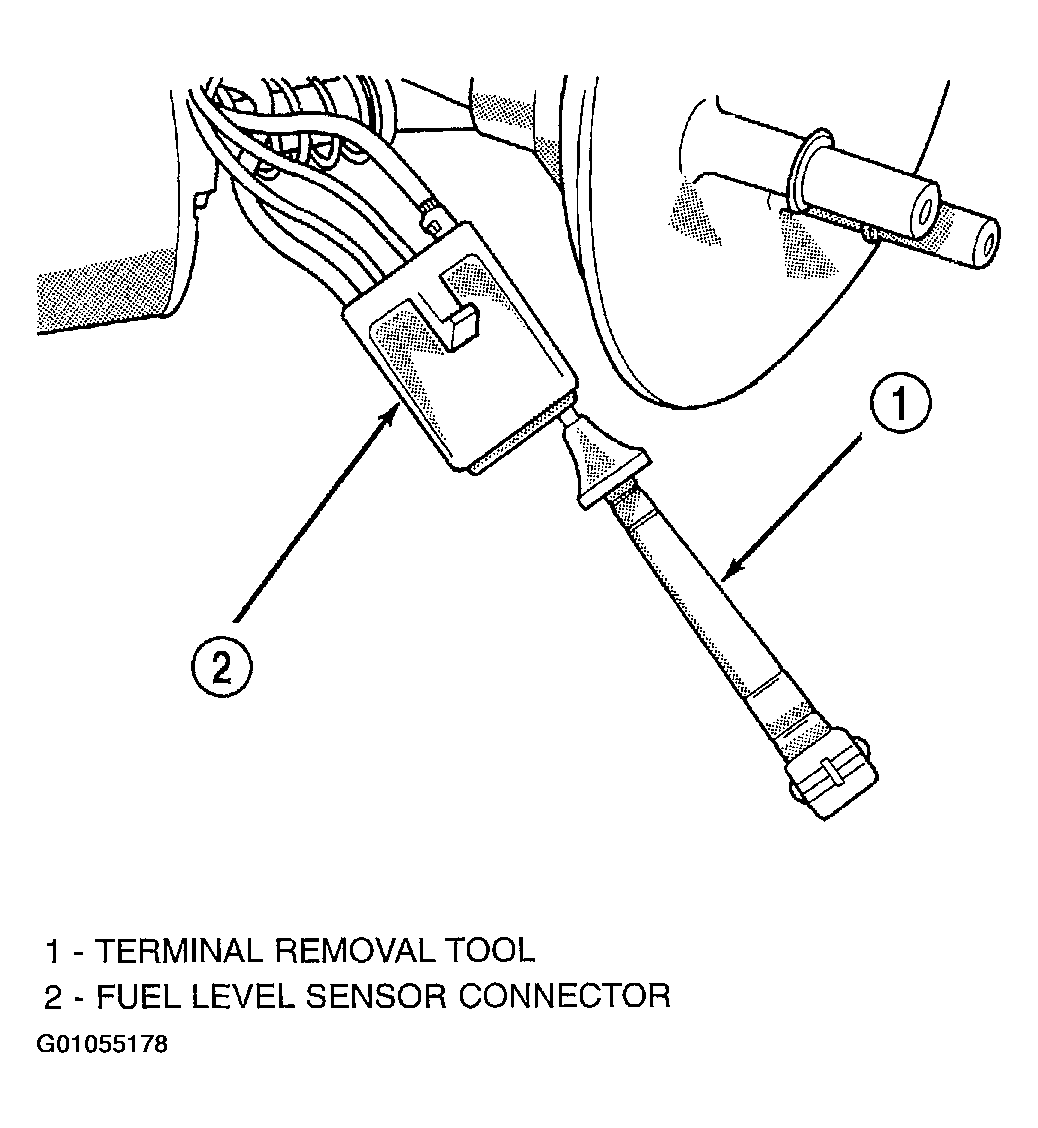

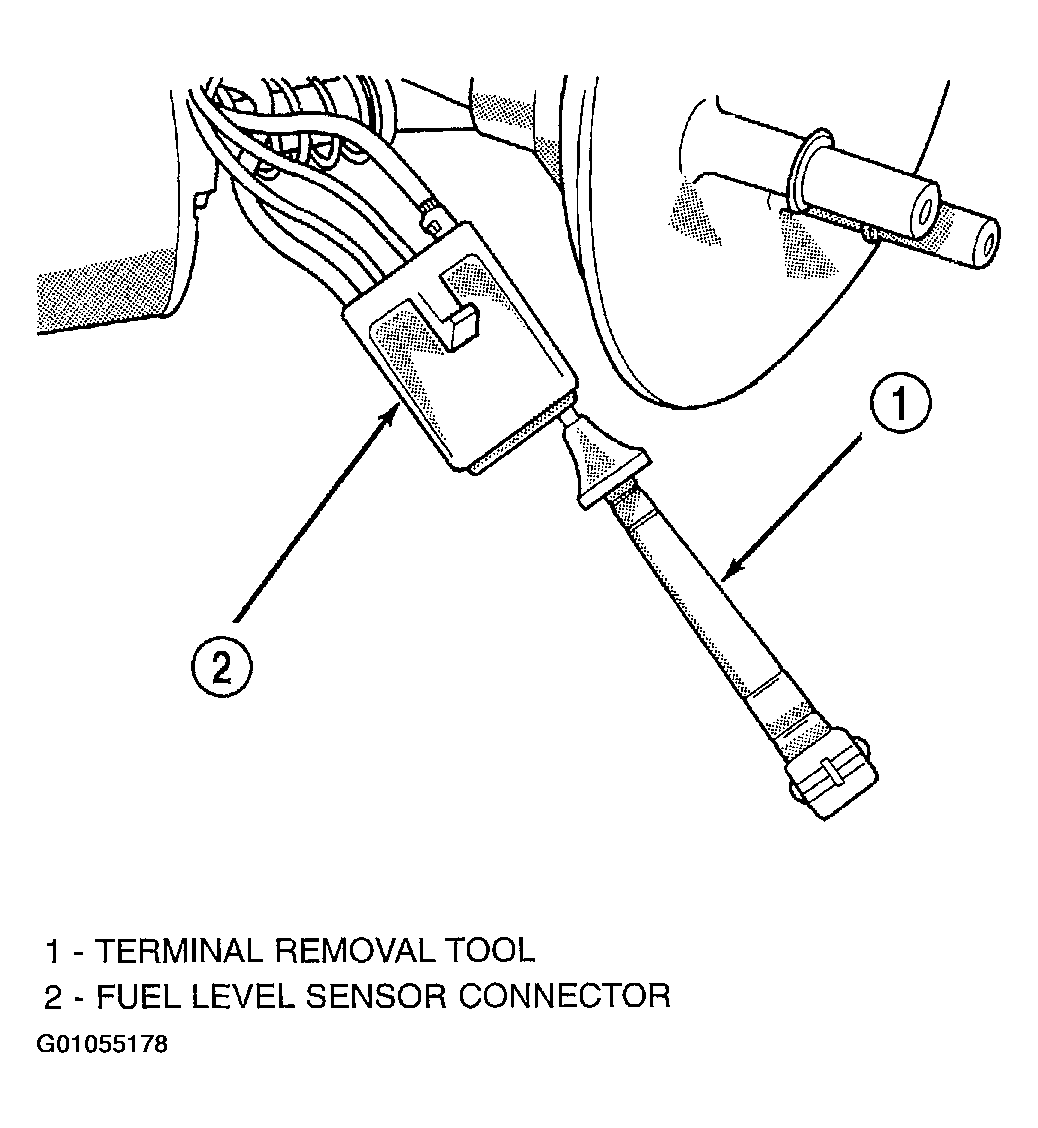

   Fig 2: Identifying Terminal Removal Tool

   Courtesy of DAIMLERCHRYSLER CORP.
3. Insert a screwdriver between the fuel pump module and the top of the level sensor housing (Fig 3). Push level sensor down slightly.

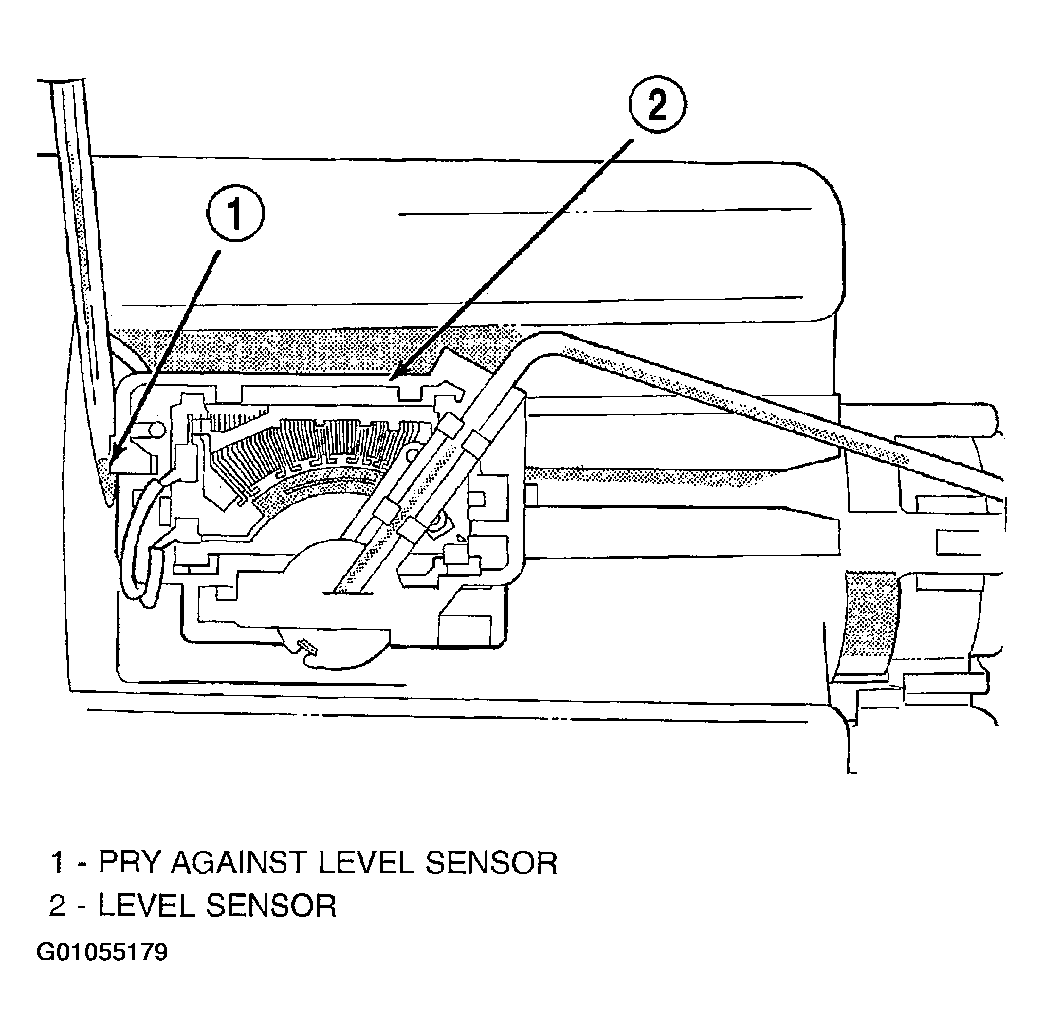

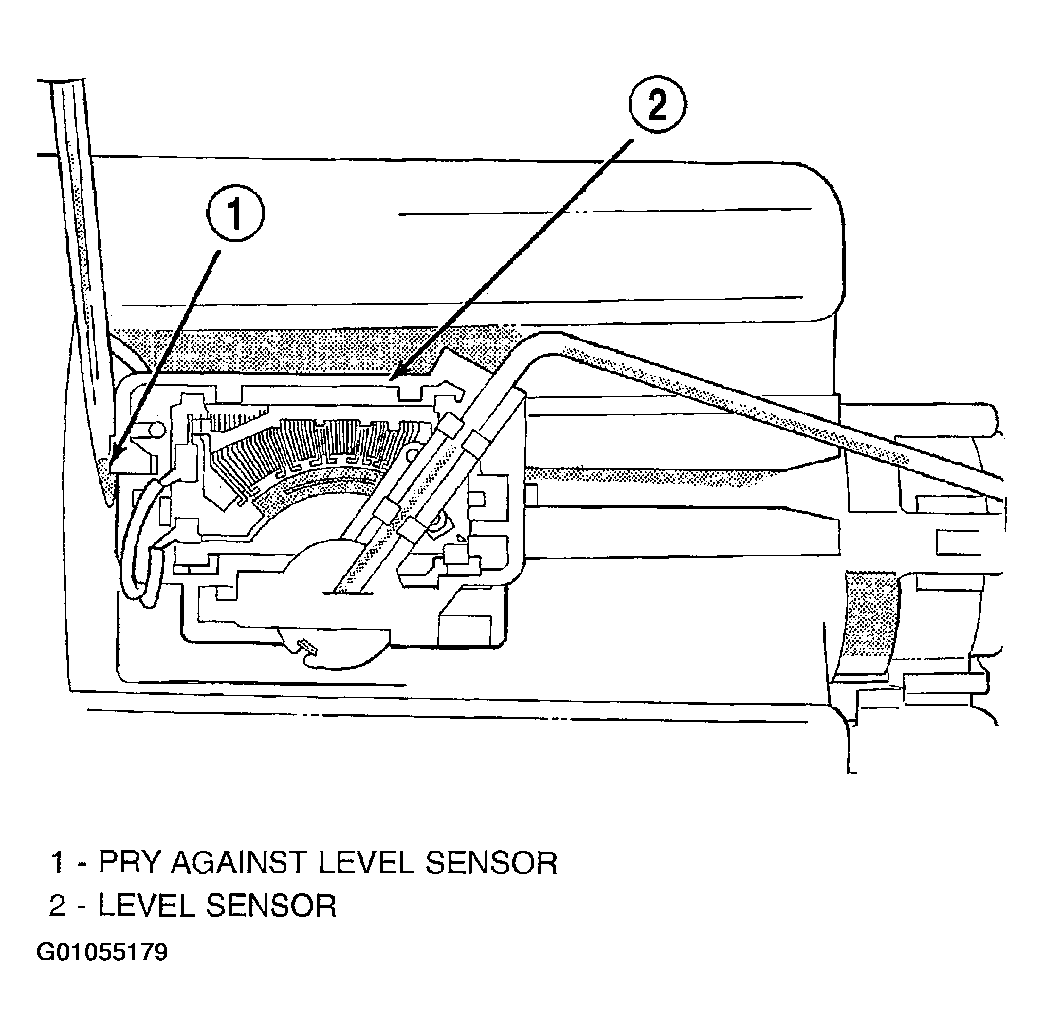

   Fig 3: Loosening Level Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
4. Slide level sensor wires through opening fuel pump module (Fig 4).

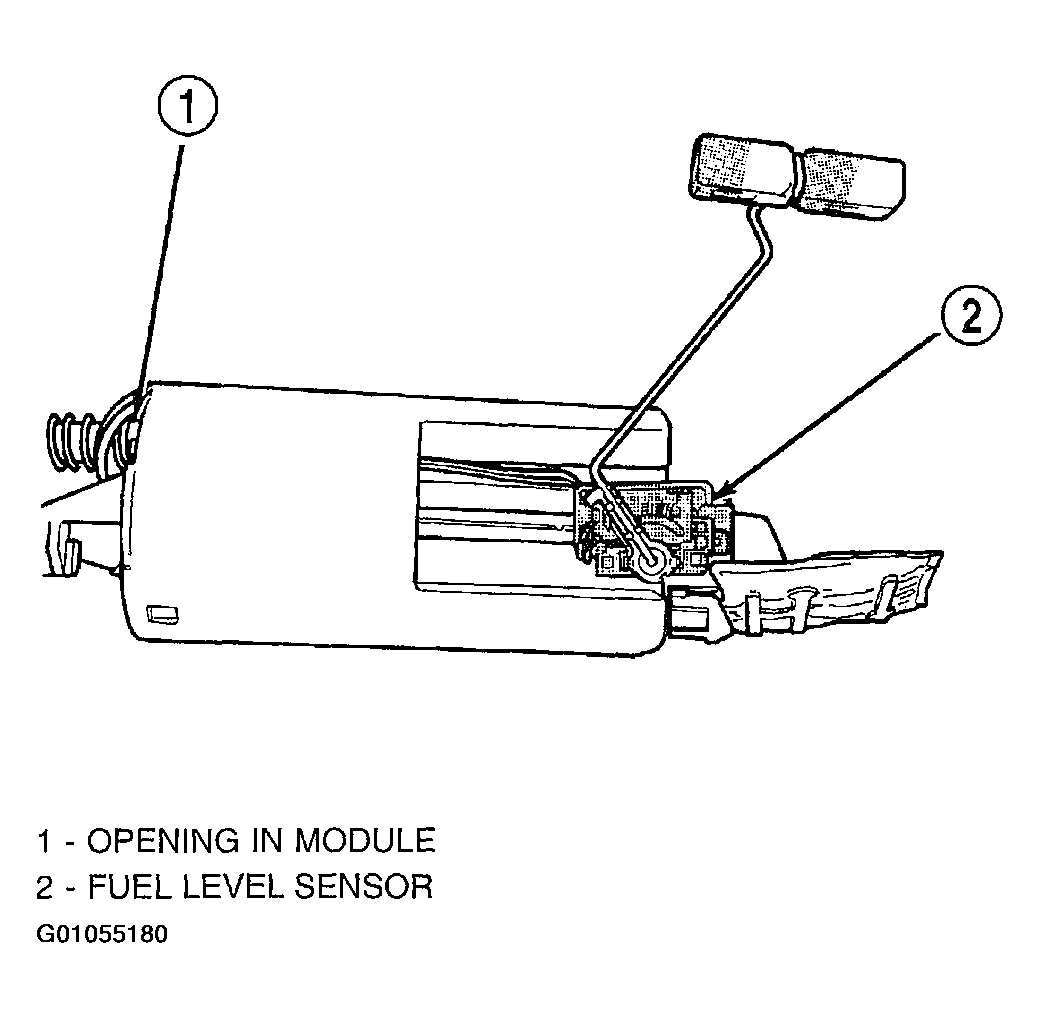

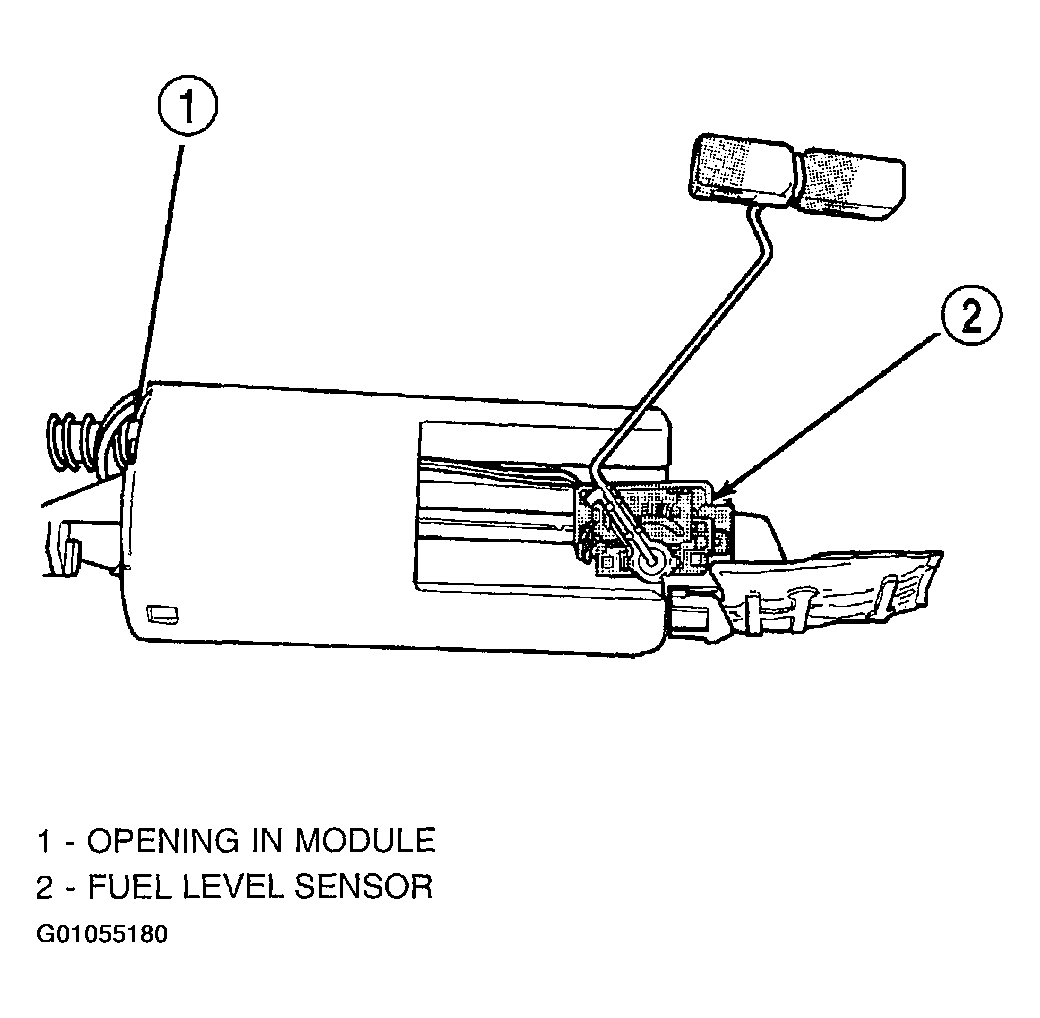

   Fig 4: Removing/Installation Level Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
5. Slide level sensor out of channel in module.
