Fuel Pressure Regulator: Installation

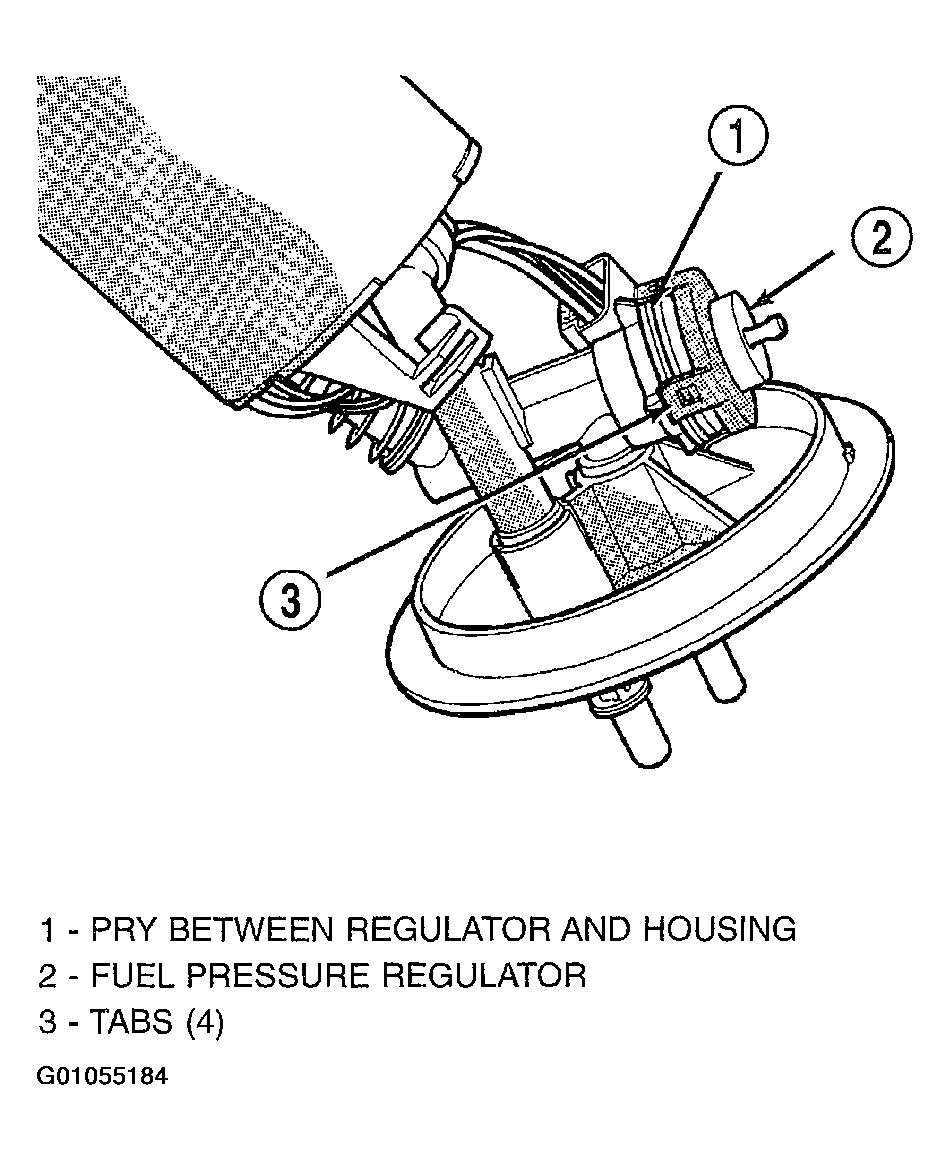

The fuel pressure regulator is part of the fuel pump module (Figure). Remove the fuel pump module from the fuel tank to access the fuel pressure regulator (Refer to FUEL PUMP MODULE - REMOVAL ).

1. Lightly lubricate the O-rings with clean engine oil and place them into opening in pump module (Fig 1).

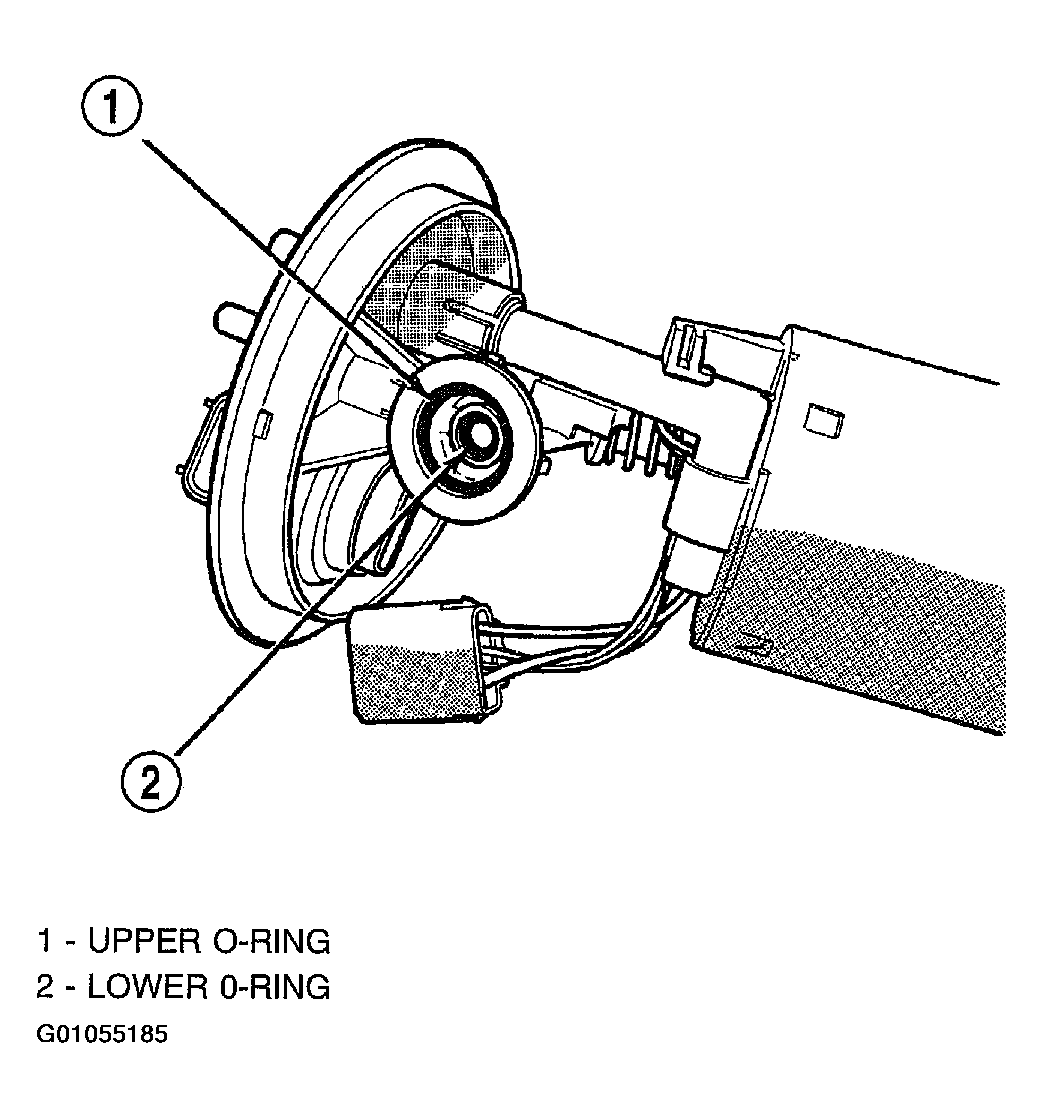

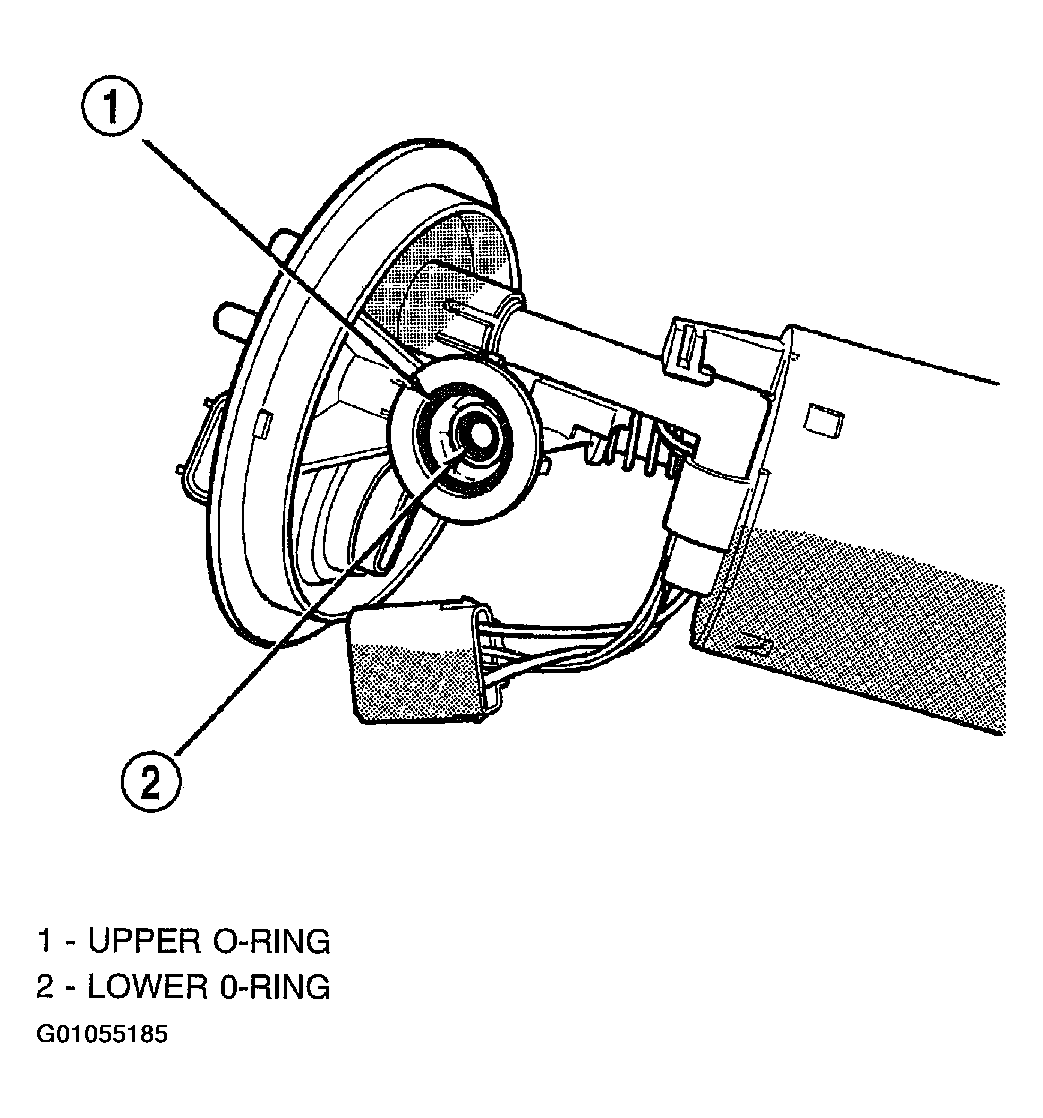

   Fig 1: Identifying Fuel Pressure Regulator O-rings

   Courtesy of DAIMLERCHRYSLER CORP.
2. Push regulator into opening in pump module.
3. Fold tangs on regulator retainer over tabs on housing.
4. Install Fuel Pump Module (Refer to FUEL PUMP MODULE - INSTALLATION ).
