Camshaft Position Sensor: Description

The camshaft position sensor is mounted in the front of the timing case cover ( Fig 1 ). It is a hall effect device.

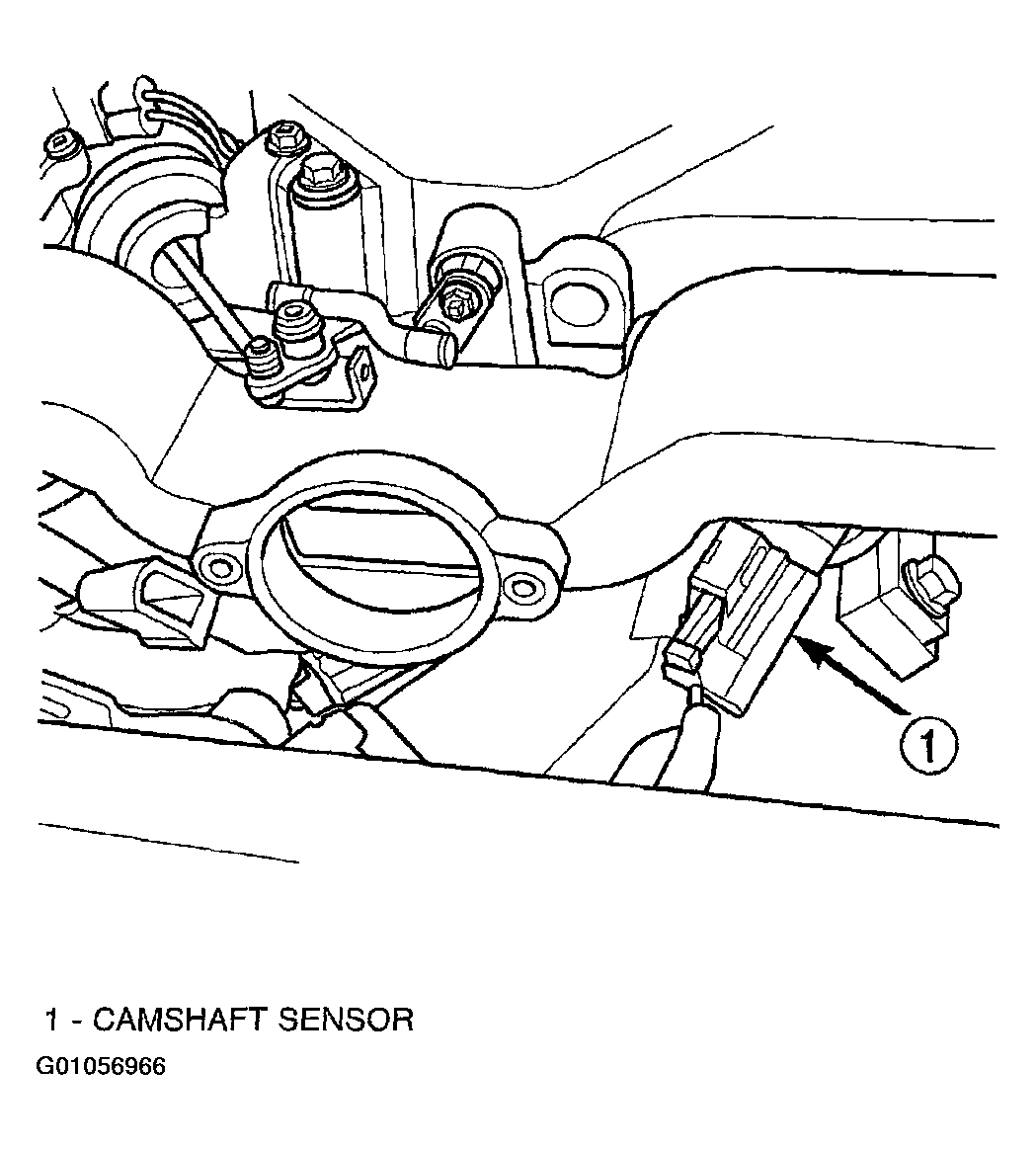

Fig 1: Identifying Camshaft Position Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.
