Ignition Coil: Description

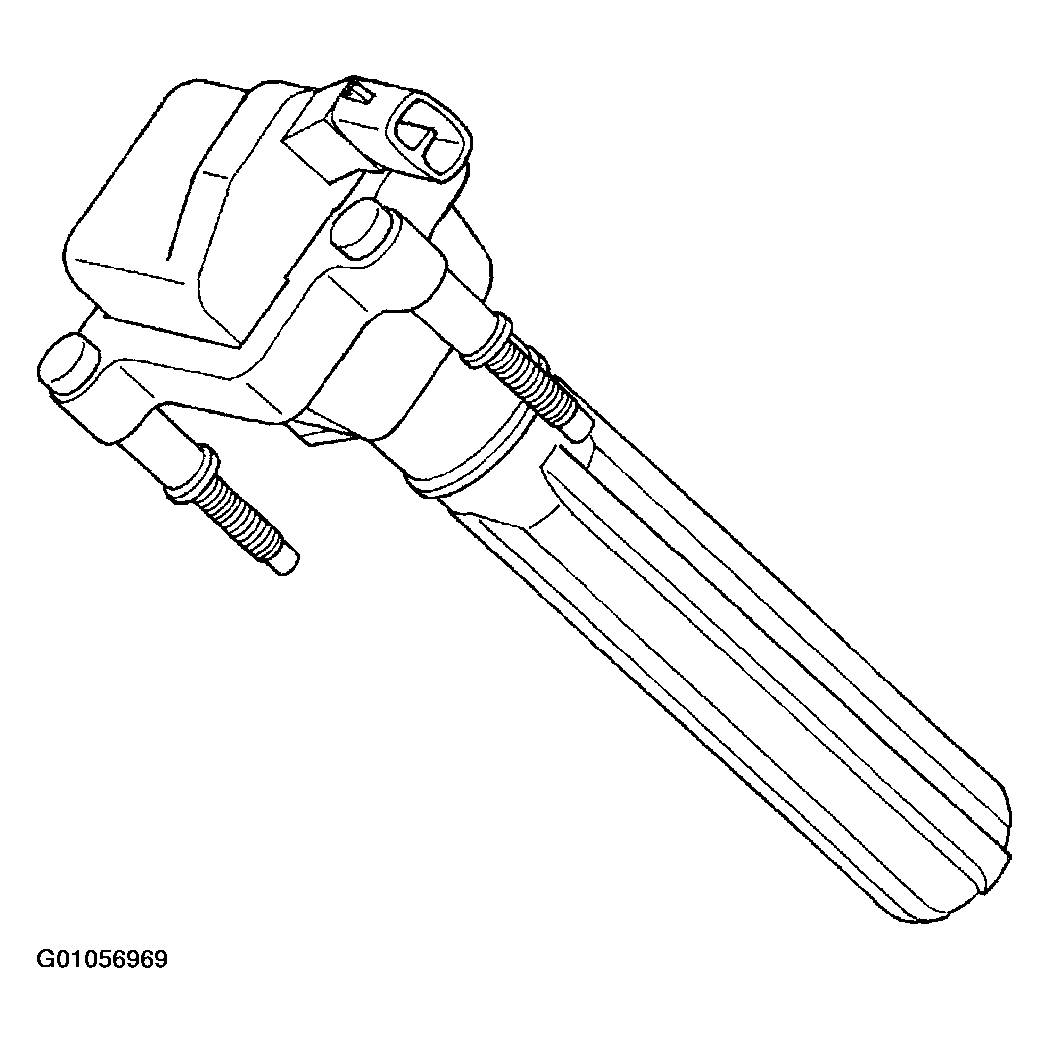

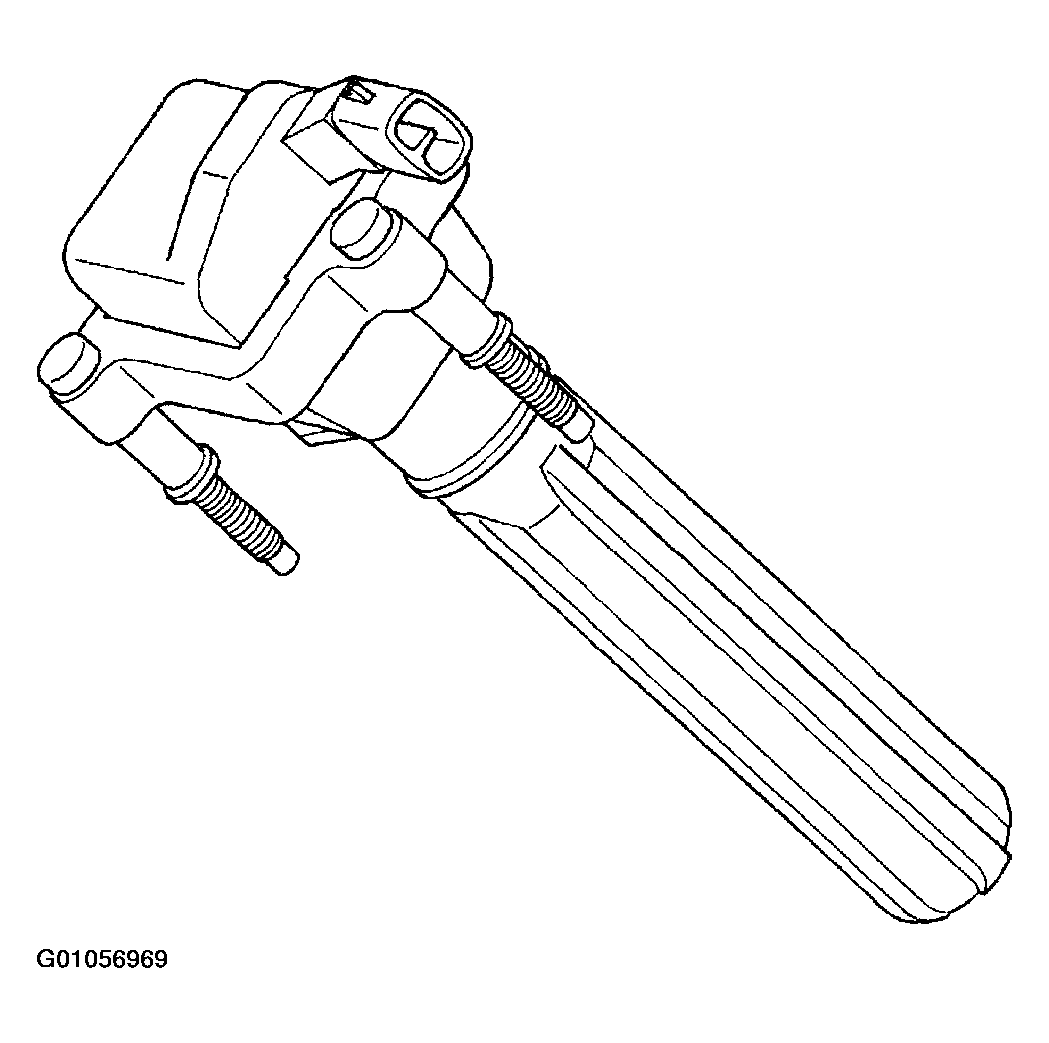

The engines are equipped with a coil on plug ignition system. Each cylinder has a dedicated coil that sits atop each plug (Fig 1 ). No secondary wires are required and connection from the coil to plug is made with a boot that is attached to the coil. The Powertrain Control Module (PCM) determines which coil to charge and fire at the correct time.
