Crankshaft Position Sensor: Removal

The crankshaft sensor is located on the passengers side of the engine bell housing, (Fig 1). The bottom of the sensor sits above the drive plate.

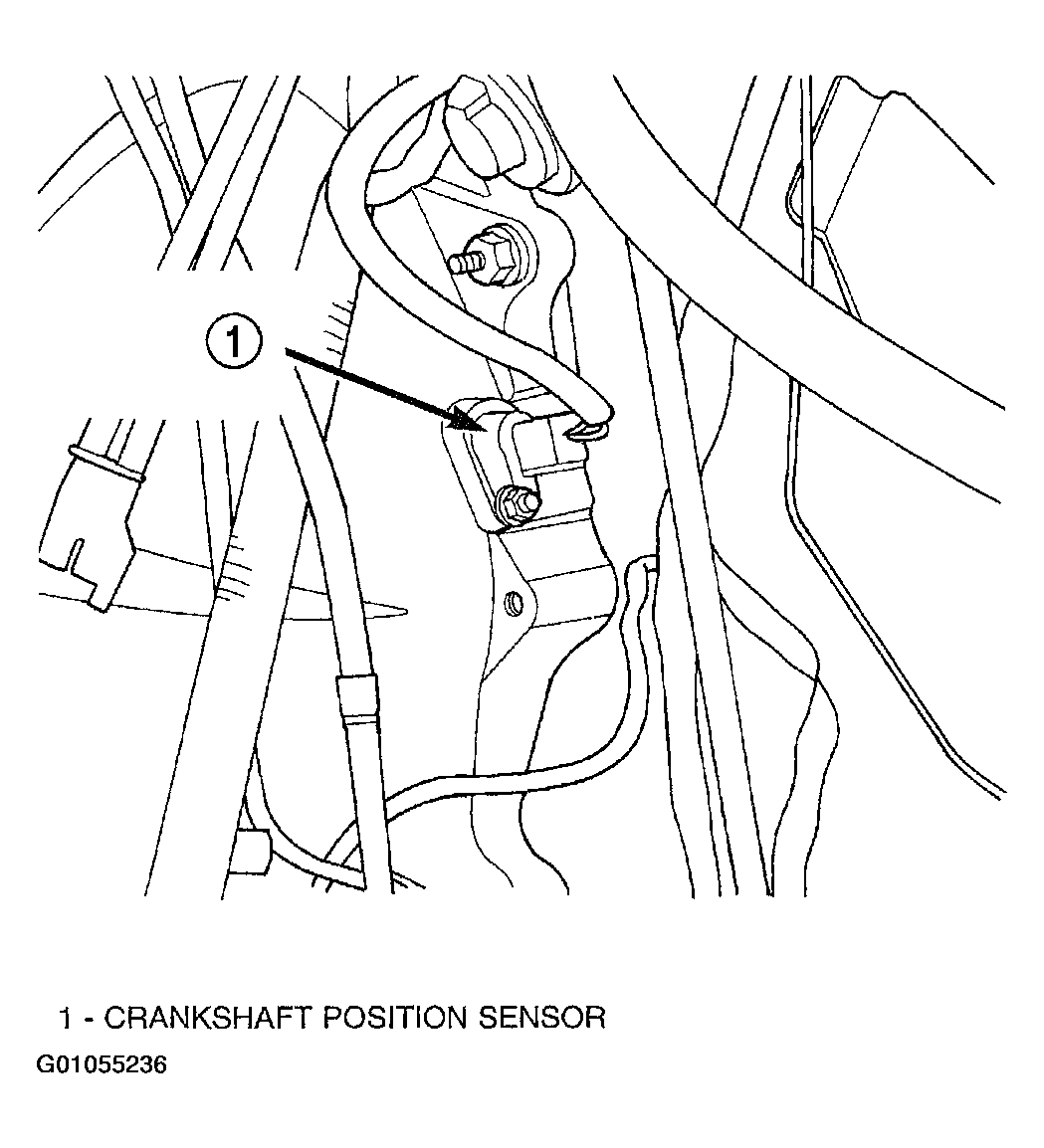

Fig 1: Identifying Crankshaft Position Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1. Raise and support vehicle.
2. Disconnect electrical connector from crankshaft position sensor.
3. Remove sensor mounting screw. Remove sensor.
