Special Tools: Fuel

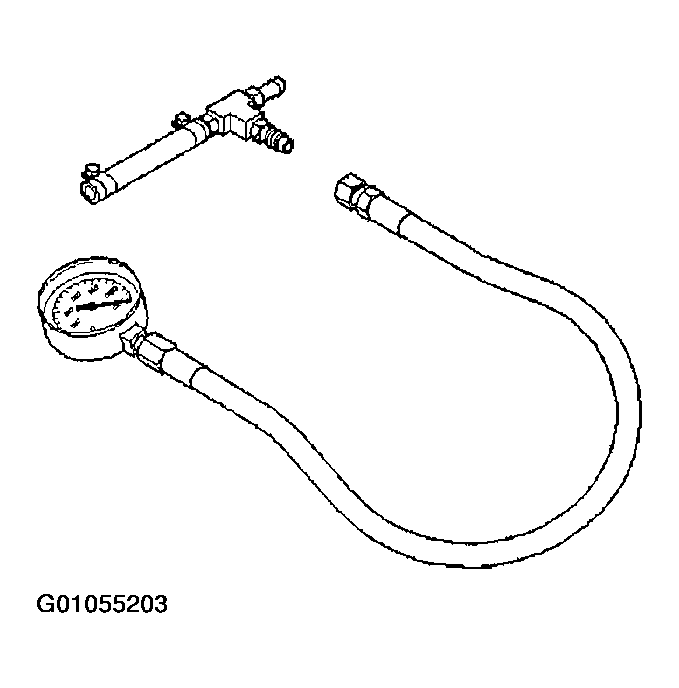

Fig 1: Identifying Pressure Gauge Assembly Tool C-4799-B

Courtesy of DAIMLERCHRYSLER CORP.

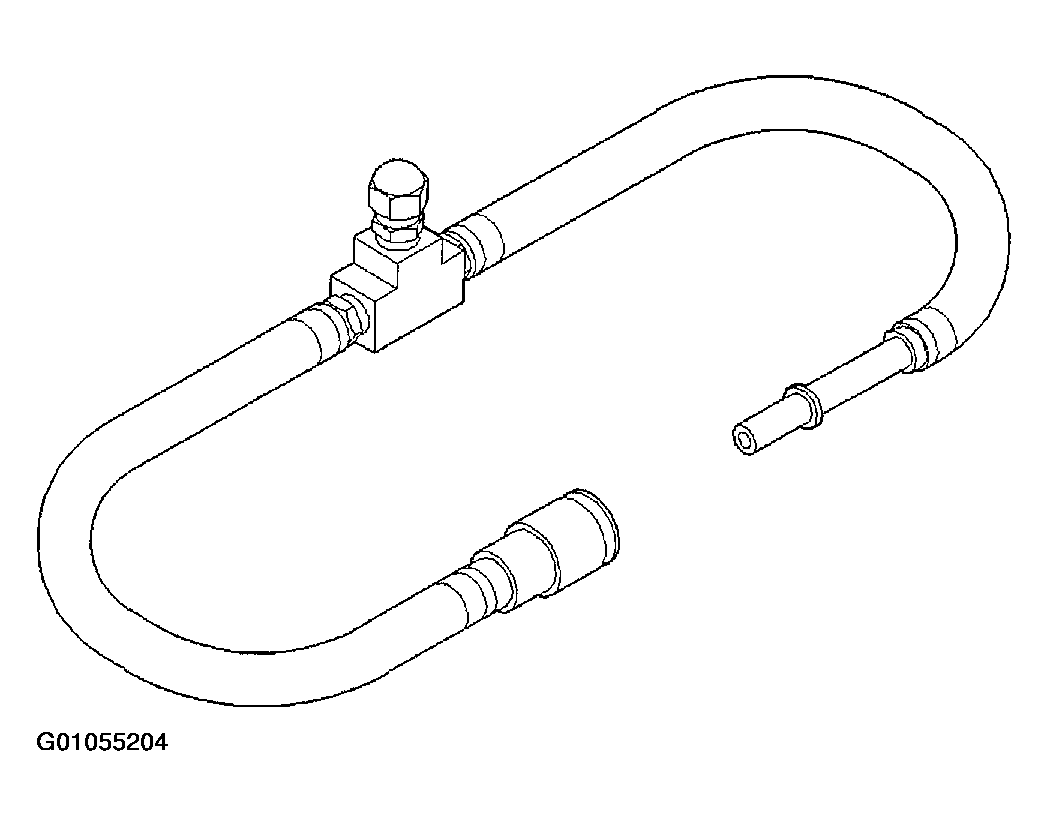

Fig 2: Identifying Fuel Pressure Test Adapter Tool 6539

Courtesy of DAIMLERCHRYSLER CORP.

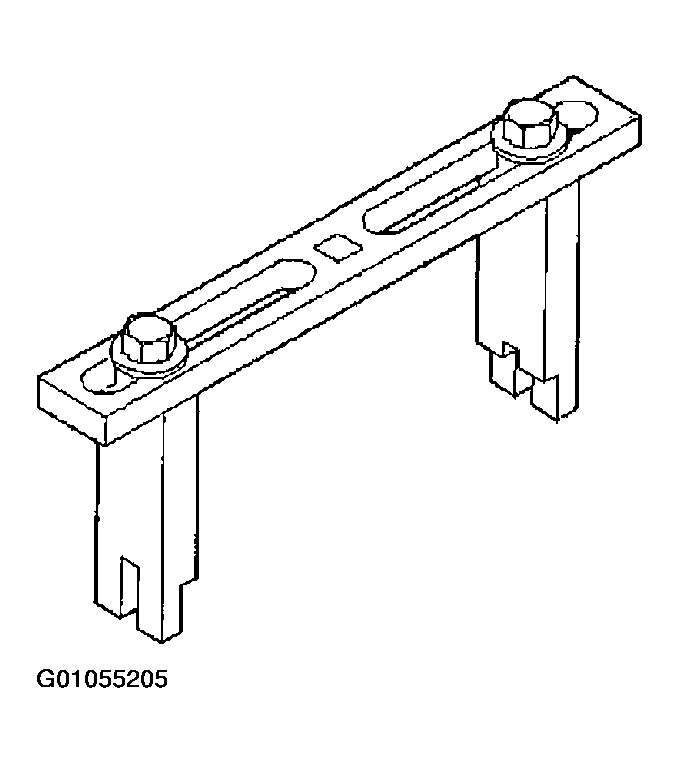

Fig 3: Identifying Spanner Wrench Tool 6856

Courtesy of DAIMLERCHRYSLER CORP.

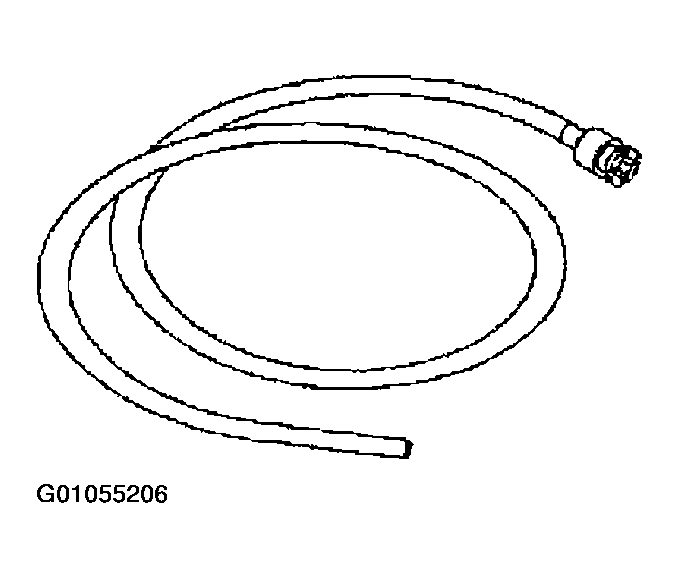

Fig 4: Identifying Fuel Line Adapter Tool 1/4

Courtesy of DAIMLERCHRYSLER CORP.

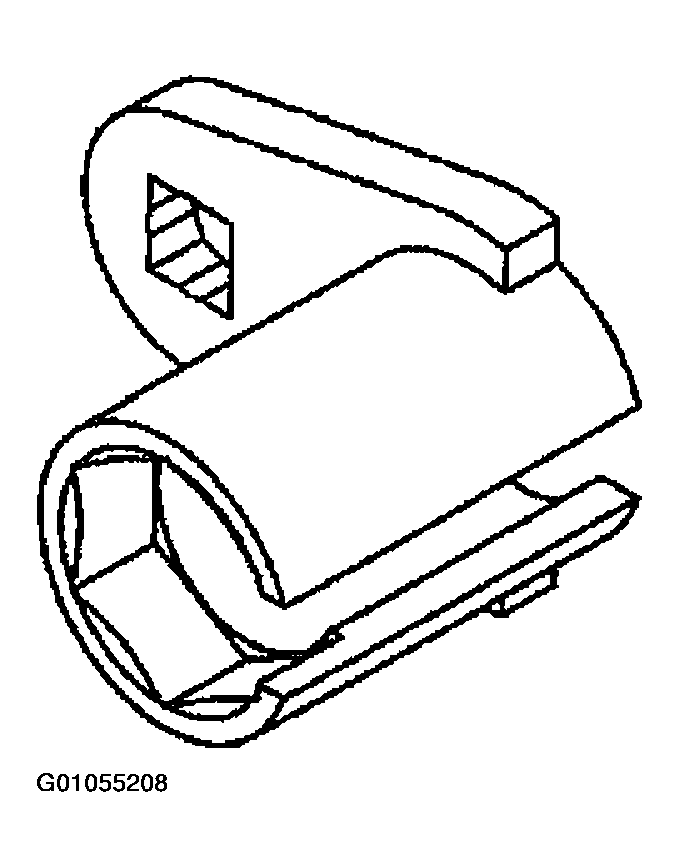

Fig 5: Removing And Installing O2S (Oxygen Sensor)

Courtesy of DAIMLERCHRYSLER CORP.

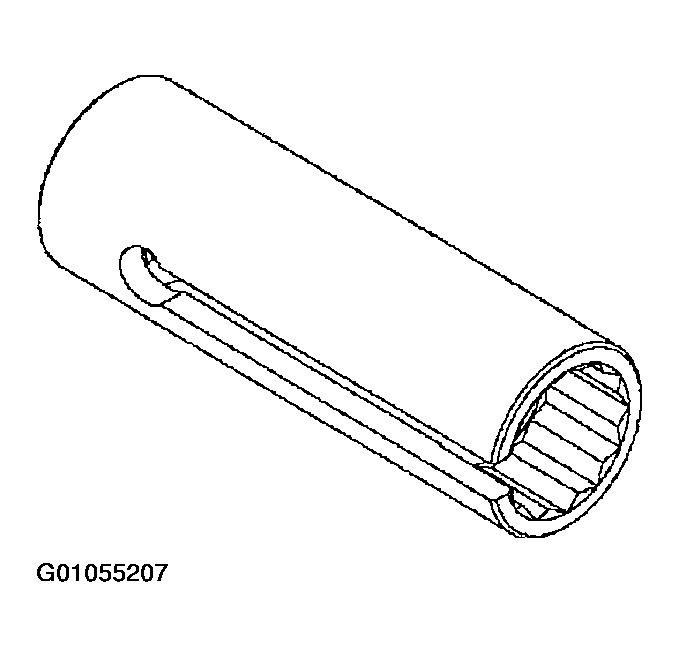

Fig 6: Removing And Installing O2S (Oxygen Sensor) - 8439

Courtesy of DAIMLERCHRYSLER CORP.
