O2 Sensor: Description

The upstream oxygen sensor threads into the outlet flange of the exhaust manifold (Fig 1) or (Fig 2).

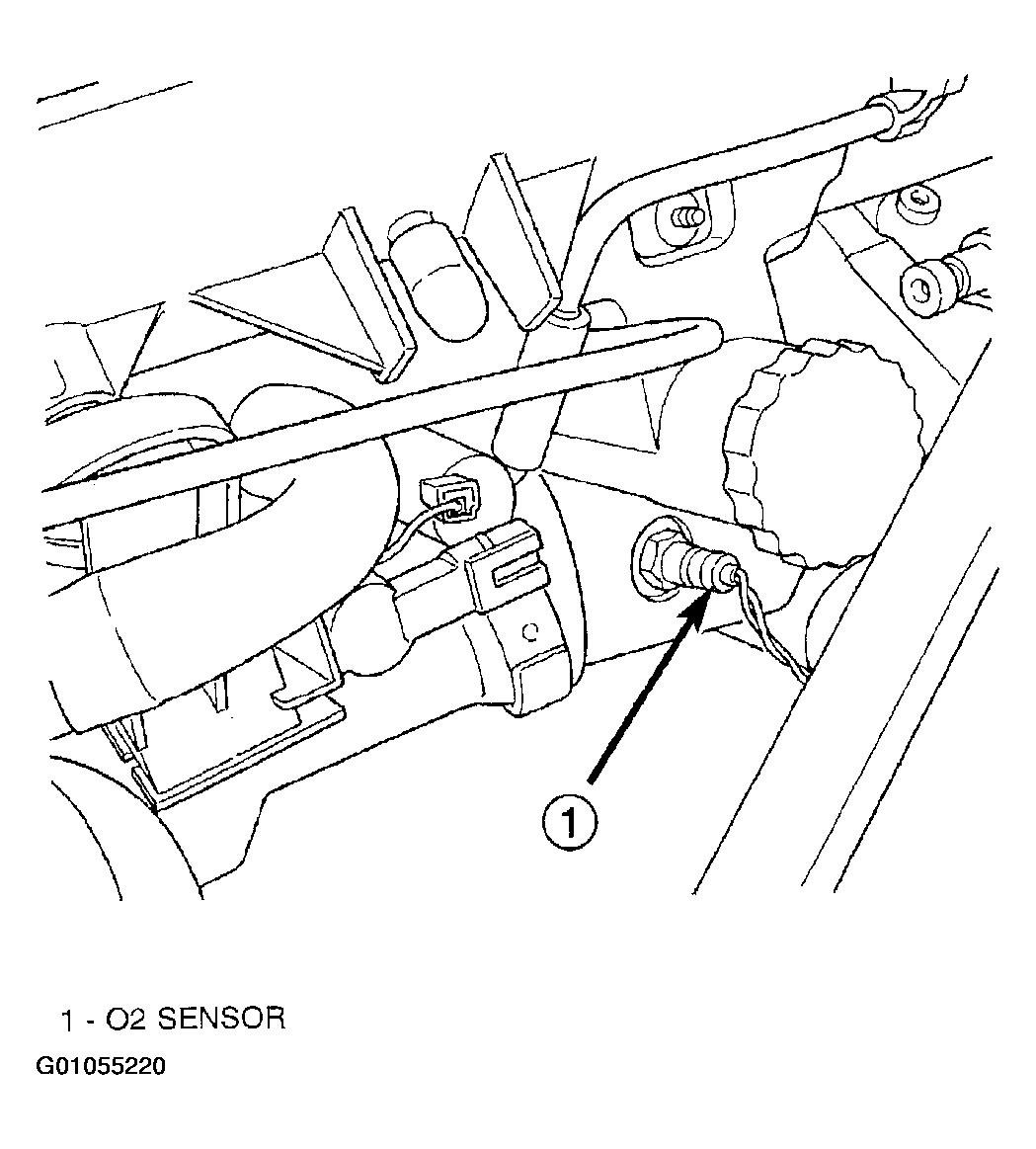

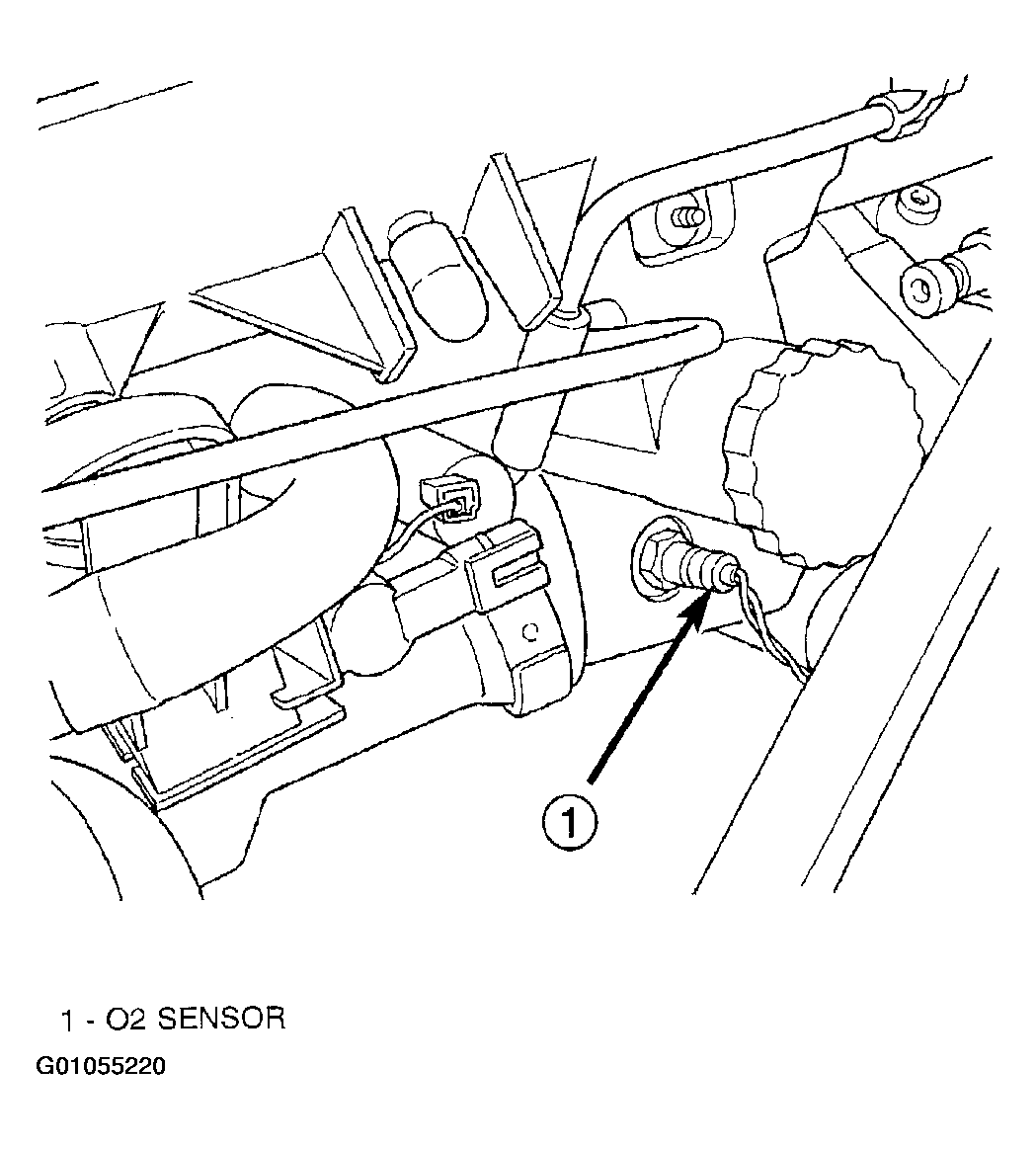

Fig 1: Identifying Heated Oxygen Sensor 1/1

Courtesy of DAIMLERCHRYSLER CORP.

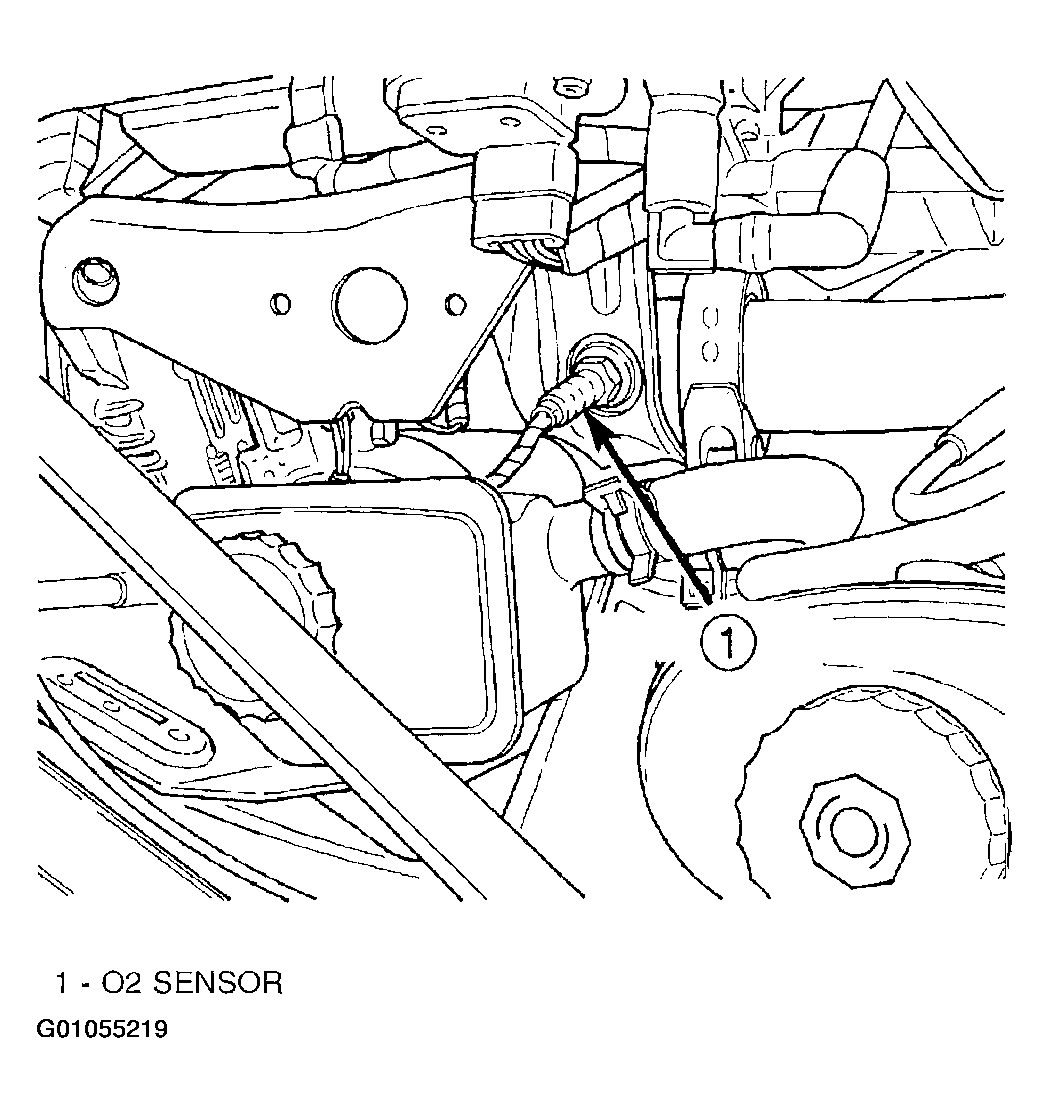

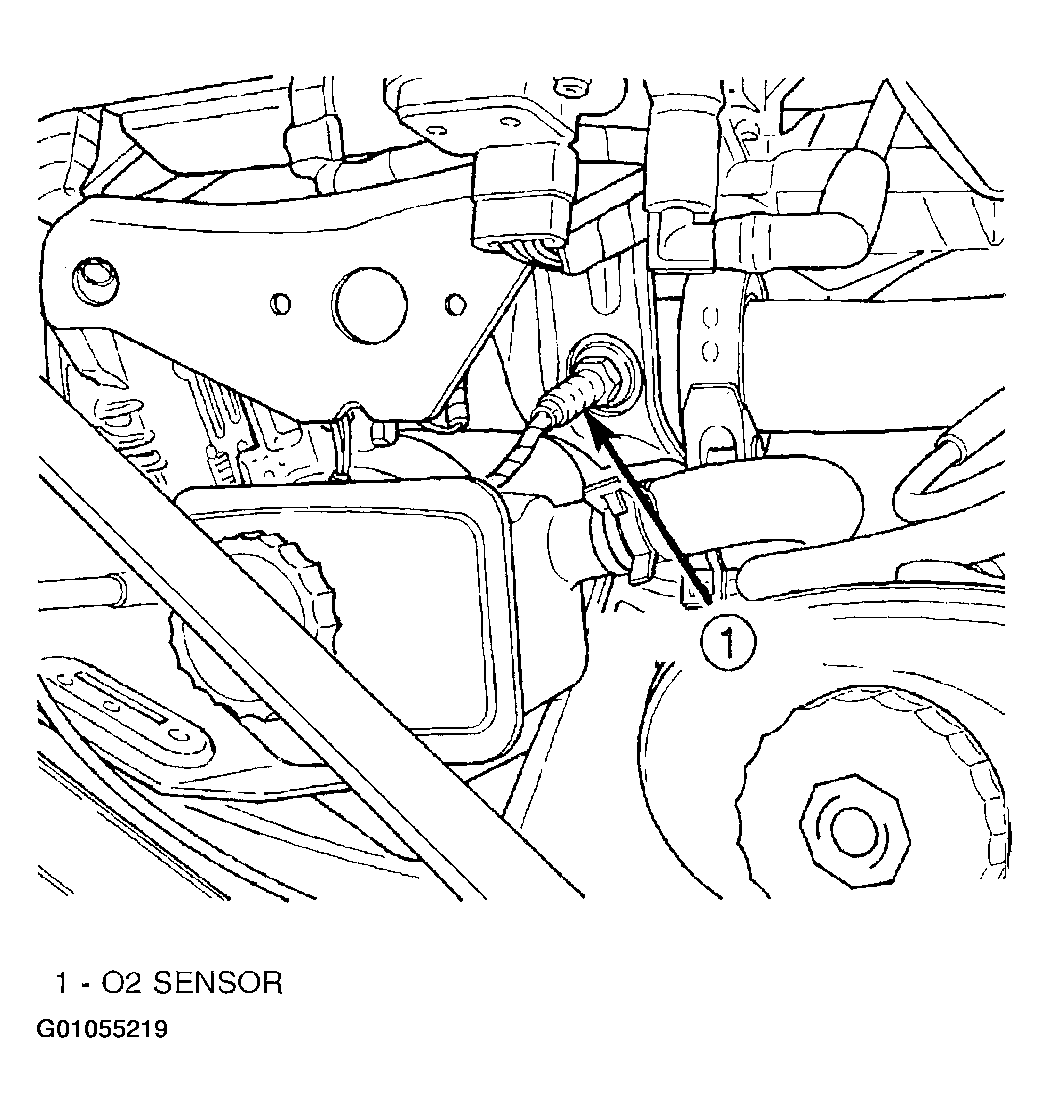

Fig 2: Identifying Heated Oxygen Sensor 2/1

Courtesy of DAIMLERCHRYSLER CORP.

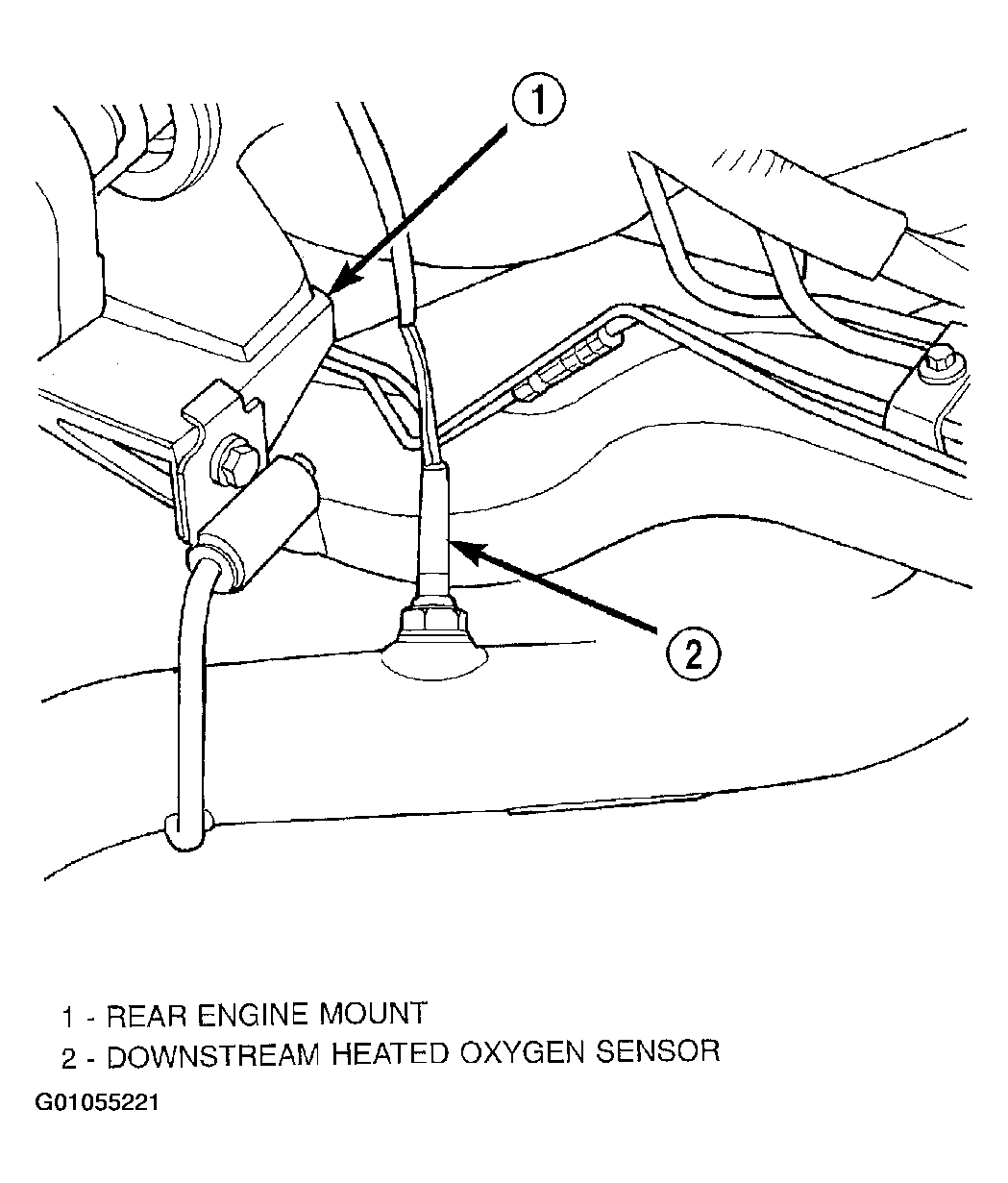

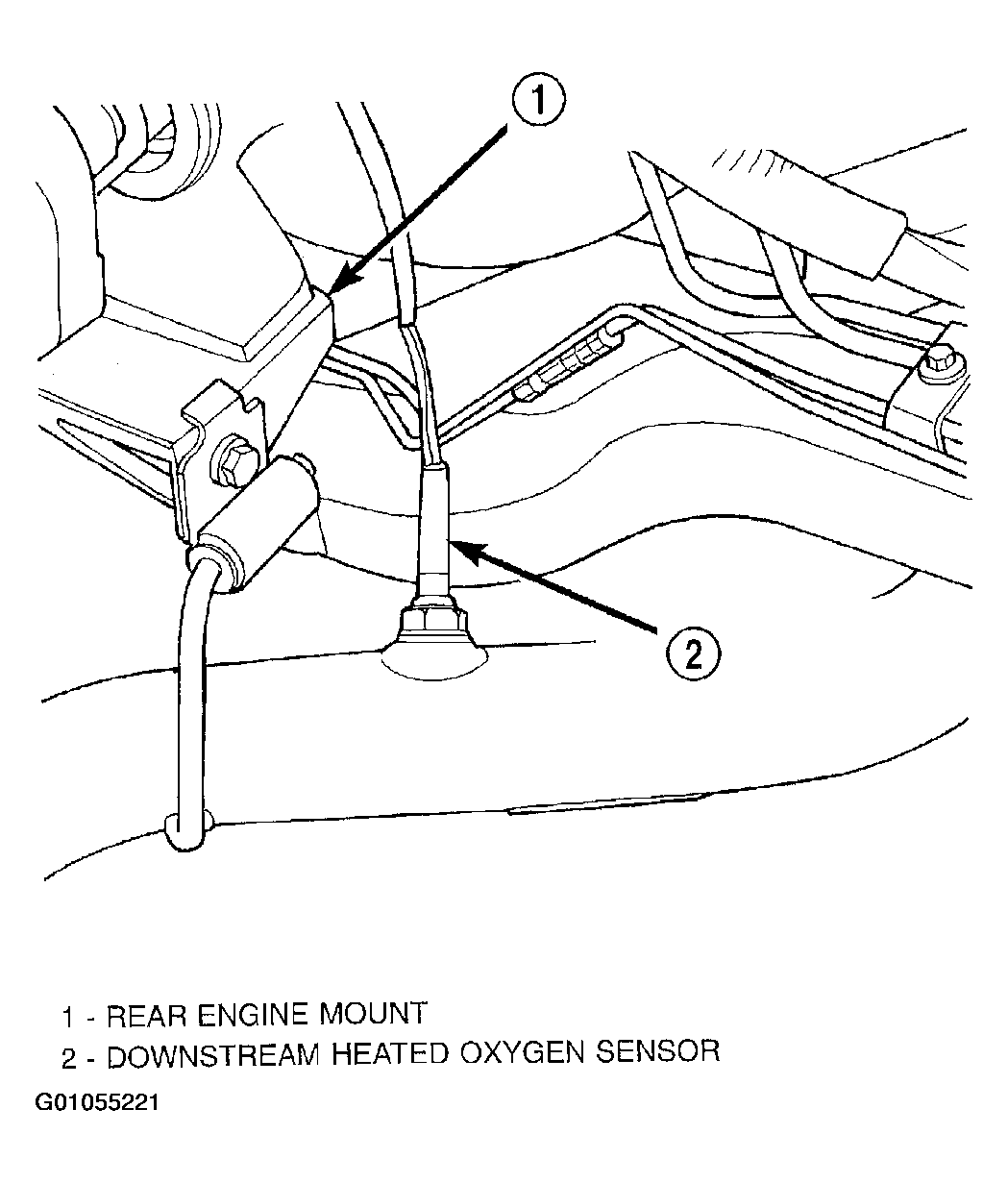

The downstream heated oxygen sensor threads into the outlet pipe at the rear of the catalytic convertor (Fig 3).

Fig 3: Identifying Heated Oxygen Sensor 1/2, 2/2

Courtesy of DAIMLERCHRYSLER CORP.
