Charts And Graphs: Notes

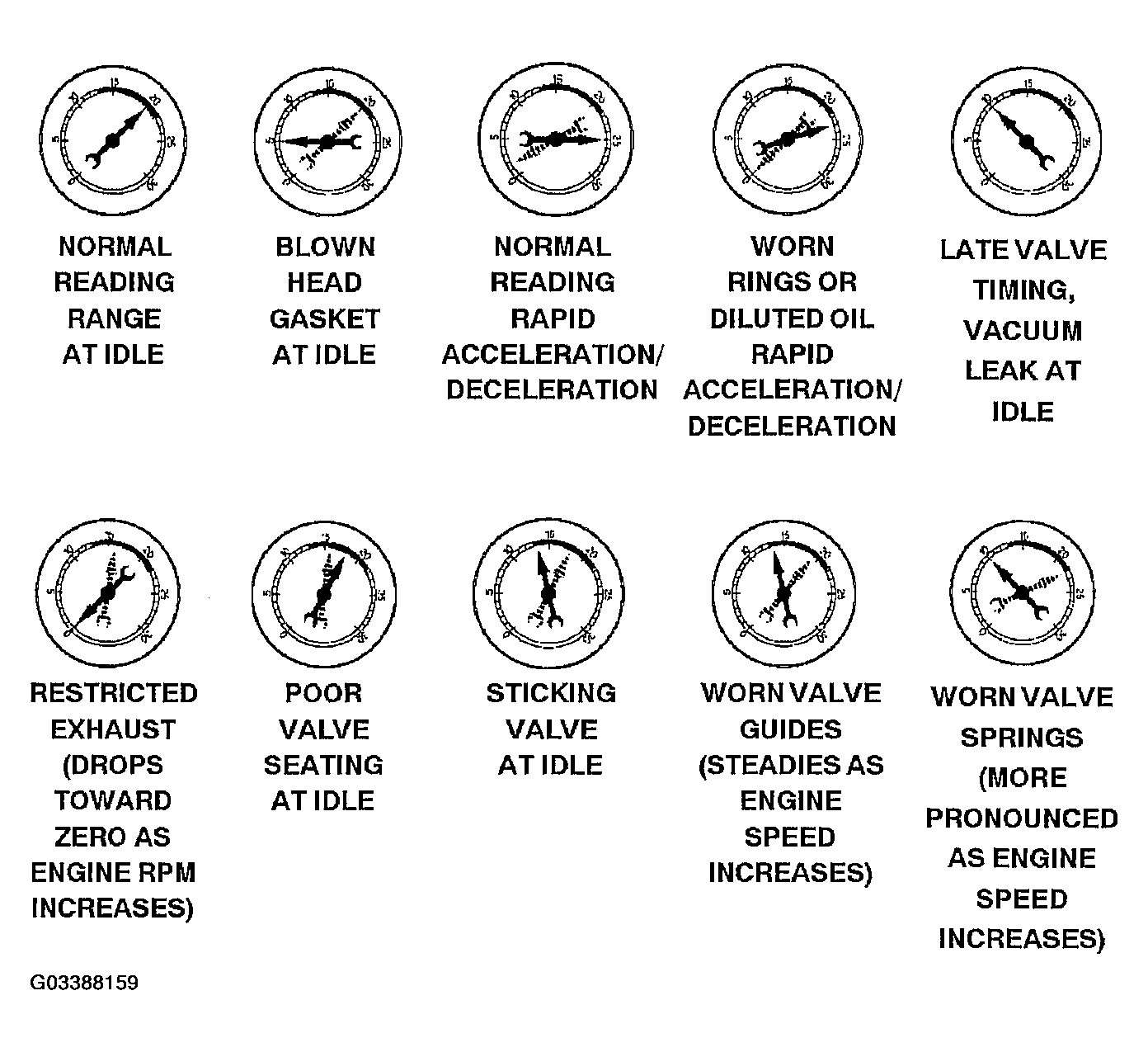

Fig 1: Identifying Vacuum Gauge Reading Displays

Courtesy of DAIMLERCHRYSLER CORP.

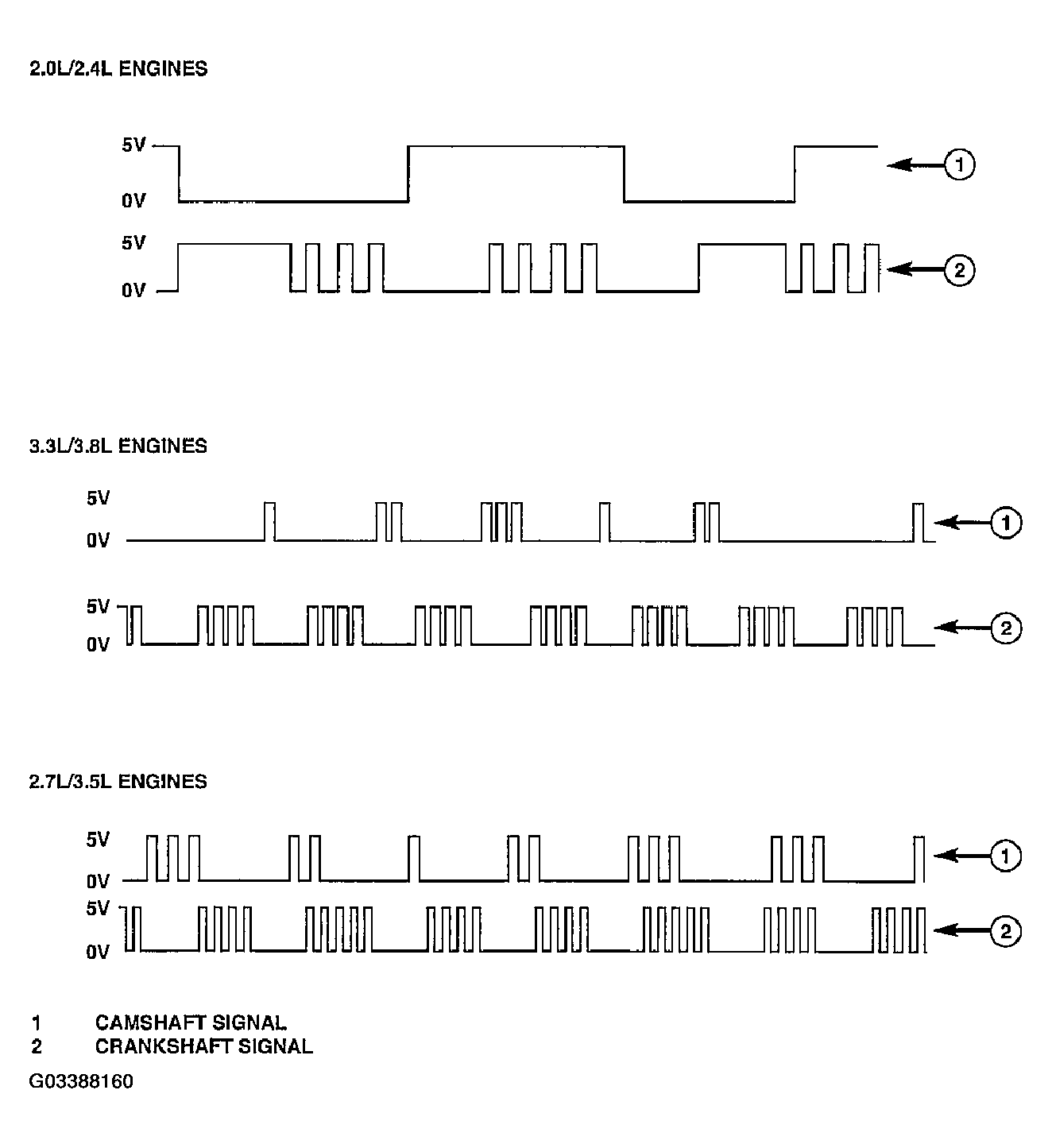

Fig 2: Identifying Typical Scope Patterns For Camshaft & Crankshaft Signal

Courtesy of DAIMLERCHRYSLER CORP.

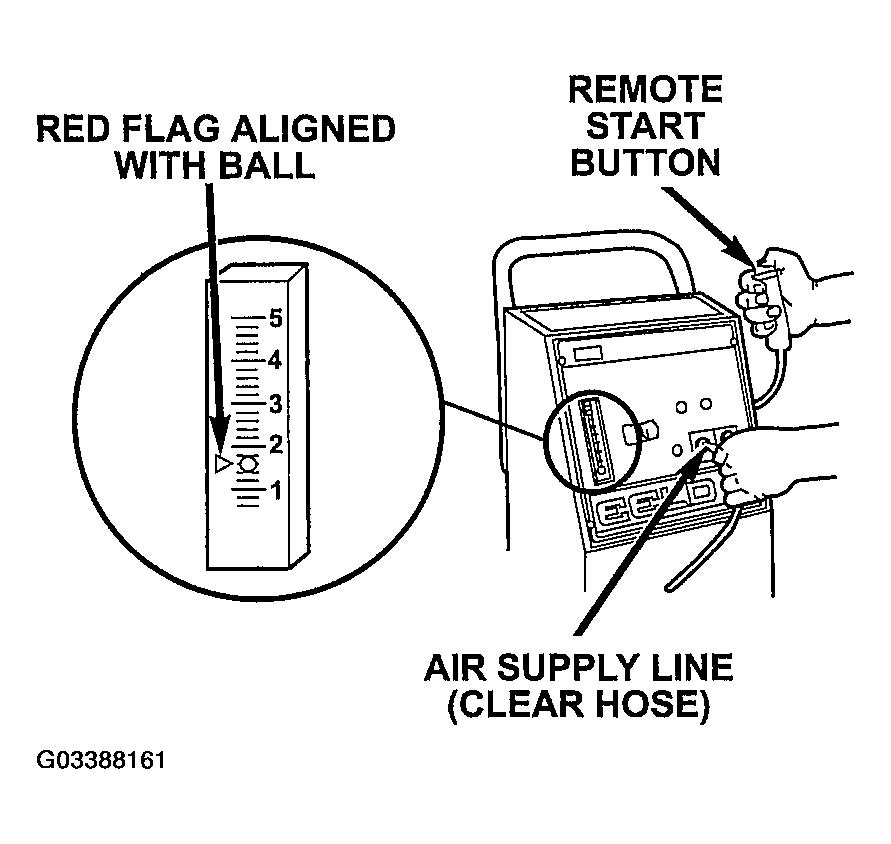

Fig 3: Identifying EELD Calibration

Courtesy of DAIMLERCHRYSLER CORP.

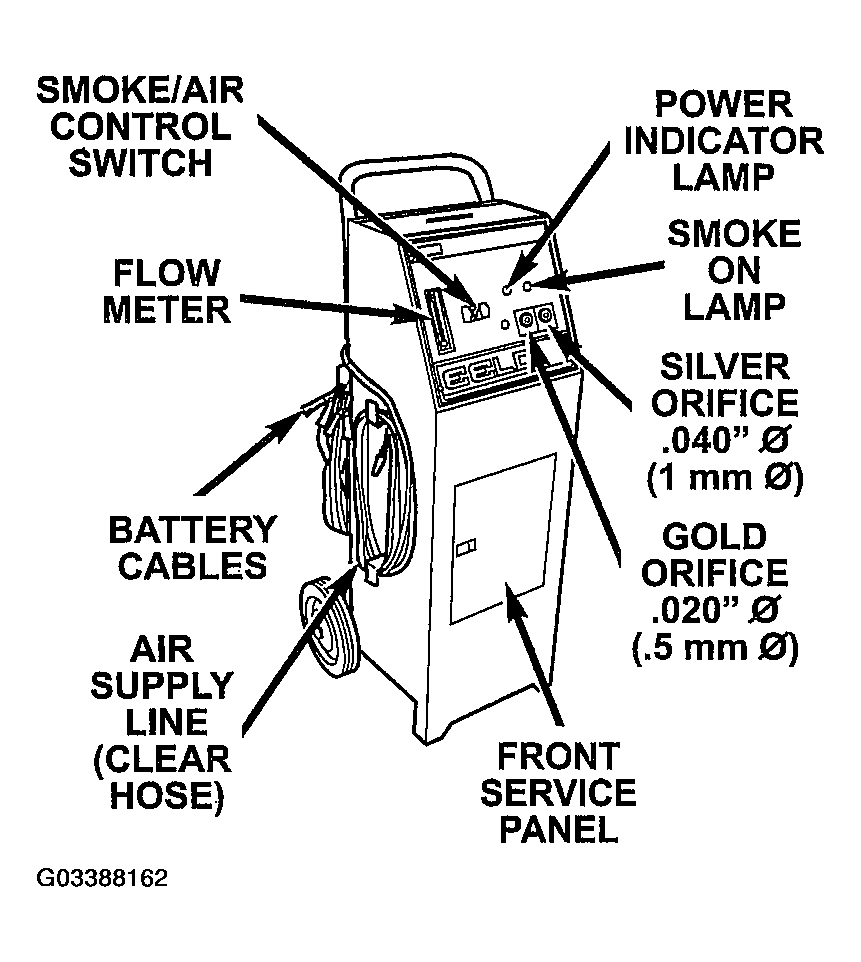

Fig 4: Identifying EELD Components (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

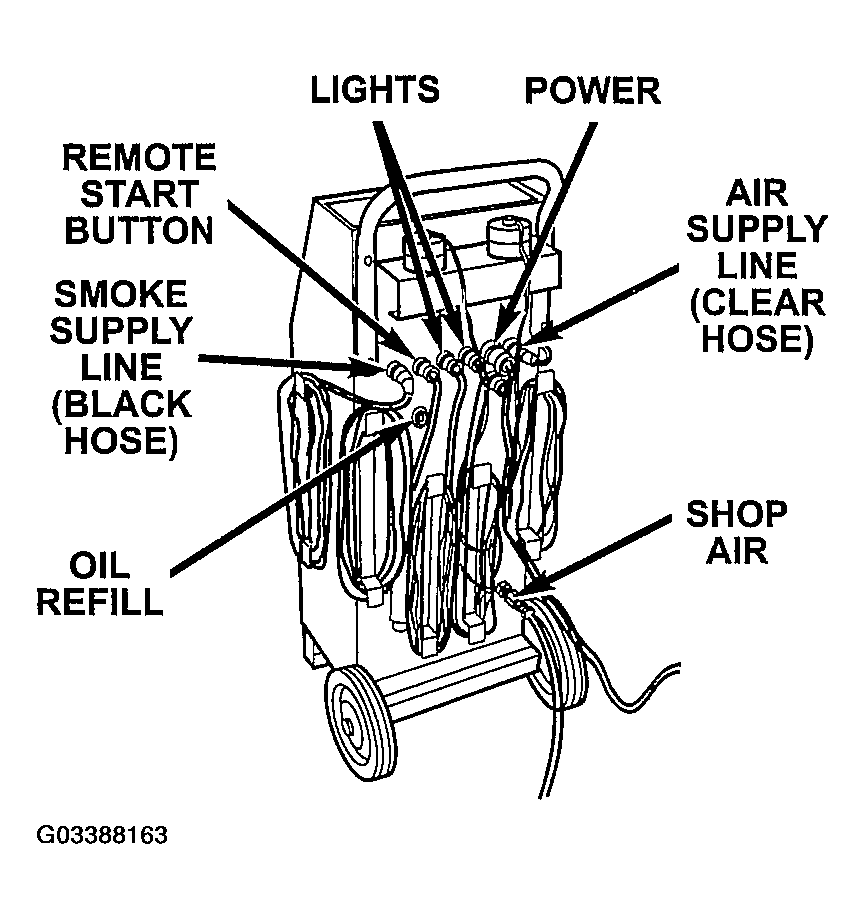

Fig 5: Identifying EELD Components (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
