Controls & Solenoids

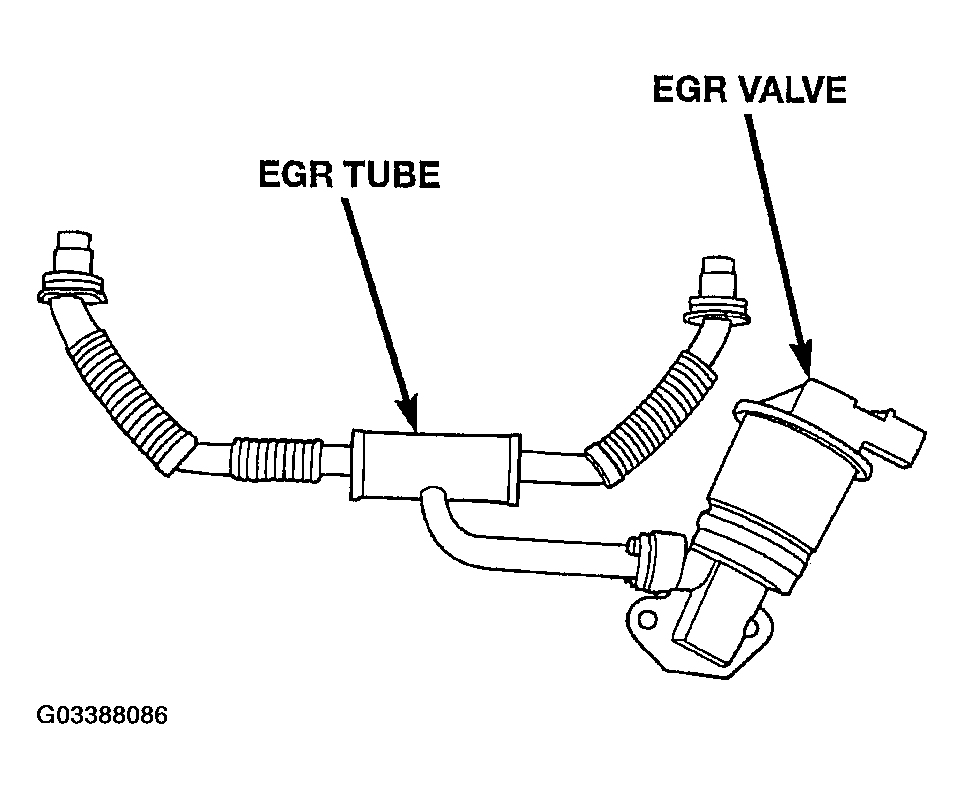

Fig 1: Identifying EGR Component Locations
G03388086Courtesy of DAIMLERCHRYSLER CORP.

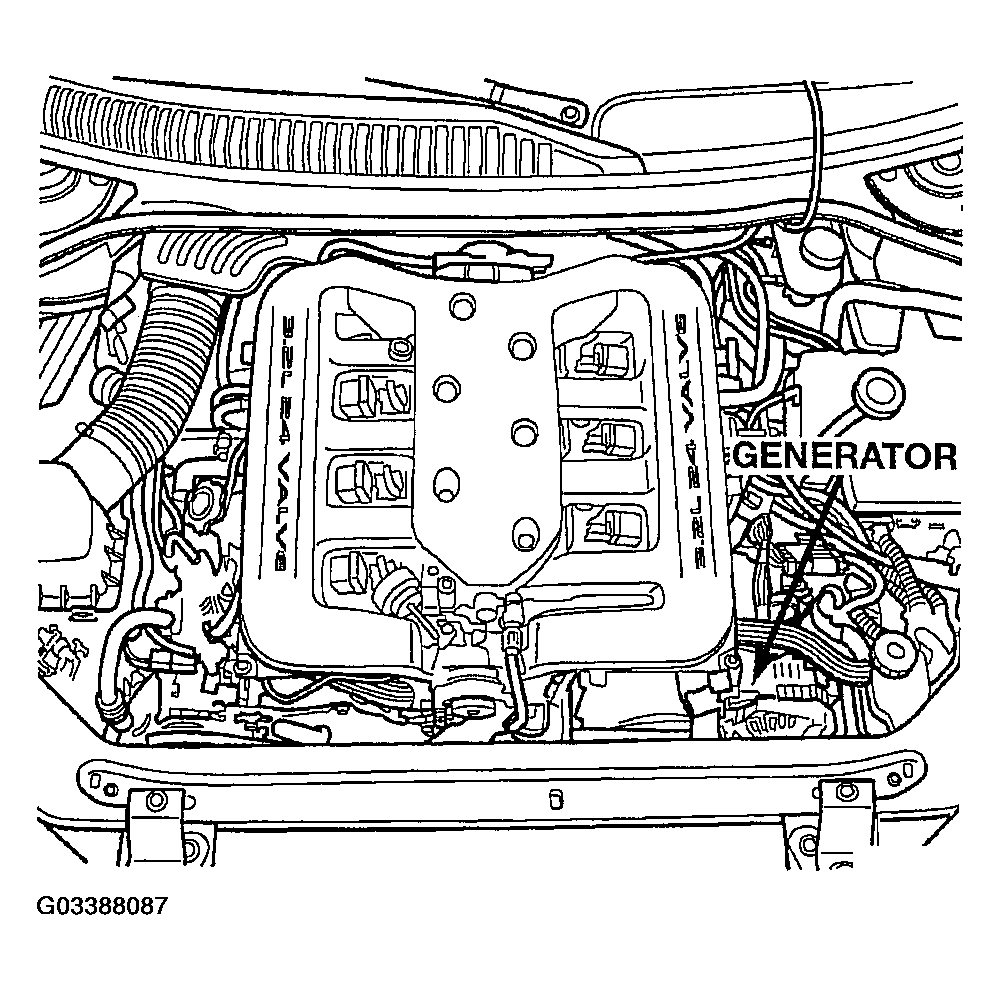

Fig 2: Identifying Generator Location
G03388087Courtesy of DAIMLERCHRYSLER CORP.

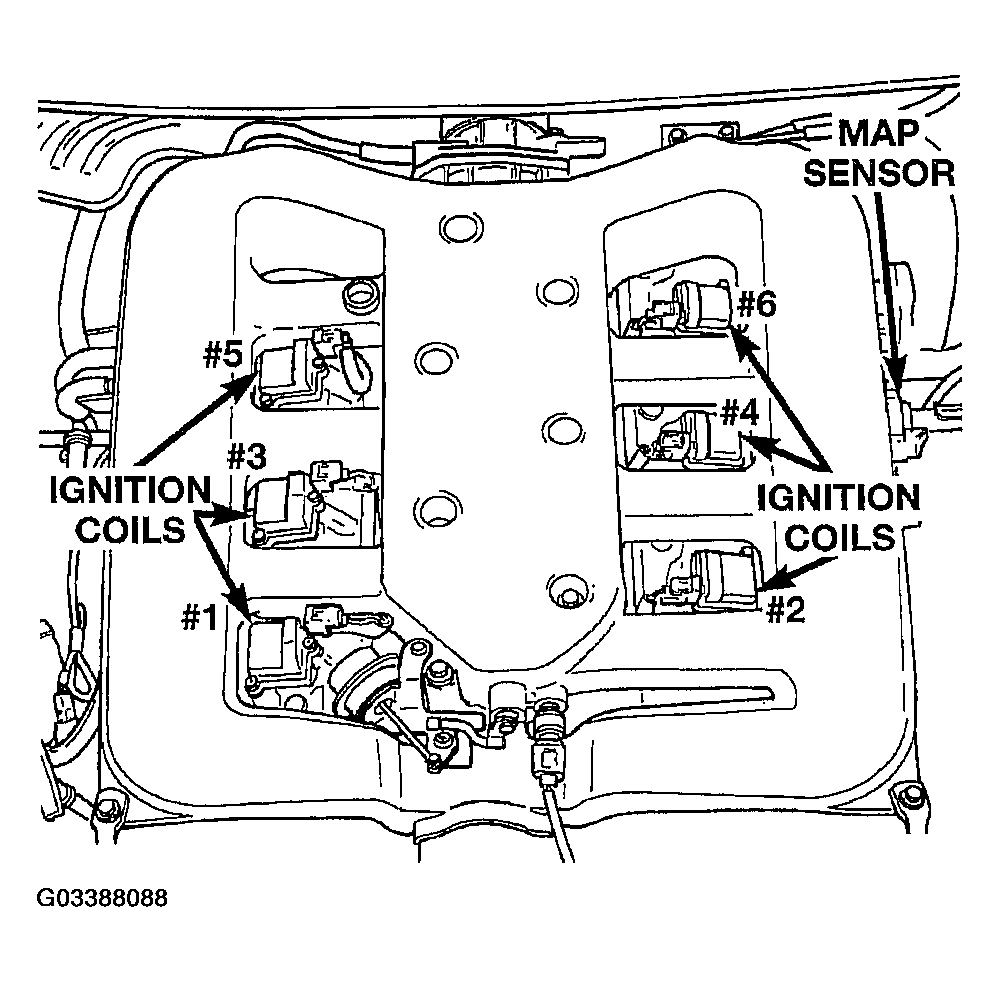

Fig 3: Identifying MAP Sensor & Coil Locations
G03388088Courtesy of DAIMLERCHRYSLER CORP.

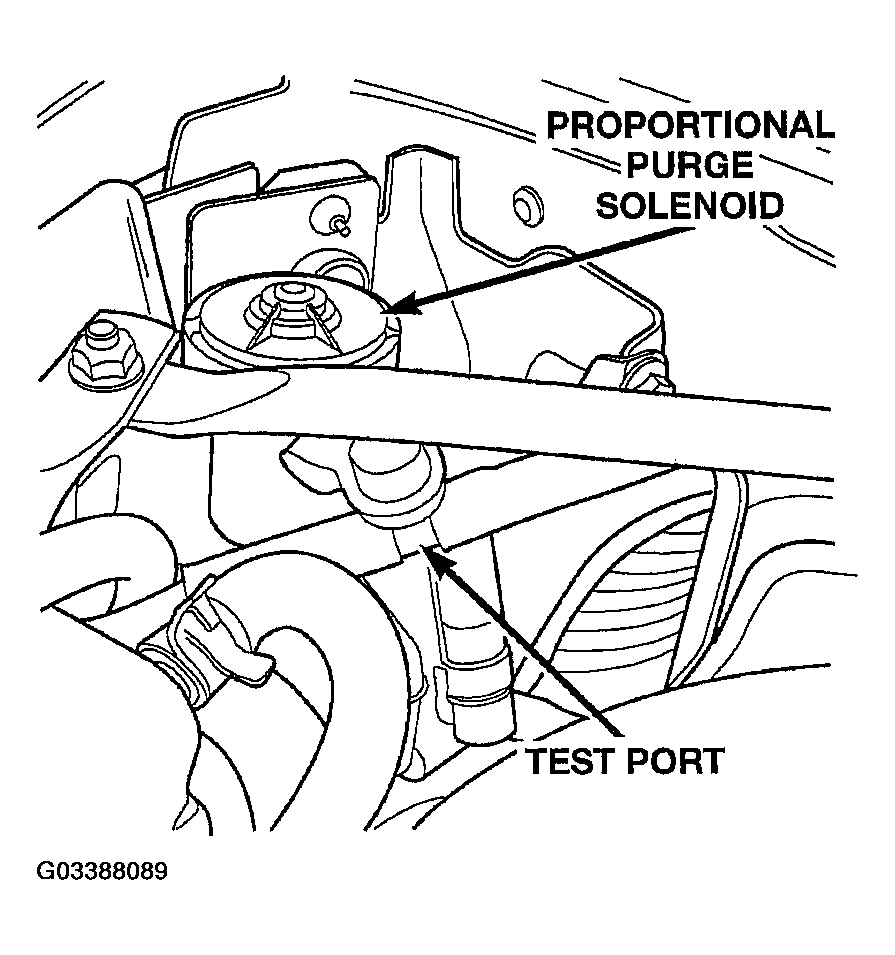

Fig 4: Identifying Proportional Purge Solenoid Location
G03388089Courtesy of DAIMLERCHRYSLER CORP.

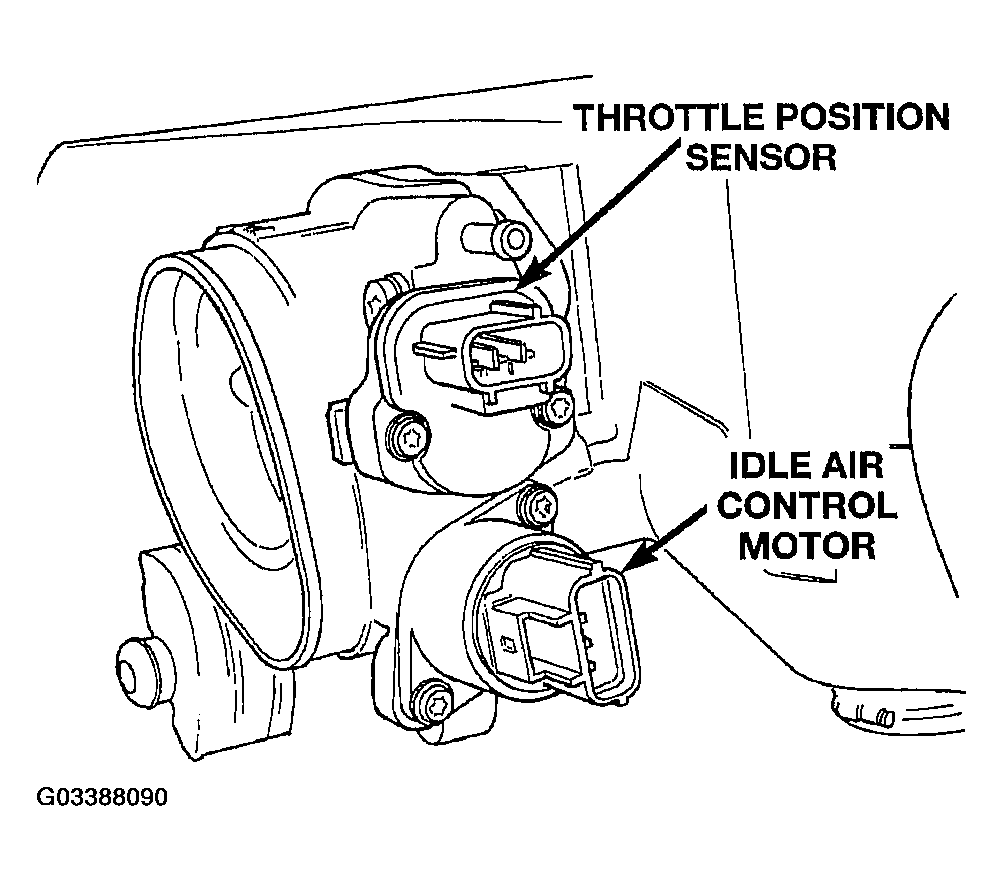

Fig 5: Identifying TP Sensor & Idle Air Control Motor Locations
G03388090Courtesy of DAIMLERCHRYSLER CORP.

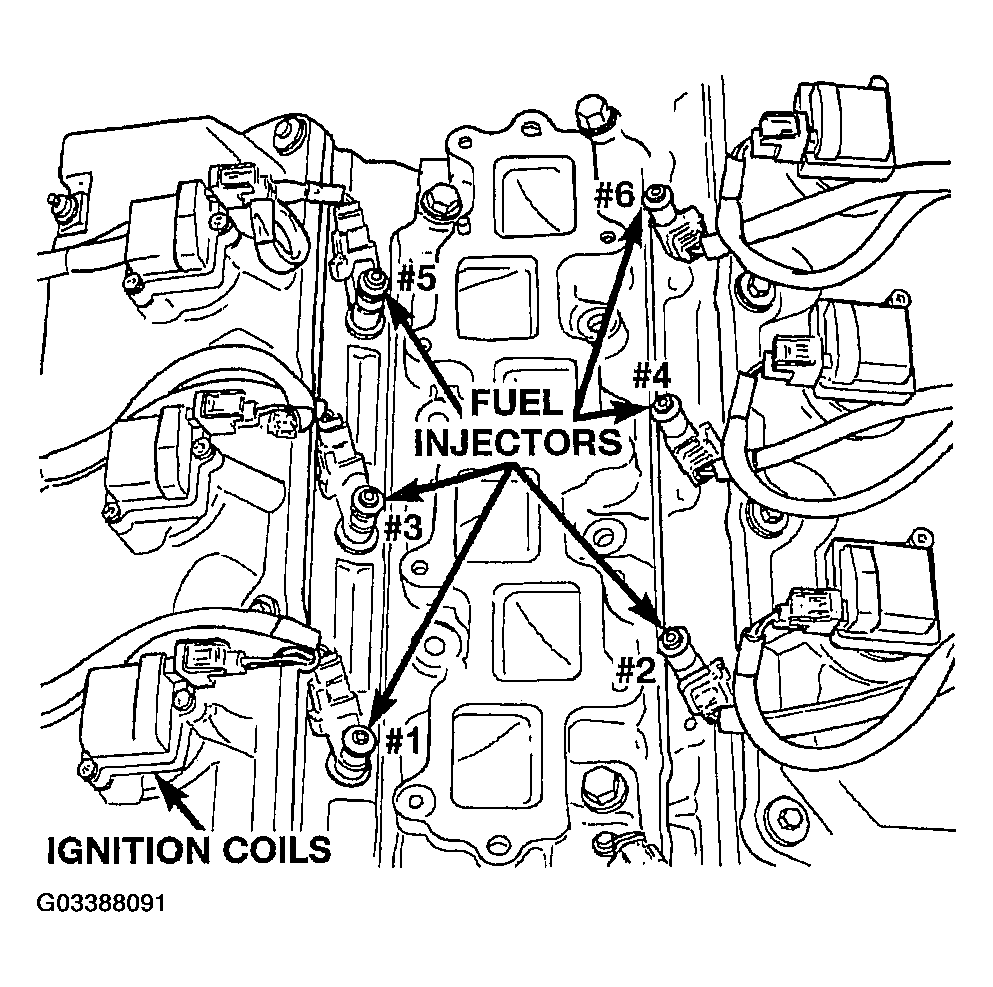

Fig 6: Identifying Fuel Injector Locations
G03388091Courtesy of DAIMLERCHRYSLER CORP.

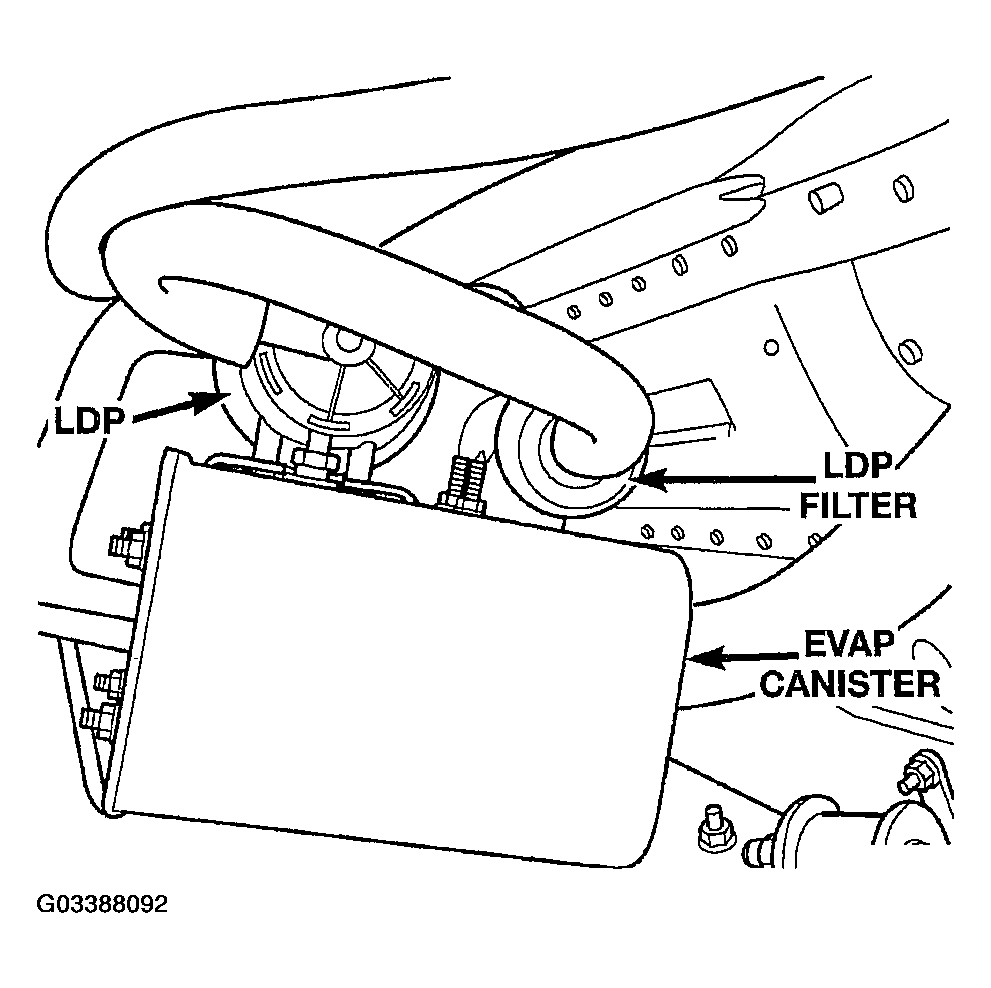

Fig 7: Identifying EVAP Canister, LDP & LDP Filter Locations
G03388092Courtesy of DAIMLERCHRYSLER CORP.

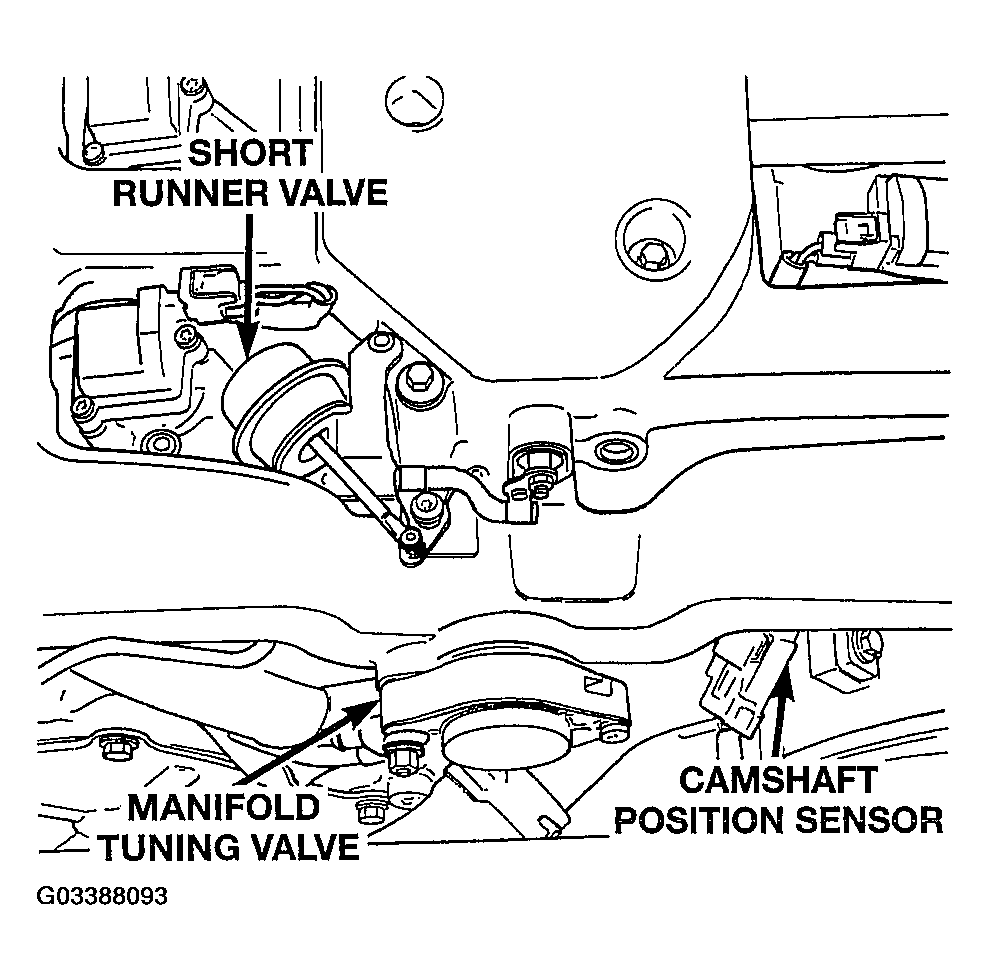

Fig 8: Identifying Short Runner Valve, Manifold Tuning Valve & Camshaft Position Sensor Locations
G03388093Courtesy of DAIMLERCHRYSLER CORP.

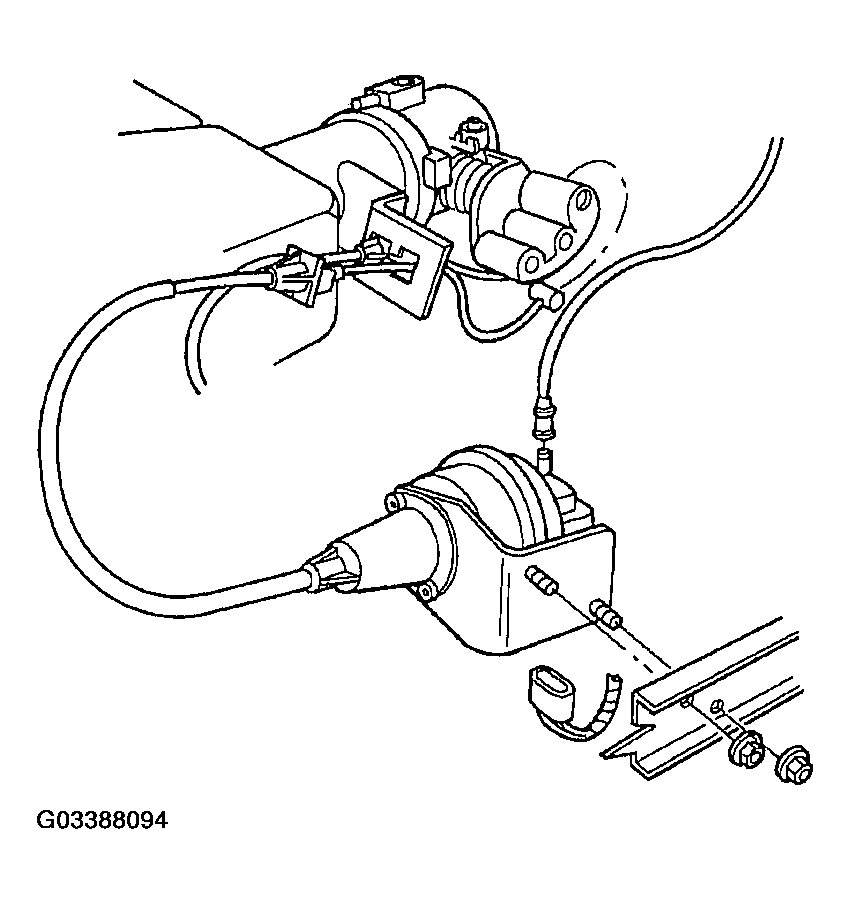

Fig 9: Identifying Speed Control Component Locations
G03388094Courtesy of DAIMLERCHRYSLER CORP.
