Component Locations: Sensors

The A/C pressure sensor is located in the high pressure line, near the A/C compressor. The connector is a gray connector.

Fig 1: Identifying Battery Temperature Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

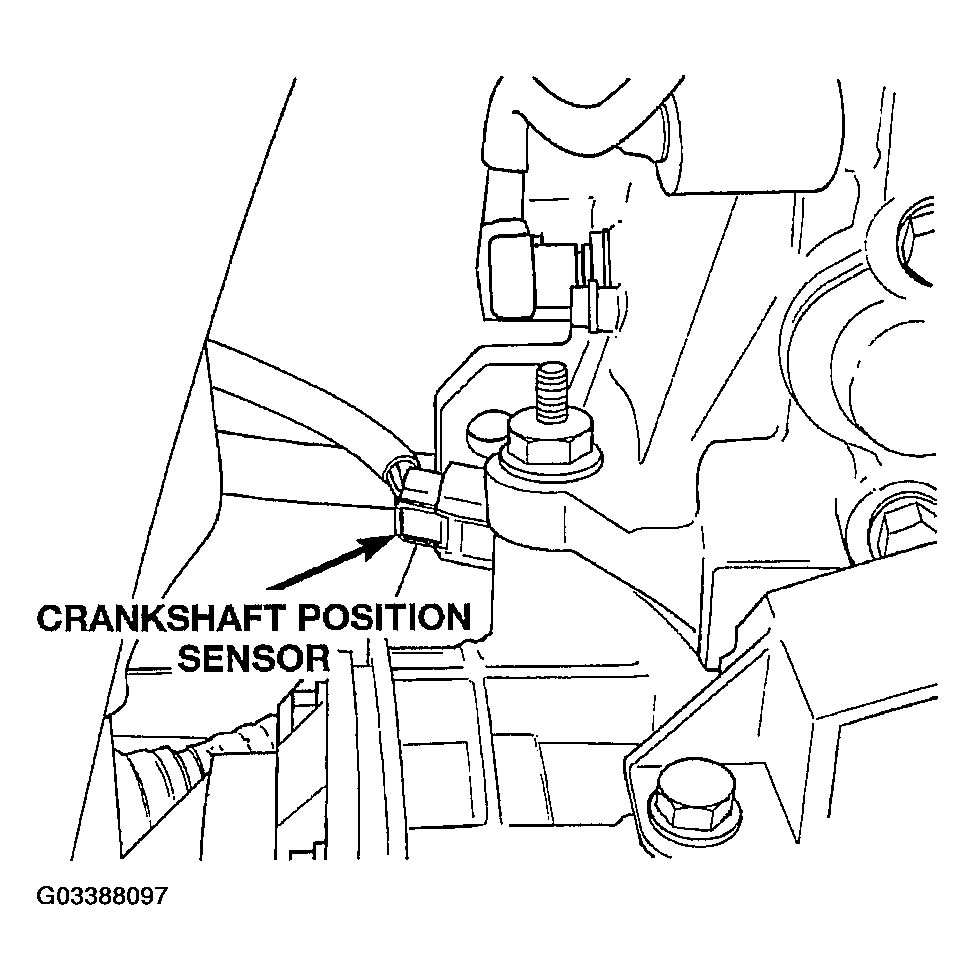

Fig 2: Identifying Crankshaft Position Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

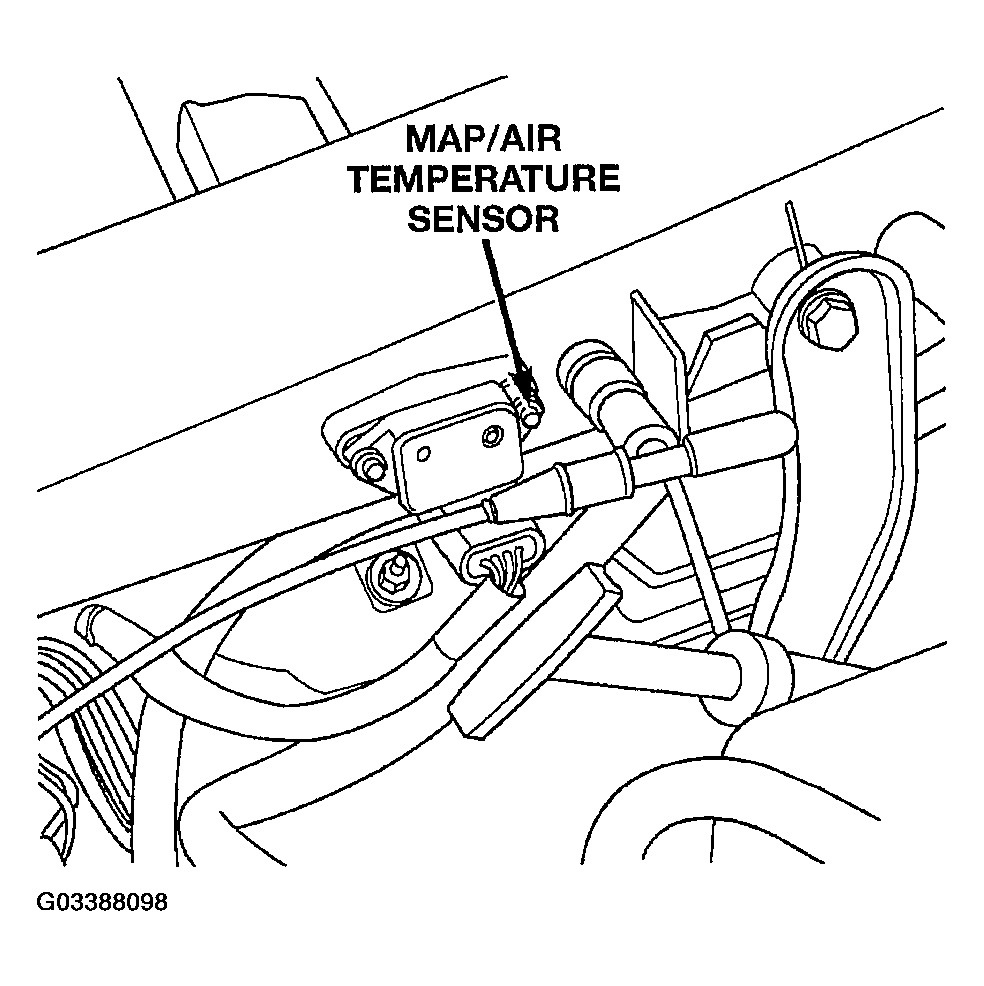

Fig 3: Identifying Map/Air Temperature Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Upstream Heated Oxygen Sensors Location

Courtesy of DAIMLERCHRYSLER CORP.

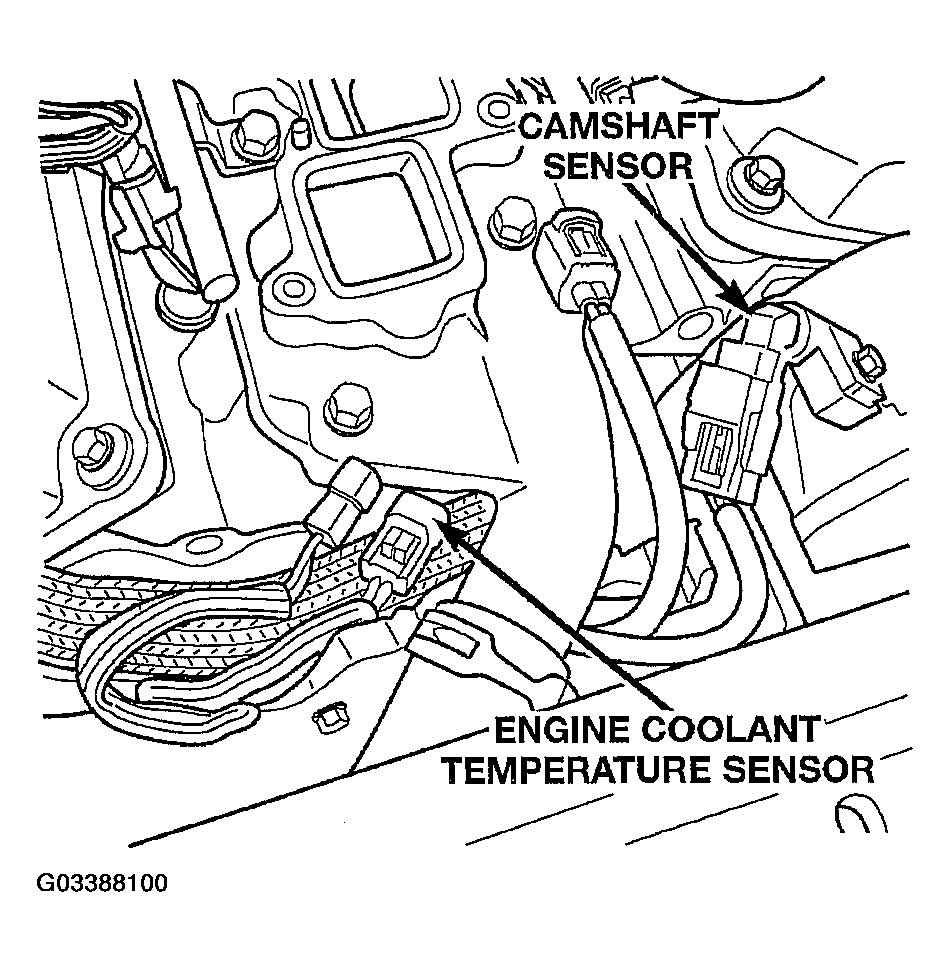

Fig 5: Identifying Camshaft Sensor & Engine Coolant Temperature Sensor Locations

Courtesy of DAIMLERCHRYSLER CORP.

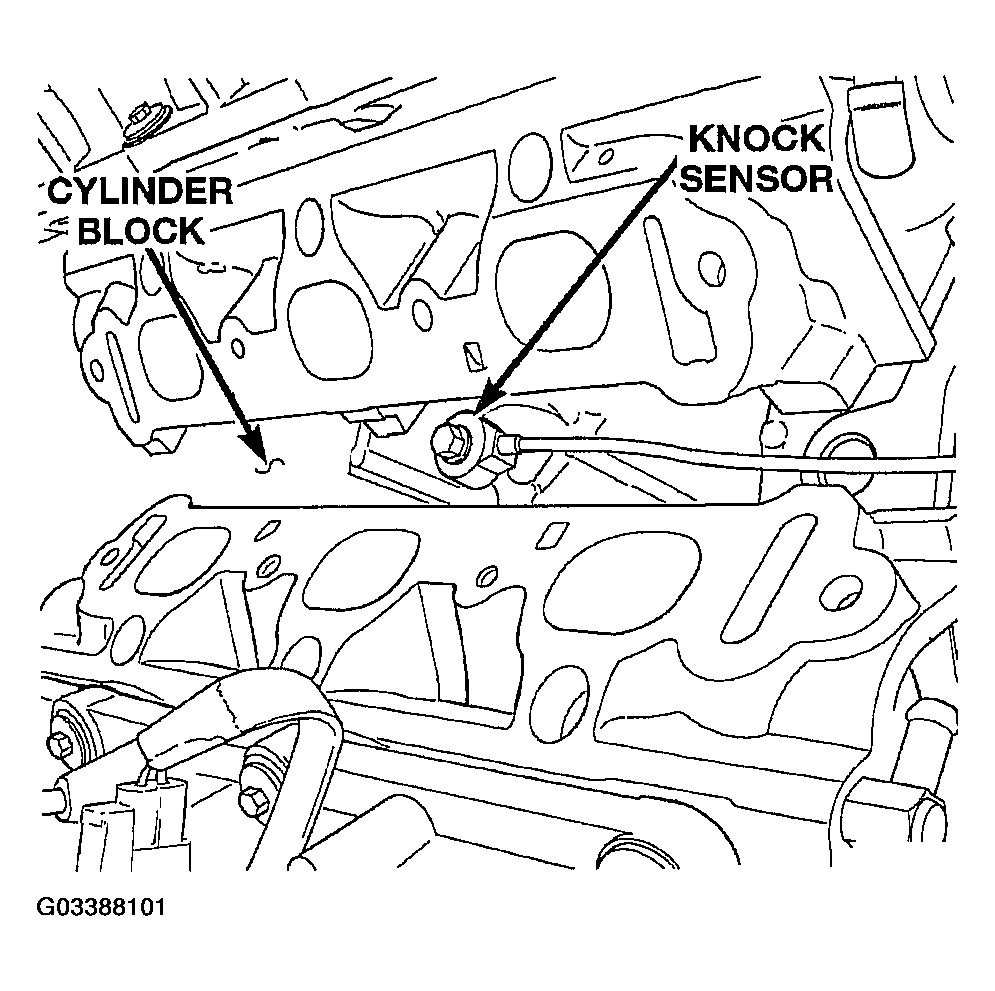

Fig 6: Identifying Knock Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

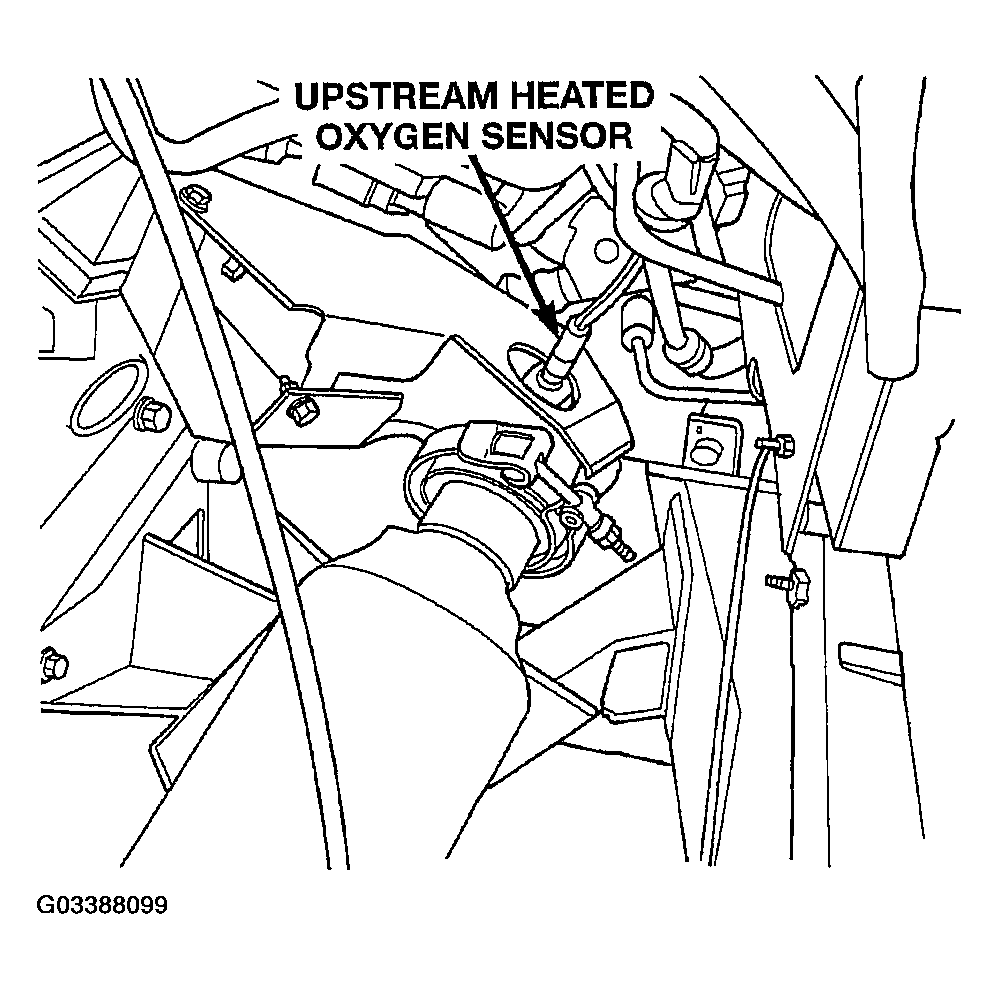

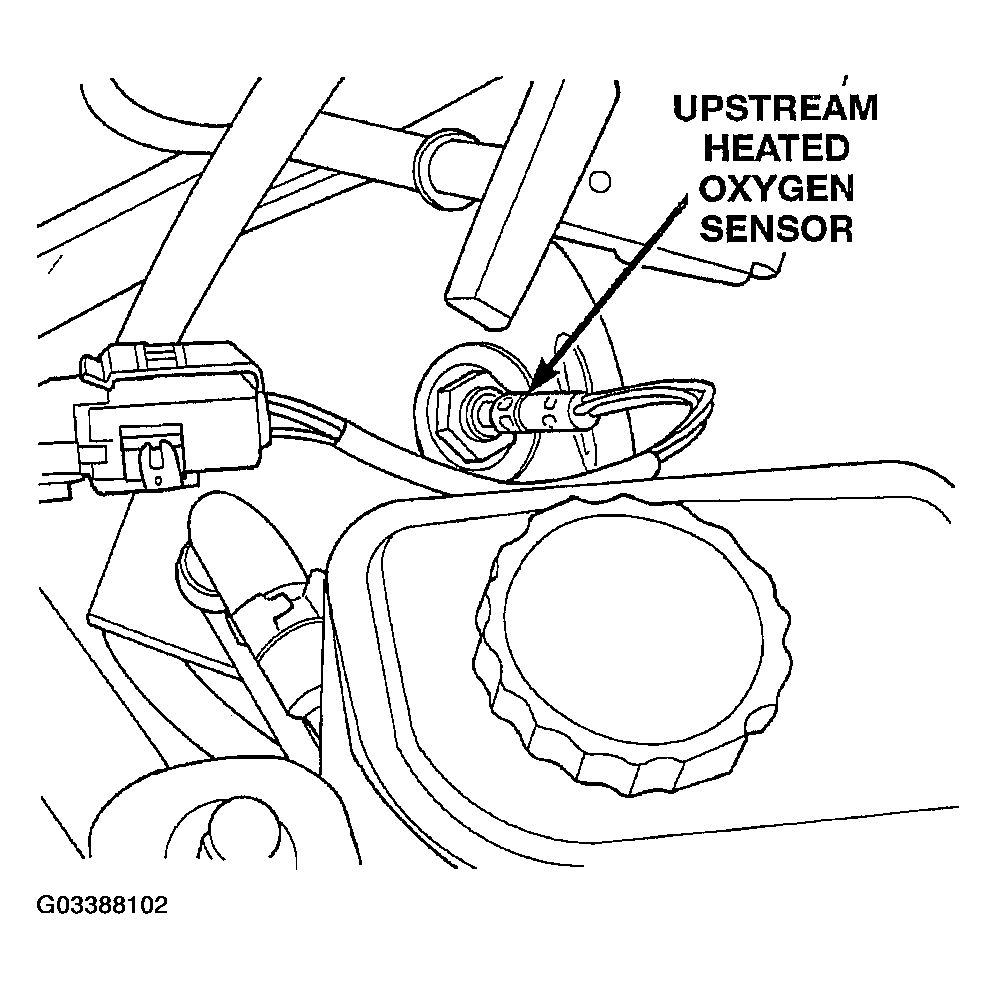

Fig 7: Identifying Upstream Heated Oxygen Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

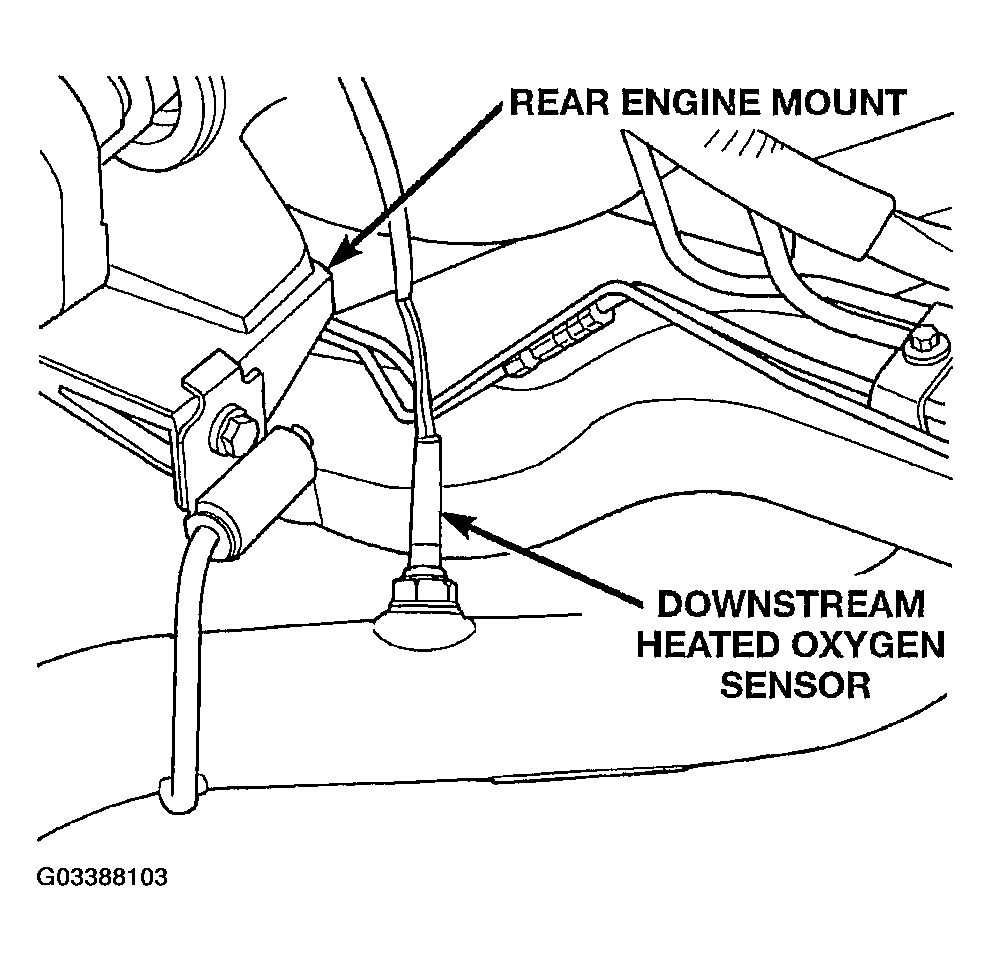

Fig 8: Identifying Downstream Heated Oxygen Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

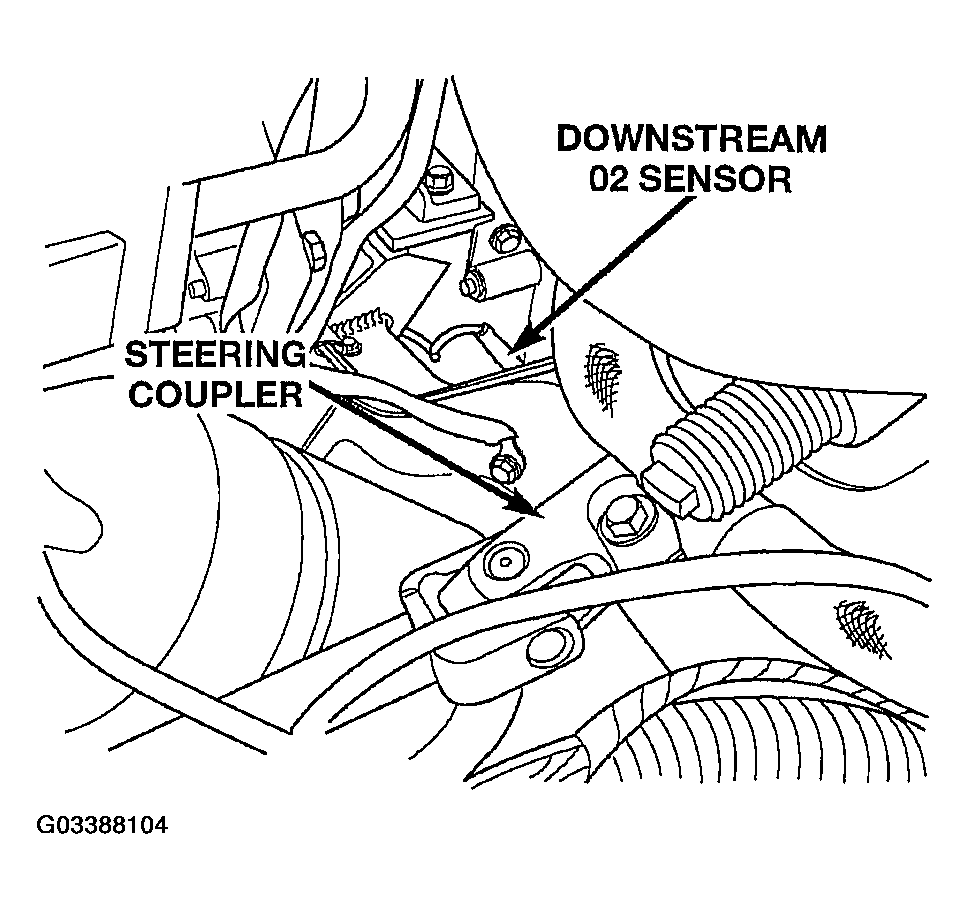

Fig 9: Identifying Downstream O2 Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

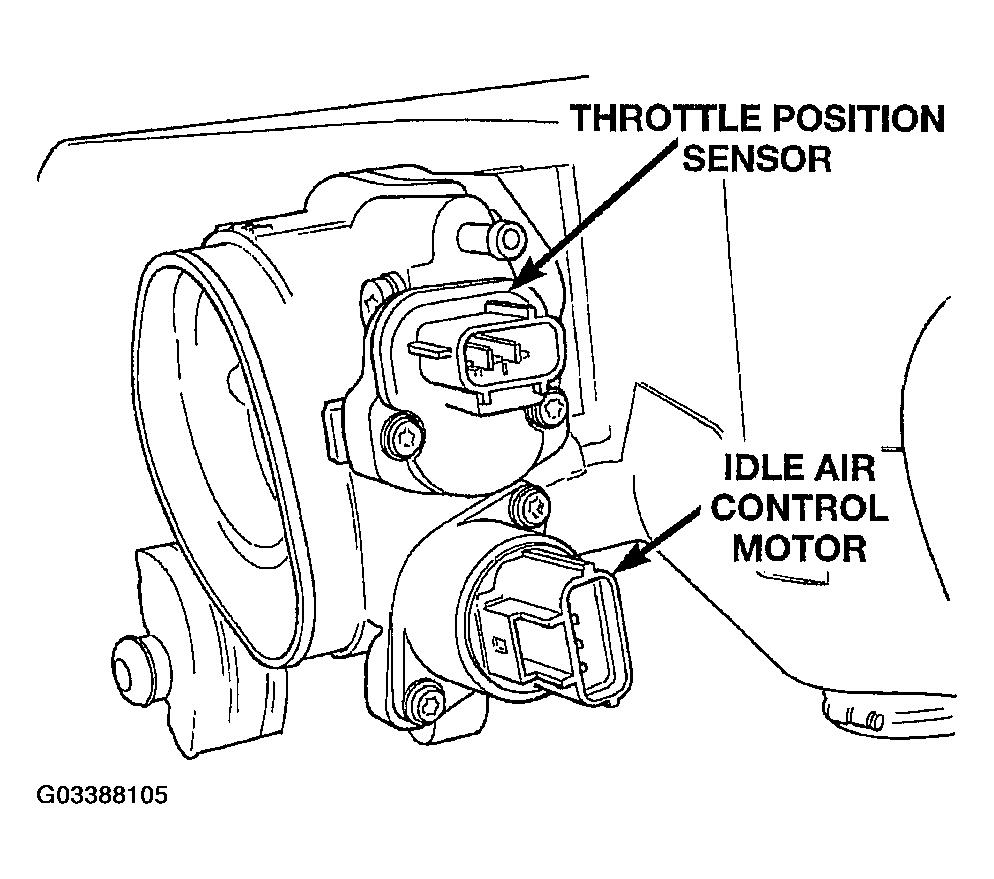

Fig 10: Identifying Throttle Position Sensor & Idle Air Control Motor Locations

Courtesy of DAIMLERCHRYSLER CORP.
