Front Of Fuse Block

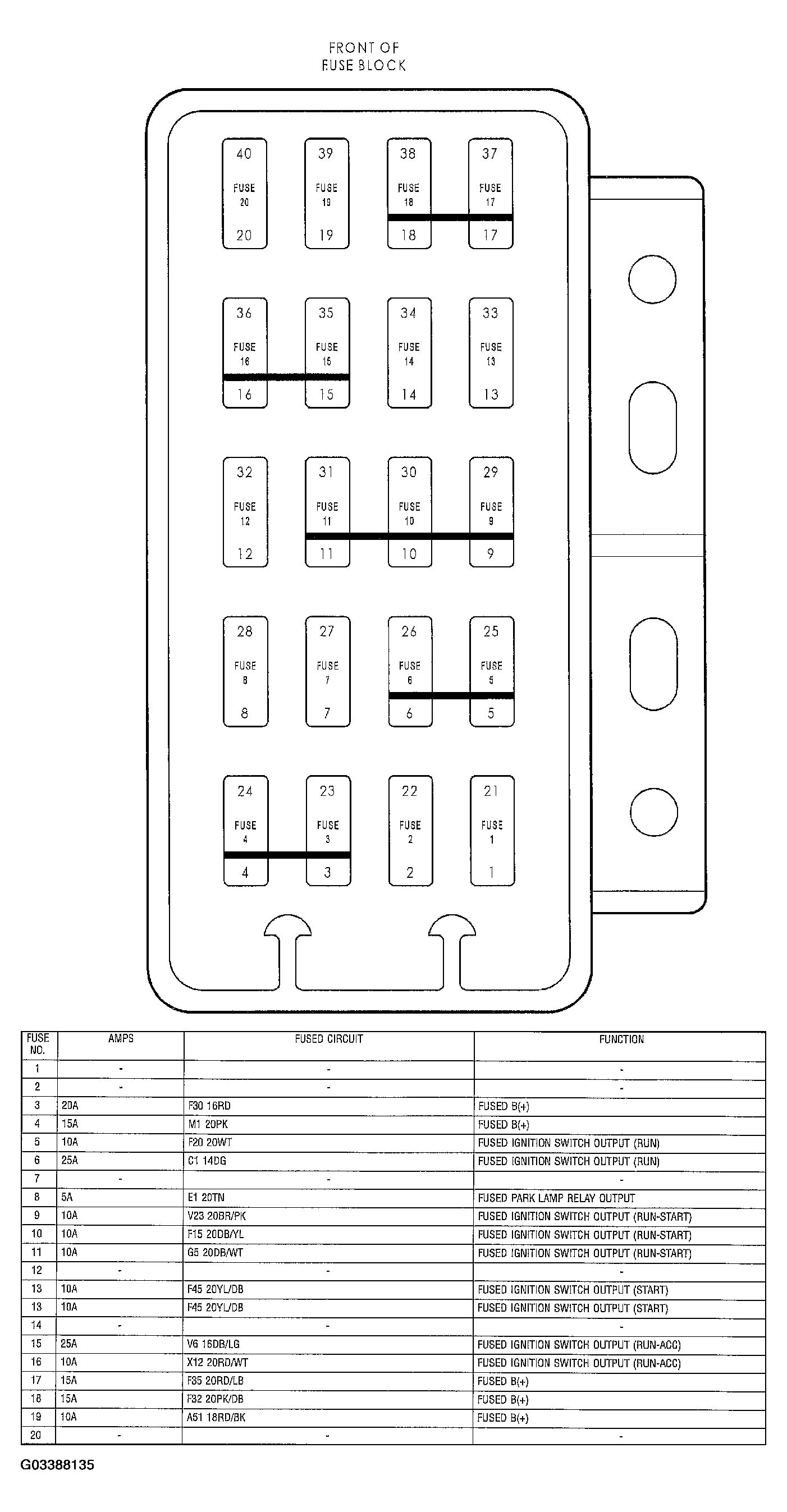

Fig 1: Identifying Front Of Fuse Block Component Locations

G03388135

Courtesy of DAIMLERCHRYSLER CORP.
