Powertrain Control Module C1 - Gray 40 Way

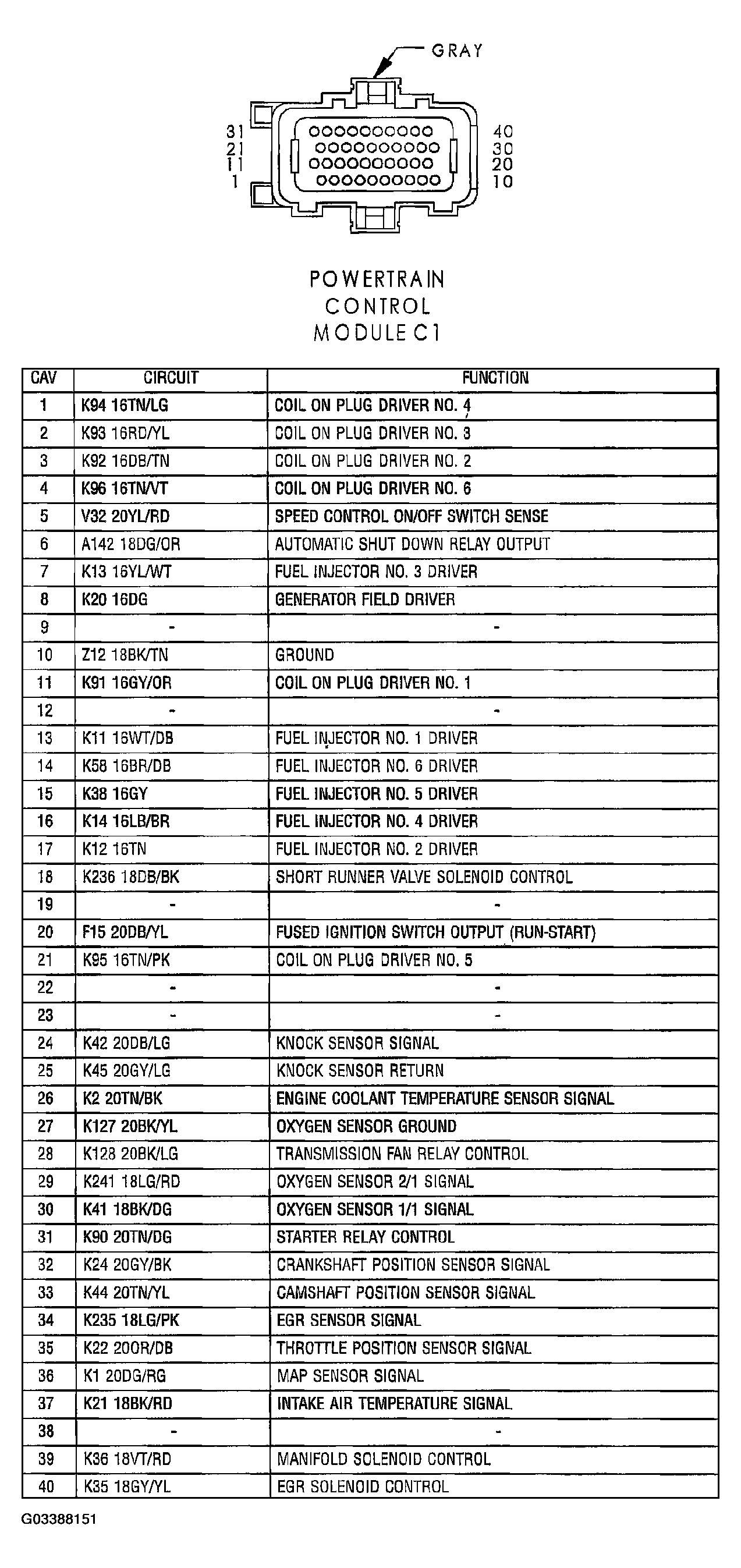

Fig 1: Identifying Powertrain Control Module C1 Connector
G03388151Courtesy of DAIMLERCHRYSLER CORP.
