Throttle Position Sensor - 3 Way

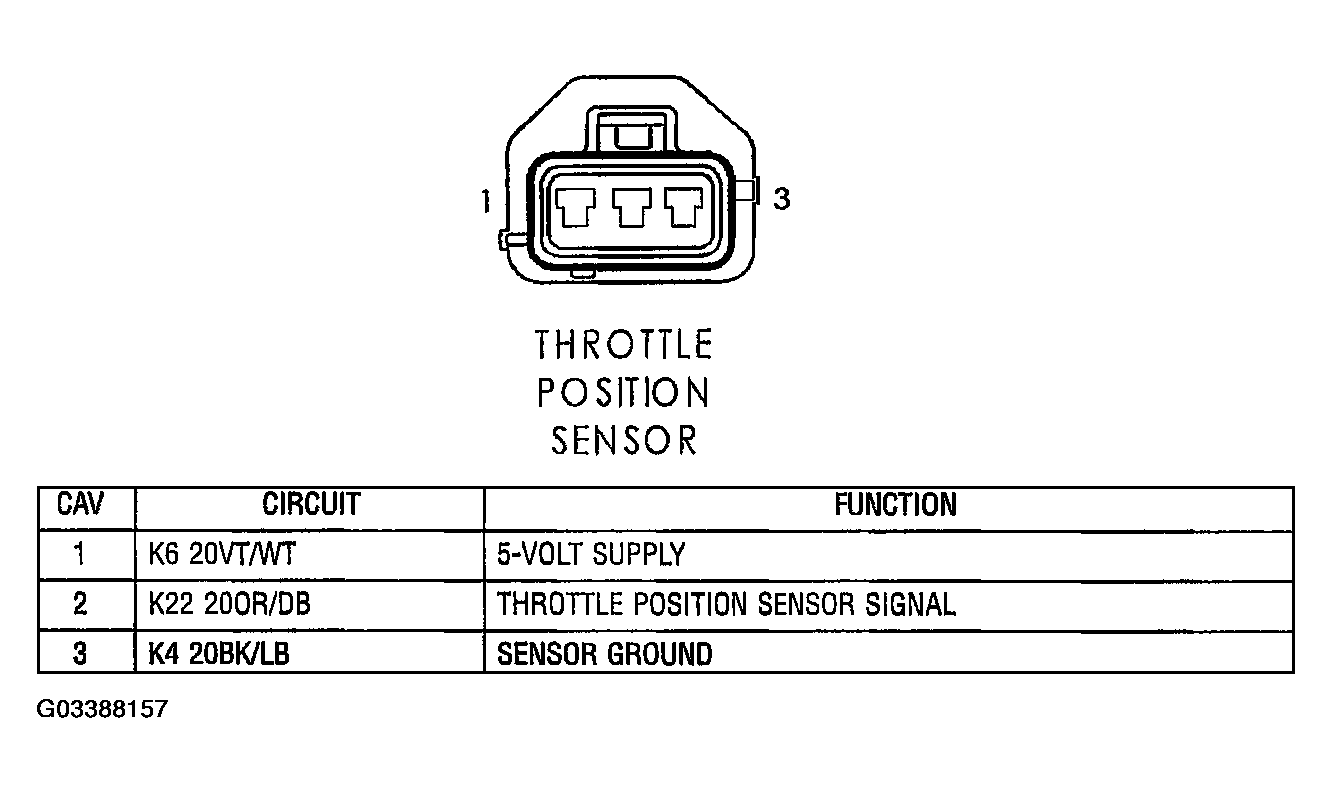

Fig 1: Identifying Throttle Position Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
