Pr 3.5L Engine

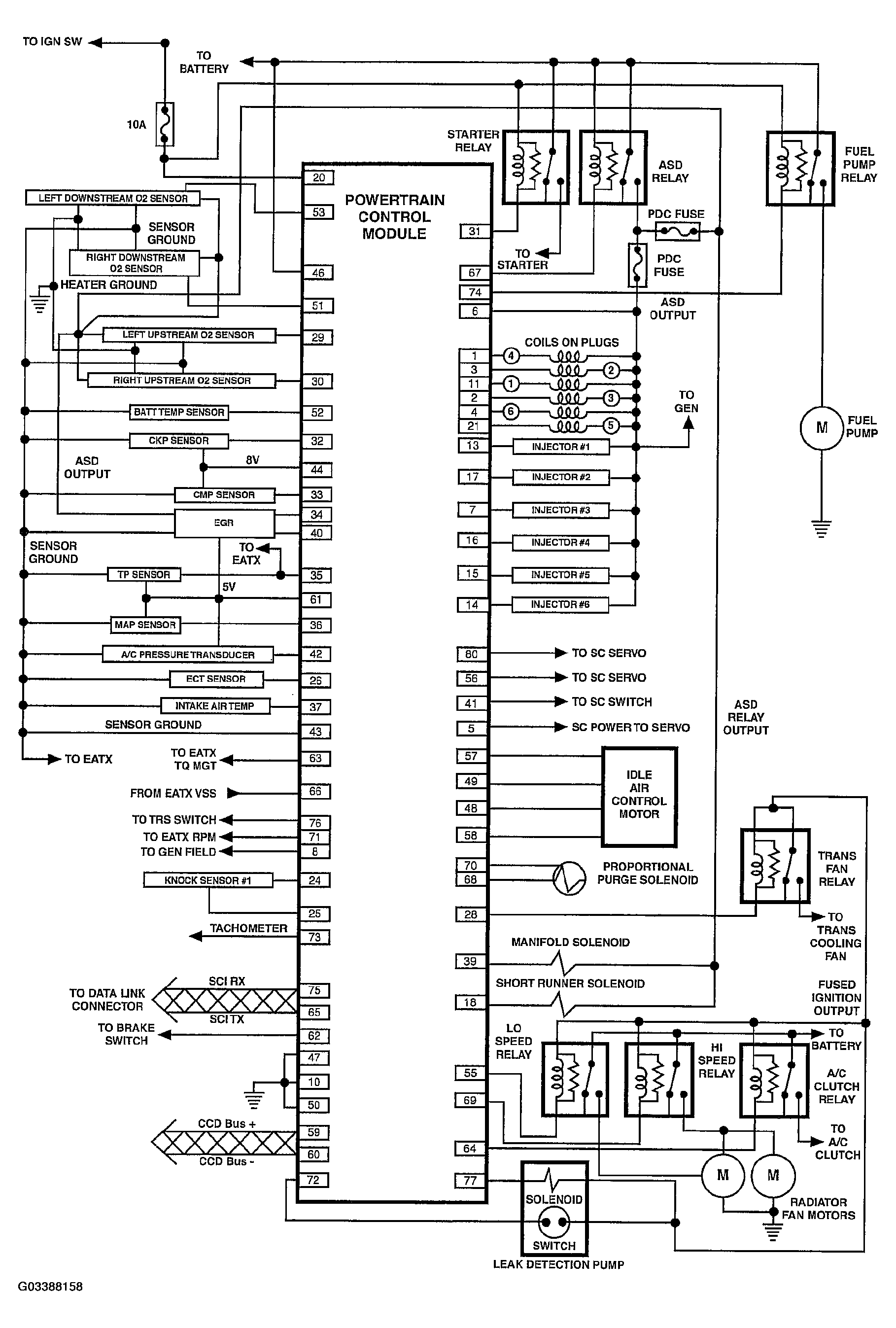

Fig 1: PR 3.5L Engine Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
