Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Module | Behind Left Side Of Dash. See Fig 1. |

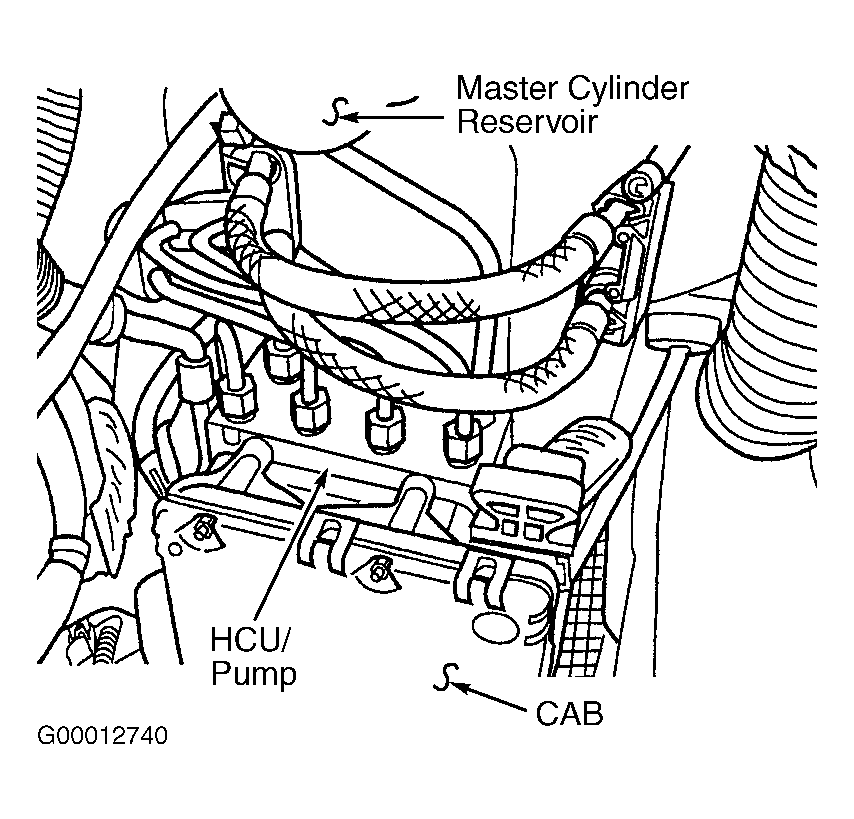

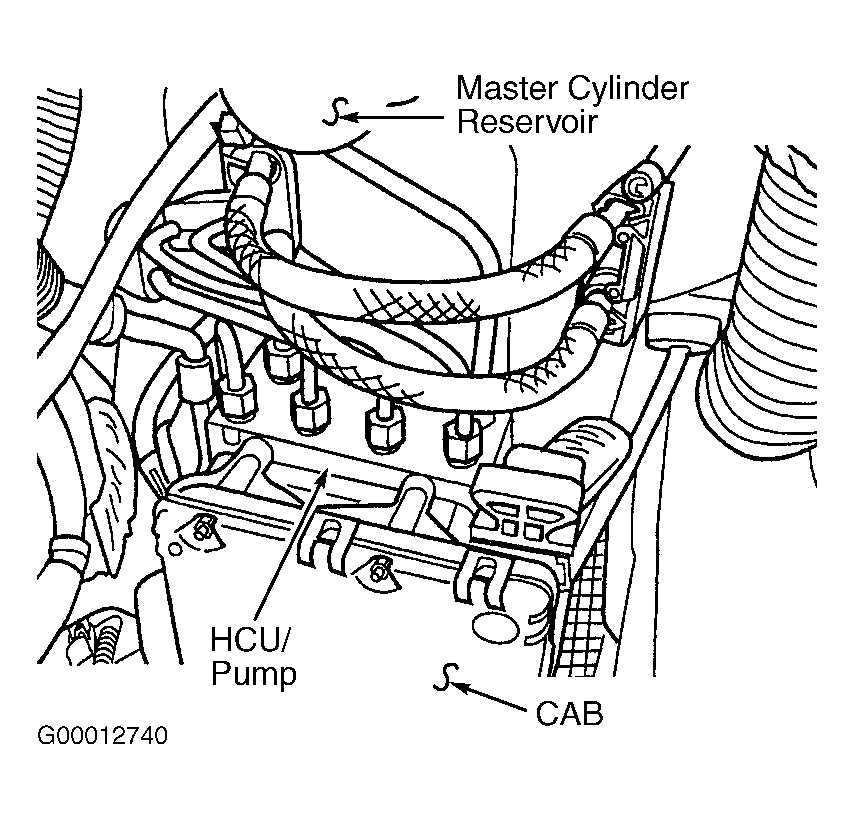

| Controller Anti-Lock Brake | On Right Side Of Engine Compartment. See Fig 2. |
| Data Link Connector | Below Left Side Of Dash |
| Diagnostic Junction Port | Left Side Of Steering Column, Near Firewall |
| Front Control Module | Attached To Integrated Power Module. See Fig 3. |
| Front Door Cylinder Lock Switch | Part Of Door Lock Cylinder |
| Hood Ajar Switch | Attached To Left Front Fender. See Fig 3. |
| Integrated Power Module | Left Side Of Engine Compartment. See Fig 3. |

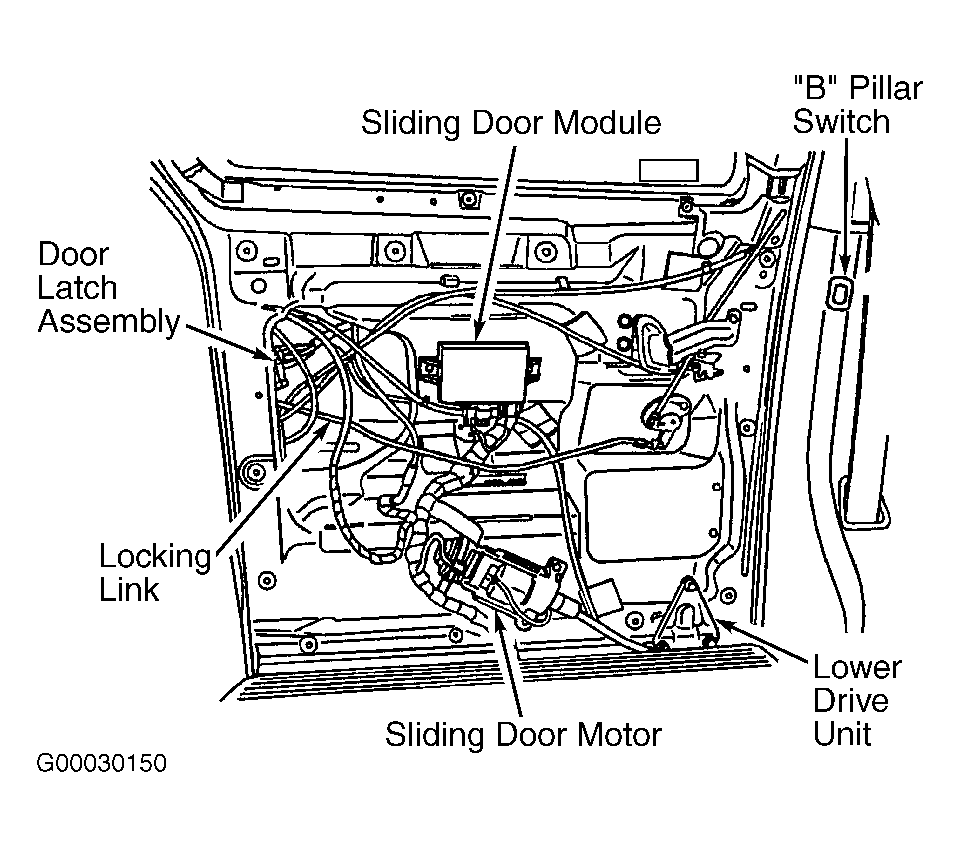

| Left Sliding Door Control Module | In Left Sliding Door, Above Motor. See Fig 8. |

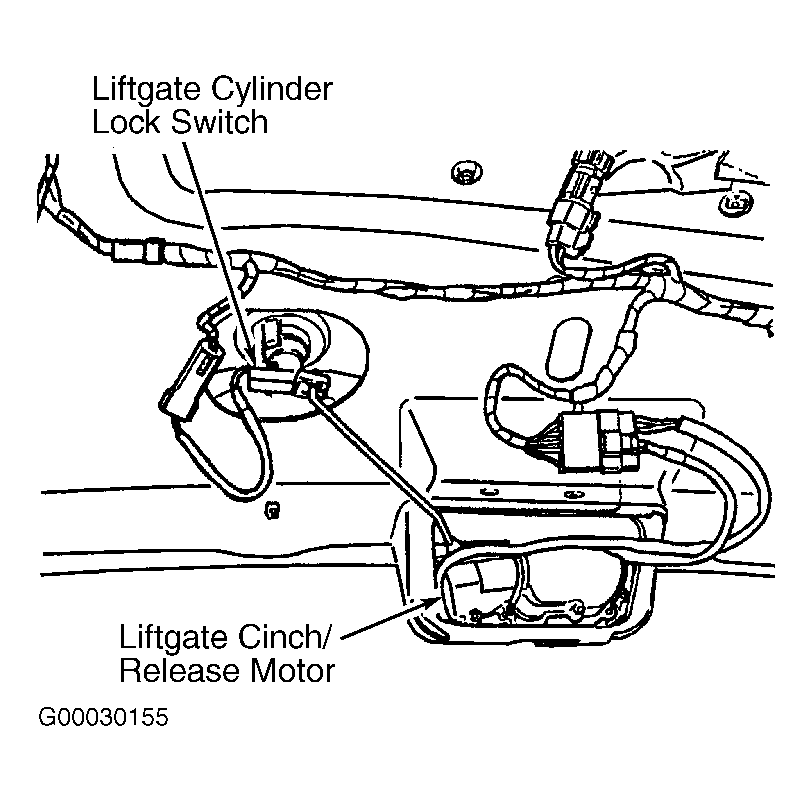

| Liftgate Cylinder Lock Switch | Part Of Liftgate Lock Cylinder. See Fig 4. |

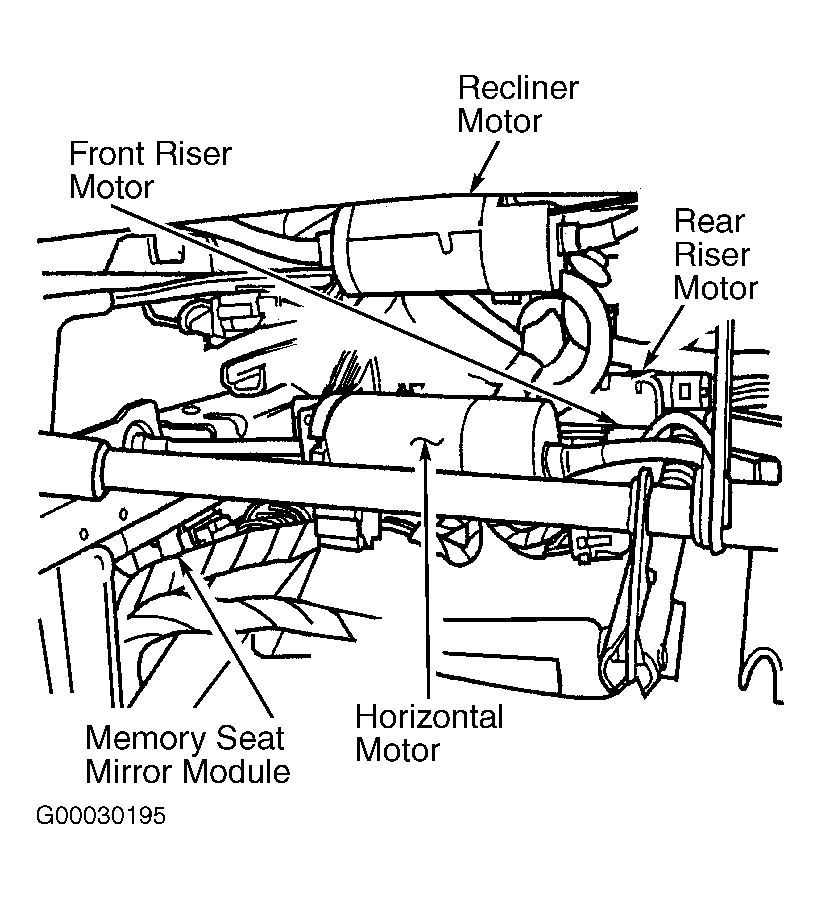

| Memory Seat/Mirror Module | Attached To Bottom Of Driver's Seat. See Fig 5. |

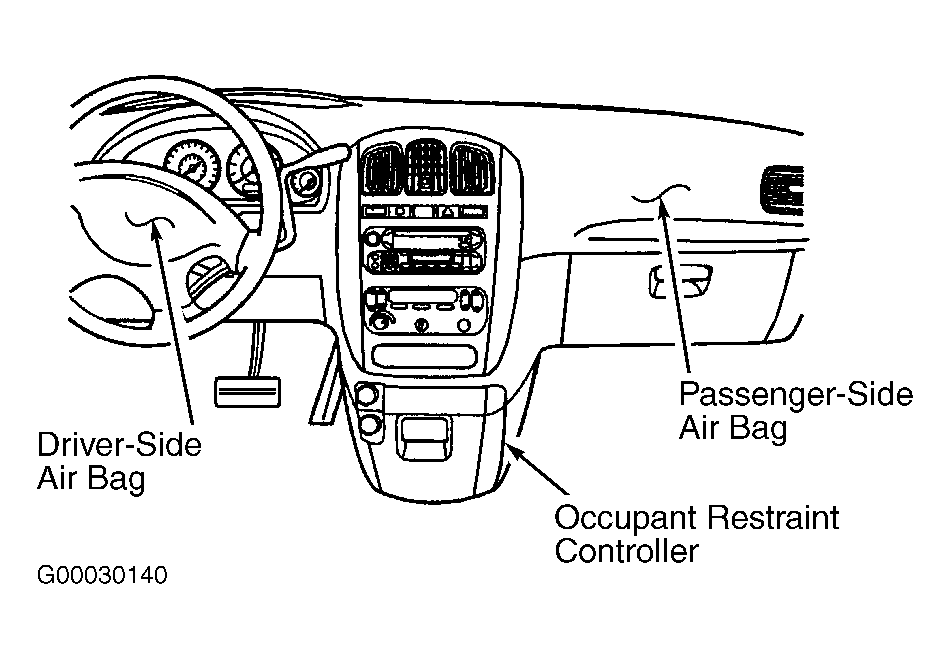

| Occupant Restraint Controller | Under Right Side Of Dash. See Fig 6. |

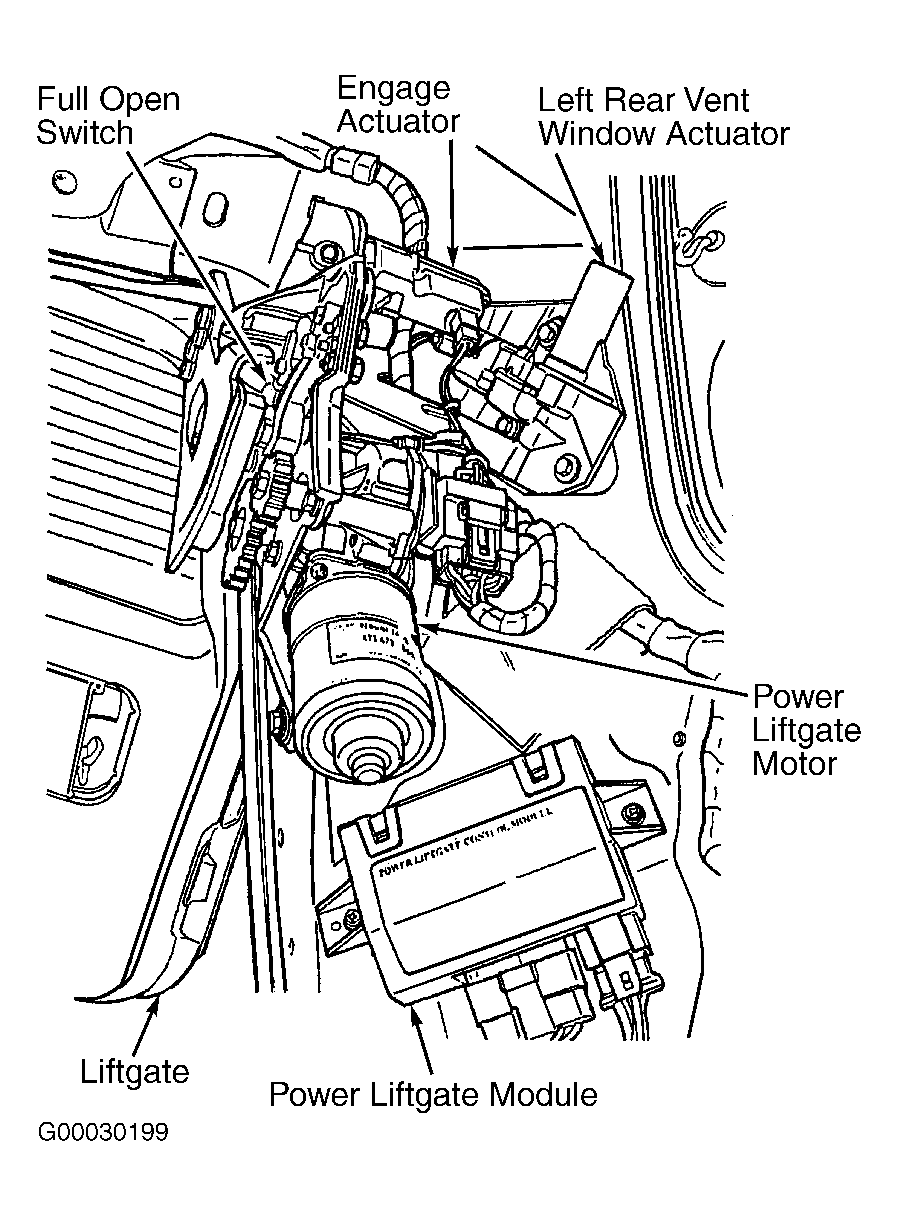

| Power Liftgate Module | Mounted On Left "D" Pillar. See Fig 7. |
| Powertrain Control Module | Left Side Of Engine Compartment. See Fig 3. |

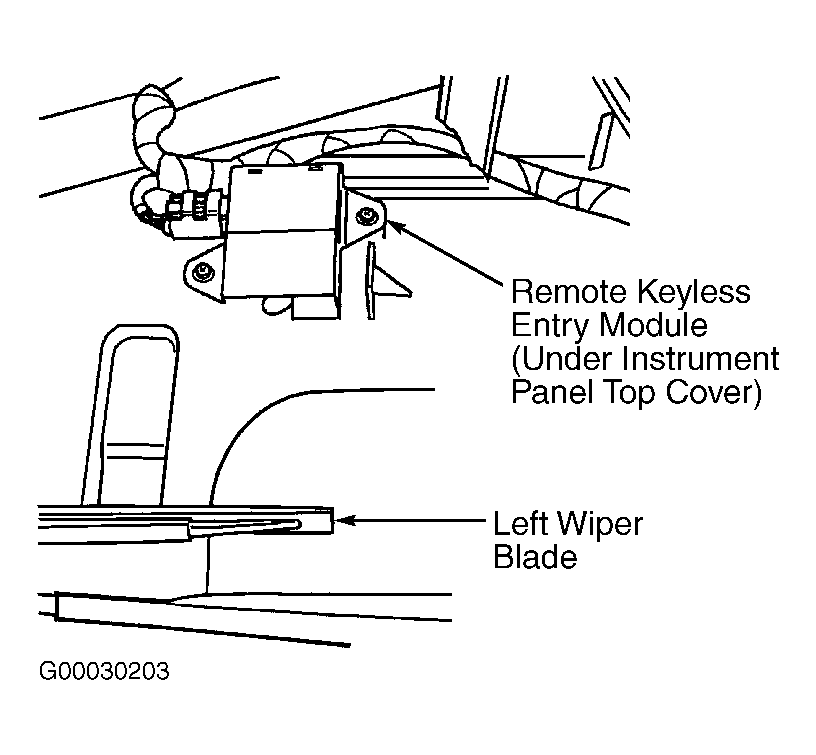

| Remote Keyless Entry Module | Under Left Side Of Dash Top Cover. See Fig 9. |
| Right Sliding Door Control Module | In Right Sliding Door, Above Motor. See Fig 8. |
| Transmission Control Module | On Left Side Of Transaxle. See Fig 10. |
| Wiper Module | Left Rear Of Engine Compartment. See Fig 3. |
