Component Locations

NOTE: See Fig 1-Fig 32 for component locations.

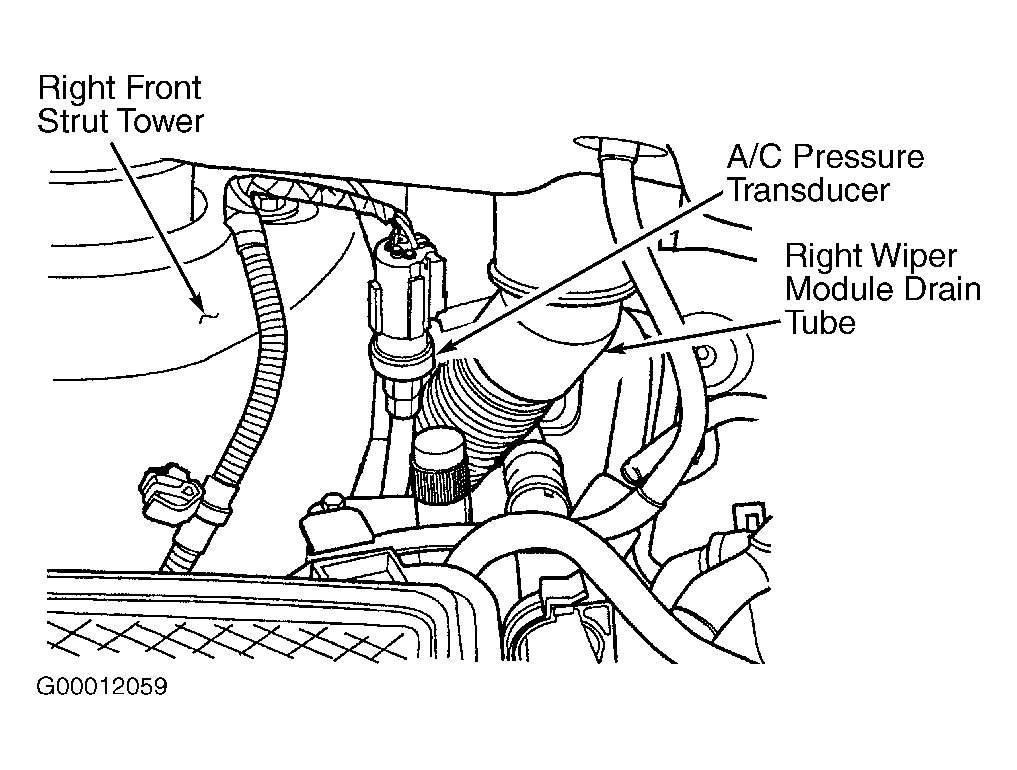

Fig 1: Locating A/C Pressure Sensor

G00012059

Courtesy of DAIMLERCHRYSLER CORPORATION

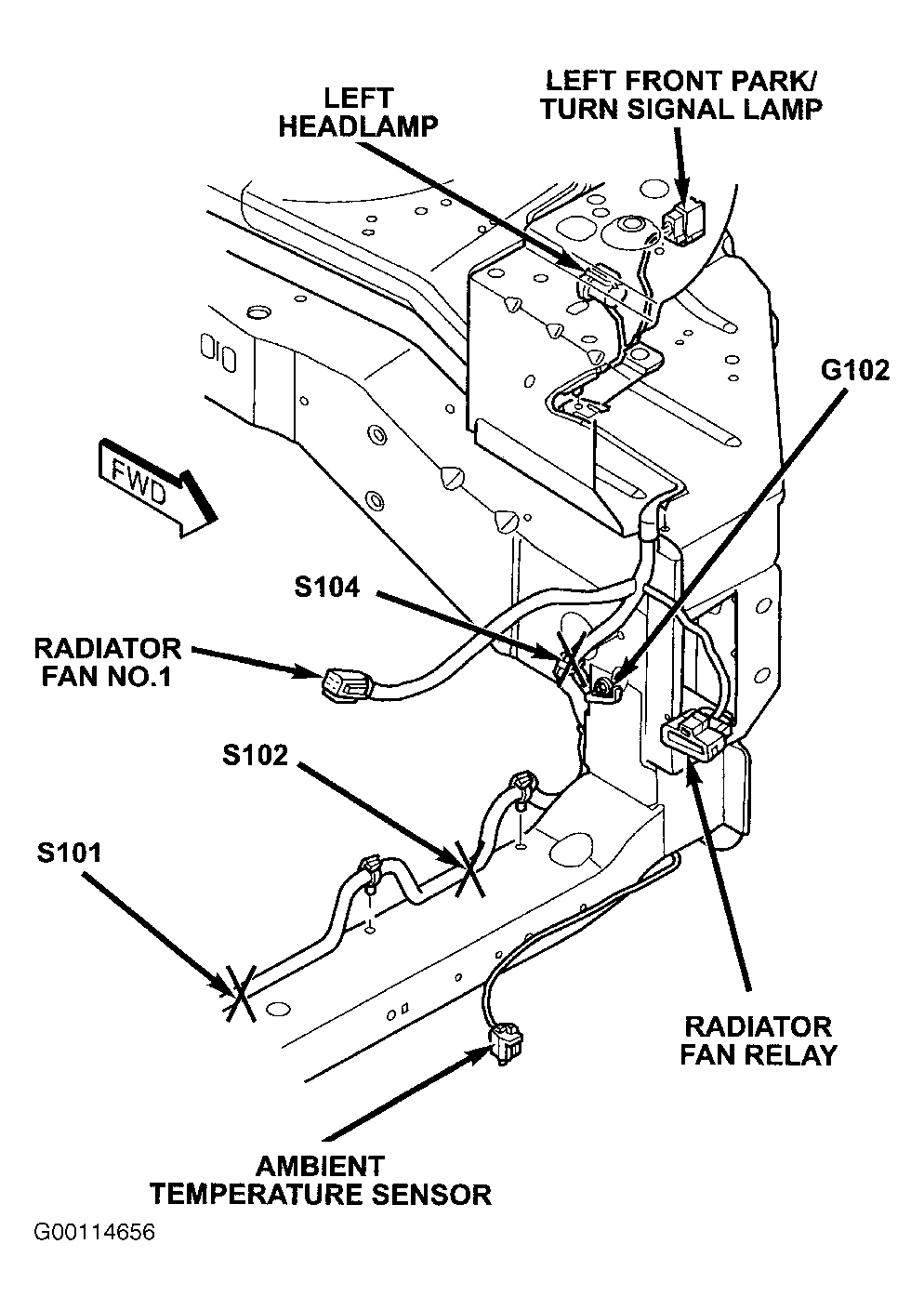

Fig 2: Locating Ambient Air Temperature Sensor Harness Connector

G00114656

Courtesy of DAIMLERCHRYSLER CORPORATION

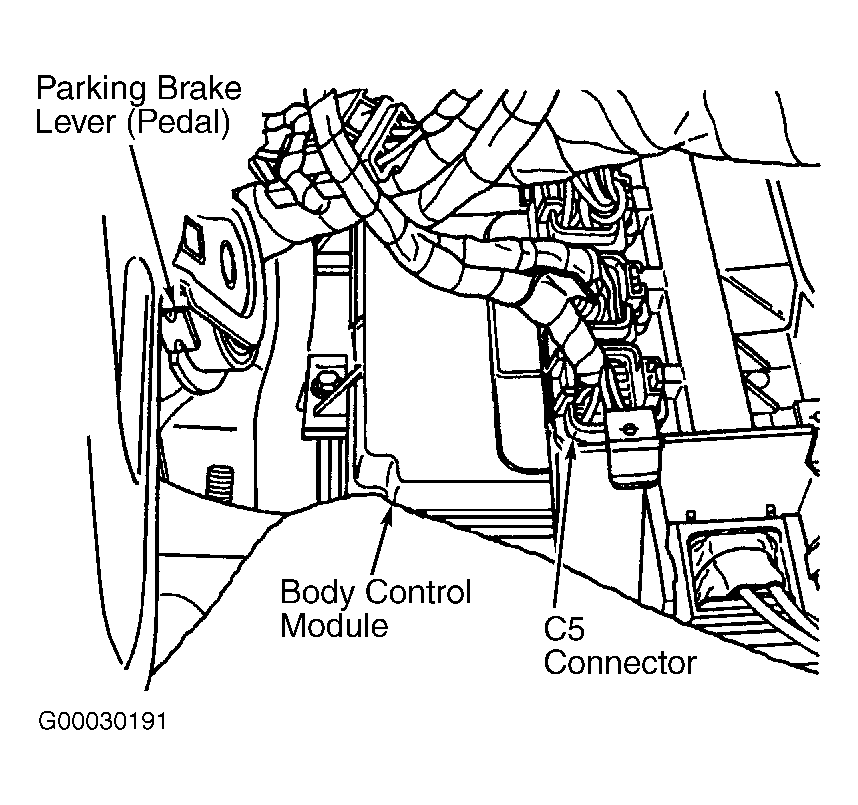

Fig 3: Locating Body Control Module

G00030191

Courtesy of DAIMLERCHRYSLER CORPORATION

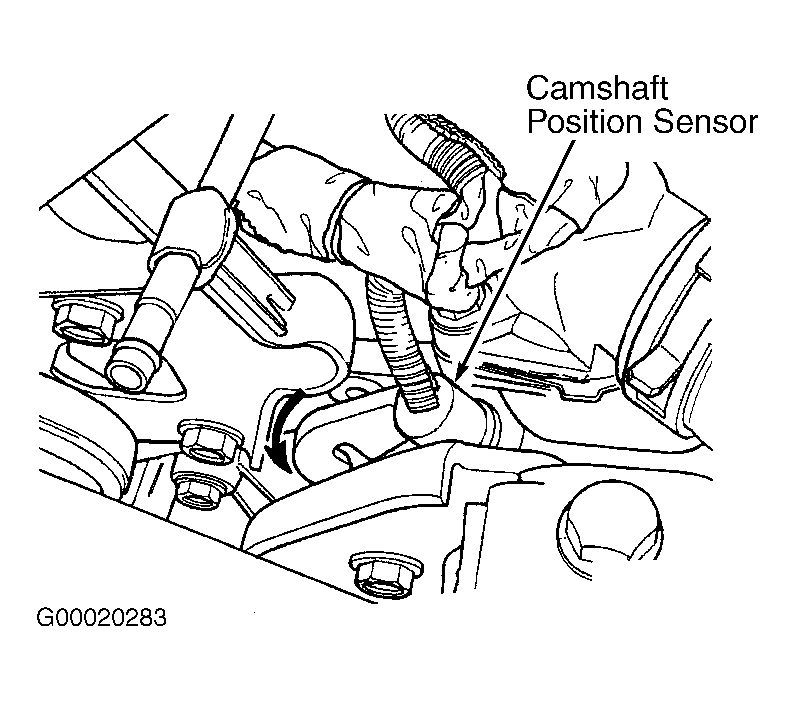

Fig 4: Locating Camshaft Position Sensor (3.3L & 3.8L)

G00020283

Courtesy of DAIMLERCHRYSLER CORPORATION

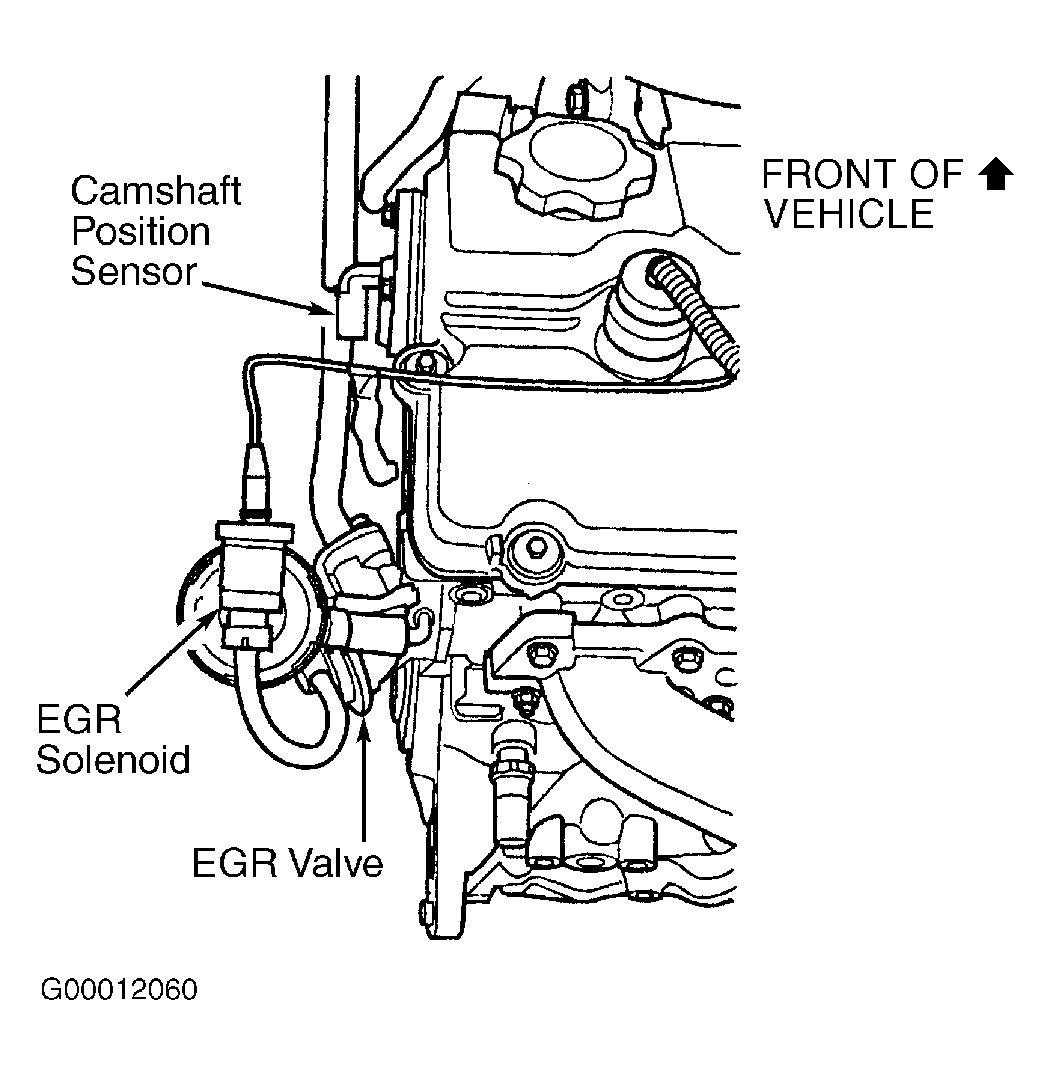

Fig 5: Locating CMP Sensor, EGR Solenoid & EGR Valve (2.4L)

G00012060

Courtesy of DAIMLERCHRYSLER CORPORATION

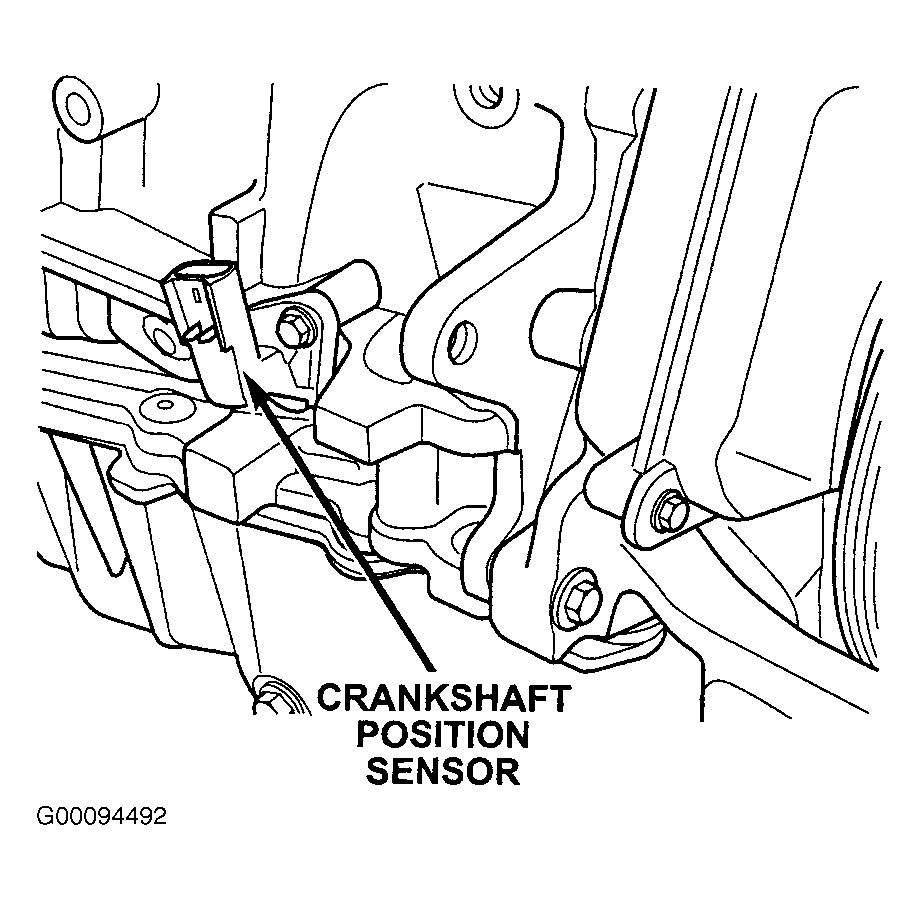

Fig 6: Locating Crankshaft Position Sensor (2.4L)

G00094492

Courtesy of DAIMLERCHRYSLER CORPORATION

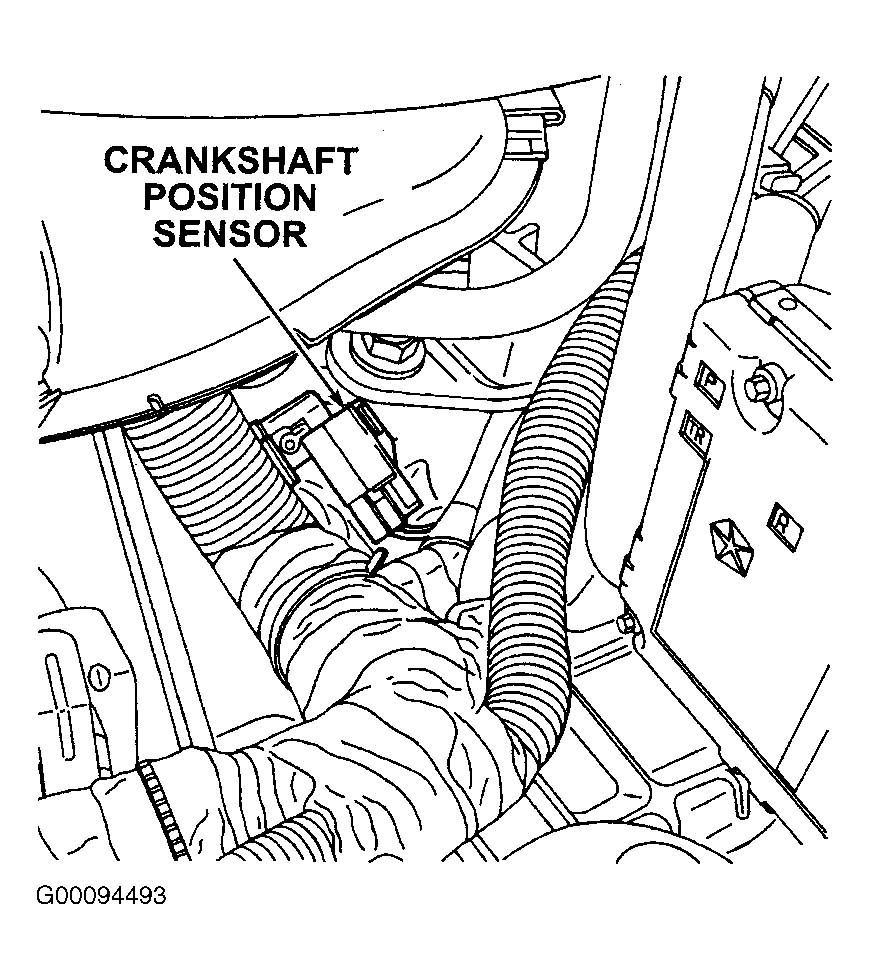

Fig 7: Locating Crankshaft Position Sensor (3.3L & 3.8L)

G00094493

Courtesy of DAIMLERCHRYSLER CORPORATION

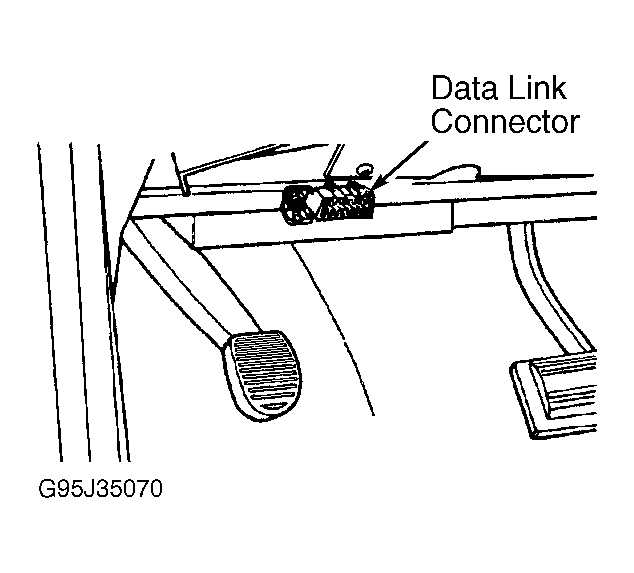

Fig 8: Locating Data Link Connector

G95J35070

Courtesy of DAIMLERCHRYSLER CORPORATION

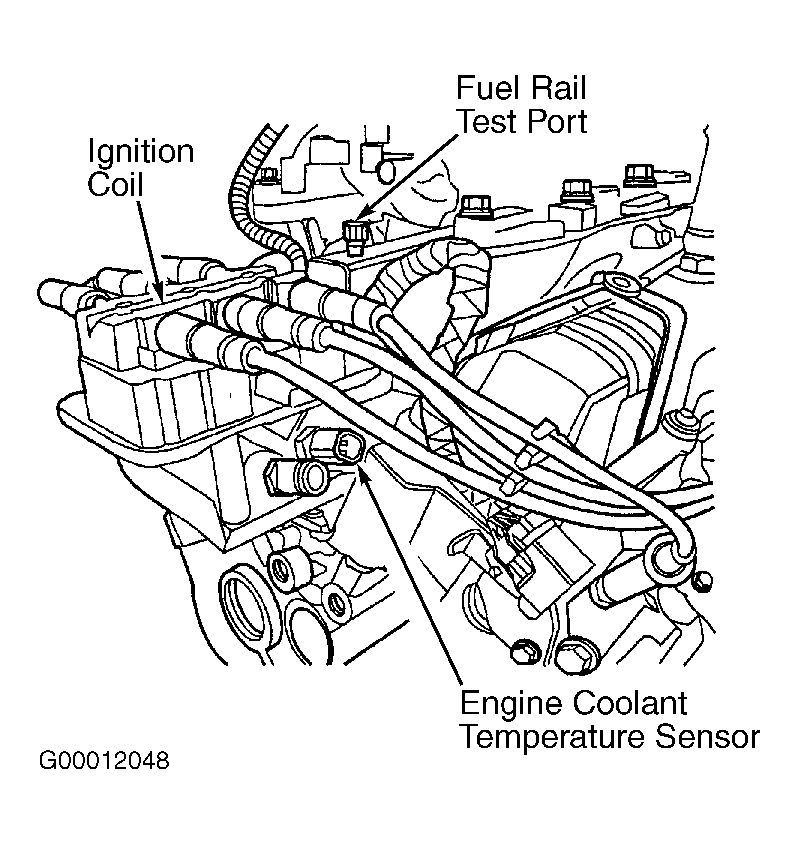

Fig 9: Locating ECT Sensor, Fuel Rail Test Port & Ignition Coil (3.3L & 3.8L)

G00012048

Courtesy of DAIMLERCHRYSLER CORPORATION

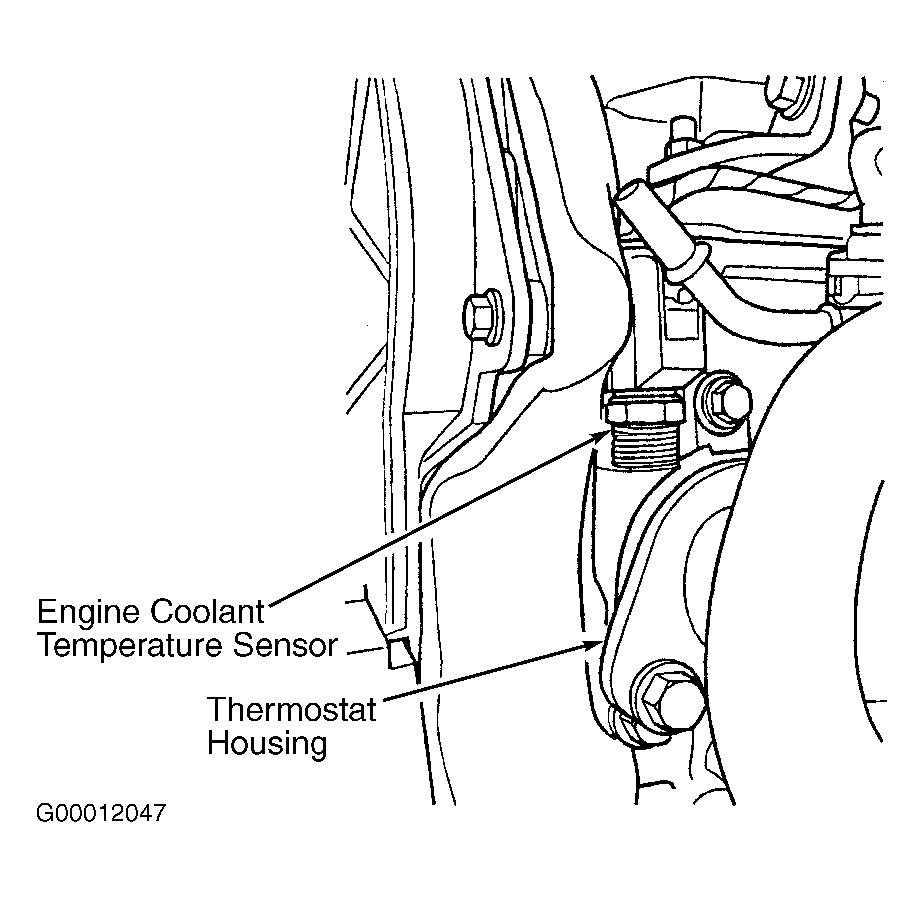

Fig 10: Locating Engine Coolant Temperature Sensor (2.4L)

G00012047

Courtesy of DAIMLERCHRYSLER CORPORATION

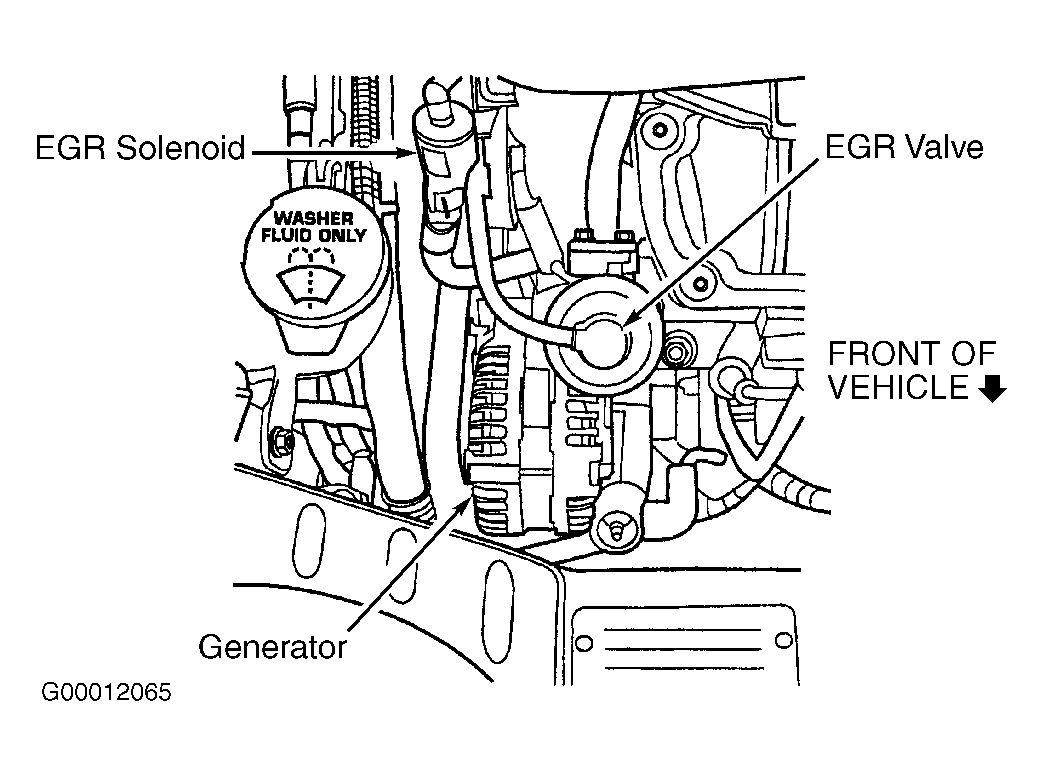

Fig 11: Locating EGR Valve & EGR Solenoid (3.3L & 3.8L)

G00012065

Courtesy of DAIMLRCHRYSLER CORPORATION

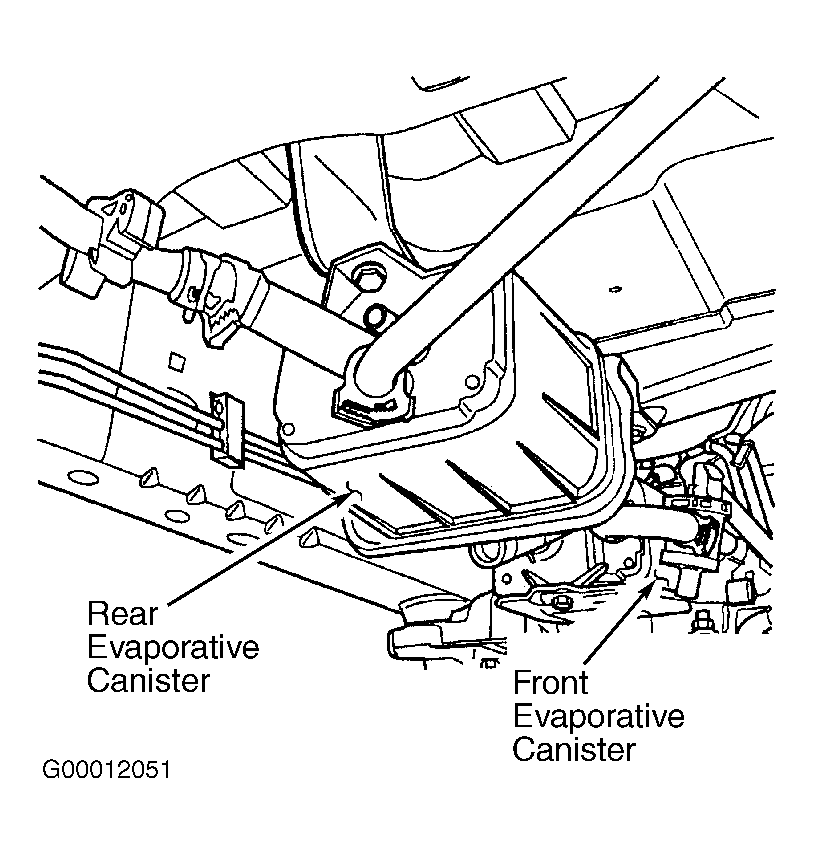

Fig 12: Locating EVAP Canisters

G00012051

Courtesy of DAIMLERCHRYSLER CORPORATION

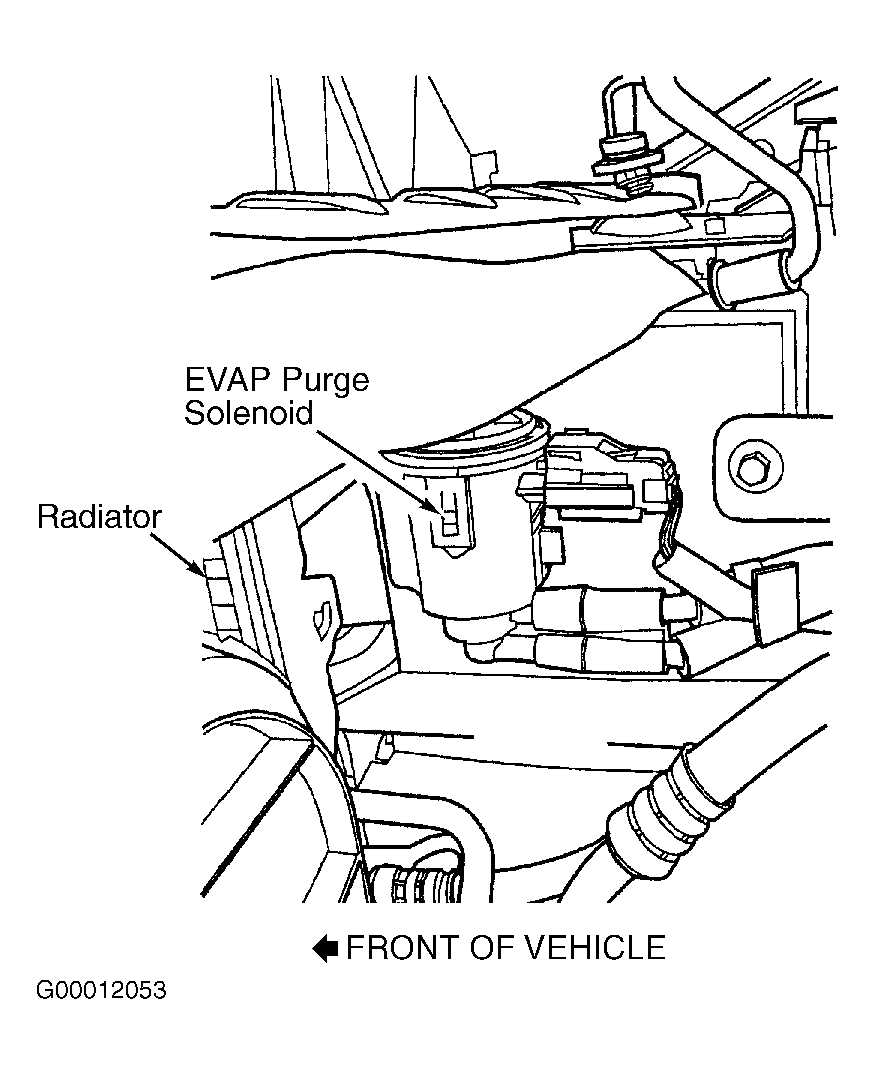

Fig 13: Locating EVAP Purge Solenoid

G00012053

Courtesy of DAIMLERCHRYSLER CORPORATION

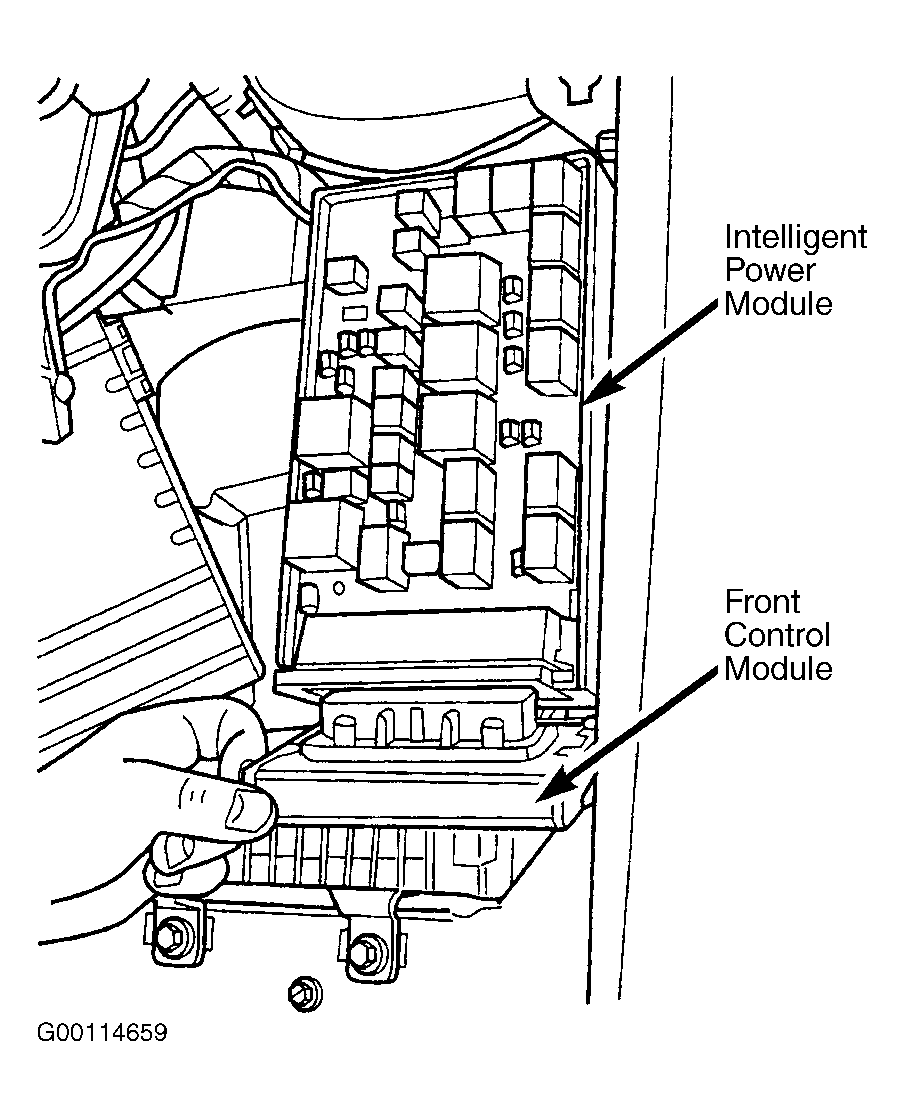

Fig 14: Locating Front Control Module

G00114659

Courtesy of DAIMLERCHRYSLER CORPORATION

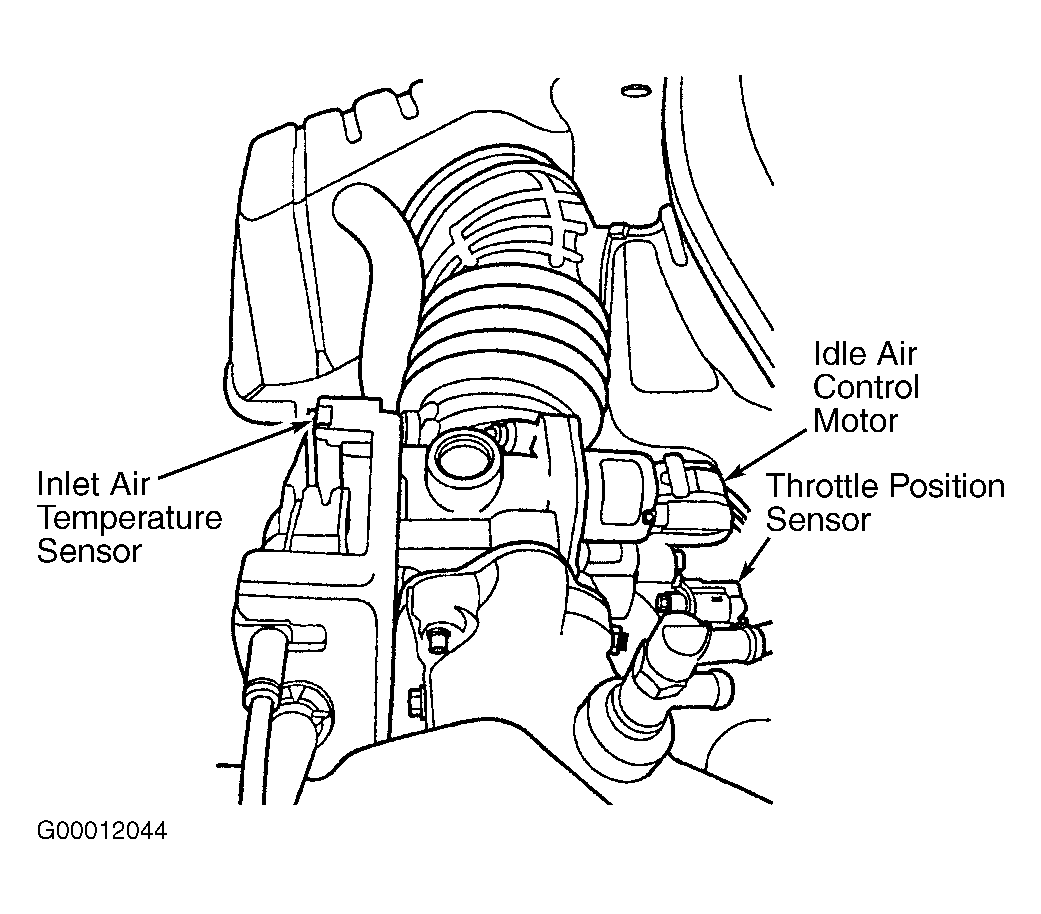

Fig 15: Locating IAT & TP Sensors, & IAC Motor (2.4L)

G00012044

Courtesy of DAIMLERCHRYSLER CORPORATION

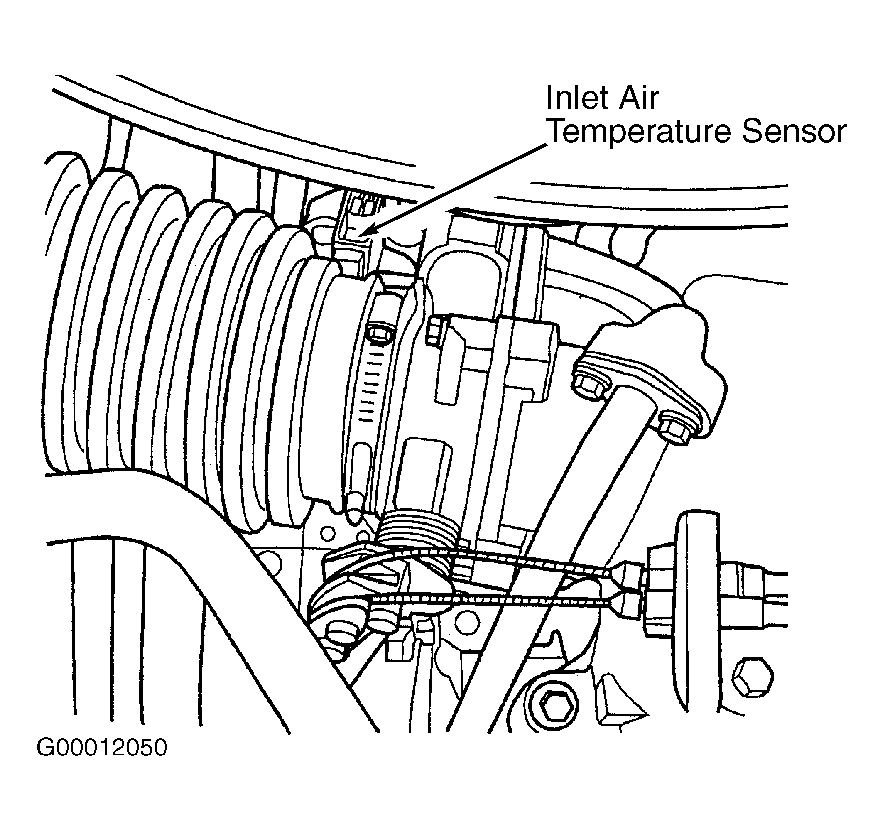

Fig 16: Locating Inlet Air Temperature Sensor (3.3L & 3.8L)

G00012050

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 17: Locating Input/Output Speed Sensor & Transmission Range Sensor (3.3L & 3.8L)

G96G04261

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Locating Intelligent Power Module Connectors

G00030142

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 19: Locating Integrated Power Module & Powertrain Control Module

G00030187

Courtesy of DAIMLERCHRYSLER CORPORATION

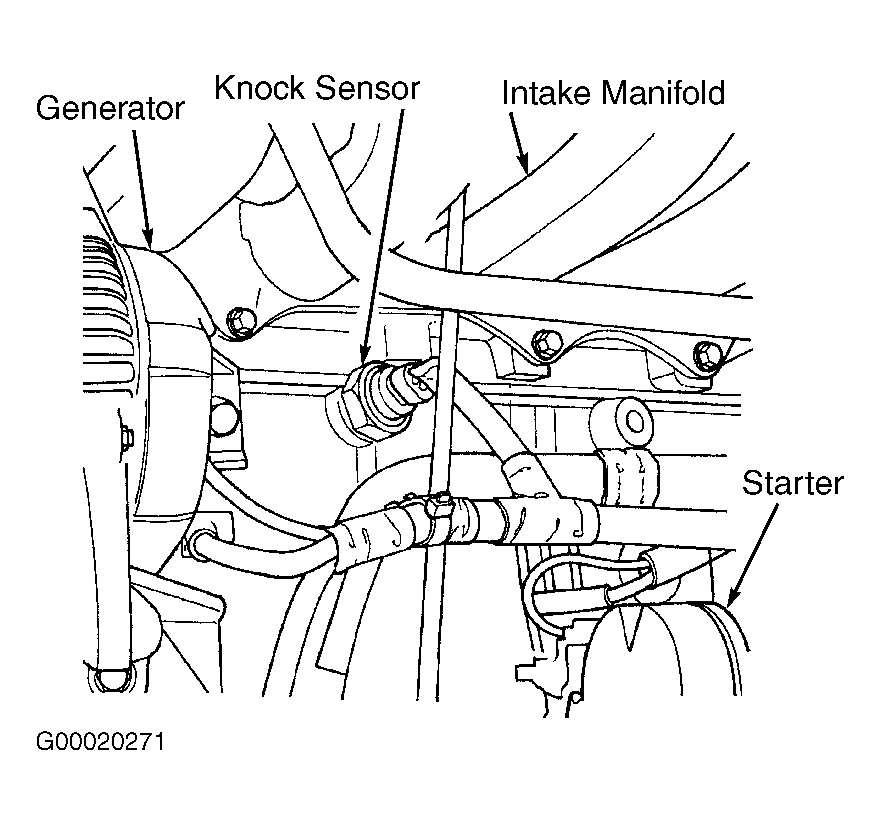

Fig 20: Locating Knock Sensor (2.4L)

G00020271

Courtesy of DAIMLERCHRYSLER CORPORATION

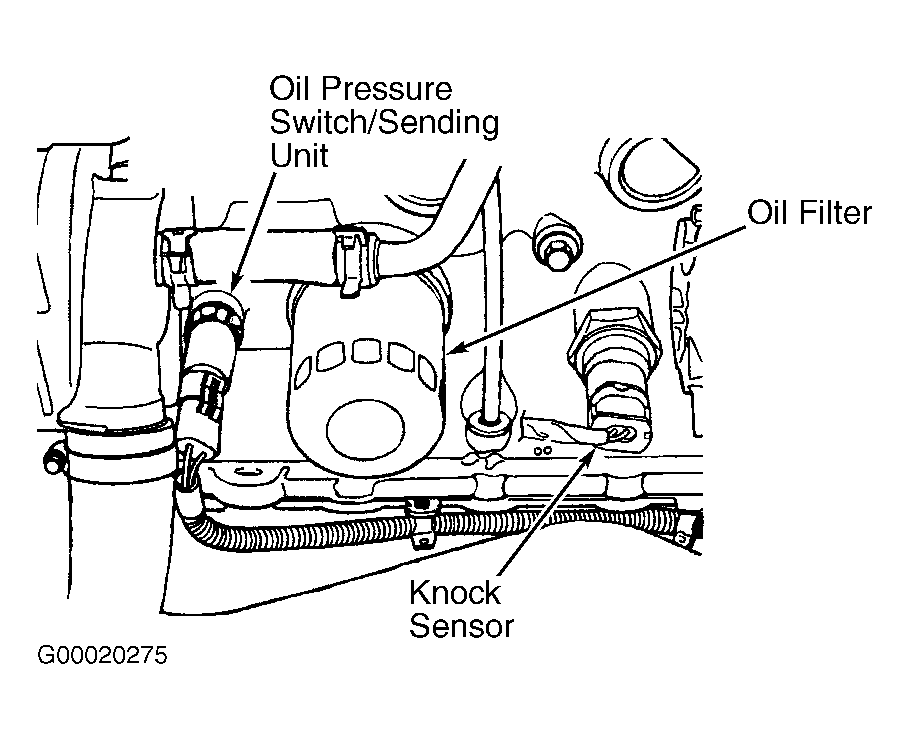

Fig 21: Locating Knock Sensor & Oil Pressure Sending Unit (3.3L & 3.8L)

G00020275

Courtesy of DAIMLERCHRYSLER CORPORATION

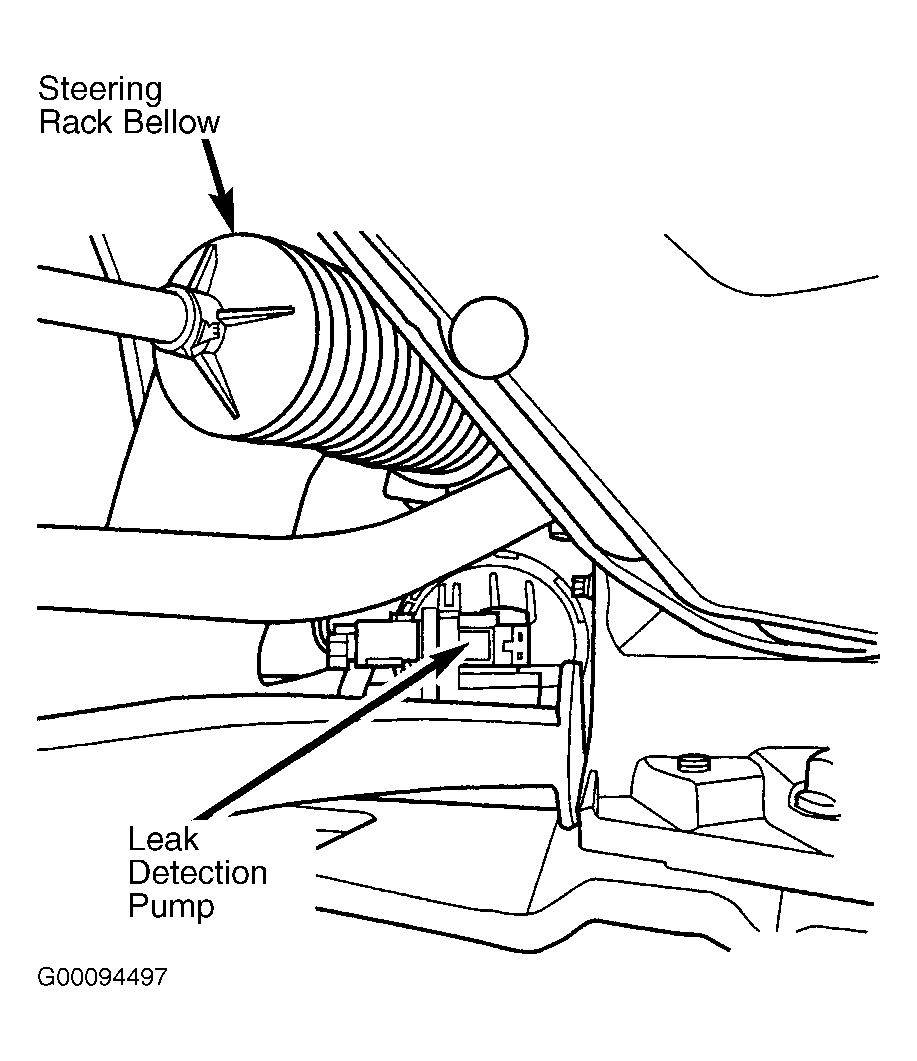

Fig 22: Locating Leak Detection Pump

G00094497

Courtesy of DAIMLERCHRYSLER CORPORATION

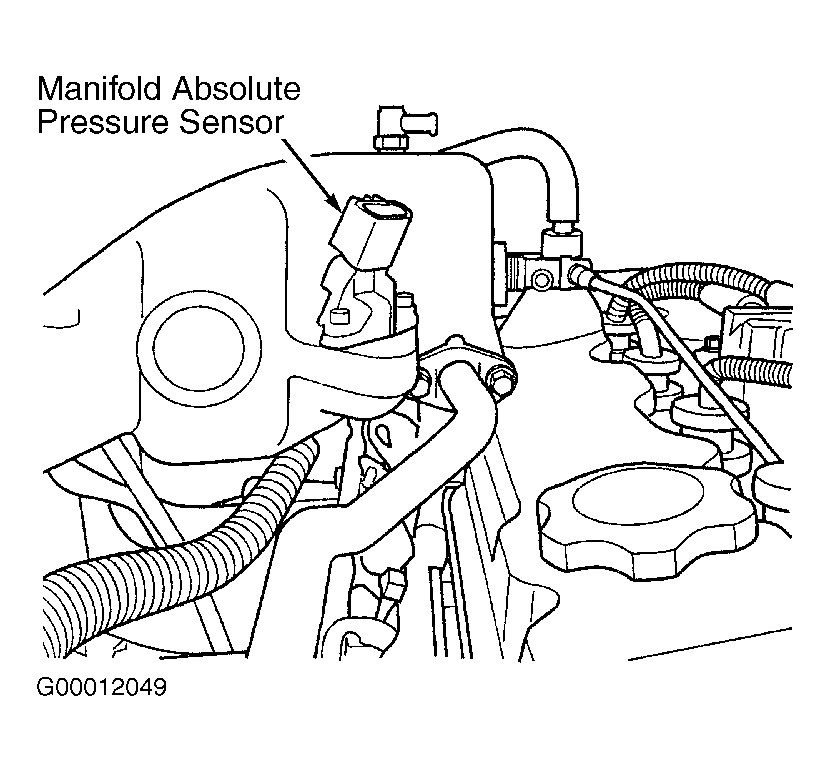

Fig 23: Locating Manifold Absolute Pressure Sensor (2.4L)

G00012049

Courtesy of DAIMLERCHRYSLER CORPORATION

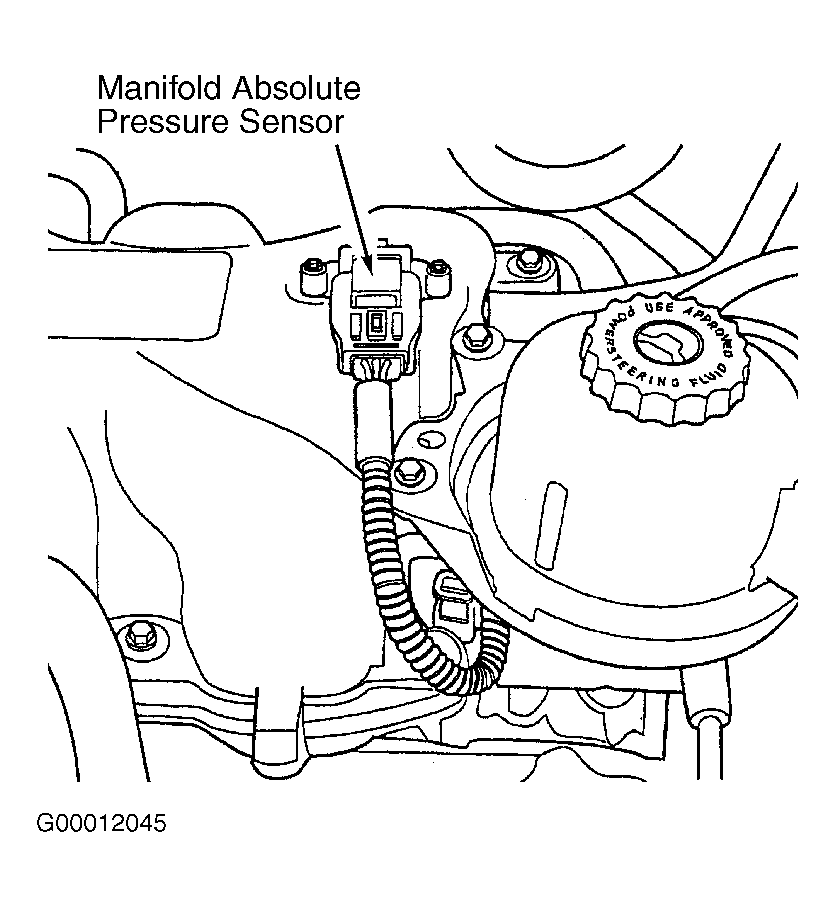

Fig 24: Locating Manifold Absolute Pressure Sensor (3.3L & 3.8L)

G00012045

Courtesy of DAIMLERCHRYSLER CORPORATION

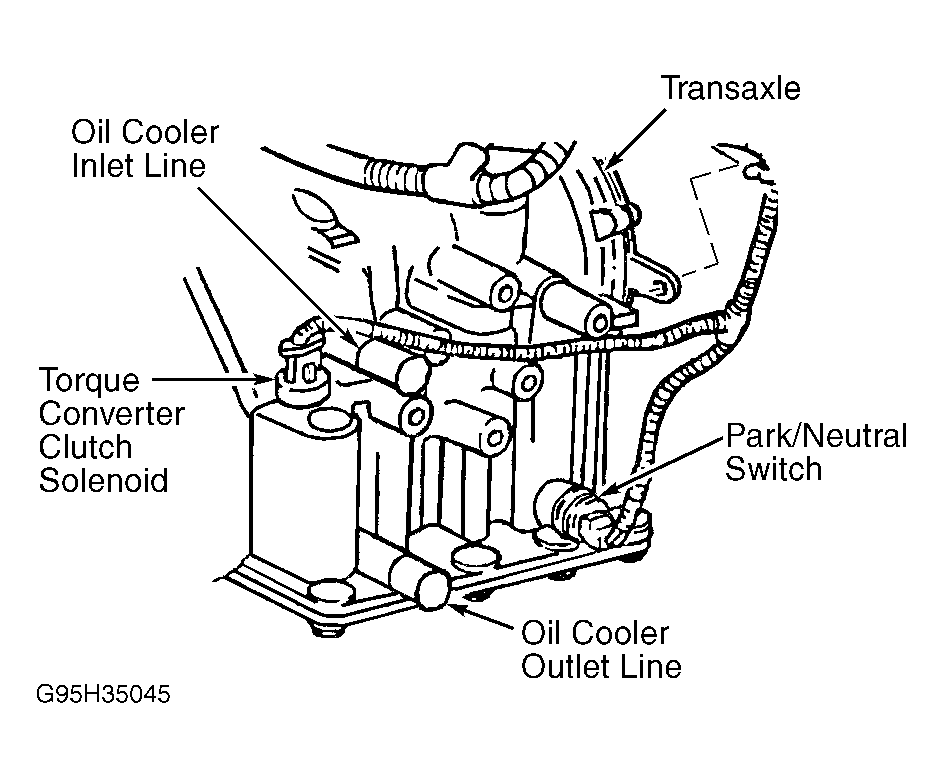

Fig 25: Locating Park/Neutral Switch & Torque Converter Clutch Solenoid, & Identifying Oil Cooler Lines (2.4L)

G95H35045

Courtesy of DAIMLERCHRYSLER CORPORATION

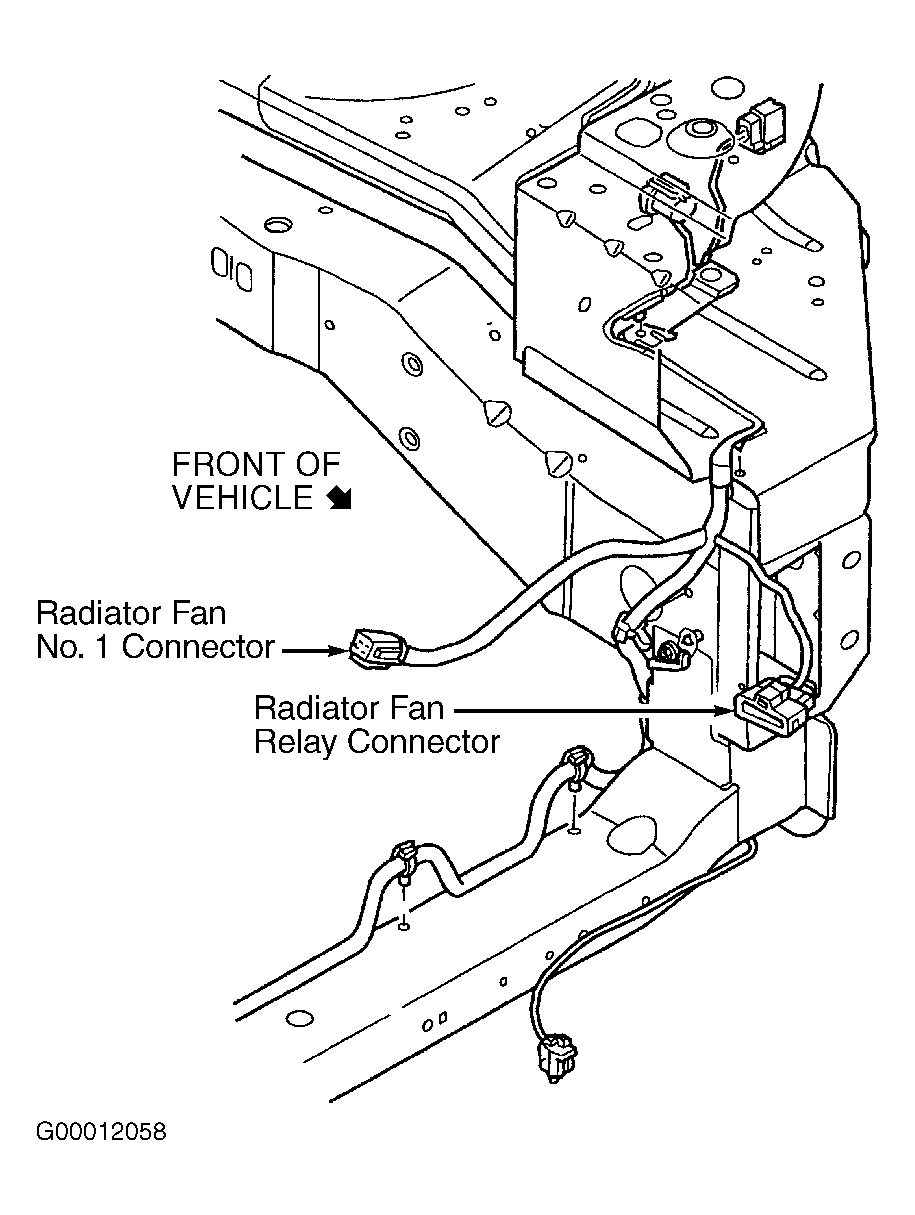

Fig 26: Locating Radiator Fan Relay Connector

G00012058

Courtesy of DAIMLERCHRYSLER CORPORATION

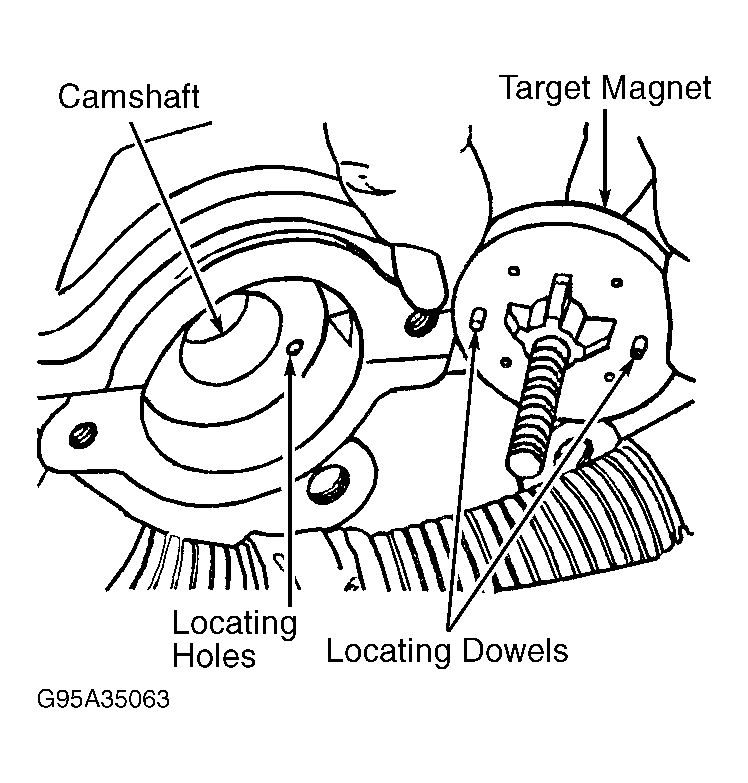

Fig 27: Locating Target Magnet & Locating Dowels (2.4L)

G95A35063

Courtesy of DAIMLERCHRYSLER CORPORATION

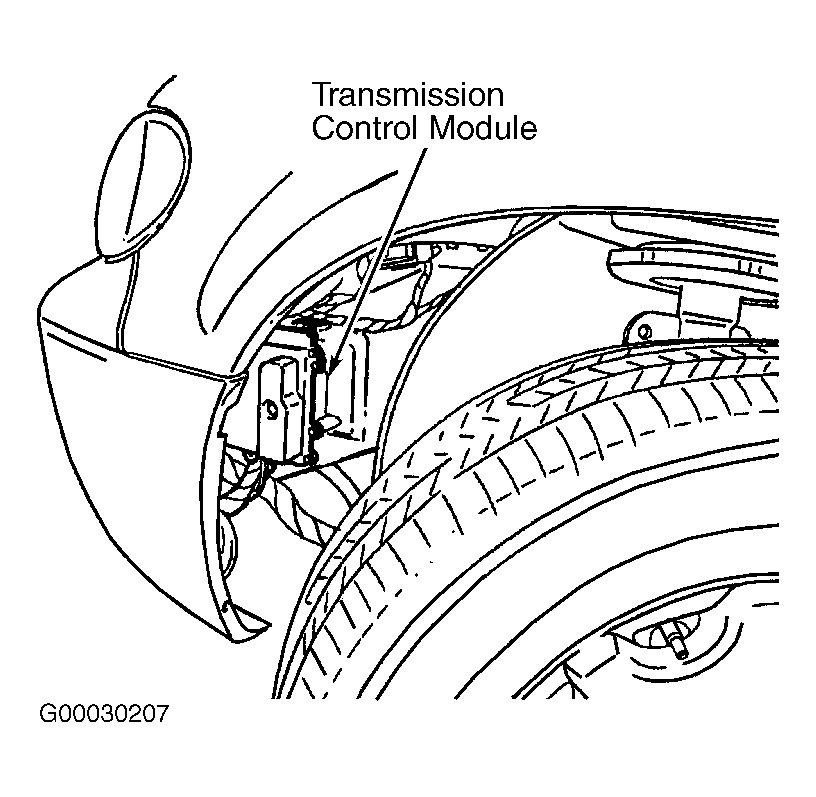

Fig 28: Locating Transmission Control Module (3.3L & 3.8L)

G00030207

Courtesy of DAIMLERCHRYSLER CORPORATION

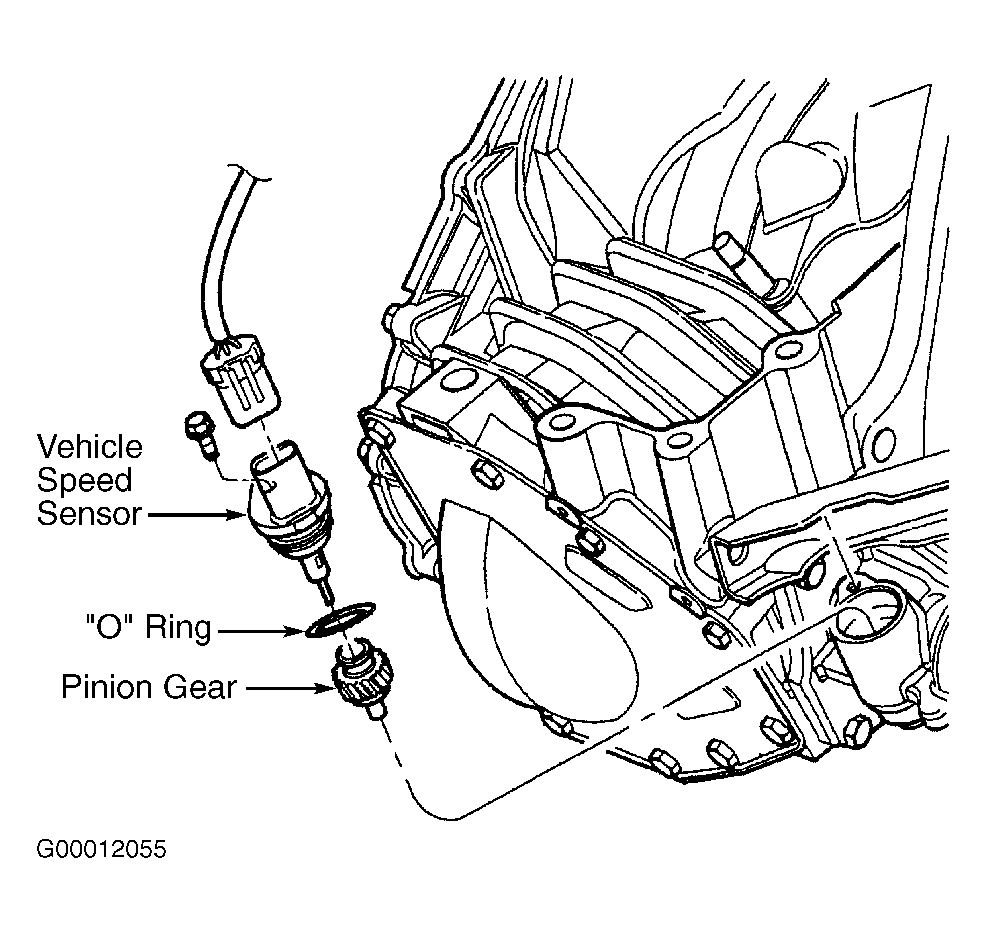

Fig 29: Locating Vehicle Speed Sensor (2.4L)

G00012055

Courtesy of DAIMLERCHRYSLER CORPORATION

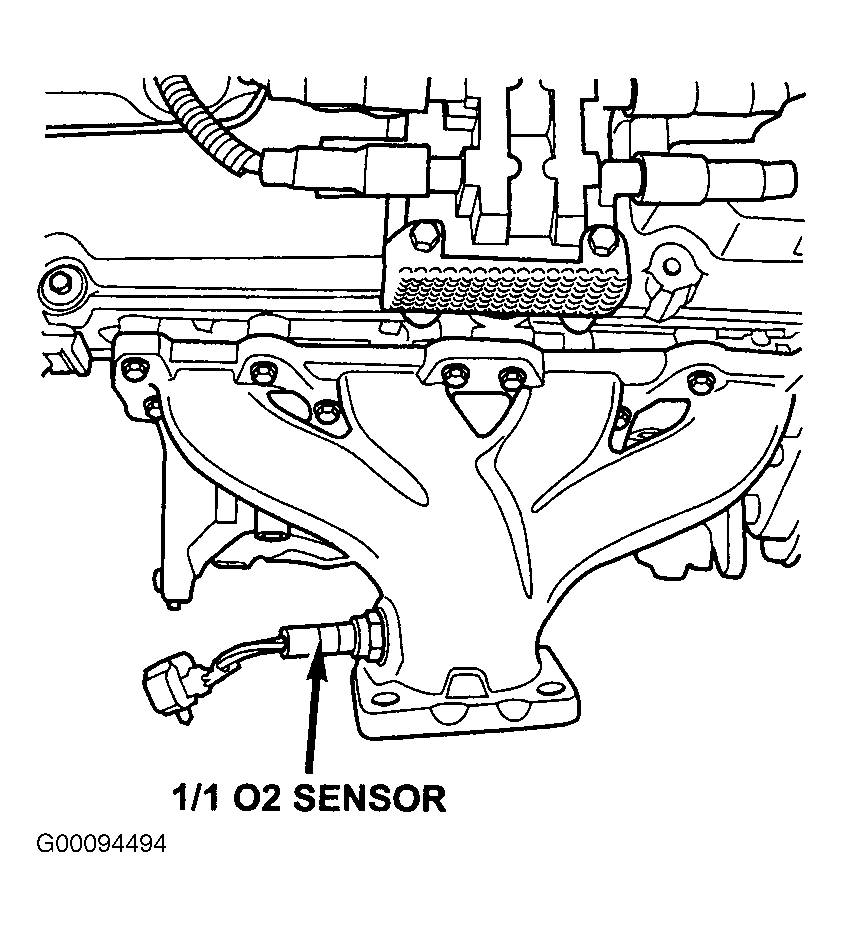

Fig 30: Locating 1/1 O2 Sensor (2.4L)

G00094494

Courtesy of DAIMLERCHRYSLER CORPORATION

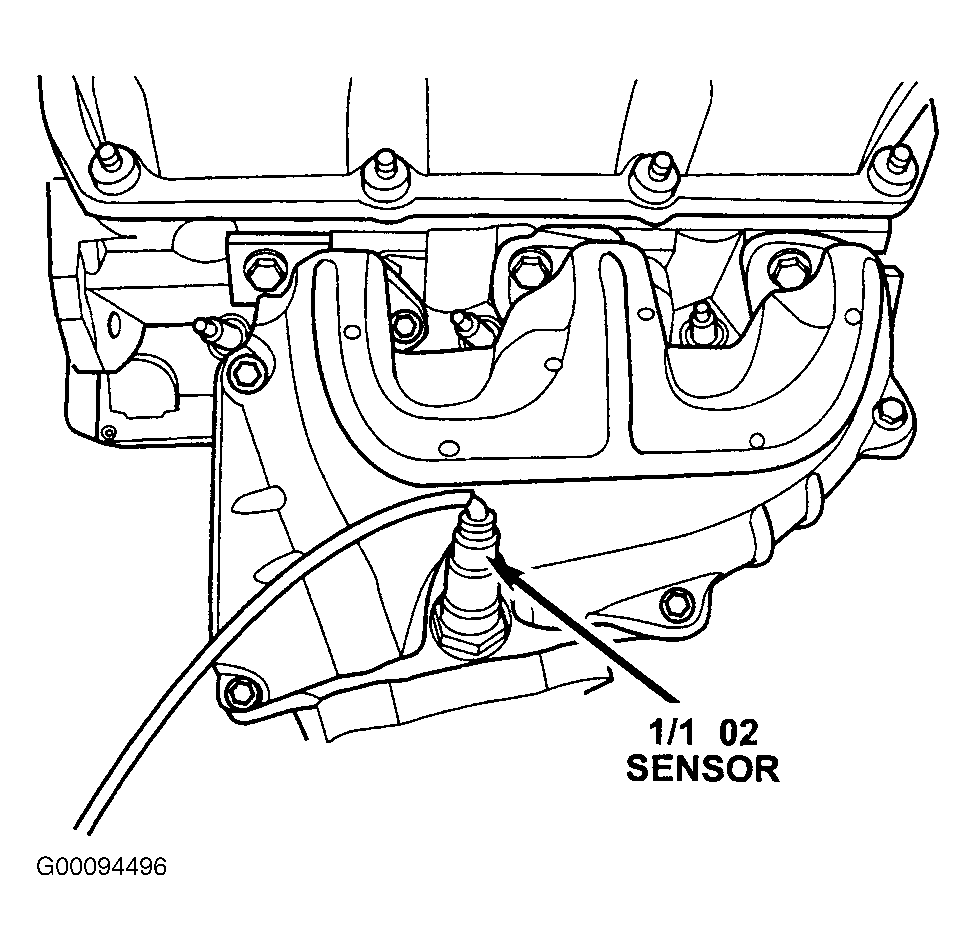

Fig 31: Locating 1/1 O2 Sensor (3.3L & 3.8L)

G00094496

Courtesy of DAIMLERCHRYSLER CORPORATION

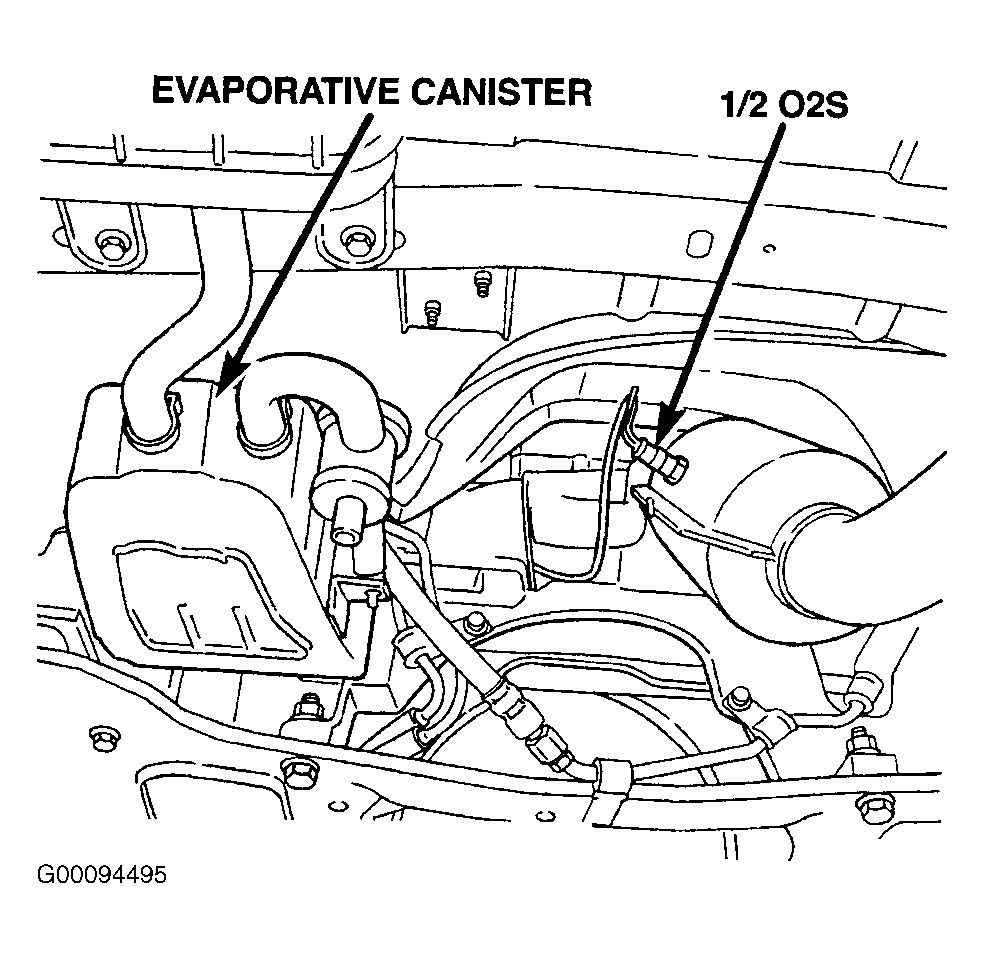

Fig 32: Locating 1/2 O2 Sensor

G00094495

Courtesy of DAIMLERCHRYSLER CORPORATION
