Connector Identification

NOTE: See Fig 1-Fig 53 for connector identification.

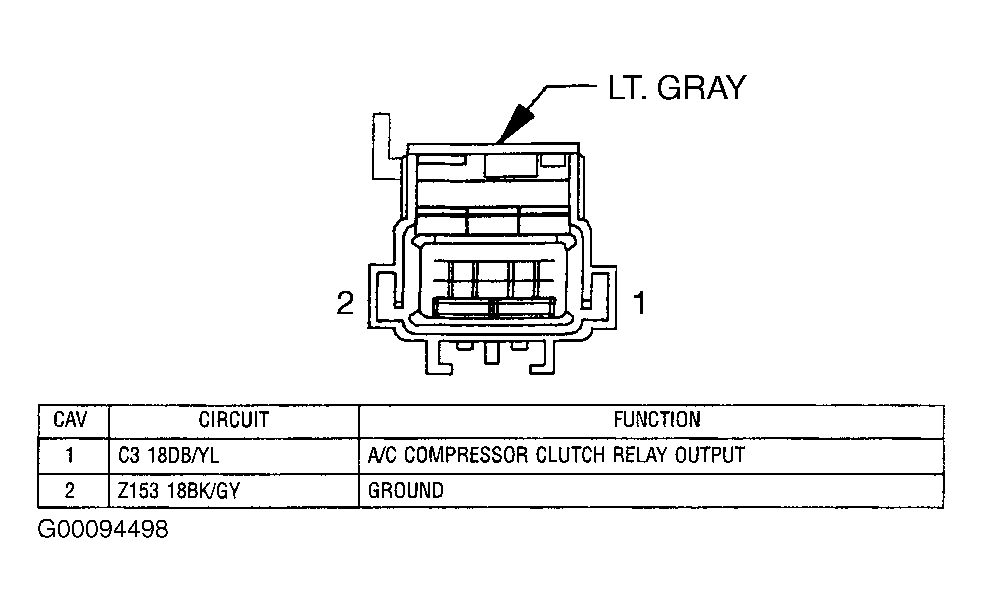

Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals

G00094498

Courtesy of DAIMLERCHRYSLER CORPORATION

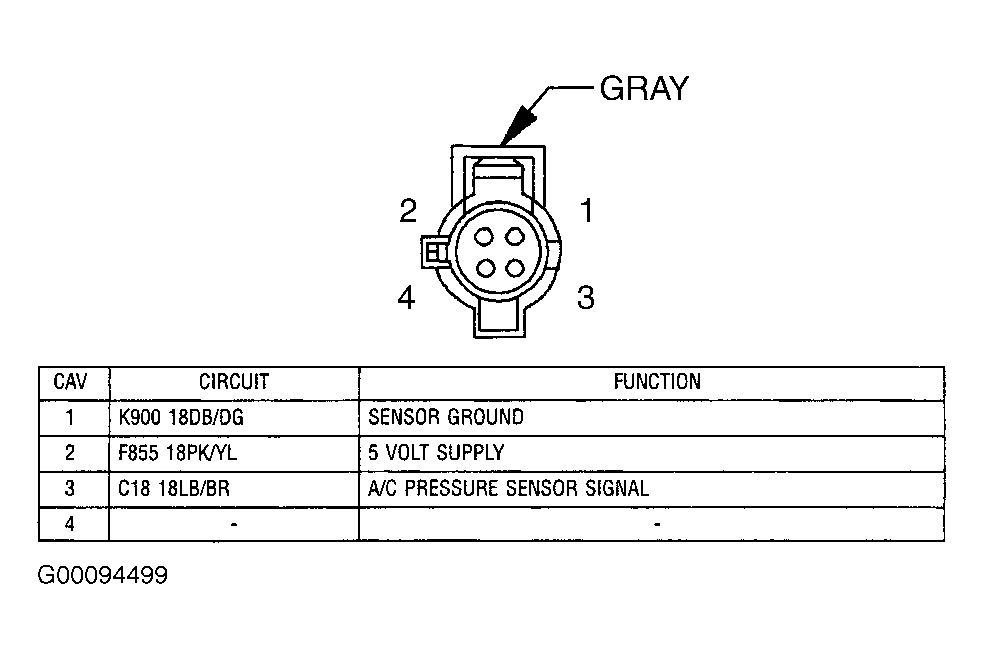

Fig 2: Identifying A/C Pressure Sensor Harness Connector Terminals

G00094499

Courtesy of DAIMLERCHRYSLER CORPORATION

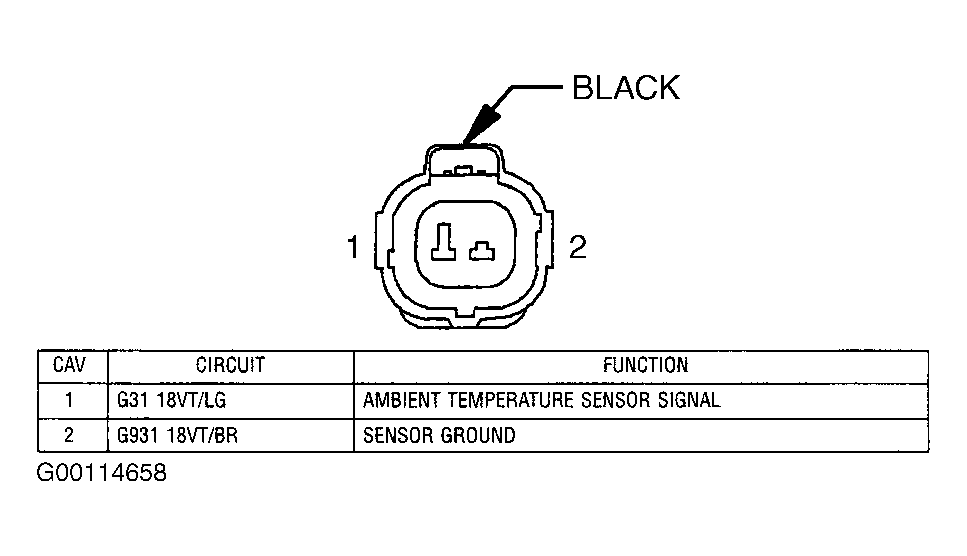

Fig 3: Identifying Ambient Air Temperature Sensor Harness Connector Terminals

G00114658

Courtesy of DAIMLERCHRYSLER CORPORATION

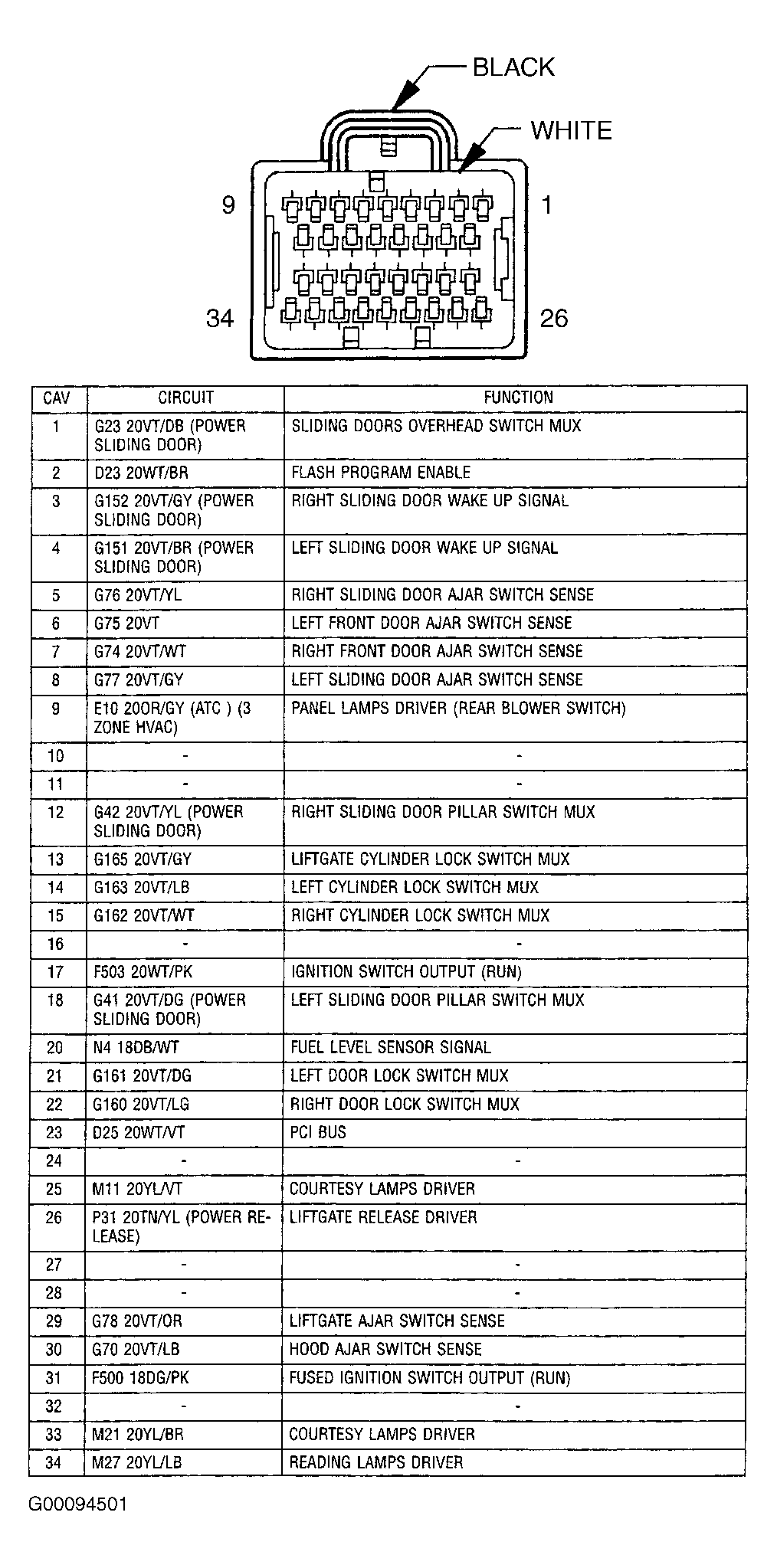

Fig 4: Identifying Body Control Module C3 Harness Connector Terminals

G00094501

Courtesy of DAIMLERCHRYSLER CORPORATION

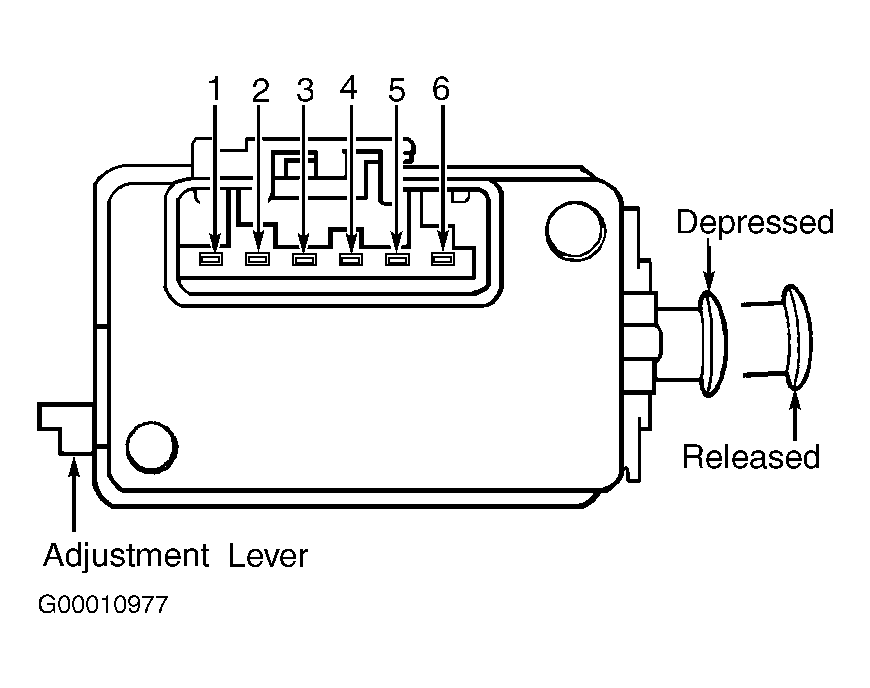

Fig 5: Identifying Brake Switch Terminals

G00010977

Courtesy of DAIMLERCHRYSLER CORPORATION

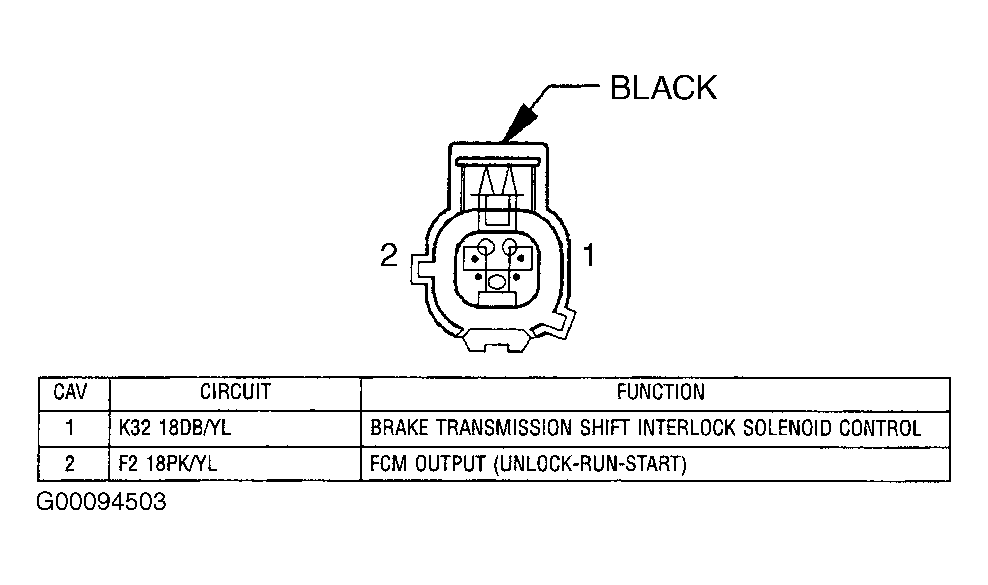

Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector Terminals

G00094503

Courtesy of DAIMLERCHRYSLER CORPORATION

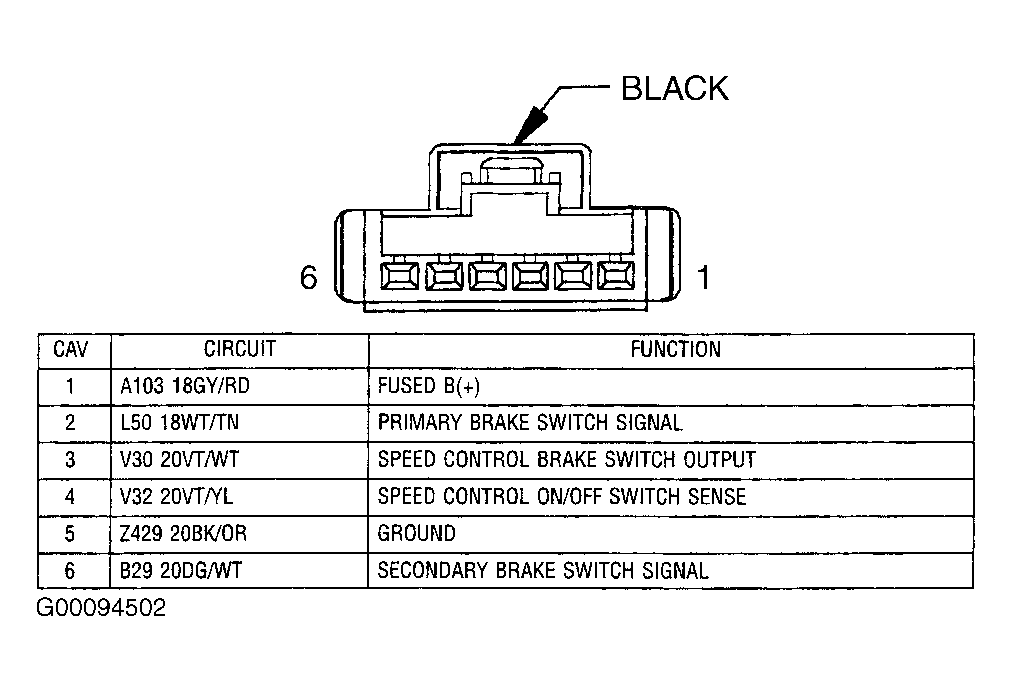

Fig 7: Identifying Brakelight Switch Harness Connector Terminals

G00094502

Courtesy of DAIMLERCHRYSLER CORPORATION

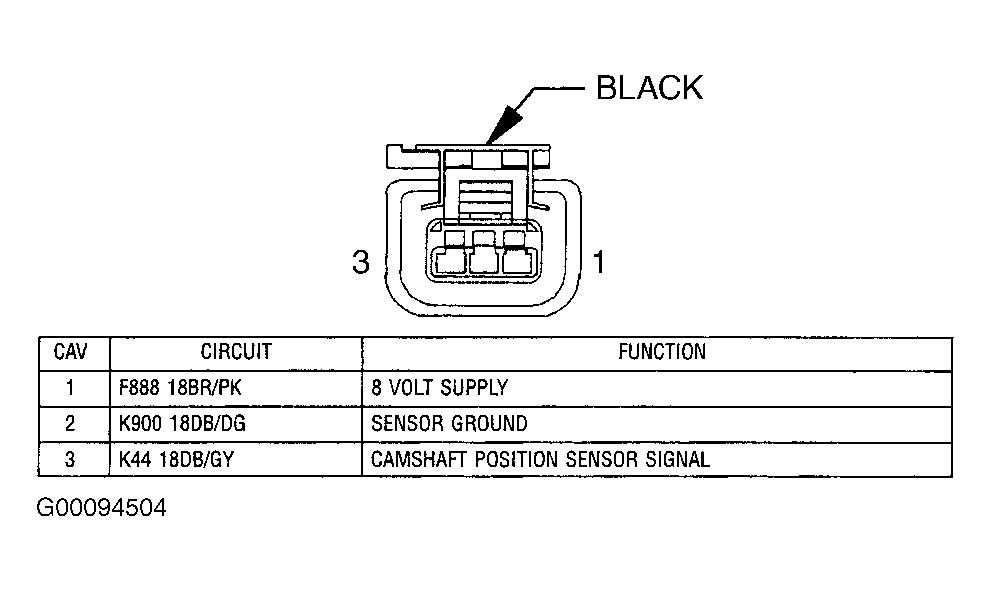

Fig 8: Identifying Camshaft Position Sensor Harness Connector Terminals

G00094504

Courtesy of DAIMLERCHRYSLER CORPORATION

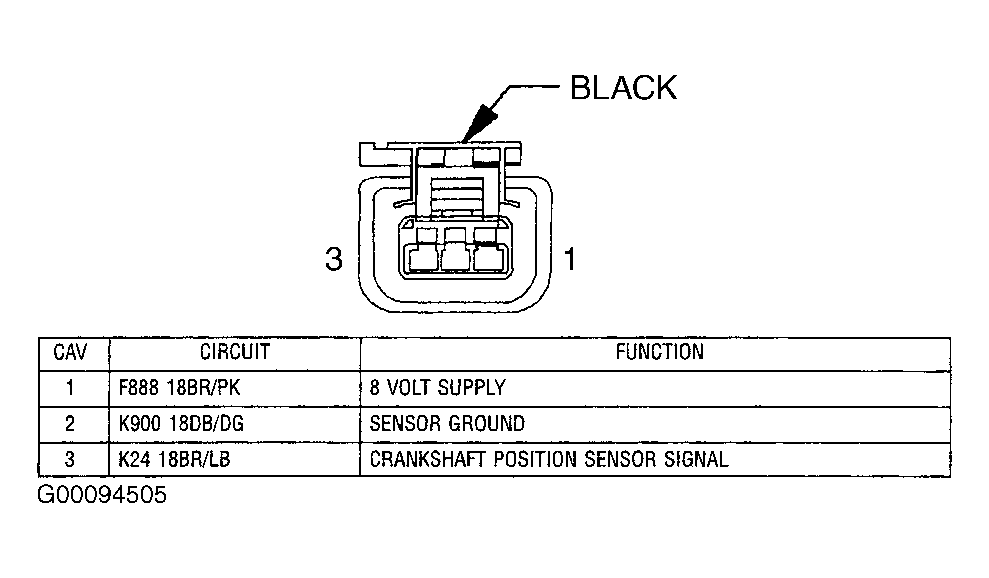

Fig 9: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00094505

Courtesy of DAIMLERCHRYSLER CORPORATION

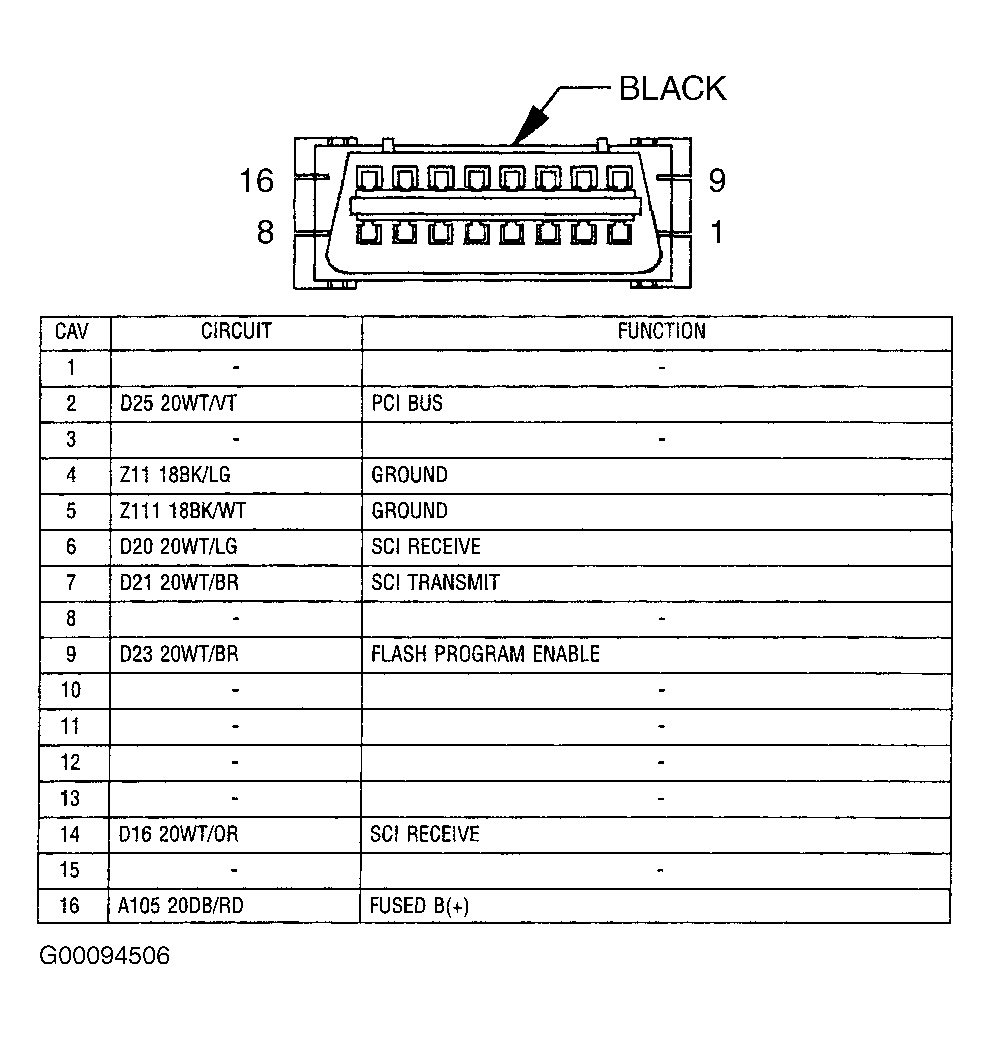

Fig 10: Identifying Data Link Connector Terminals

G00094506

Courtesy of DAIMLERCHRYSLER CORPORATION

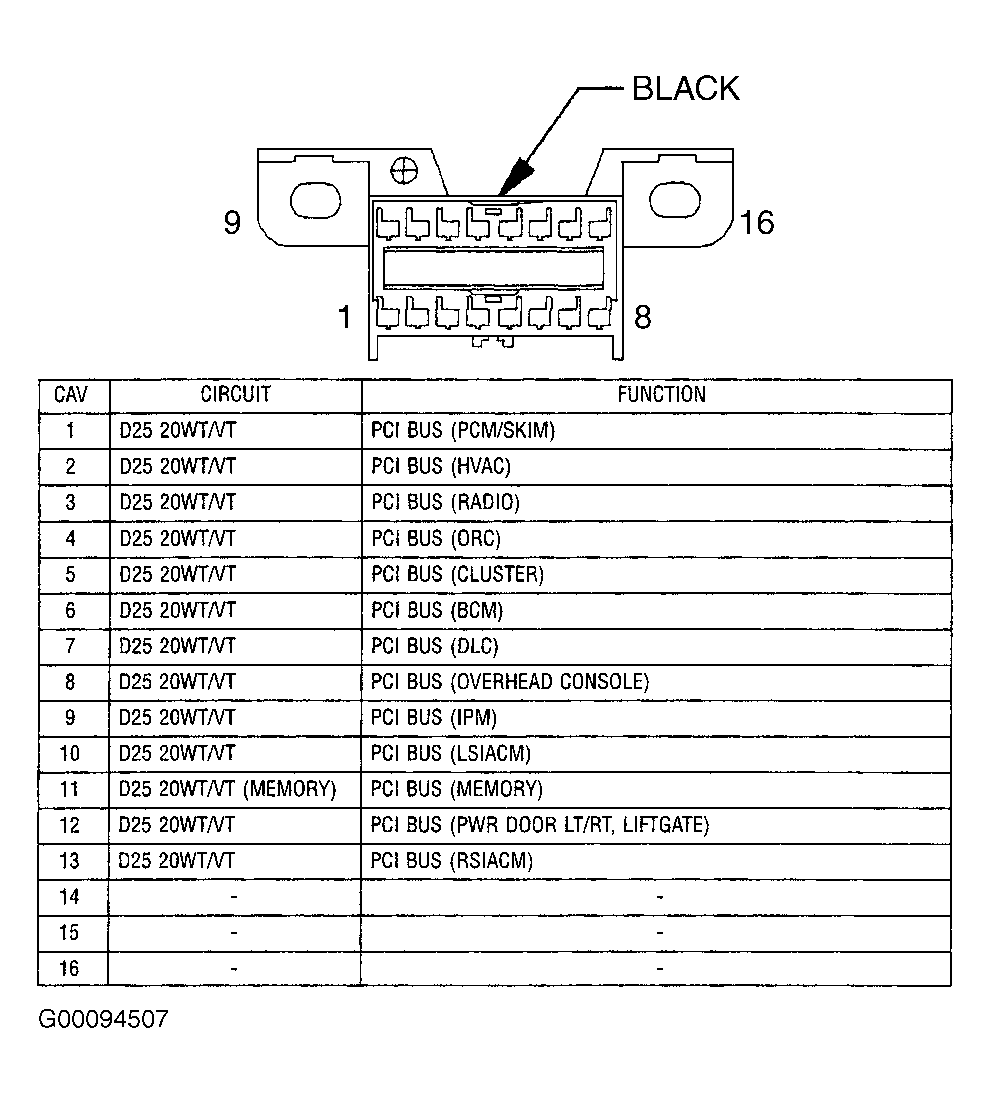

Fig 11: Identifying Diagnostic Junction Port Terminals

G00094507

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 12: Identifying EGR Solenoid Harness Connector Terminals

G00094508

Courtesy of DAIMLERCHRYSLER CORPORATION

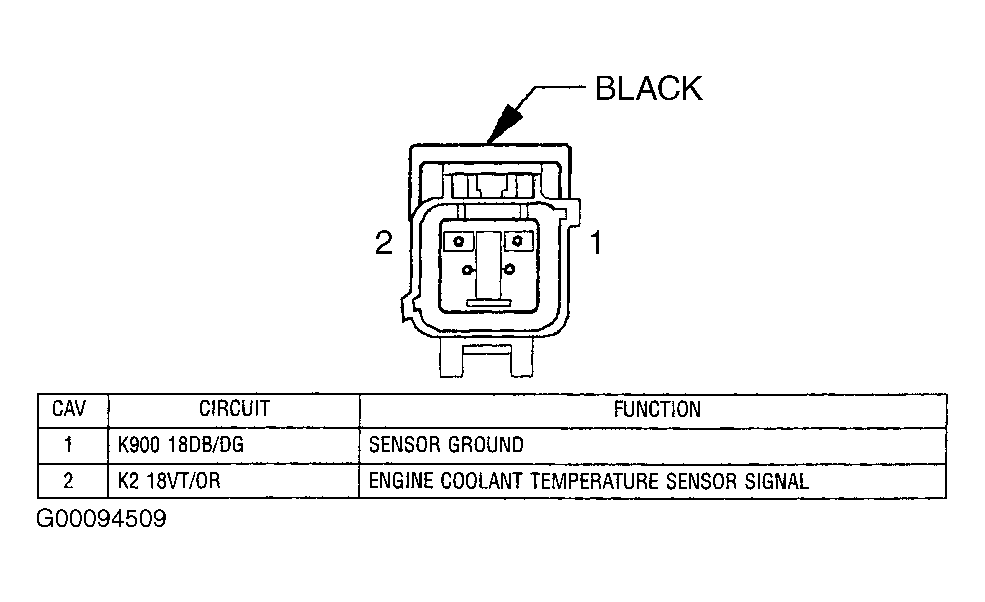

Fig 13: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals

G00094509

Courtesy of DAIMLERCHRYSLER CORPORATION

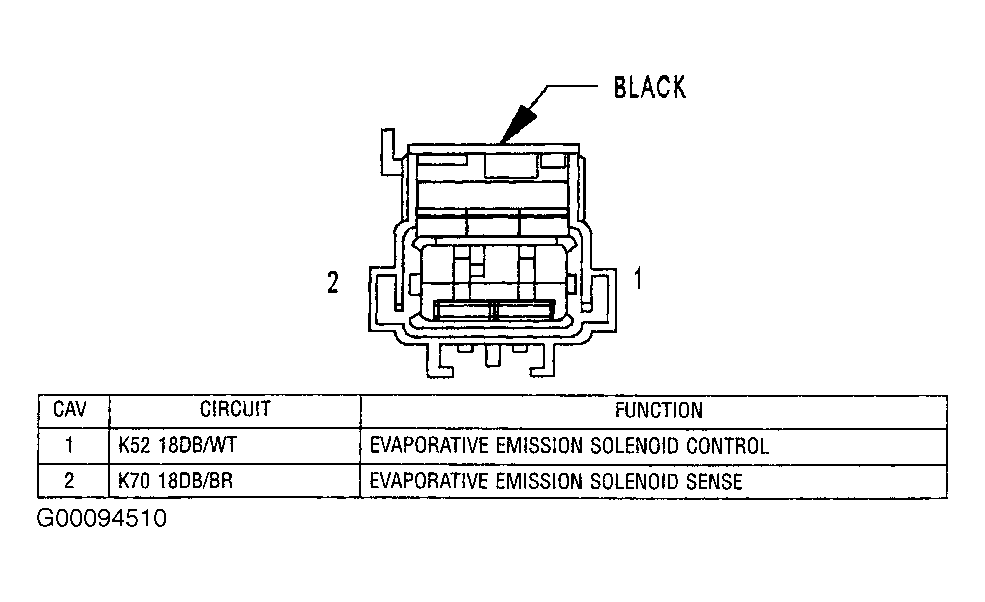

Fig 14: Identifying EVAP Purge Solenoid Harness Connector Terminals

G00094510

Courtesy of DAIMLERCHRYSLER CORPORATION

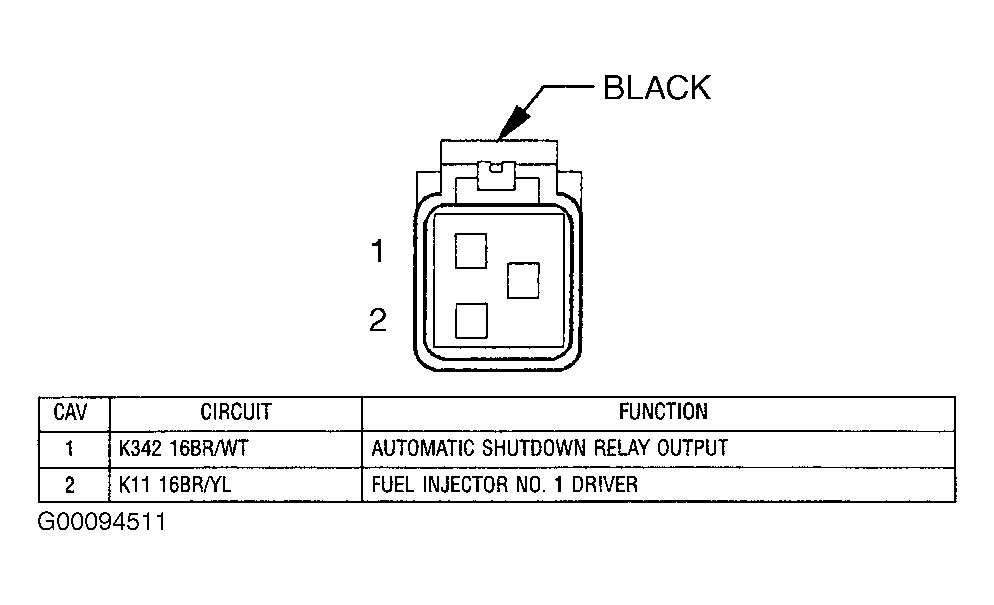

Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00094511

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00094512

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00094513

Courtesy of DAIMLERCHRYSLER CORPORATION

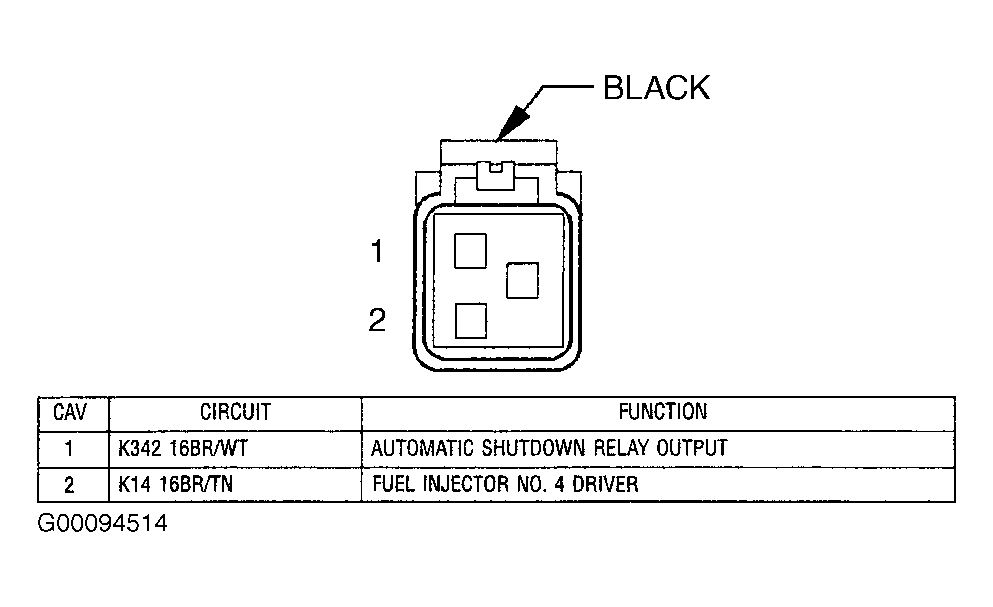

Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00094514

Courtesy of DAIMLERCHRYSLER CORPORATION

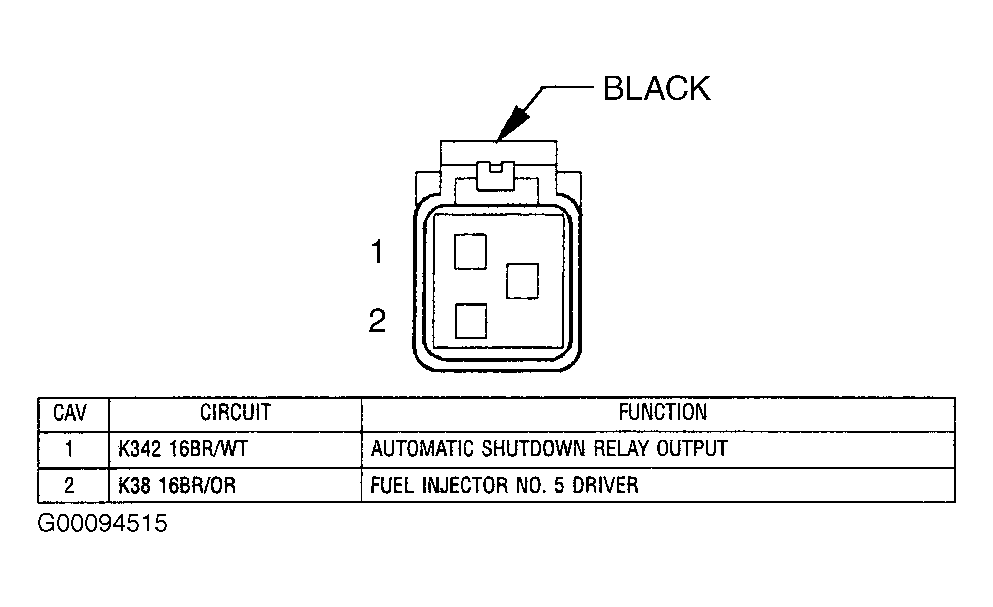

Fig 19: Identifying Fuel Injector No. 5 Harness Connector Terminals (3.3L & 3.8L)

G00094515

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 20: Identifying Fuel Injector No. 6 Harness Connector Terminals (3.3L & 3.8L)

G00094516

Courtesy of DAIMLERCHRYSLER CORPORATION

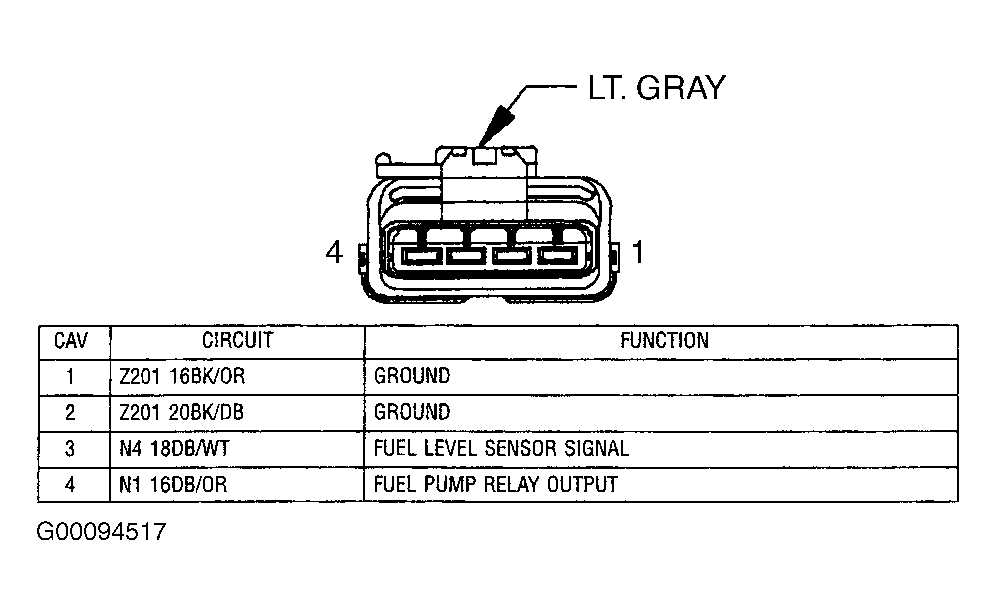

Fig 21: Identifying Fuel Pump Module Harness Connector Terminals

G00094517

Courtesy of DAIMLERCHRYSLER CORPORATION

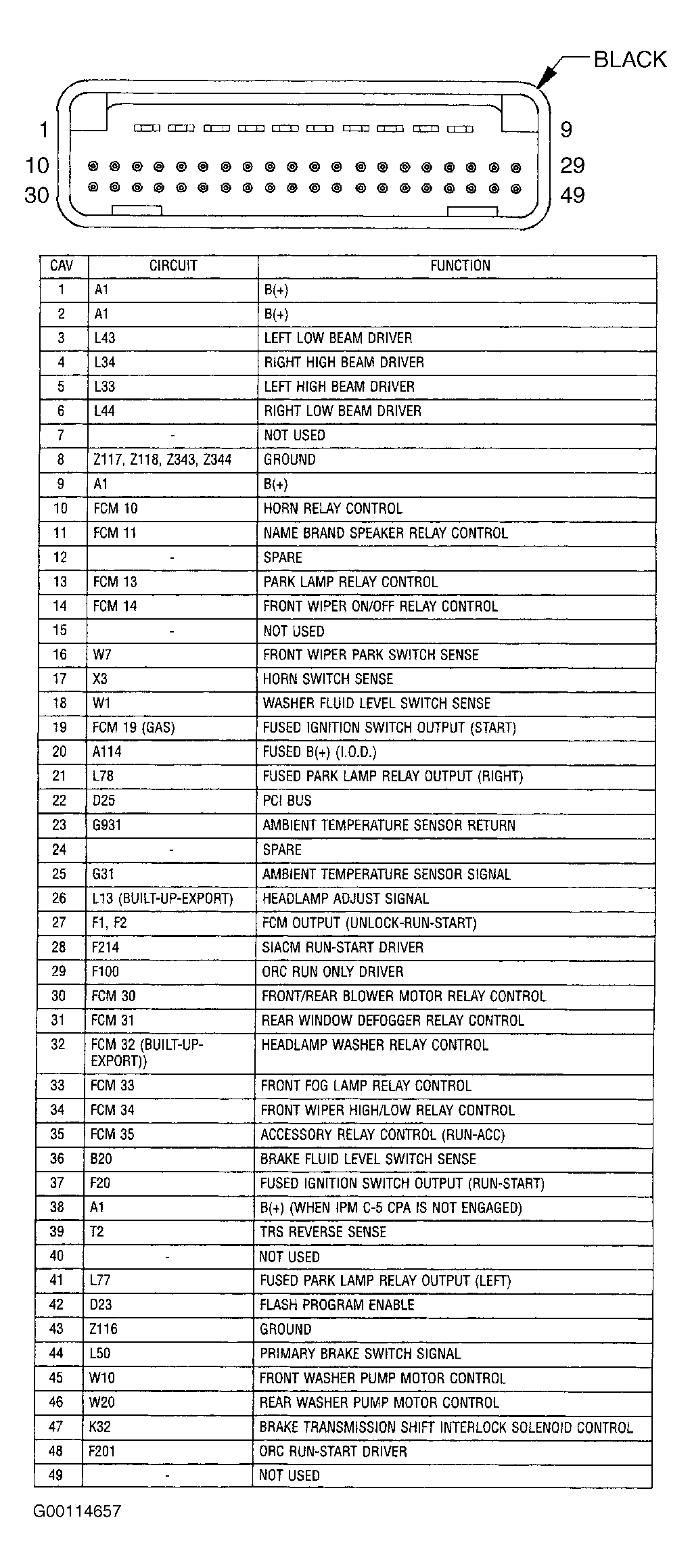

Fig 22: Identifying Front Control Module Harness Connector Terminals

G00114657

Courtesy of DAIMLERCHRYSLER CORPORATION

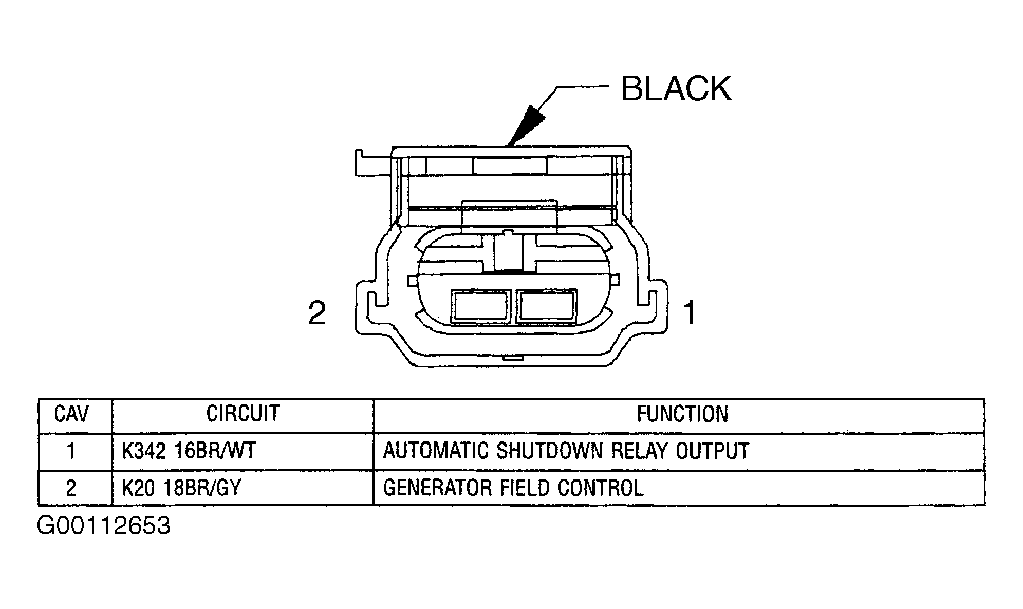

Fig 23: Identifying Generator Harness Connector Terminals

G00112653

Courtesy of DAIMLERCHRYSLER CORPORATION

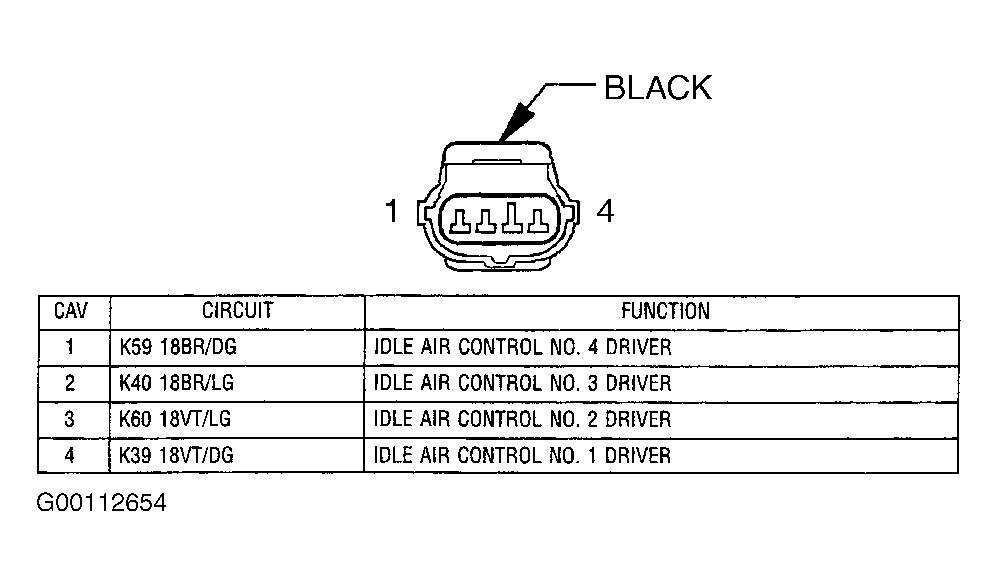

Fig 24: Identifying Idle Air Control Motor Harness Connector Terminals (2.4L)

G00112654

Courtesy of DAIMLERCHRYSLER CORPORATION

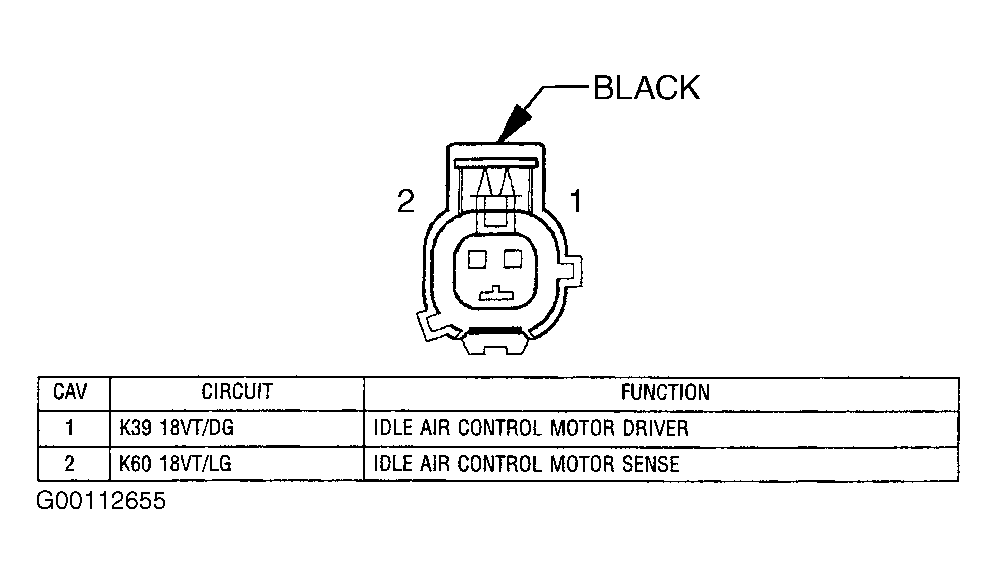

Fig 25: Identifying Idle Air Control Motor Harness Connector Terminals (3.3L & 3.8L)

G00112655

Courtesy of DAIMLERCHRYSLER CORPORATION

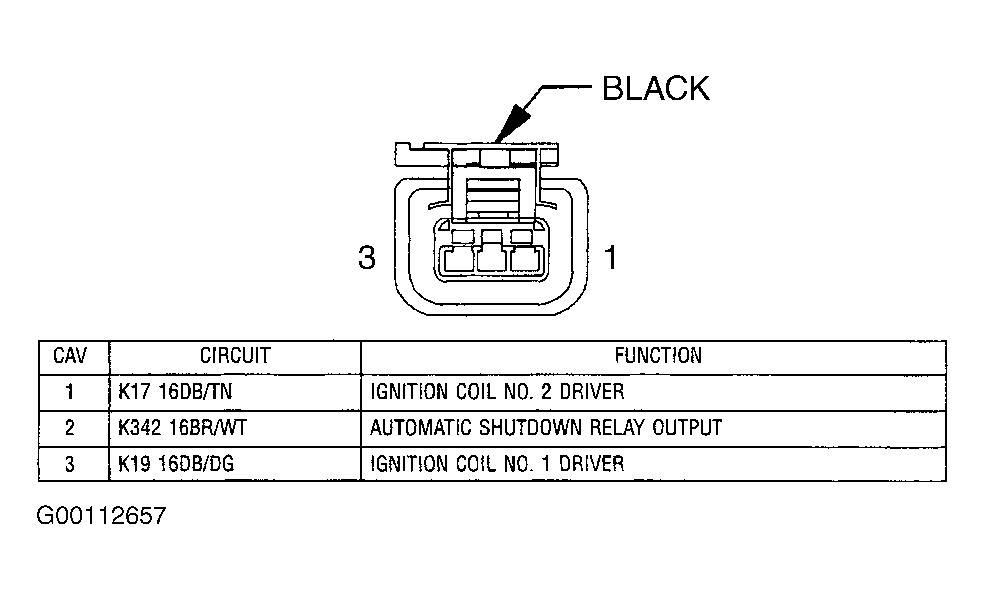

Fig 26: Identifying Ignition Coil Harness Connector Terminals (2.4L)

G00112657

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 27: Identifying Ignition Coil Harness Connector Terminals (3.3L & 3.8L)

G00112658

Courtesy of DAIMLERCHRYSLER CORPORATION

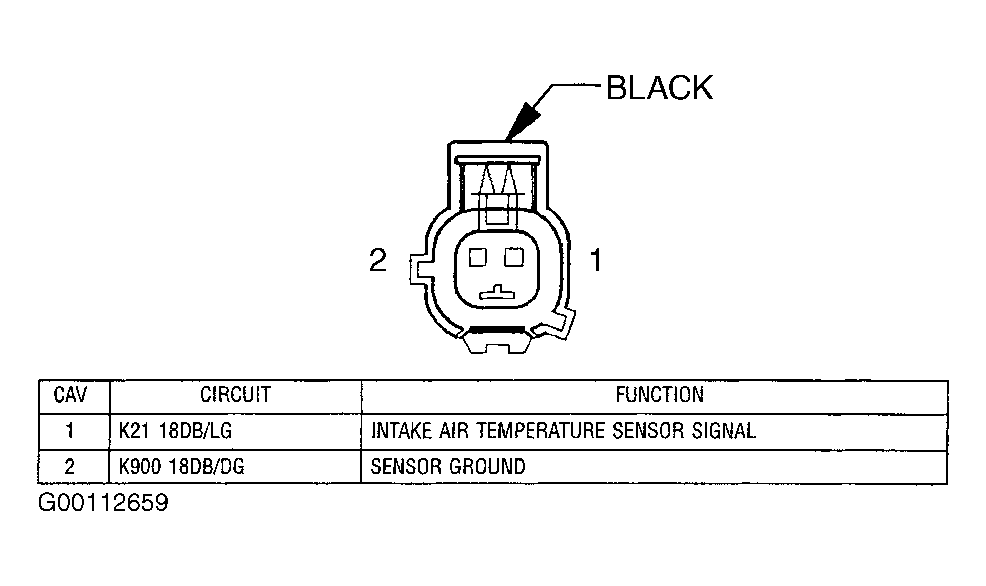

Fig 28: Identifying Inlet Air Temperature Sensor Harness Connector Terminals

G00112659

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 29: Identifying Integrated Power Module Components & Circuits (1 Of 2)

G00112661

Courtesy of DAIMLERCHRYSLER CORPORATION

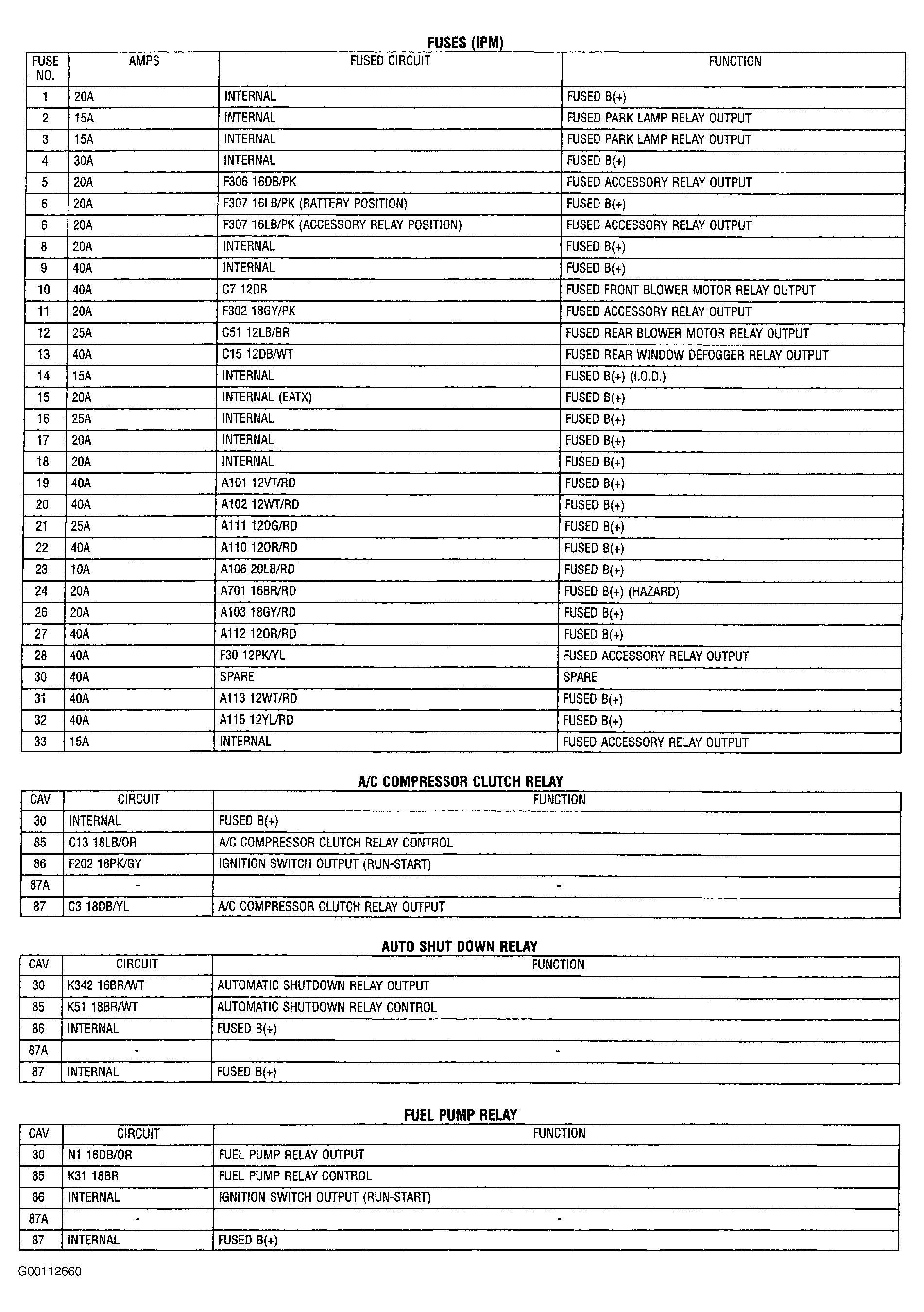

Fig 30: Identifying Integrated Power Module Components & Circuits (2 Of 2)

G00112660

Courtesy of DAIMLERCHRYSLER CORPORATION

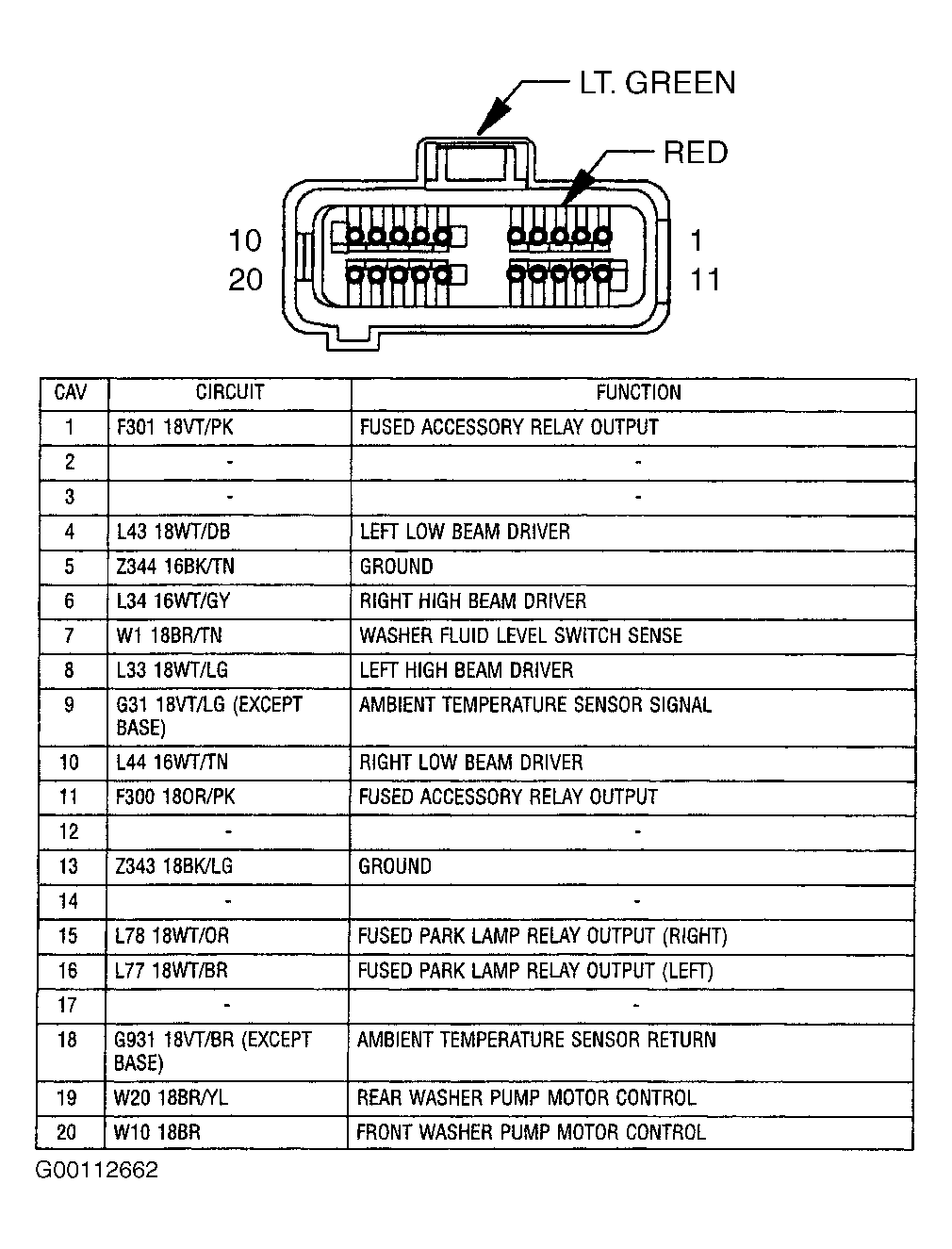

Fig 31: Identifying Integrated Power Module C1 Harness Connector Terminals

G00112662

Courtesy of DAIMLERCHRYSLER CORPORATION

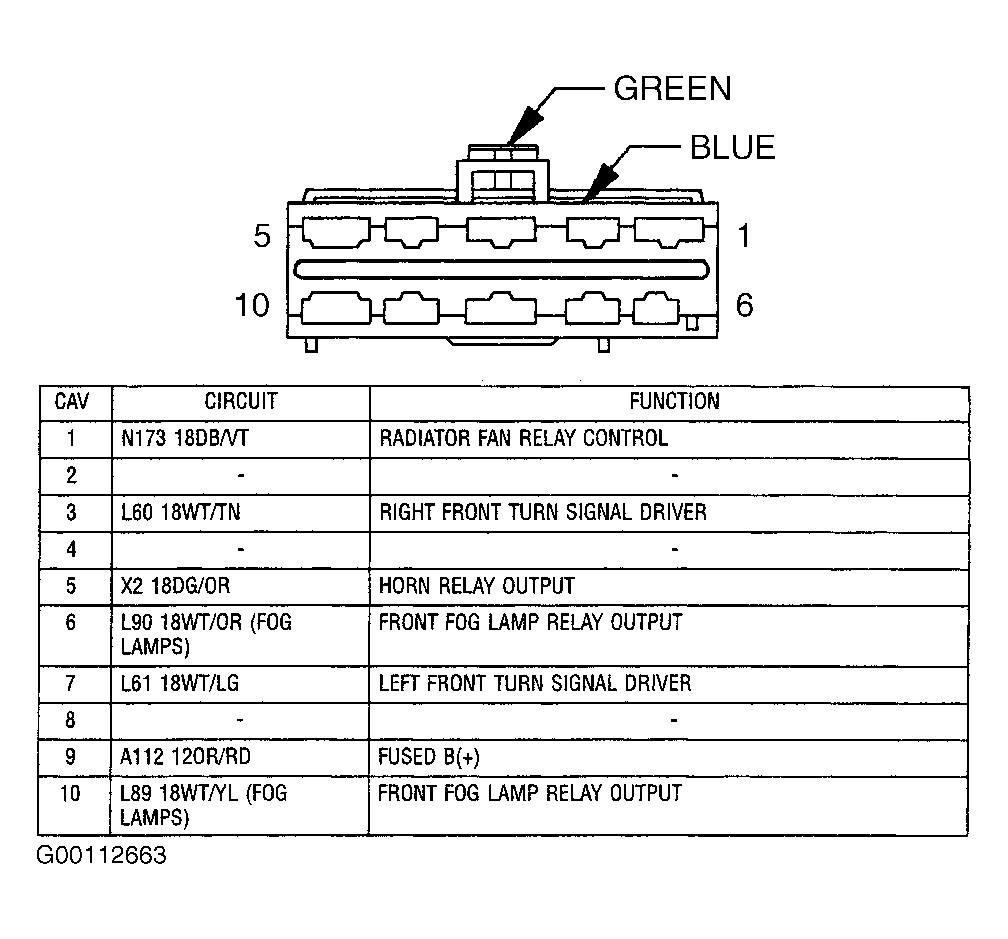

Fig 32: Identifying Integrated Power Module C2 Harness Connector Terminals

G00112663

Courtesy of DAIMLERCHRYSLER CORPORATION

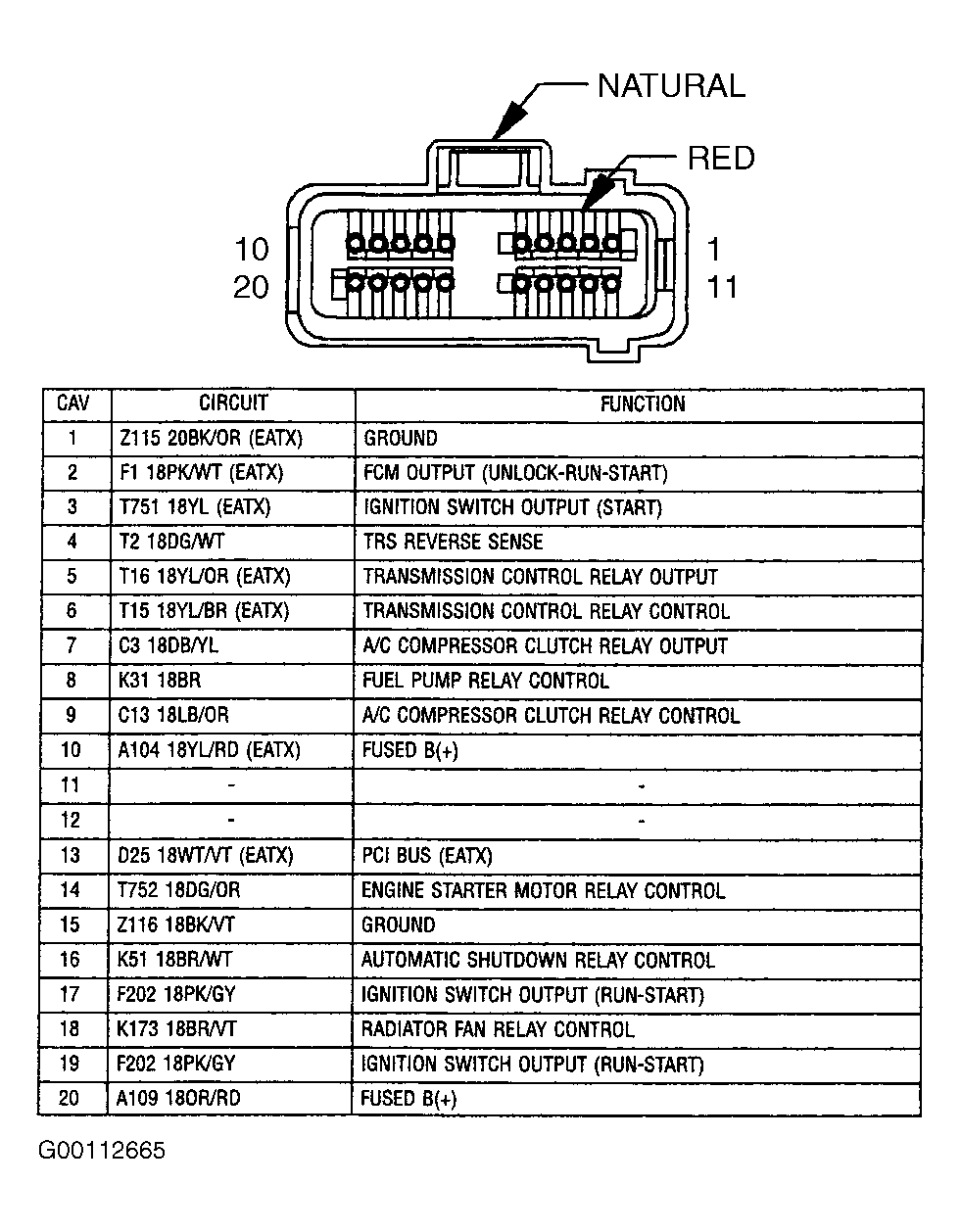

Fig 33: Identifying Integrated Power Module C3 Harness Connector Terminals

G00112665

Courtesy of DAIMLERCHRYSLER CORPORATION

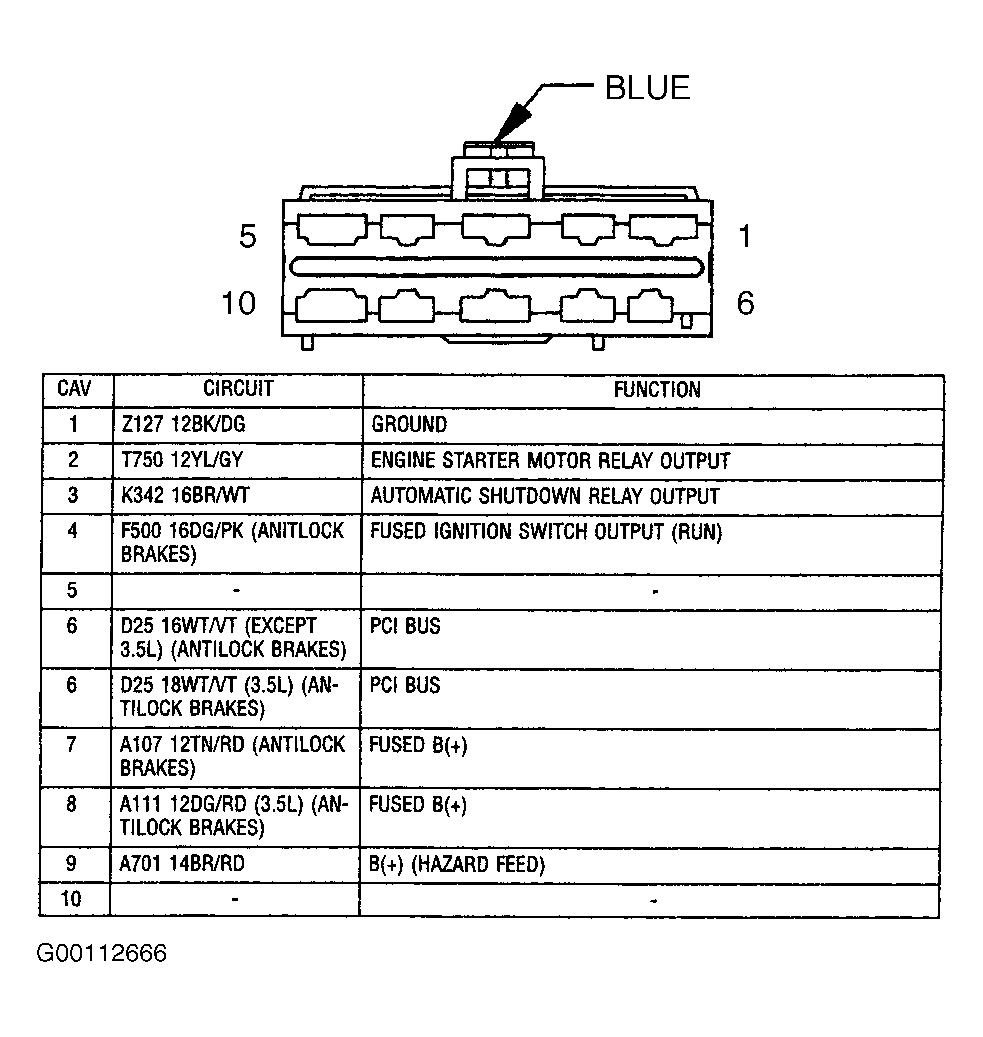

Fig 34: Identifying Integrated Power Module C4 Harness Connector Terminals

G00112666

Courtesy of DAIMLERCHRYSLER CORPORATION

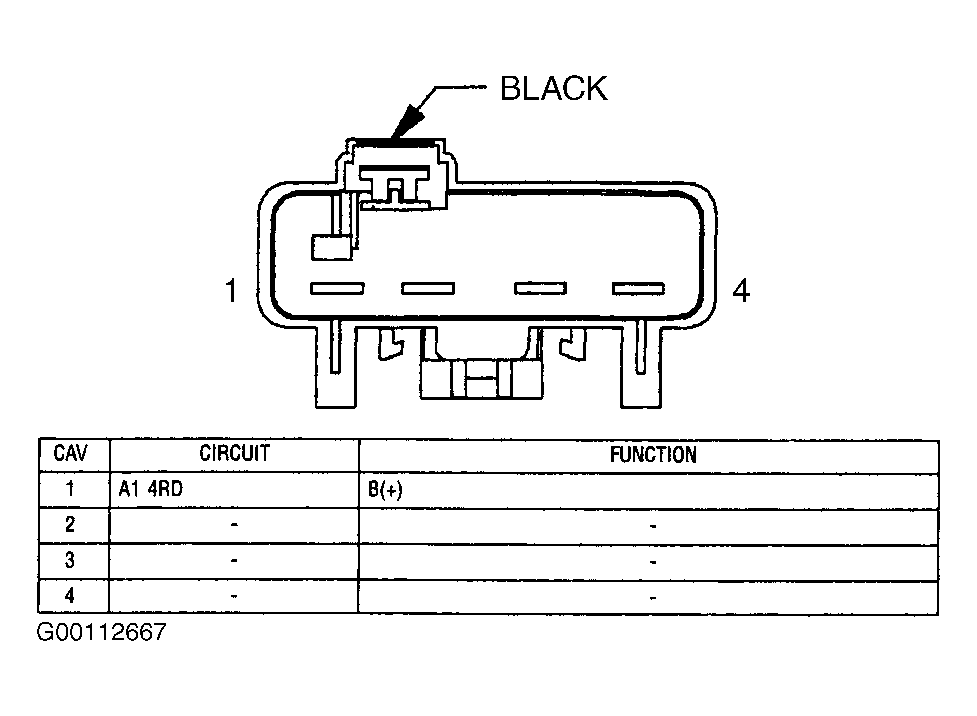

Fig 35: Identifying Integrated Power Module C5 Harness Connector Terminals

G00112667

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 36: Identifying Integrated Power Module C6 Harness Connector Terminals

G00112664

Courtesy of DAIMLERCHRYSLER CORPORATION

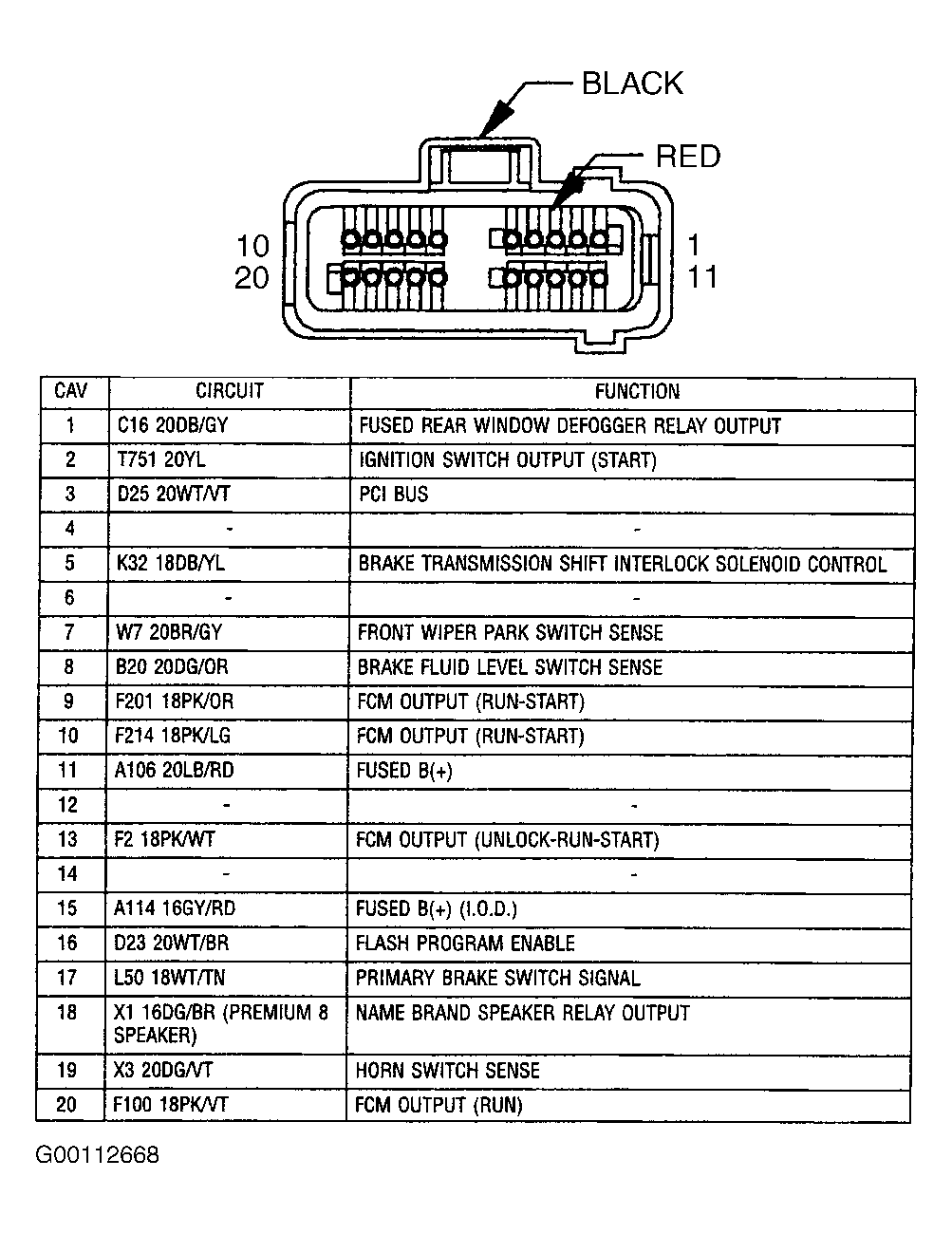

Fig 37: Identifying Integrated Power Module C7 Harness Connector Terminals

G00112668

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 38: Identifying Integrated Power Module C8 Harness Connector Terminals

G00112669

Courtesy of DAIMLERCHRYSLER CORPORATION

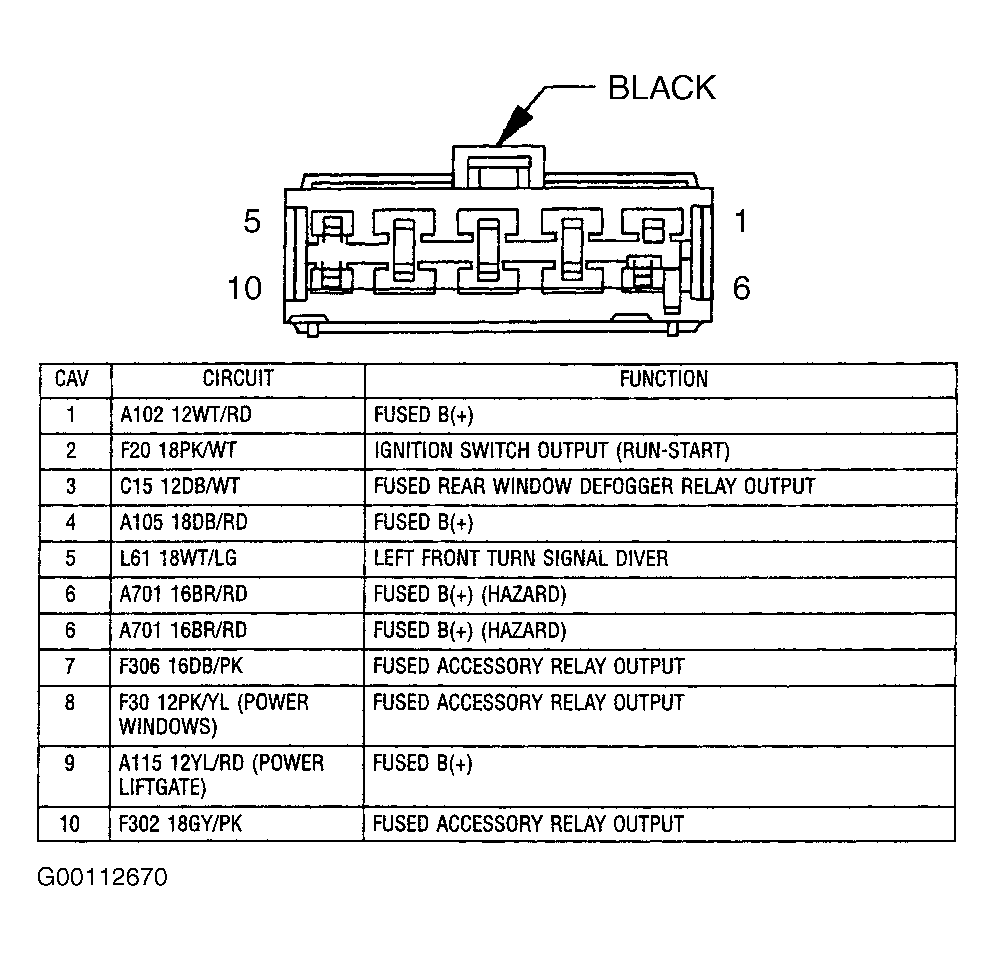

Fig 39: Identifying Integrated Power Module C9 Harness Connector Terminals

G00112670

Courtesy of DAIMLERCHRYSLER CORPORATION

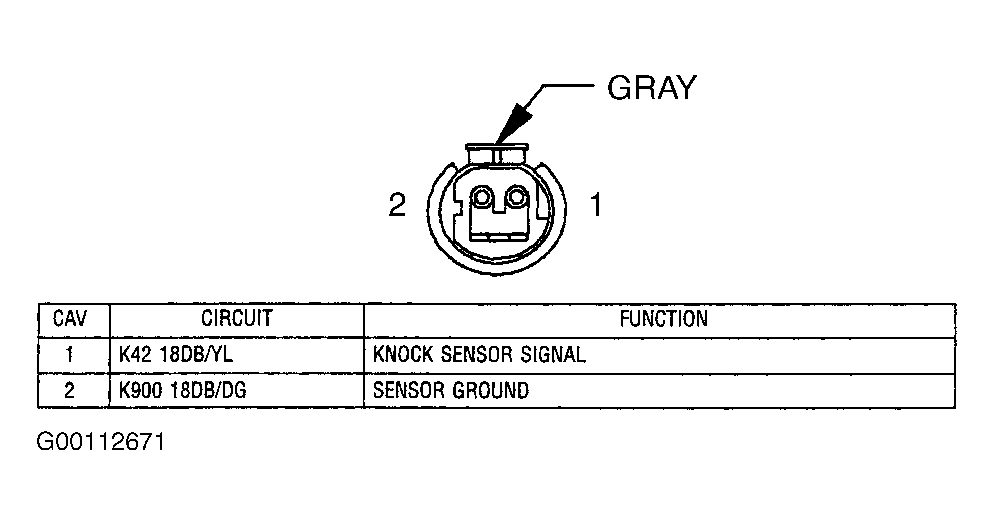

Fig 40: Identifying Knock Sensor Harness Connector Terminals (2.4L)

G00112671

Courtesy of DAIMLERCHRYSLER CORPORATION

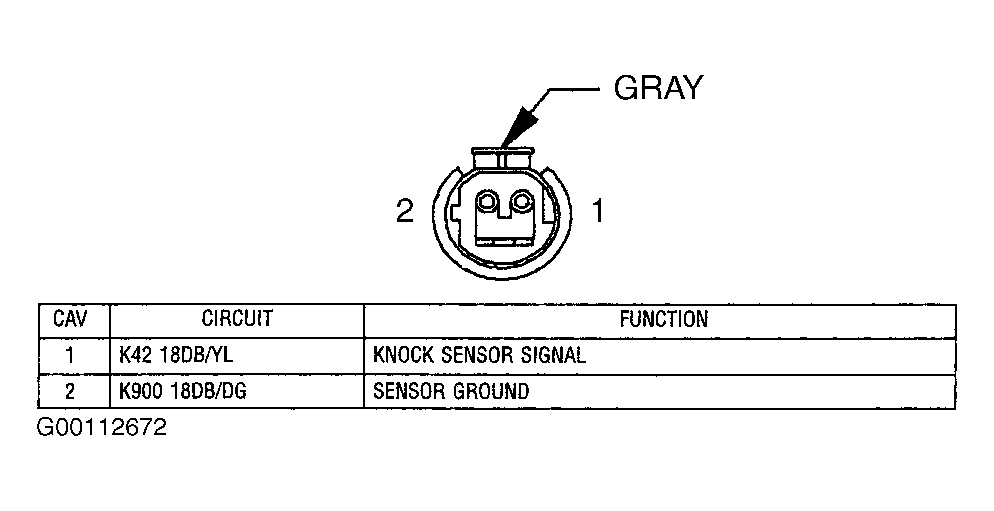

Fig 41: Identifying Knock Sensor Harness Connector Terminals (3.3L & 3.8L)

G00112672

Courtesy of DAIMLERCHRYSLER CORPORATION

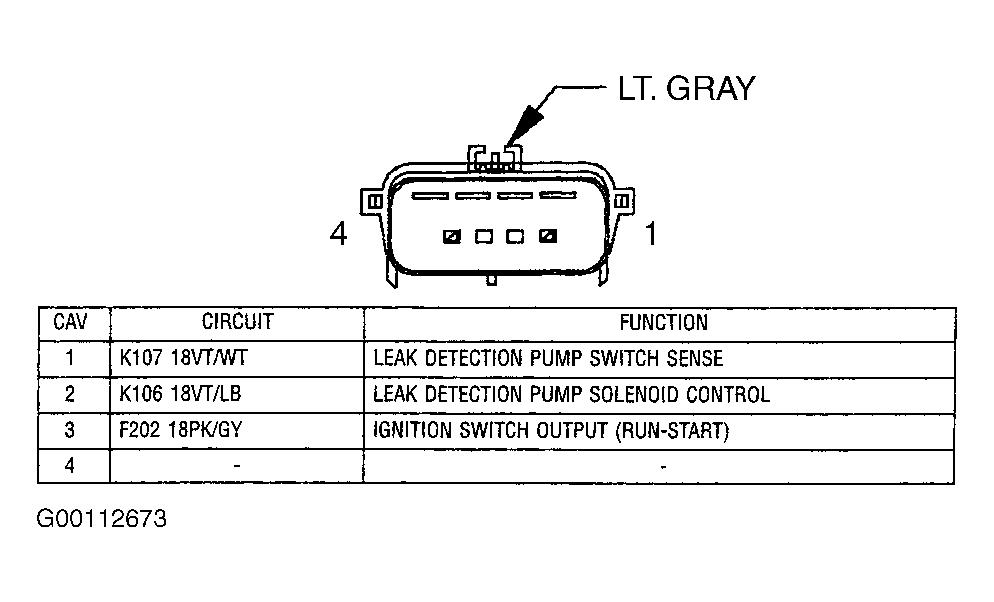

Fig 42: Identifying Leak Detection Pump Harness Connector Terminals

G00112673

Courtesy of DAIMLERCHRYSLER CORPORATION

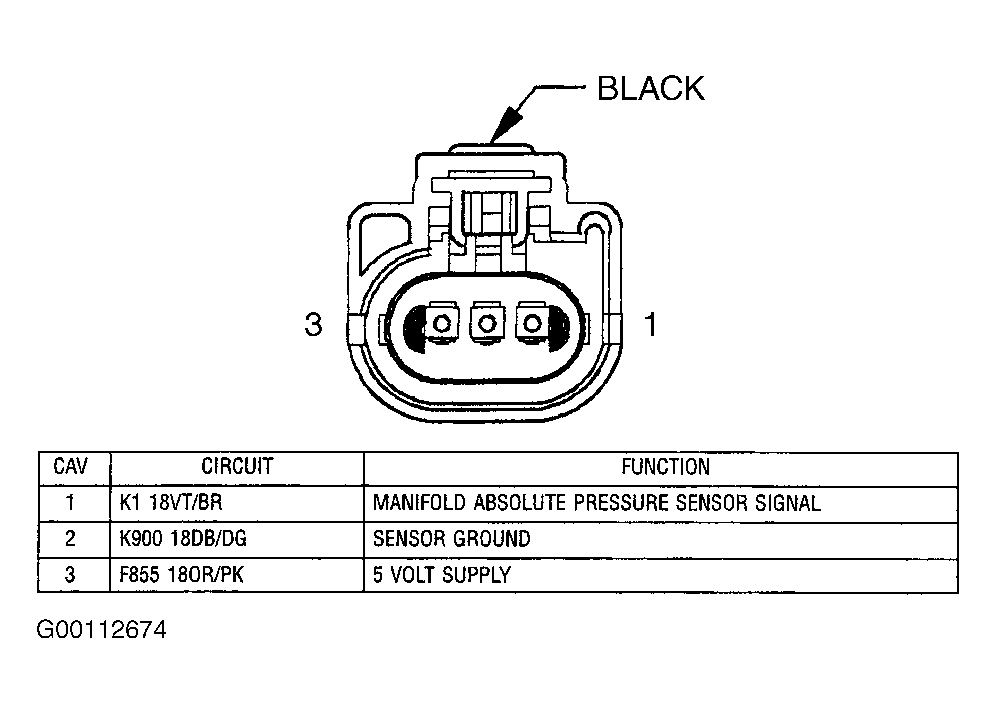

Fig 43: Identifying MAP Sensor Harness Connector Terminals

G00112674

Courtesy of DAIMLERCHRYSLER CORPORATION

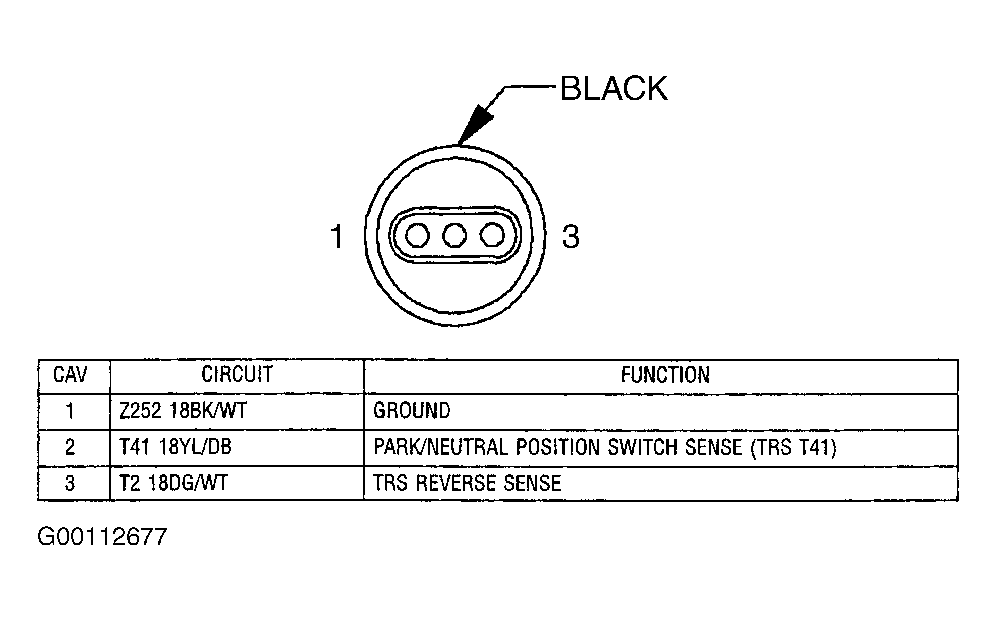

Fig 44: Identifying Park/Neutral Position Switch Terminals (2.4L)

G00112677

Courtesy of DAIMLERCHRYSLER CORPORATION

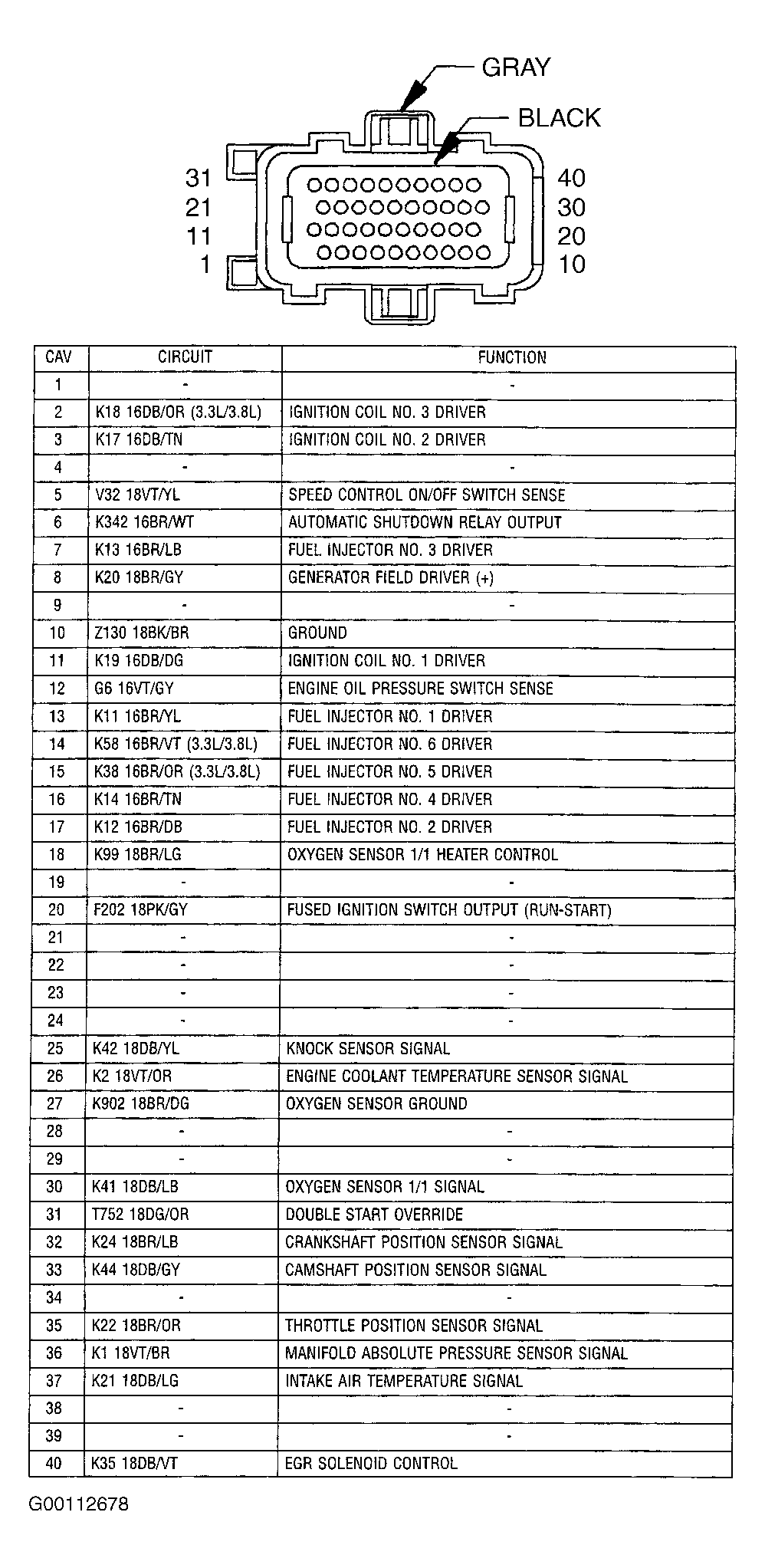

Fig 45: Identifying Powertrain Control Module C1 Harness Connector Terminals

G00112678

Courtesy of DAIMLERCHRYSLER CORPORATION

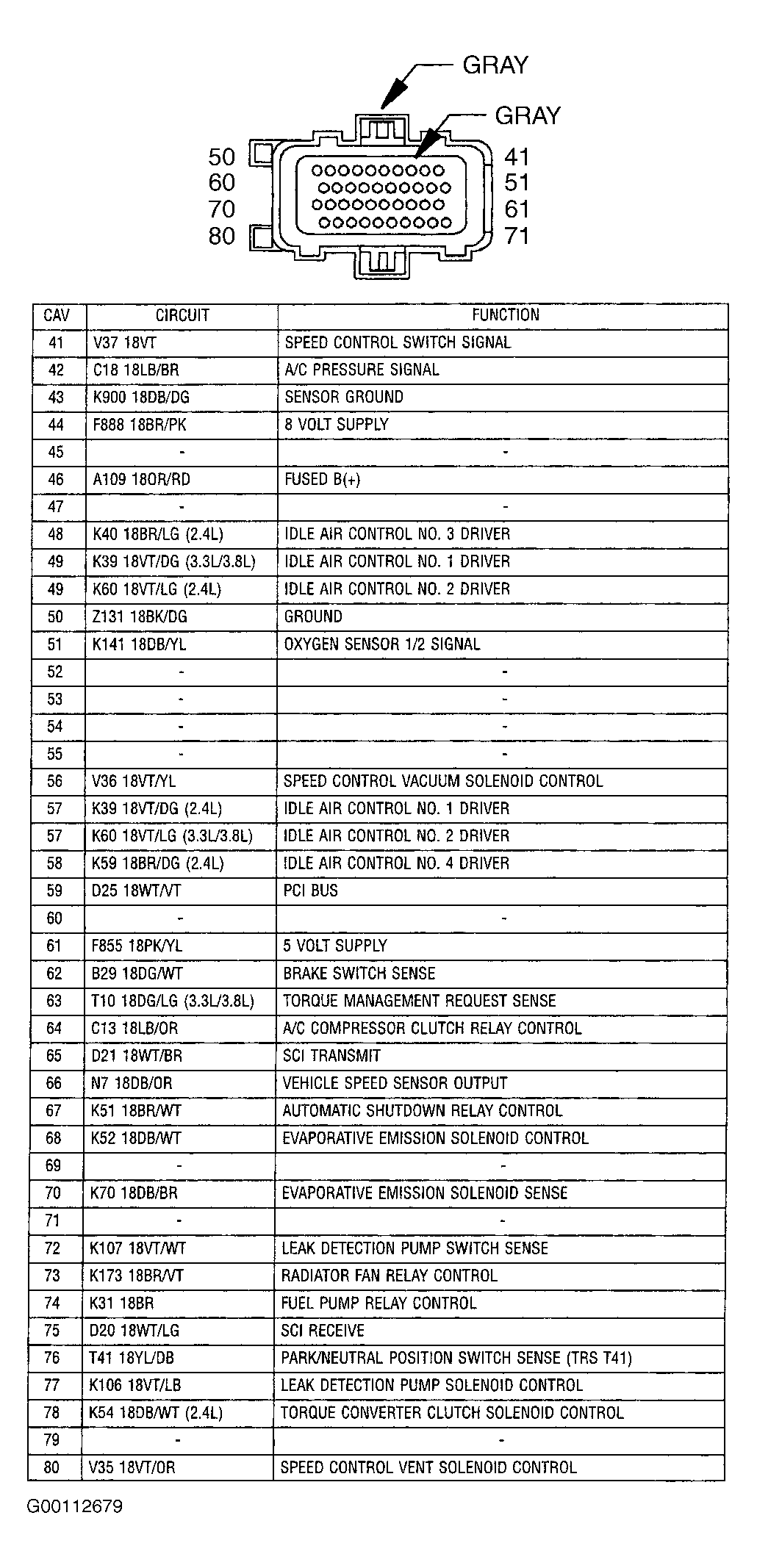

Fig 46: Identifying Powertrain Control Module C2 Harness Connector Terminals

G00112679

Courtesy of DAIMLERCHRYSLER CORPORATION

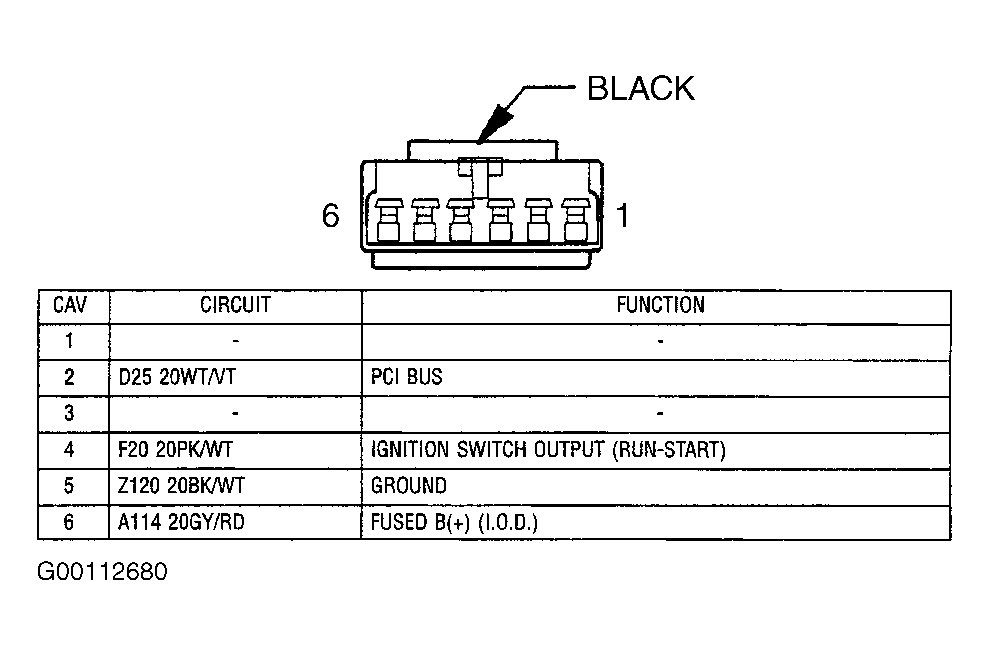

Fig 47: Identifying Sentry Key Immobilizer Module Harness Connector Terminals

G00112680

Courtesy of DAIMLERCHRYSLER CORPORATION

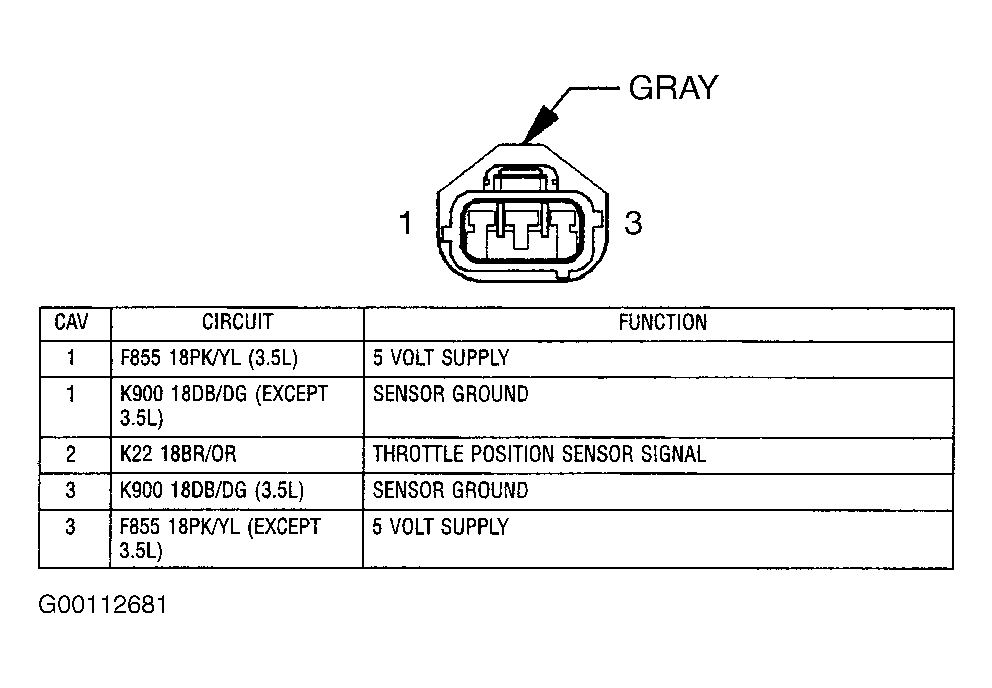

Fig 48: Identifying Throttle Position Sensor Harness Connector Terminals

G00112681

Courtesy of DAIMLERCHRYSLER CORPORATION

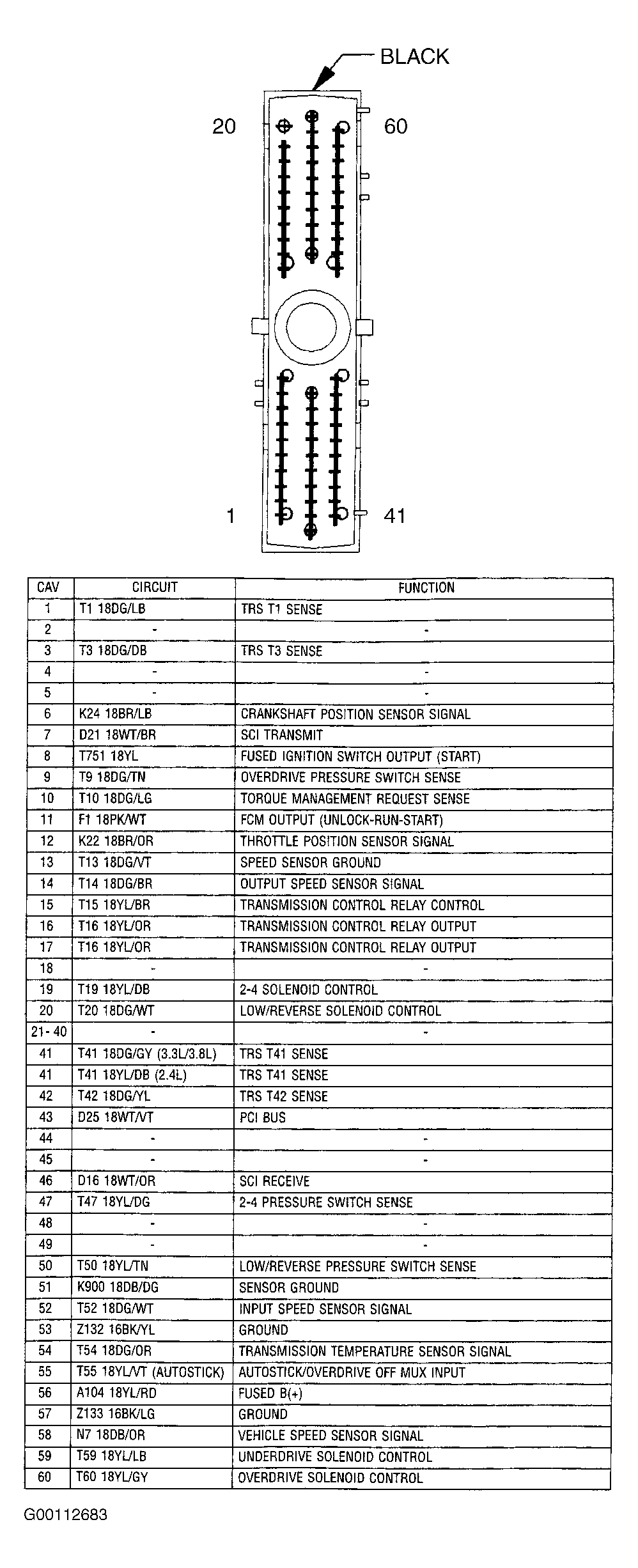

Fig 49: Identifying Transmission Control Module Terminals (3.3L & 3.8L)

G00112683

Courtesy of DAIMLERCHRYSLER CORPORATION

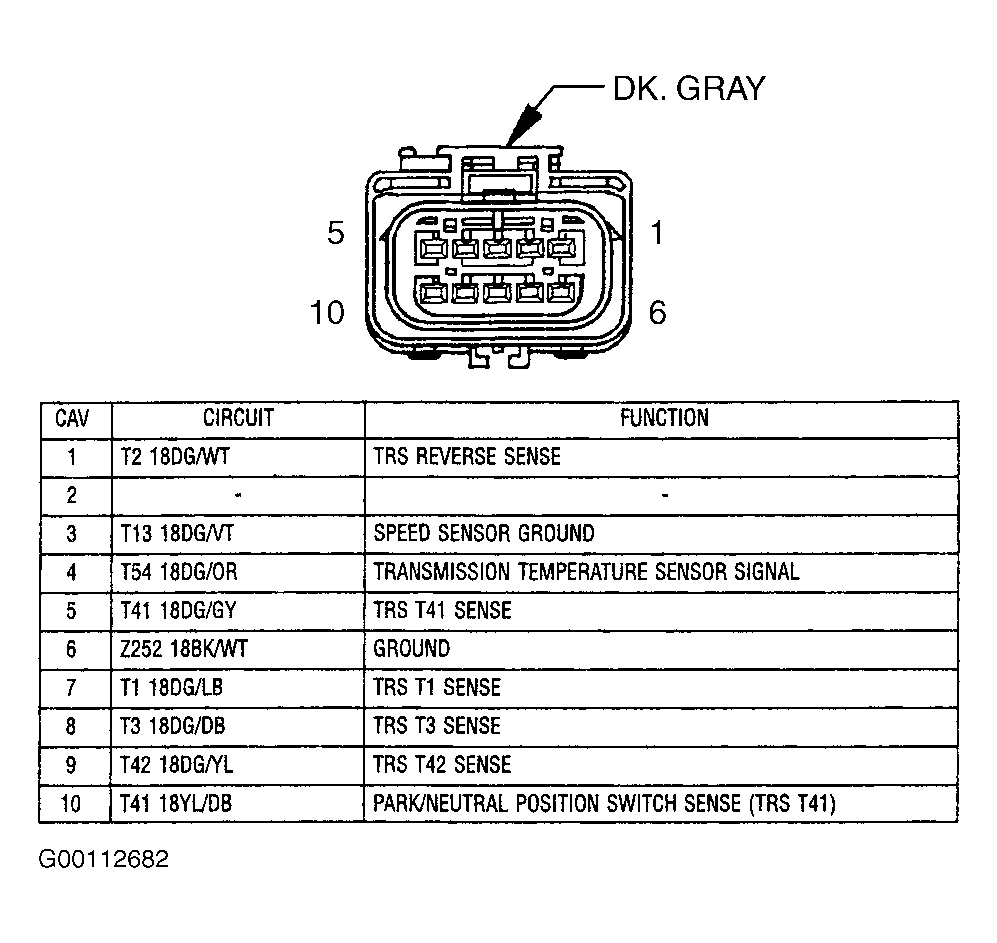

Fig 50: Identifying Transmission Range Sensor Terminals (3.3L & 3.8L)

G00112682

Courtesy of DAIMLERCHRYSLER CORPORATION

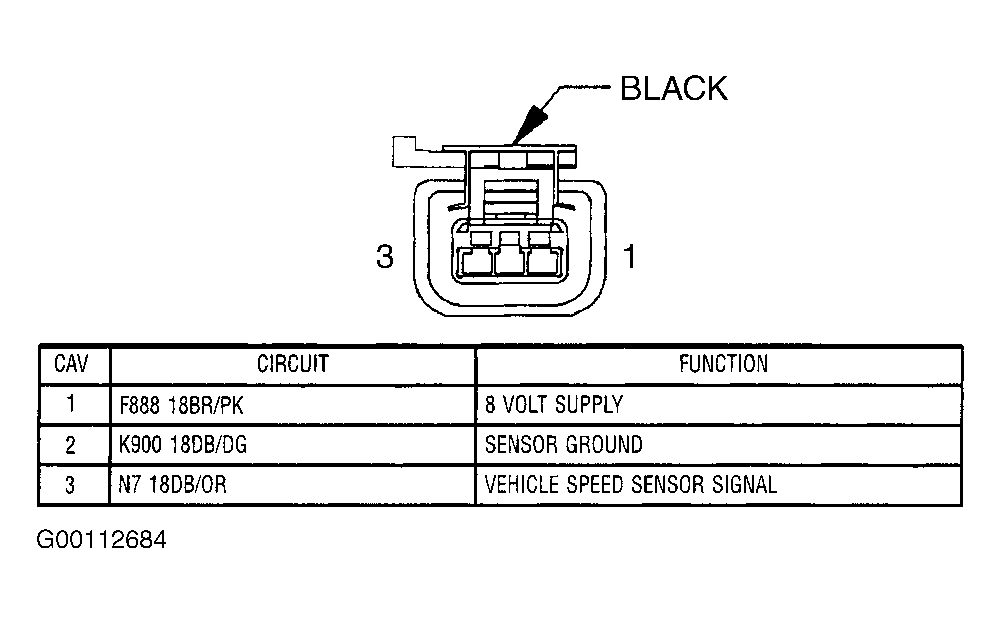

Fig 51: Identifying Vehicle Speed Sensor Harness Connector Terminals (2.4L)

G00112684

Courtesy of DAIMLERCHRYSLER CORPORATION

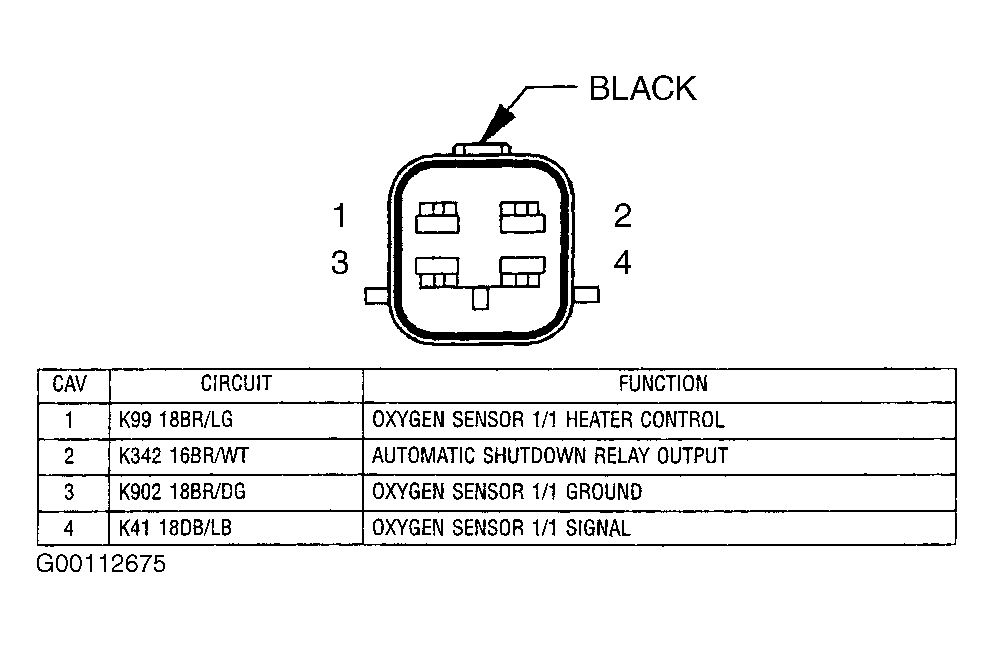

Fig 52: Identifying 1/1 O2 Sensor Harness Connector Terminals

G00112675

Courtesy of DAIMLERCHRYSLER CORPORATION

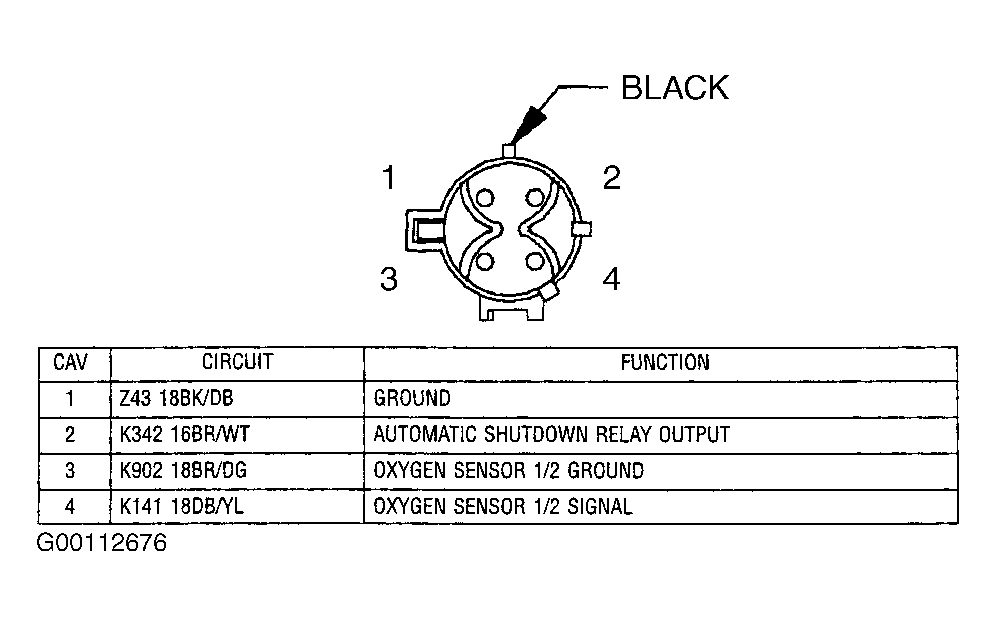

Fig 53: Identifying 1/2 O2 Sensor Harness Connector Terminals

G00112676

Courtesy of DAIMLERCHRYSLER CORPORATION
