Air Bag Control Module

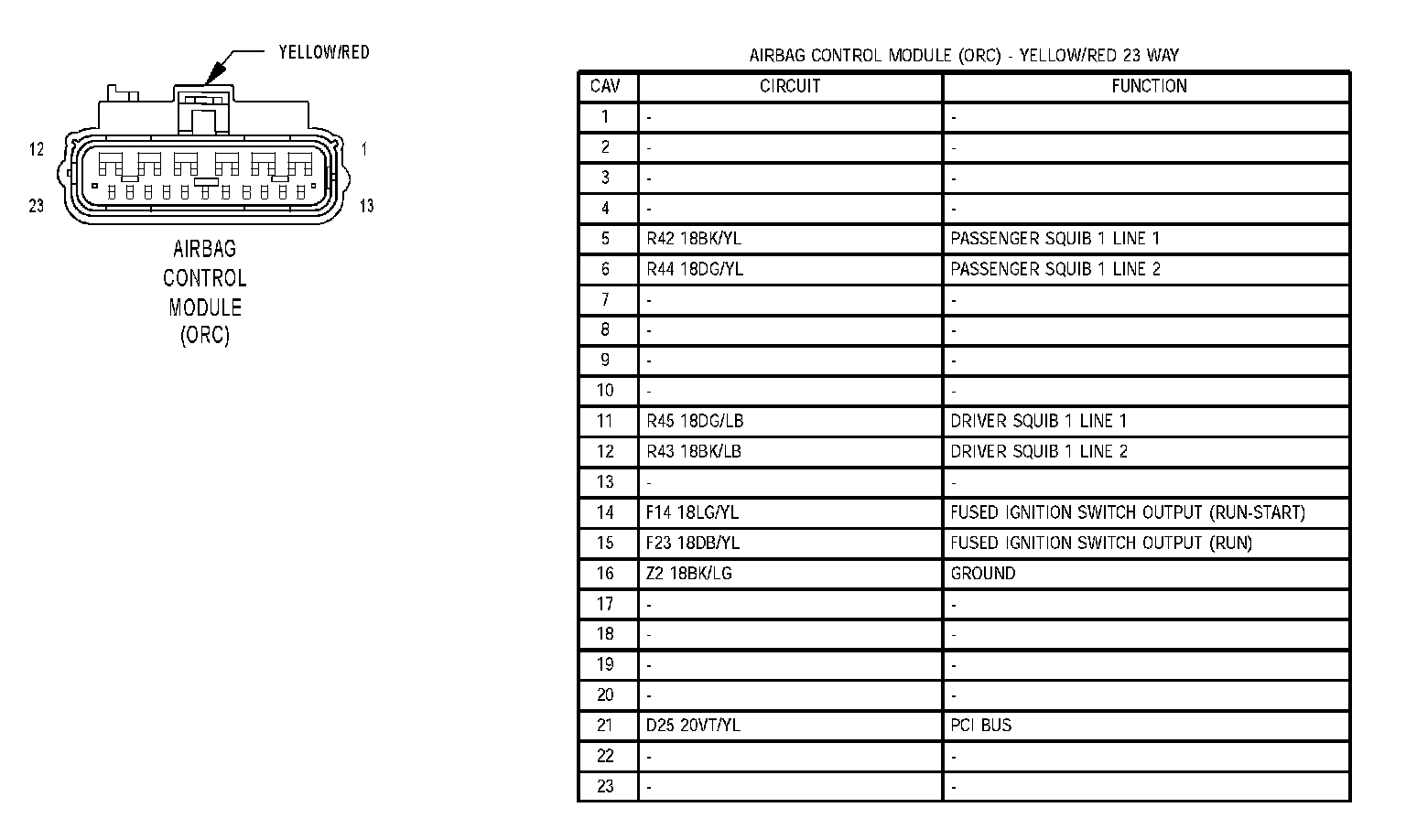

Airbag Control Module (ORC):

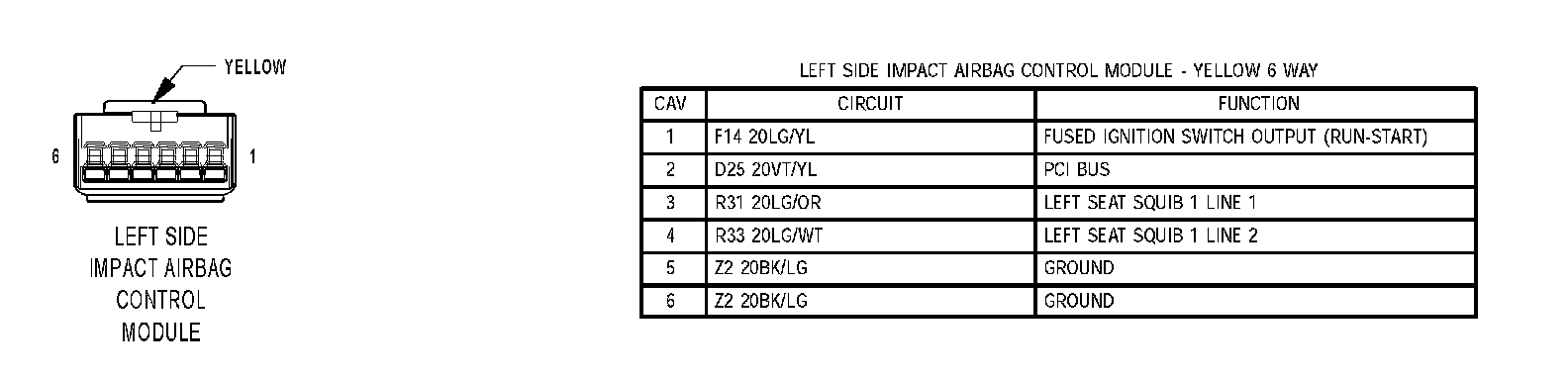

Left Side Impact Airbag Control Module:

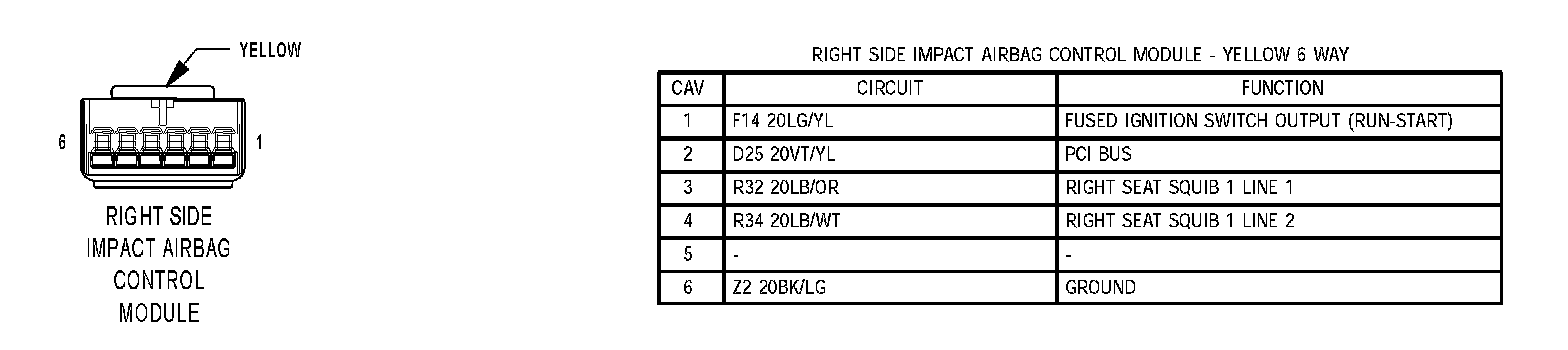

Right Side Impact Airbag Control Module:
