Power Window Switch

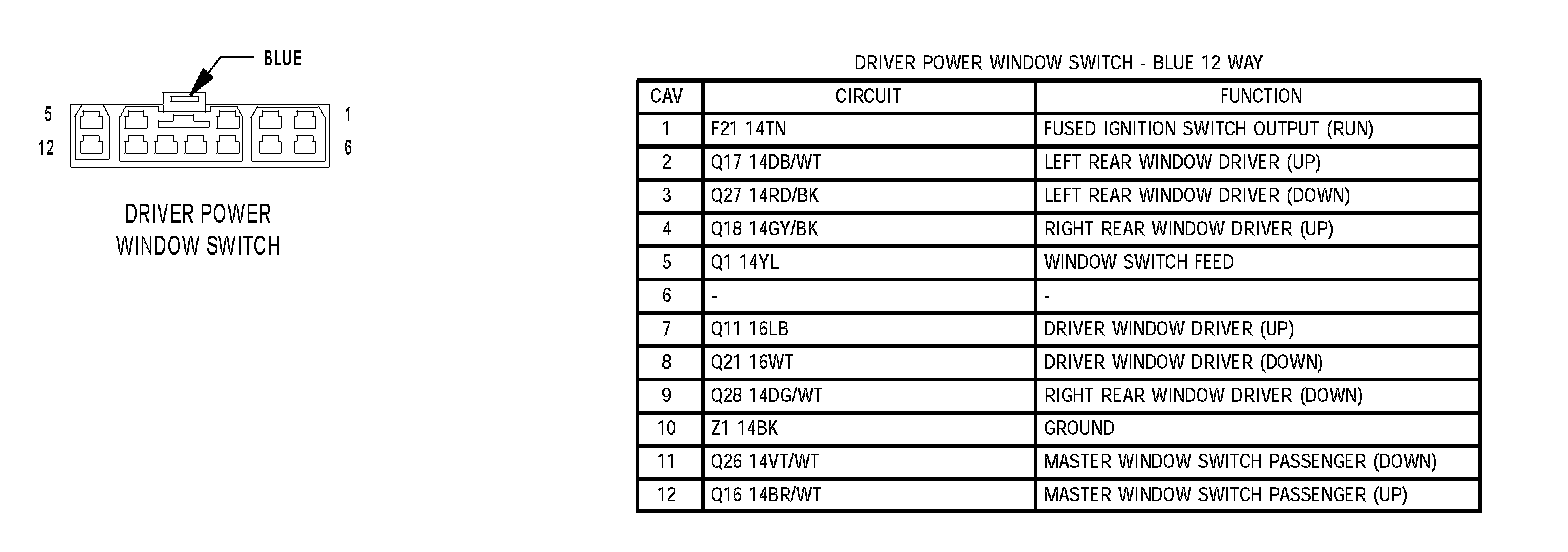

Driver Power Window Switch:

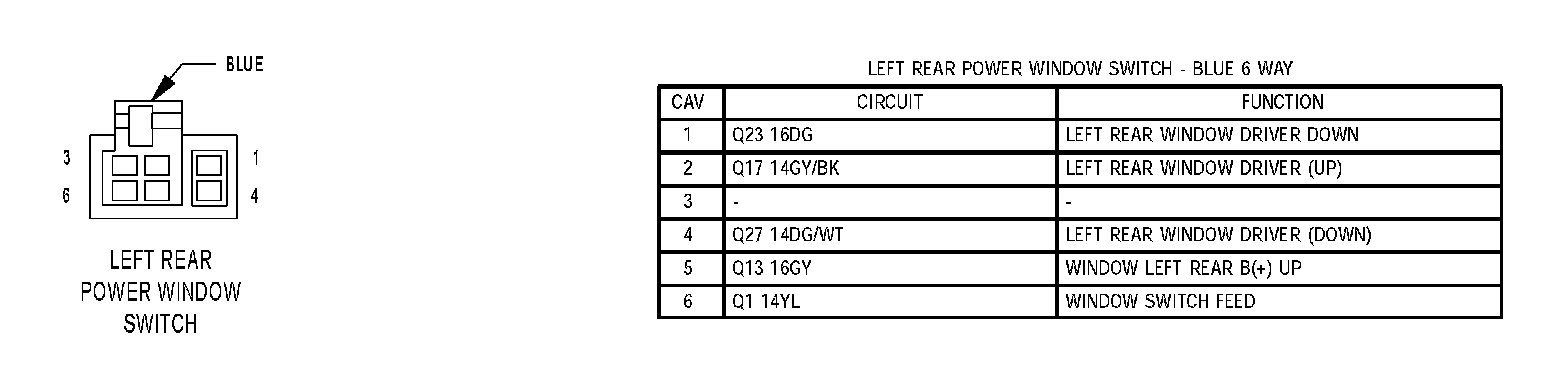

Left Rear Power Window Switch:

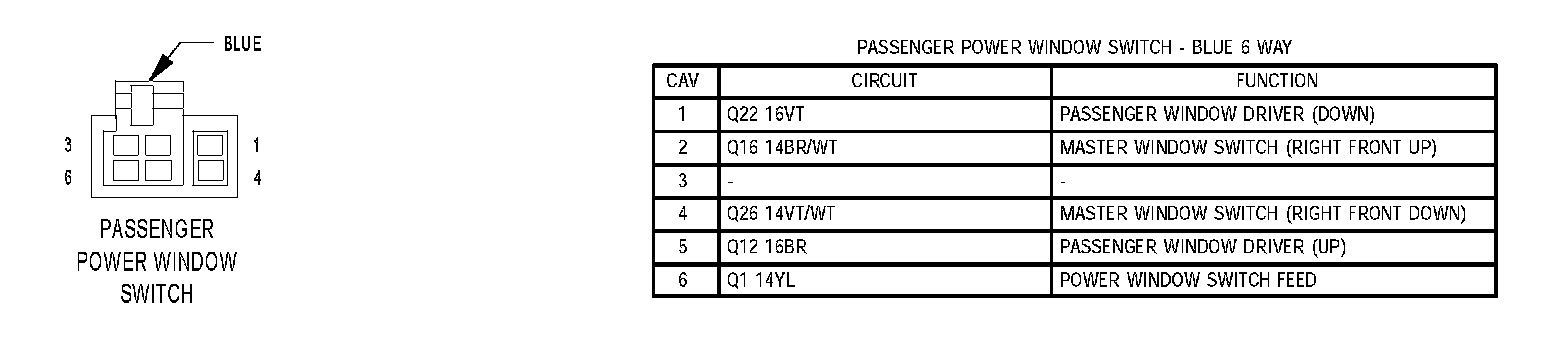

Passenger Power Window Switch:

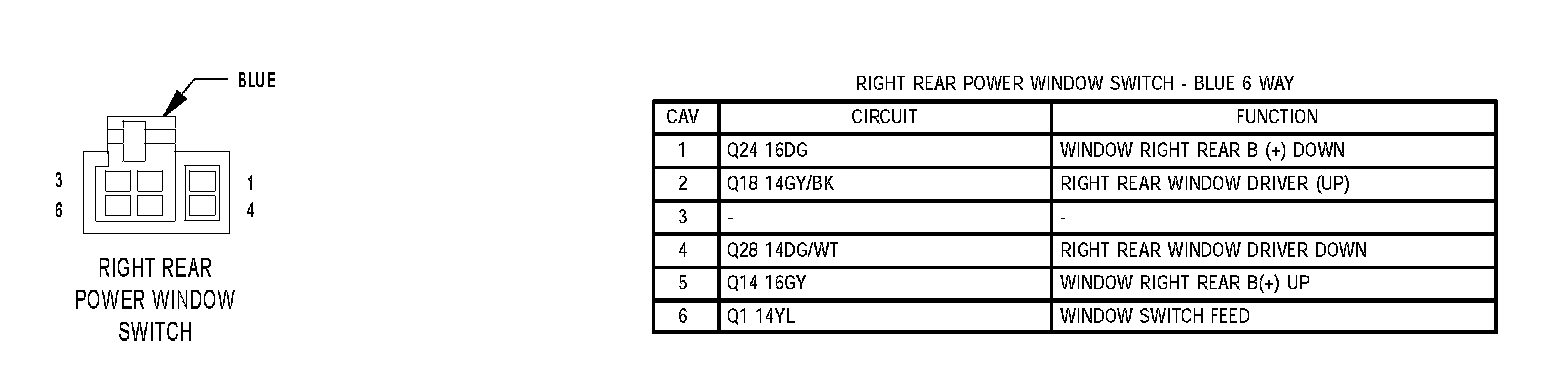

Right Rear Power Window Switch:
