Intrepid (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 12
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Figure 12

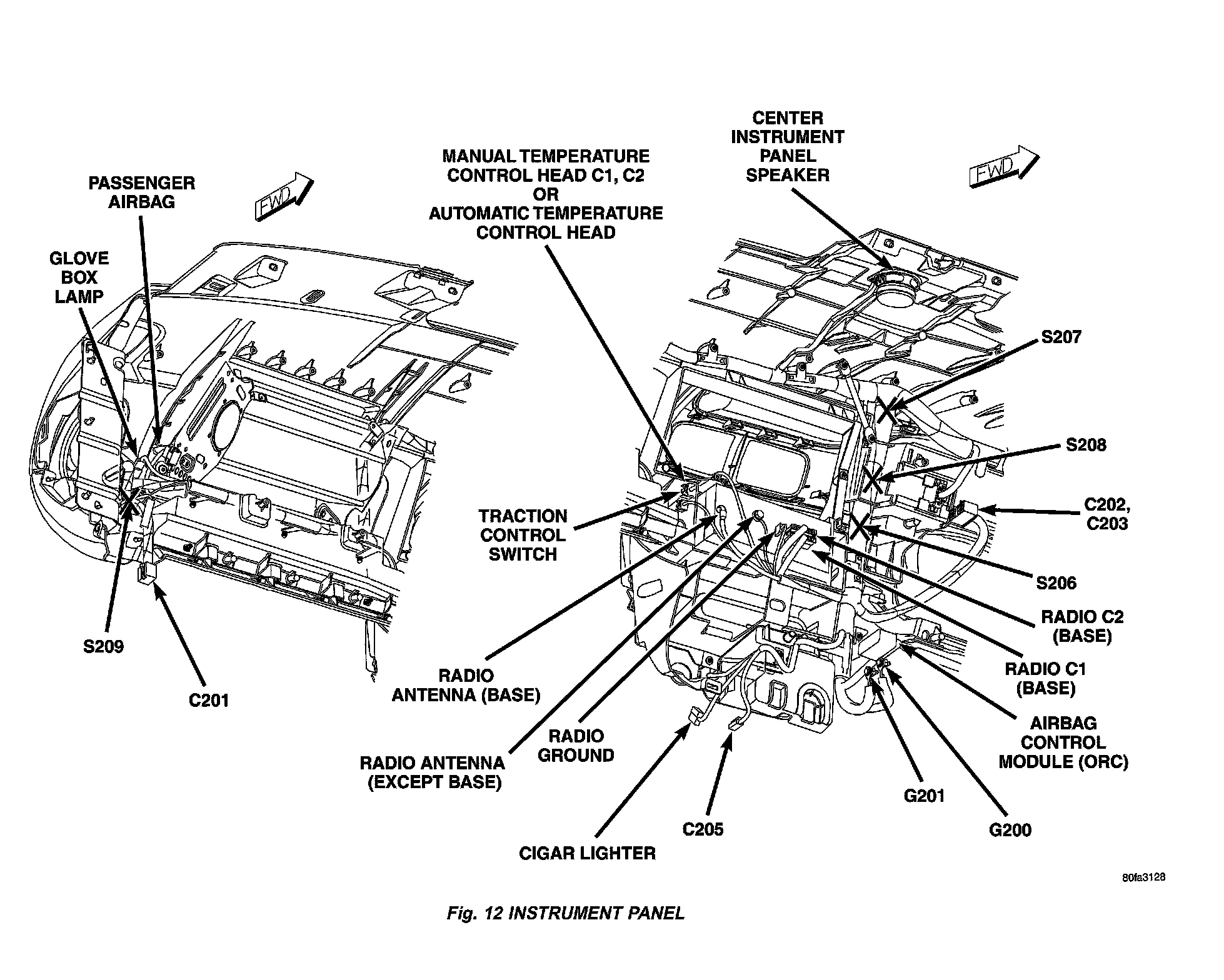

Fig. 12 Instrument Panel:
