ATC Blower Motor Inoperative

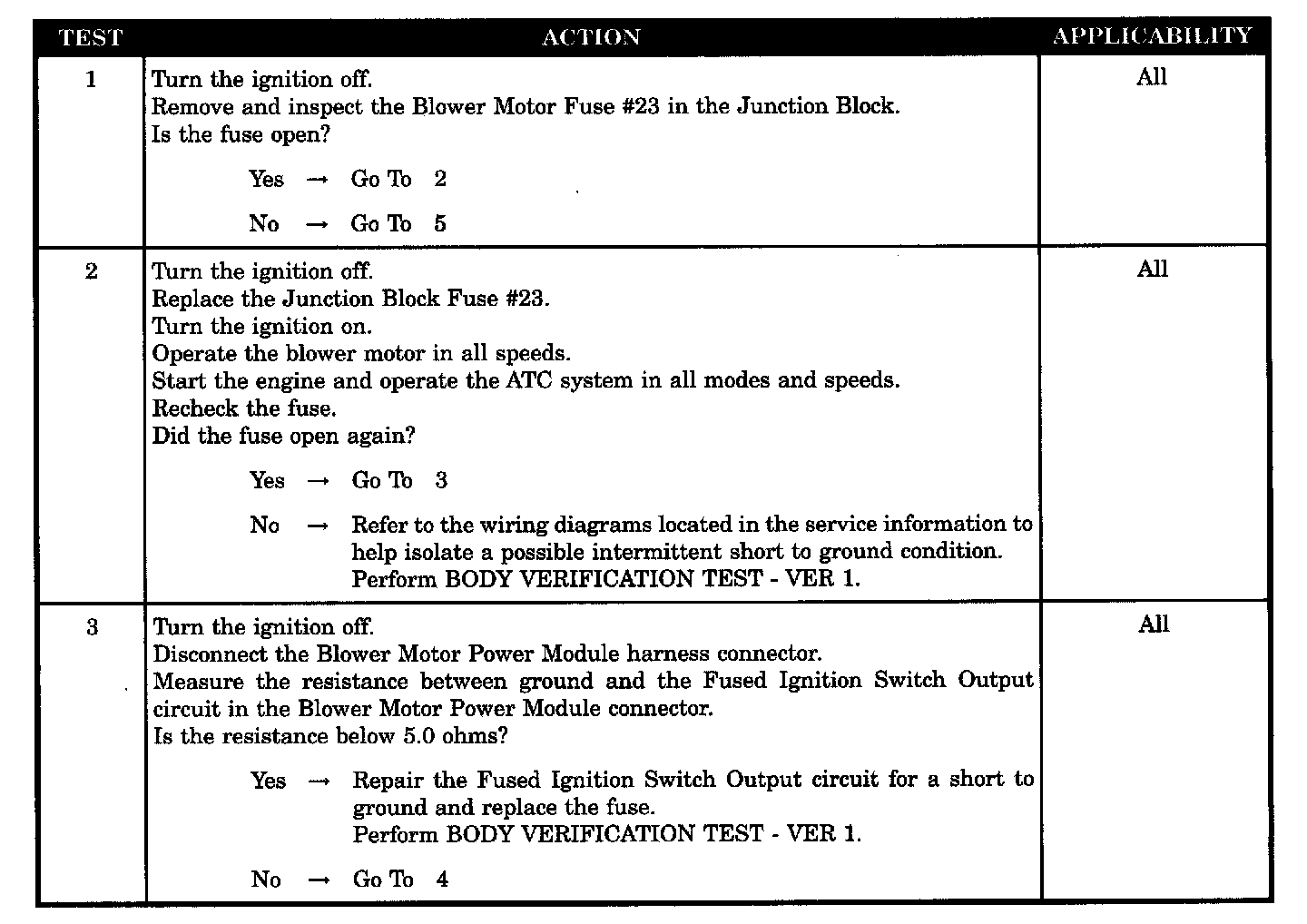

Test 1 - 3:

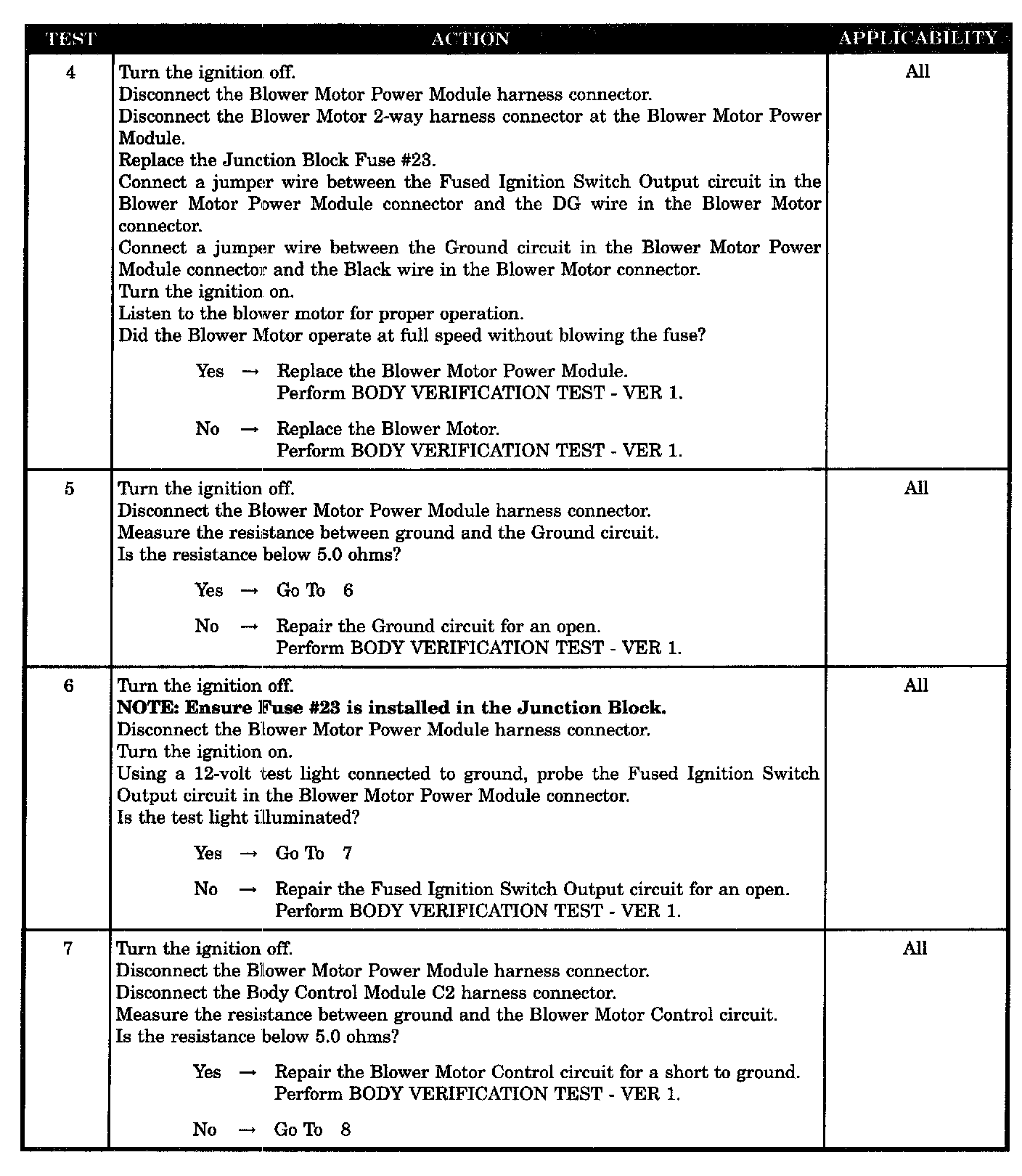

Test 4 - 7:

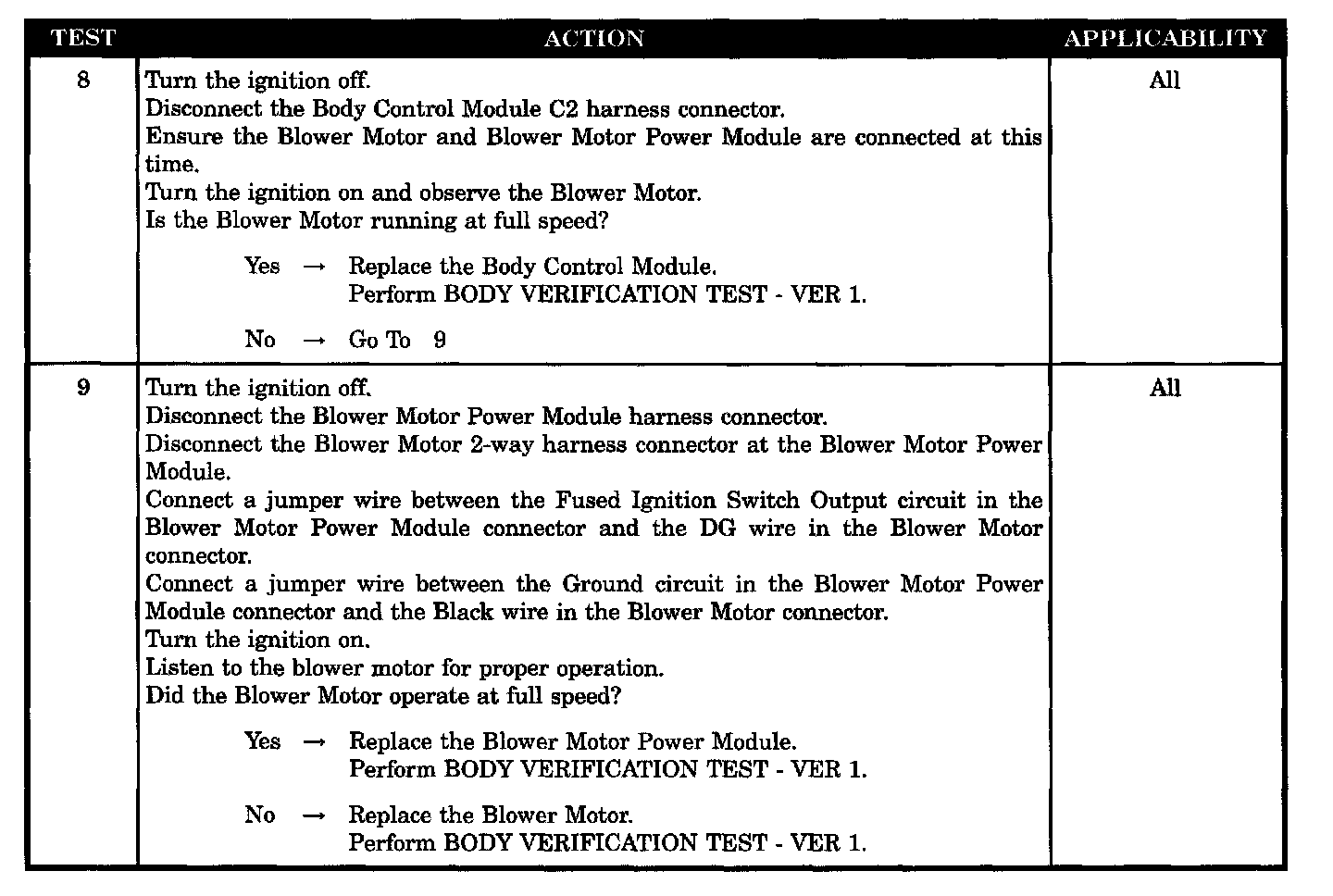

Test 8 - 9:

SYMPTOM
ATC BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Open junction block fuse
- Fused ignition switch output shorted to ground
- Blower motor shorted to ground
- Blower motor power module shorted to ground
- Ground circuit open
- Fused ignition switch output circuit open
- Blower motor control circuit shorted to ground
- Body control module
- Blower motor operation
- Blower motor power module open
