All Gauges Inoperative

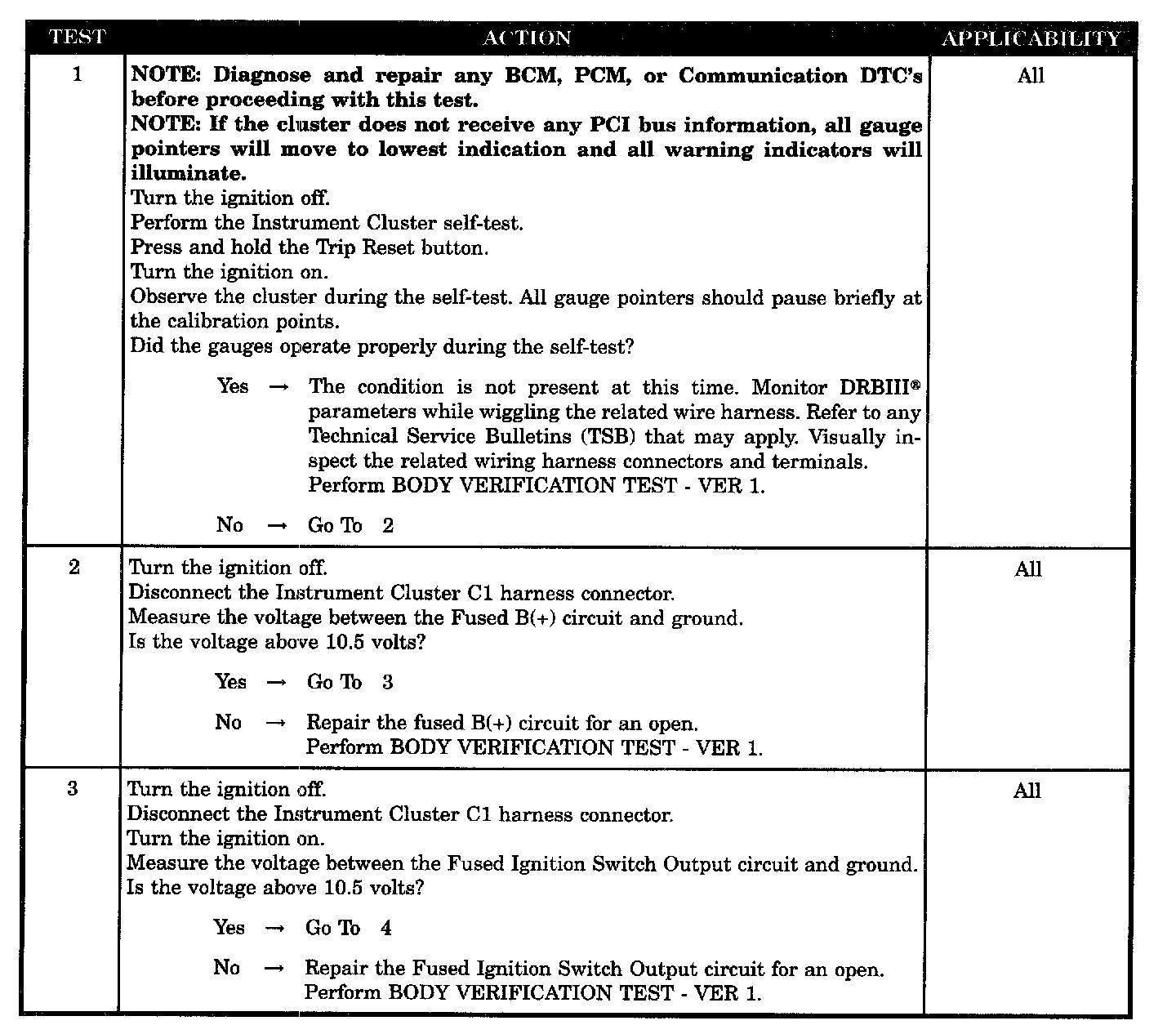

Test 1 - 3:

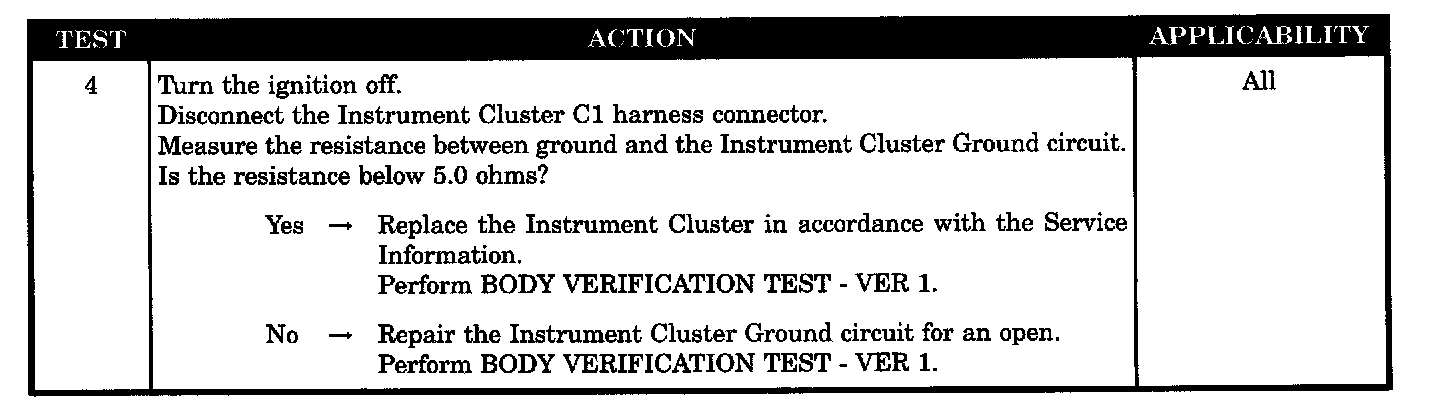

Test 4:

SYMPTOM
ALL GAUGES INOPERATIVE

POSSIBLE CAUSES
- Fused B(+) circuit open
- Fused ignition switch output circuit open
- Instrument cluster ground circuit open
- Intermittent condition
- Instrument cluster
