Automatic (Rolling) Door Locks Inoperative

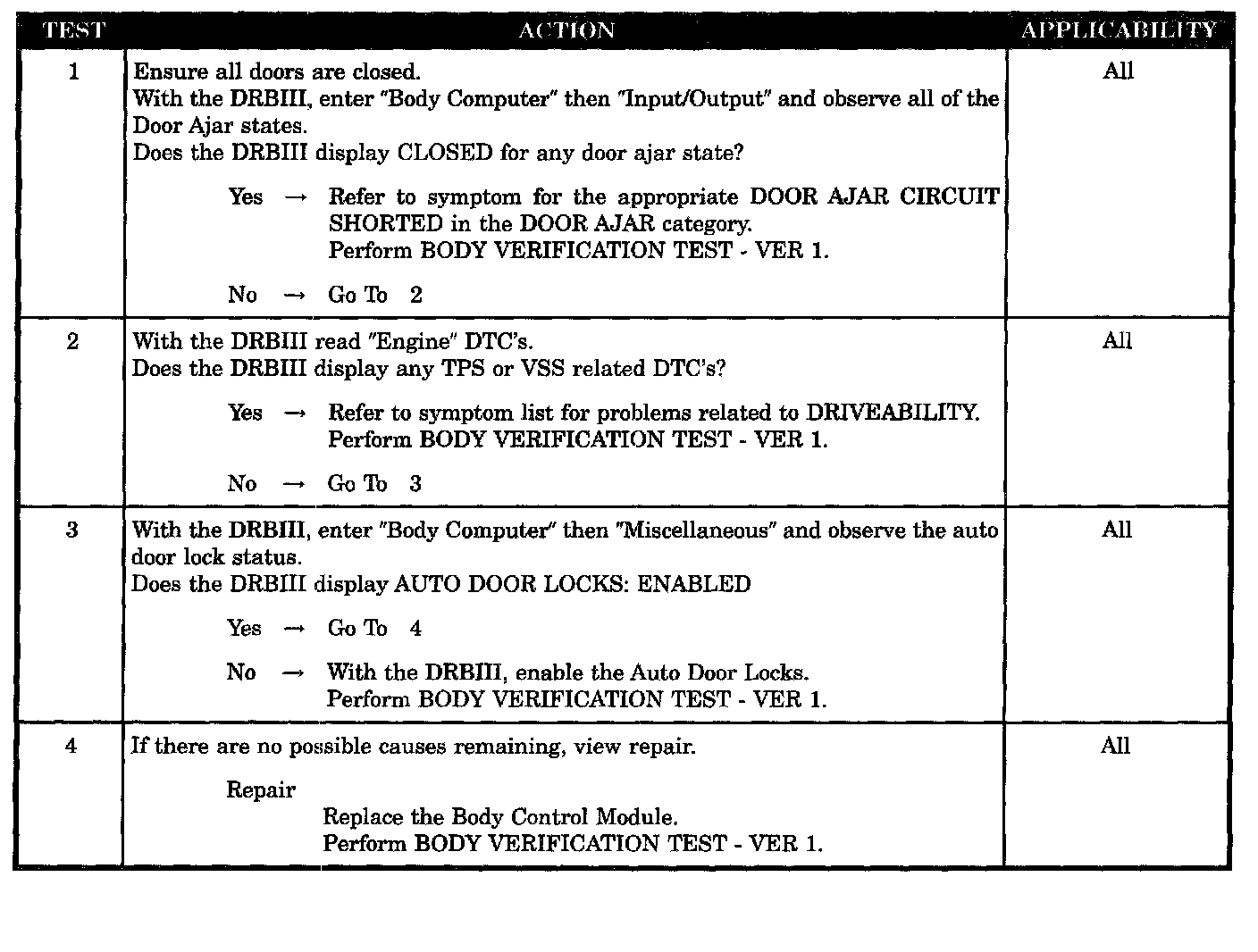

Test 1 - 4:






SYMPTOM
AUTOMATIC (ROLLING) DOOR LOCKS INOPERATIVE

POSSIBLE CAUSES
- Check the door ajar switch status
- With the DRB check for PCM DTC's
- With the DRB enable auto door locks
- Body control module
