Chime Inoperative

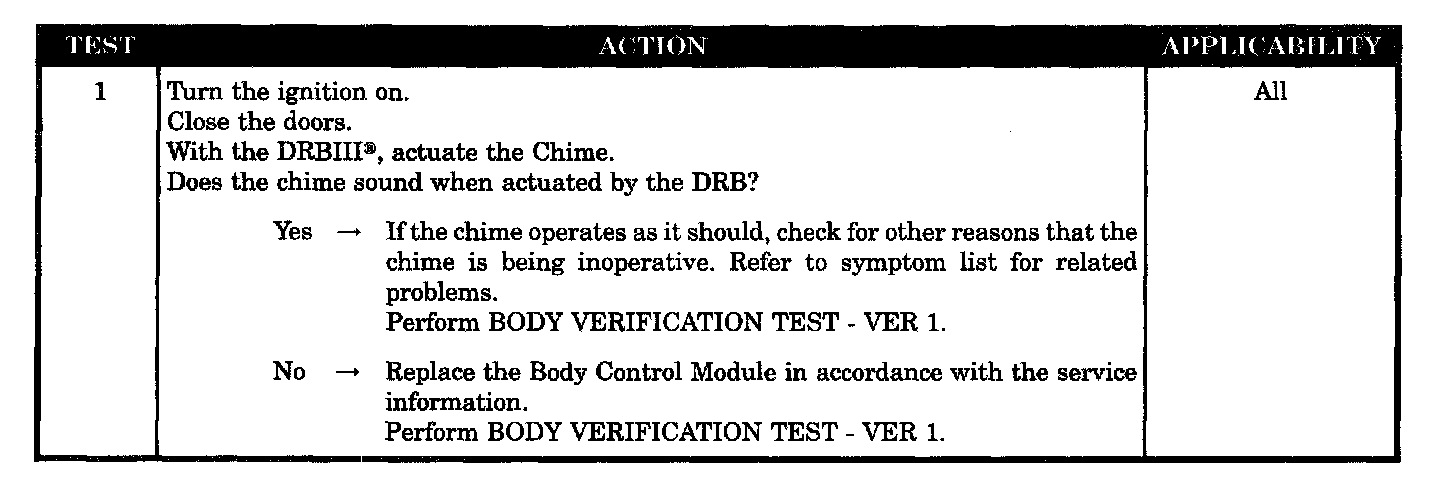

Test 1:






SYMPTOM
CHIME Inoperative

POSSIBLE CAUSES
- Actuate Chime with DRBIII
- Body control module - Chime inoperative
