Engine Coolant Temperature Indicator Not Operating Properly

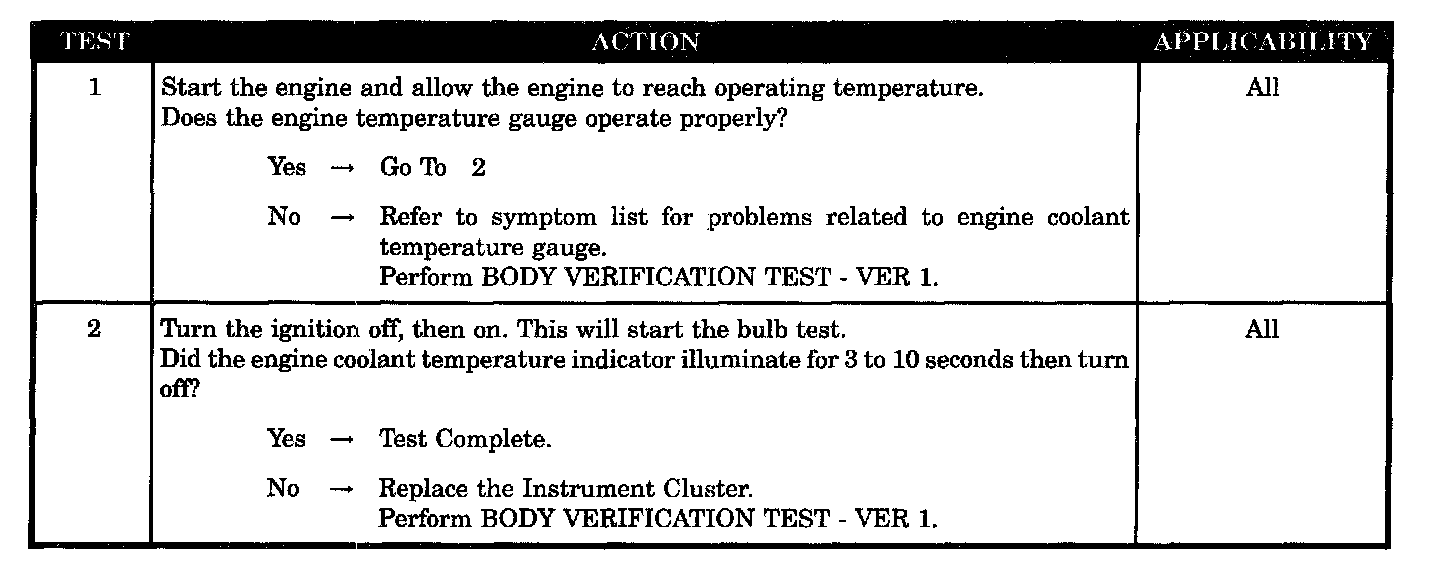

Test 1 - 2:






SYMPTOM
ENGINE COOLANT TEMPERATURE INDICATOR NOT OPERATING PROPERLY

POSSIBLE CAUSES
- Checking temperature gauge
- Instrument cluster
