Heated Seats Inoperative Due to Key-In Ignition Switch Input

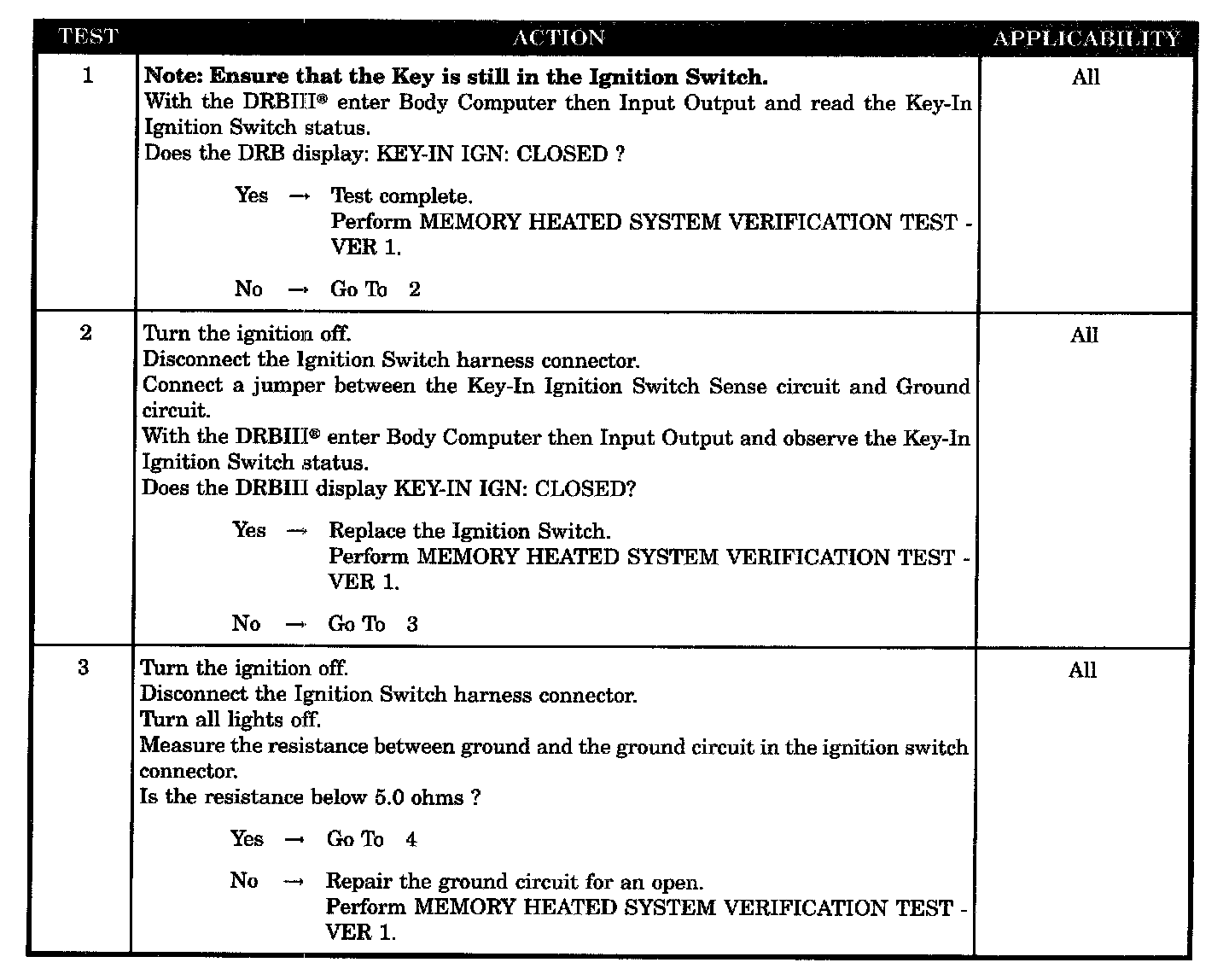

Test 1 - 3:

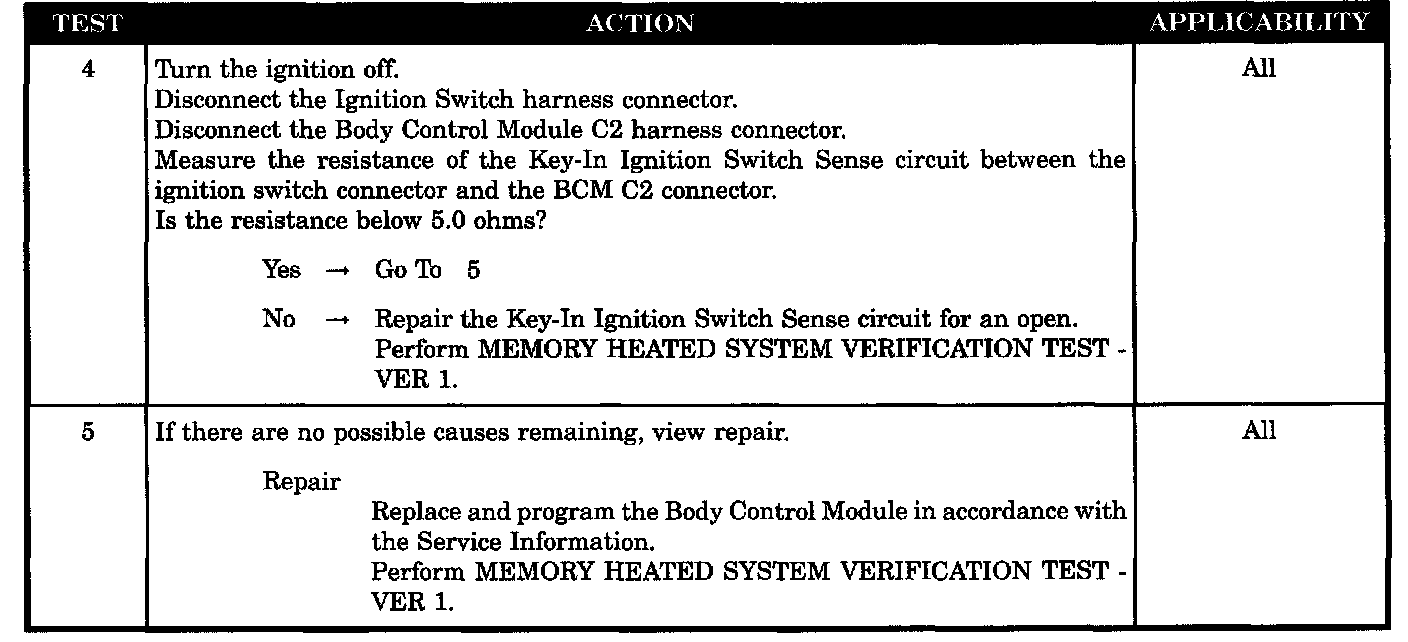

Test 4 - 5:

SYMPTOM
HEATED SEATS INOPERATIVE DUE TO KEY-IN IGNITION SWITCH INPUT

POSSIBLE CAUSES
- Observe the key-in ignition switch status
- Ignition switch open
- Key-in ignition switch ground circuit open
- Key-in ignition switch sense circuit open
- BCM-incorrect key-in ignition switch status
