Low Beam Headlamps Will Not Turn Off

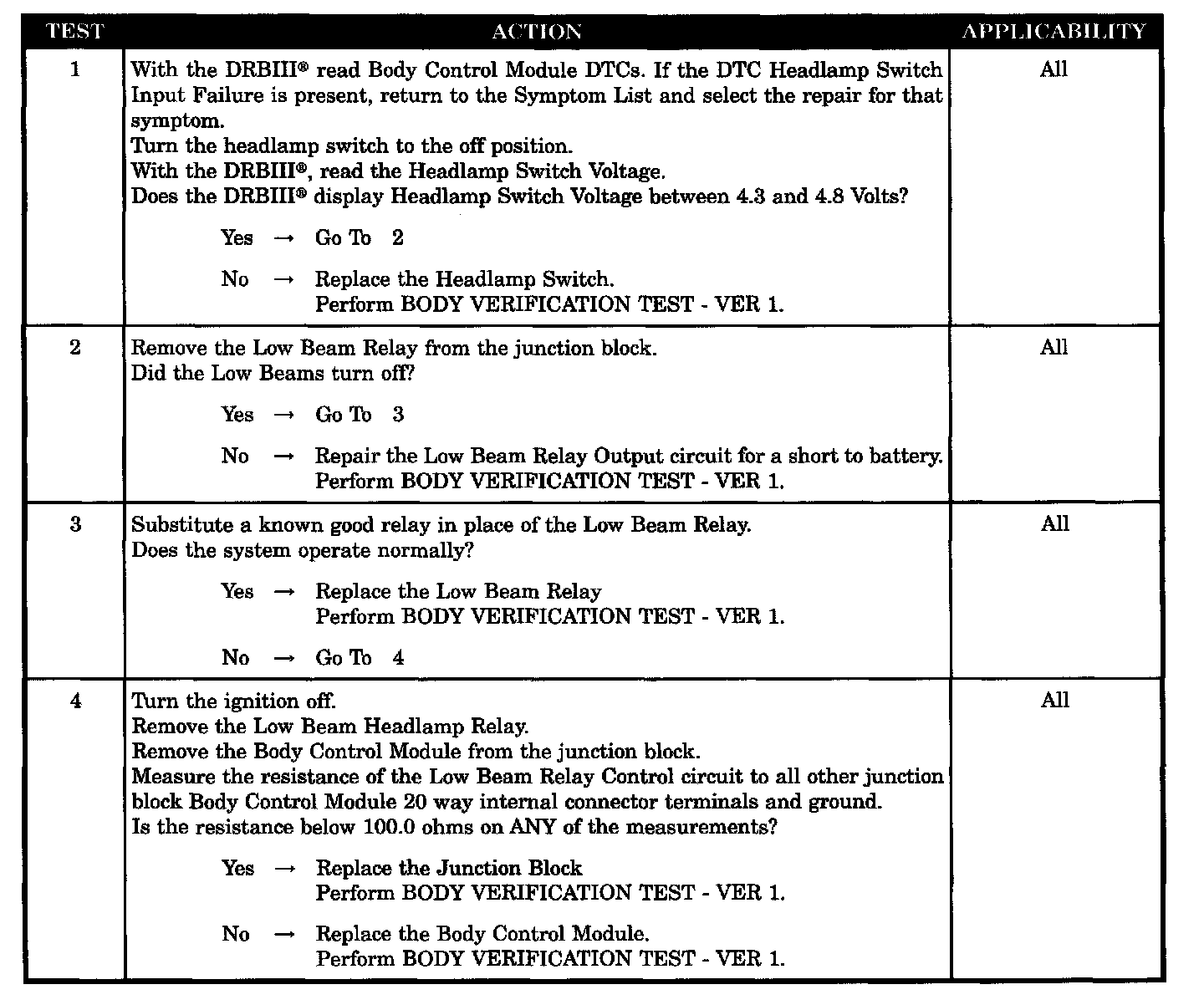

Test 1 - 4:






SYMPTOM
LOW BEAM HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Headlamp switch
- Low beam relay output shorted to battery
- Body control module
- Junction block
- Low beam relay
