Manual A/C Blower Motor Inoperative

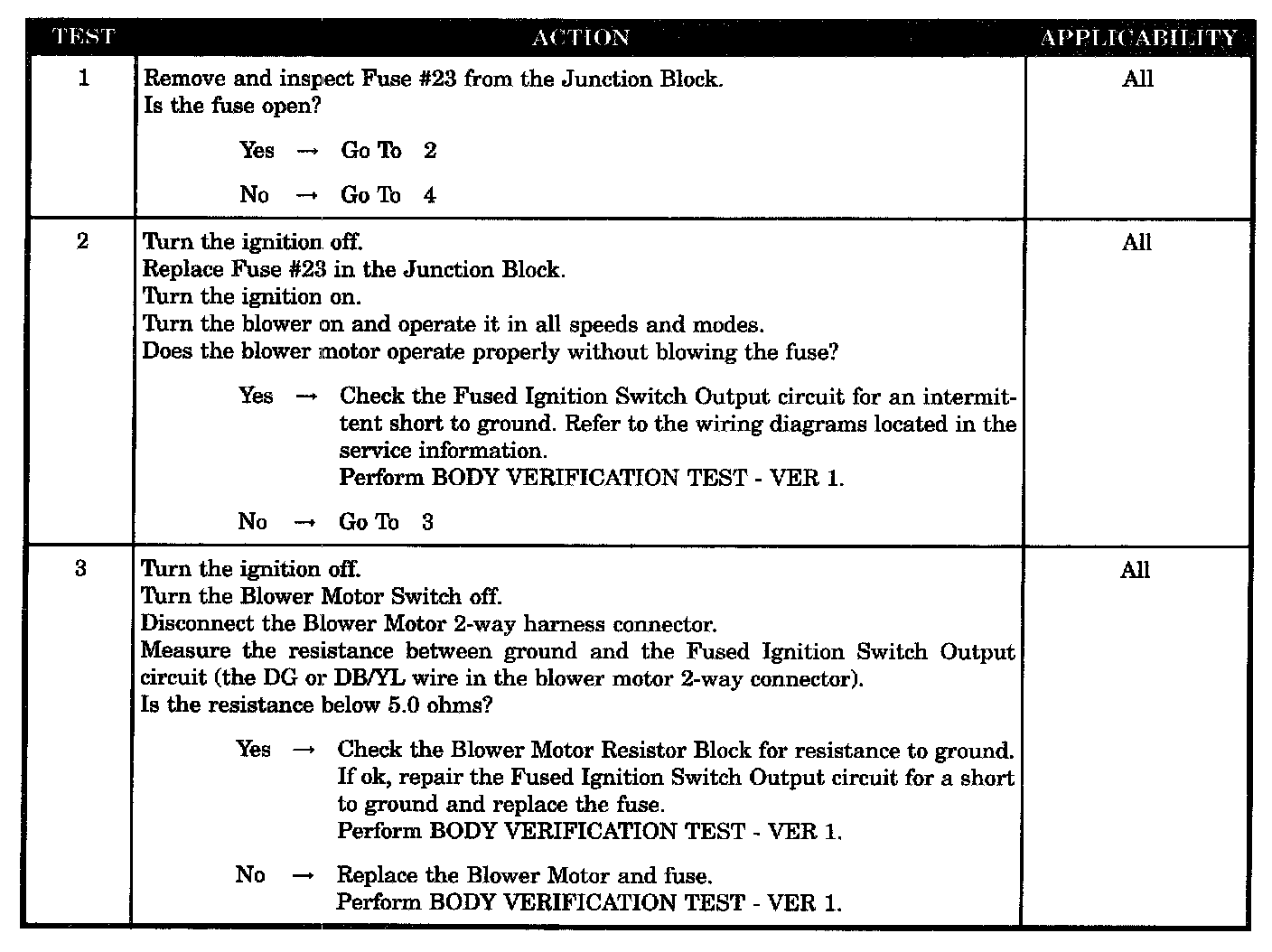

Test 1 - 3:

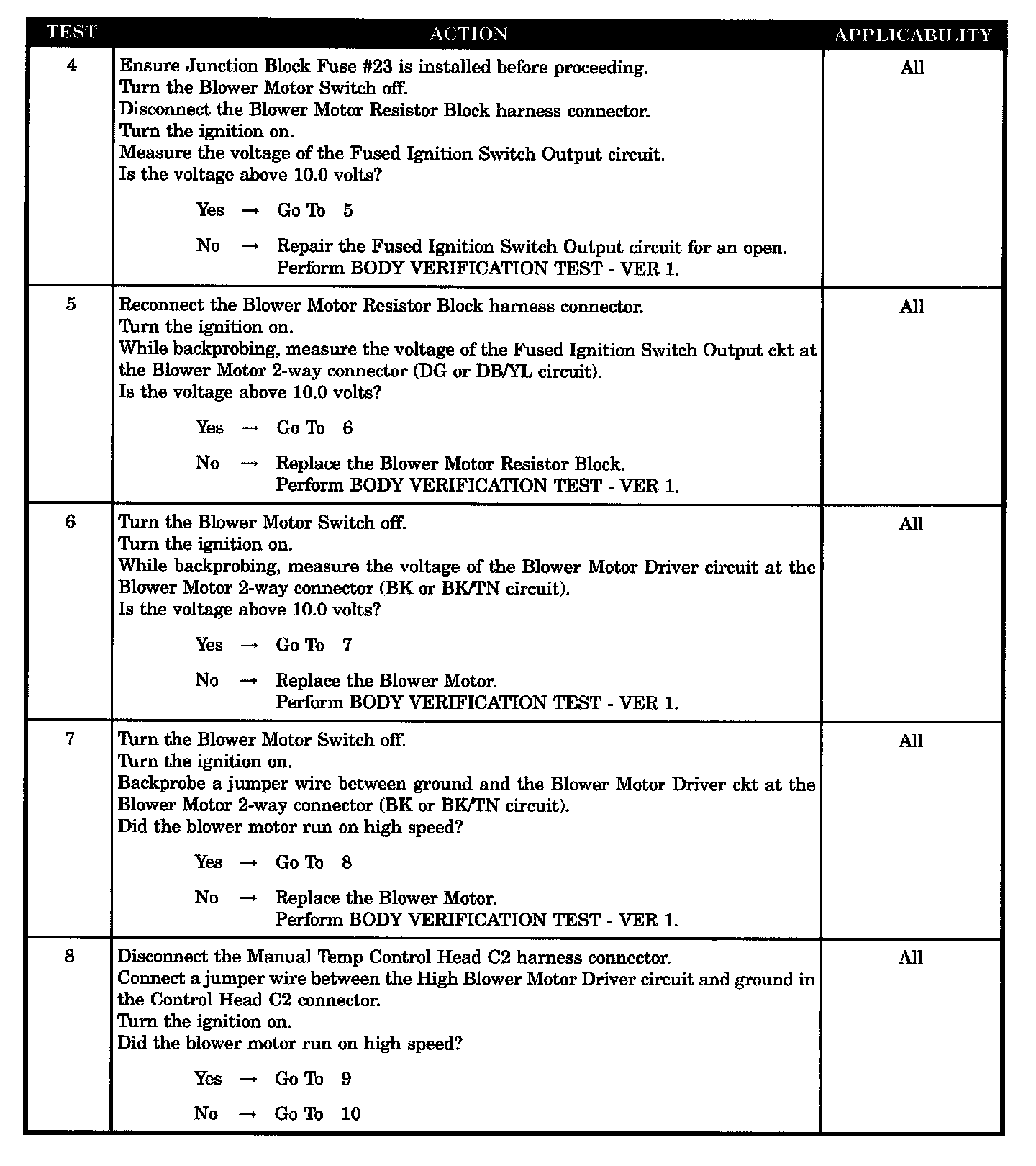

Test 4 - 8:

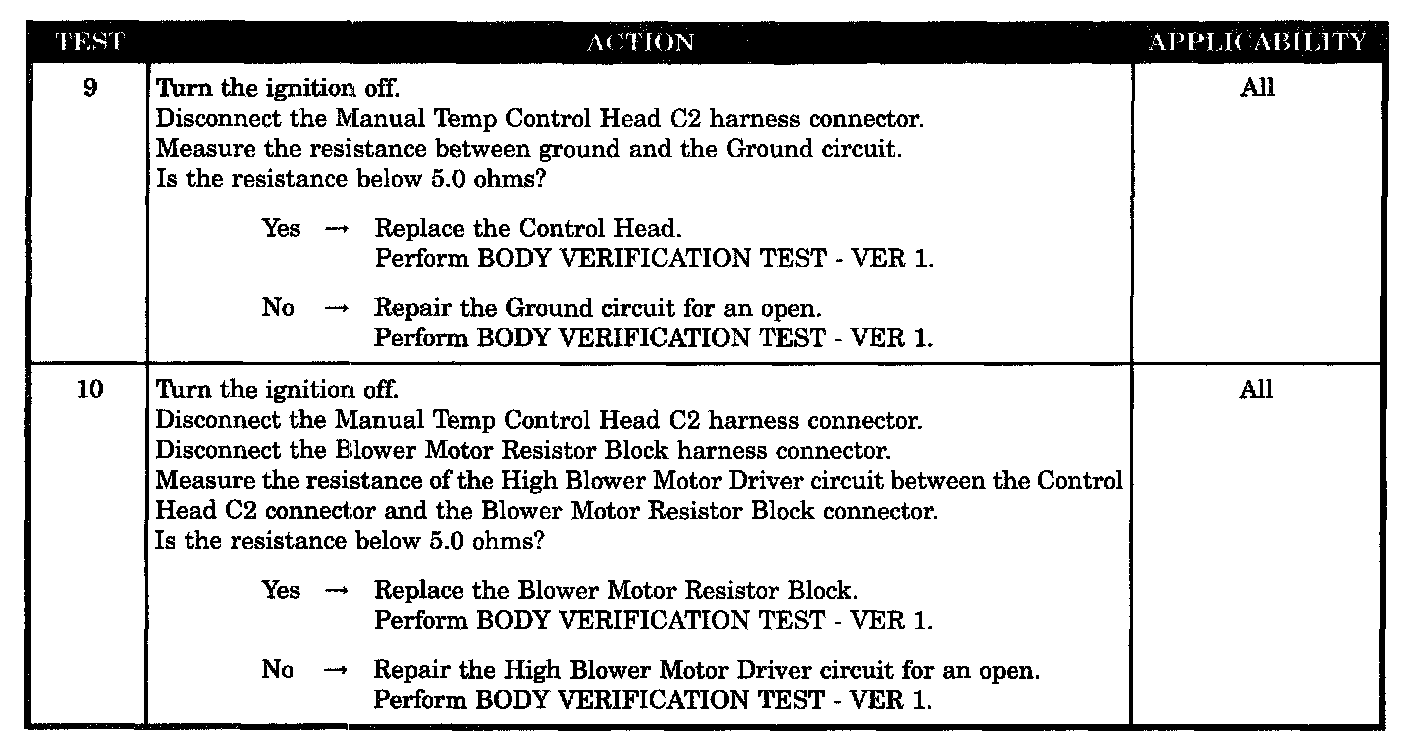

Test 9 - 10:

SYMPTOM
MANUAL A/C BLOWER MOTOR INOPERATIVE

POSSIBLE CAUSES
- Junction block fuse # 23
- Fused ignition switch output circuit shorted to ground
- Blower motor - shorted to ground
- Fused ignition switch output circuit open to resistor
- Fused ignition switch output circuit open to motor
- Blower motor open
- Blower motor inoperative
- Ground circuit open
- Head- motor driver open
- Blower motor driver circuit open
- Resistor-open hi blower motor driver
