Manual A/C Blower Motor Speeds Incorrect

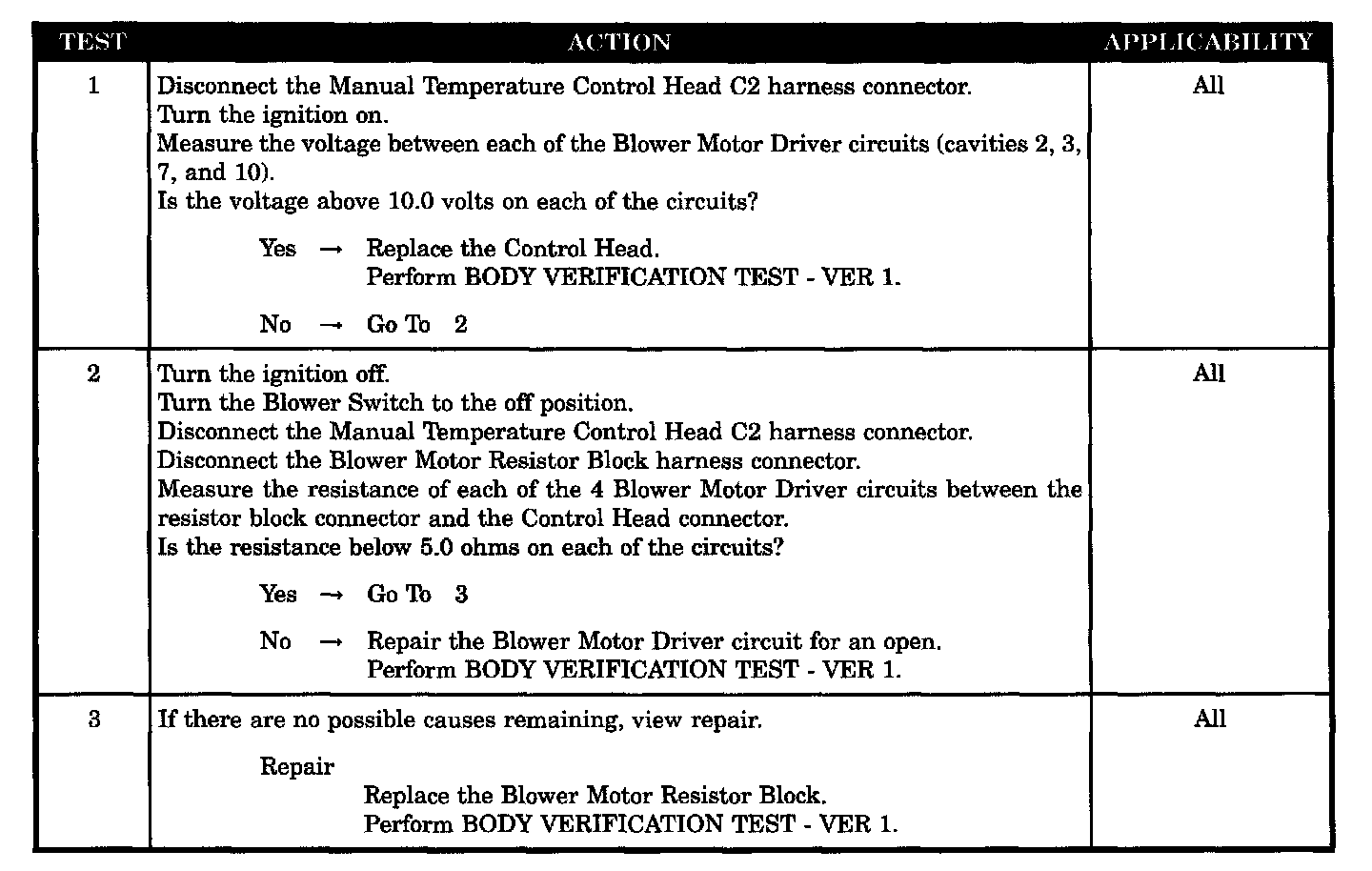

Test 1 - 3:






SYMPTOM
MANUAL A/C BLOWER MOTOR SPEEDS INCORRECT

POSSIBLE CAUSES
- Control head - blower speeds incorrect
- Blower motor driver circuit open
- Blower motor resistor - open speed
