Manual A/C Control Head Switch Inoperative

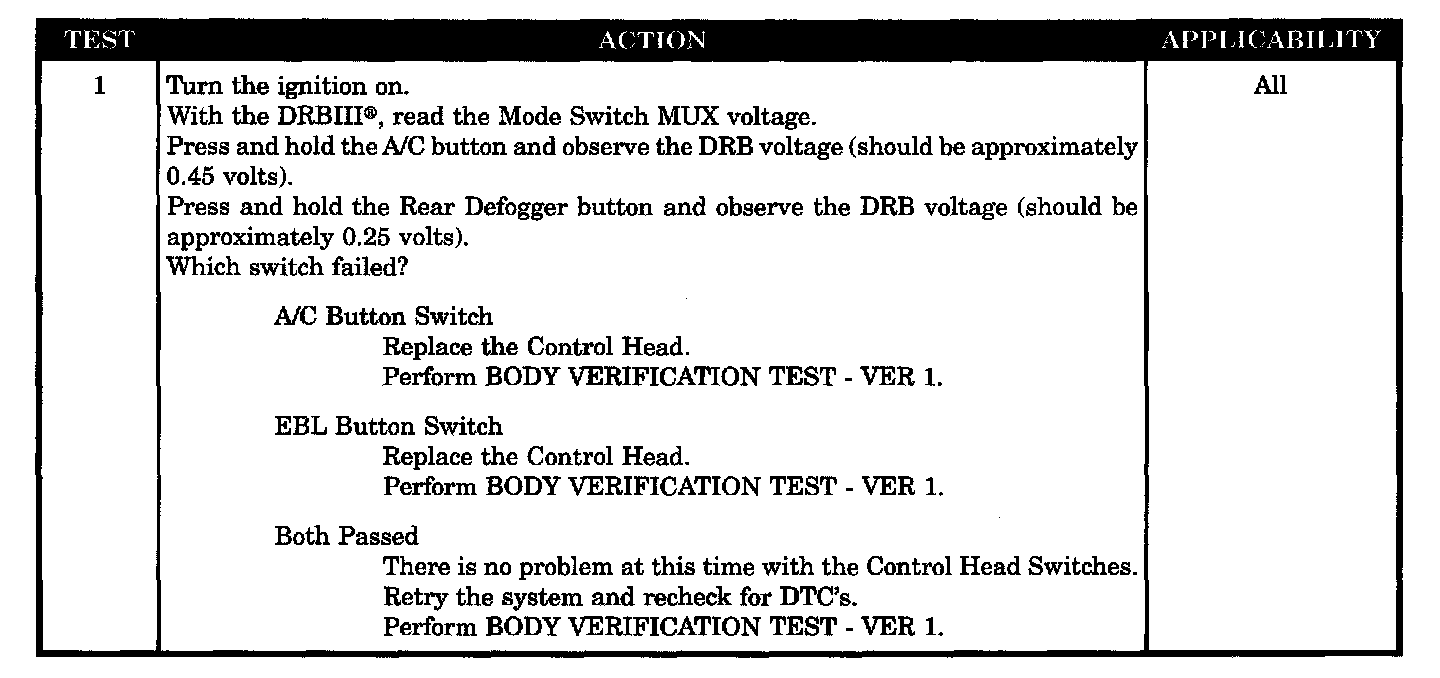

Test 1:






SYMPTOM
MANUAL A/C CONTROL HEAD SWITCH INOPERATIVE

POSSIBLE CAUSES
- Control head - open switch
- Control head switches okay
