VTSS Indicator Inoperative

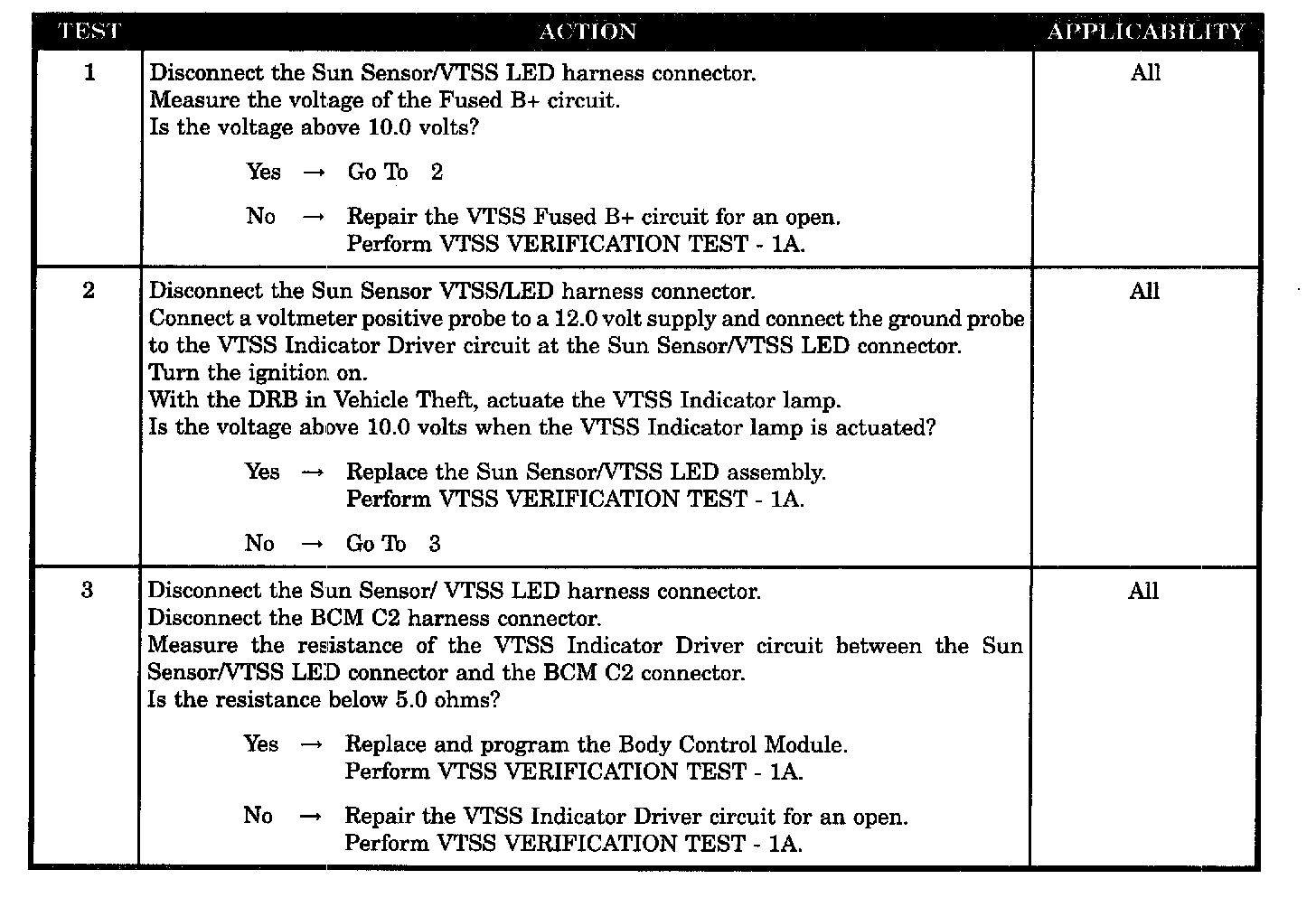

Test 1 - 3:






SYMPTOM
VTSS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Open VTSS indicator fused B(+) supply
- Open VTSS led
- VTSS indicator driver circuit open
- Body control module - Open internal VTSS driver
