Main Relay (Computer/Fuel System): Locations

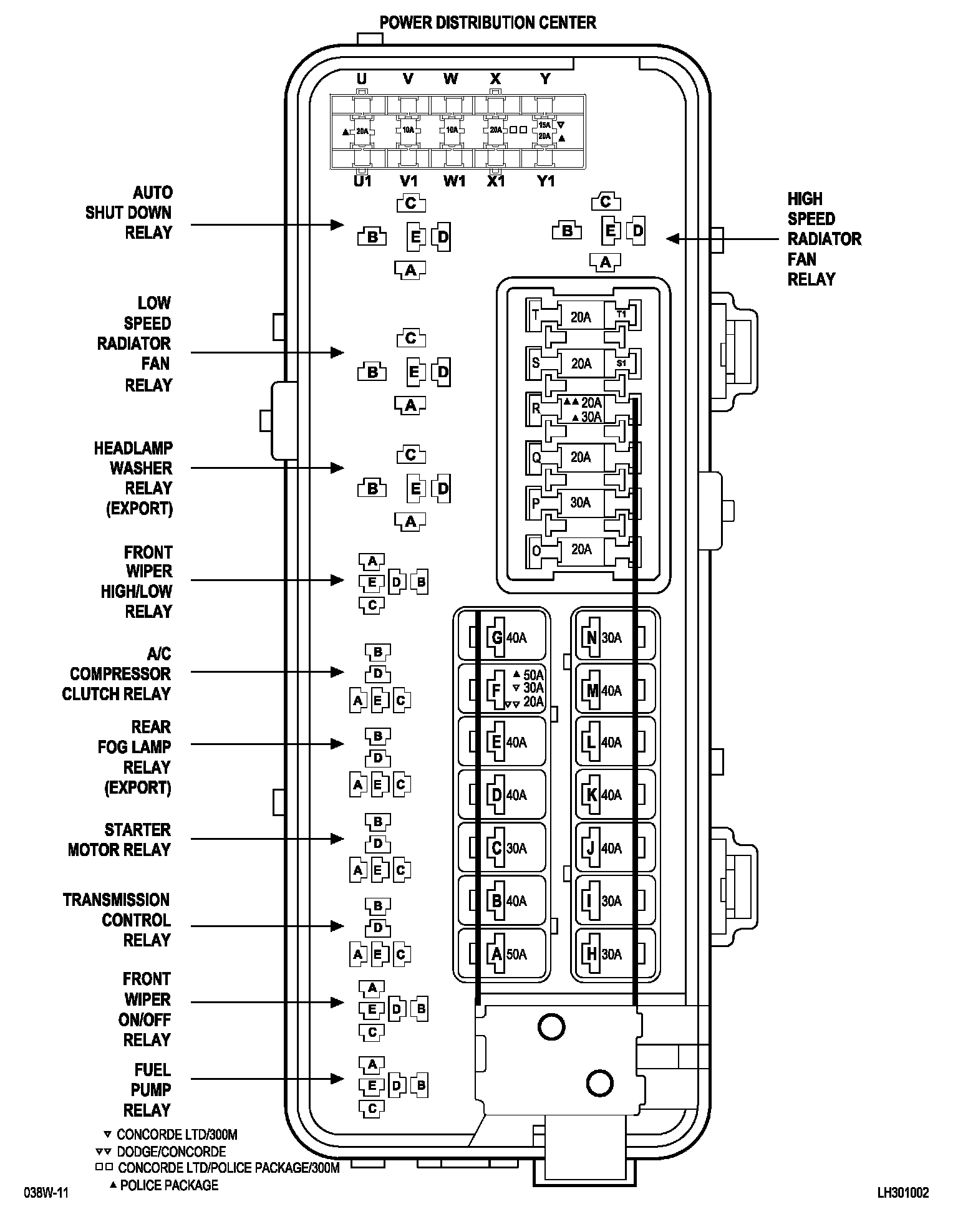

8w-10-2 Power Distribution Center:

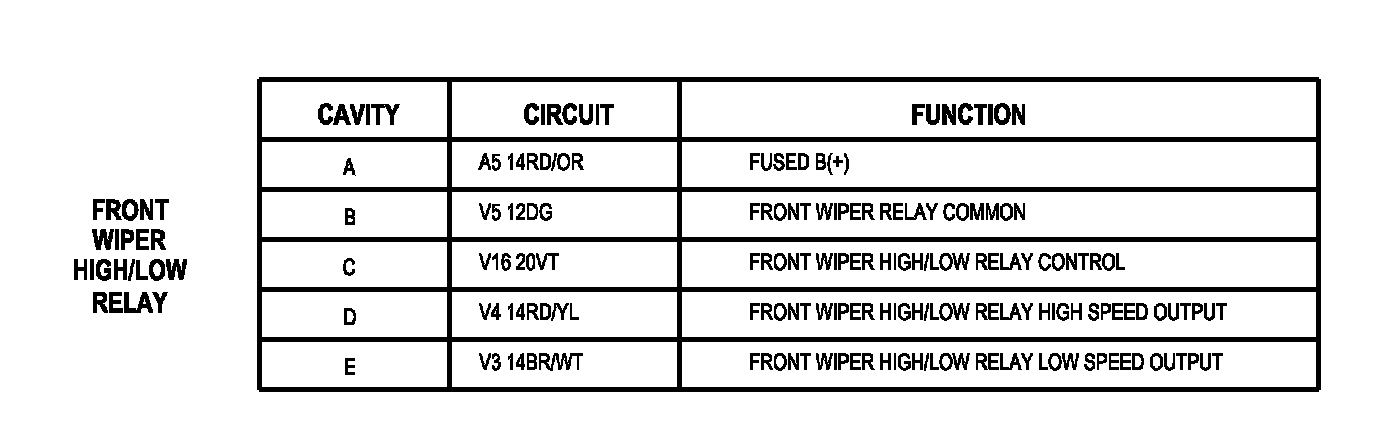

Front Wiper High/Low Relay:

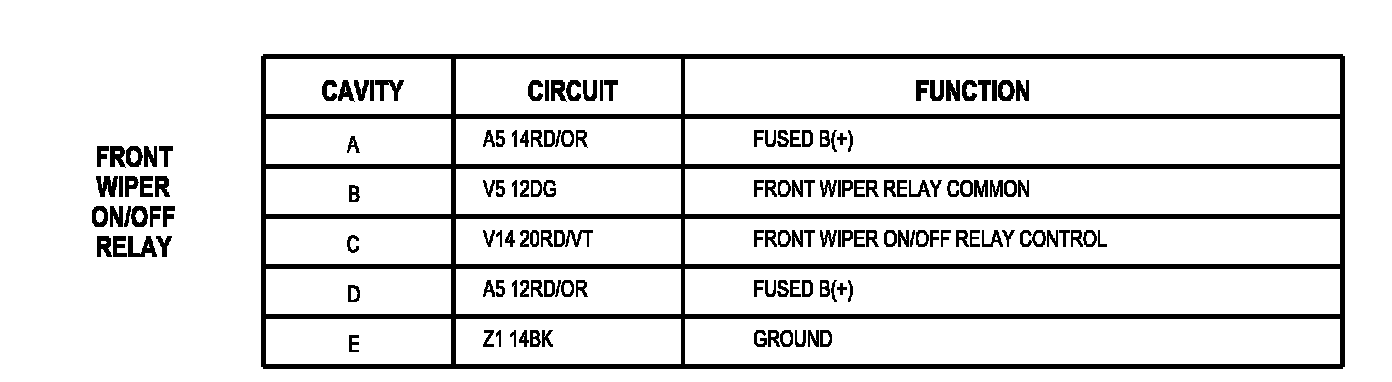

Front Wiper On/Off Relay:
