No Response From PCM (PCI Bus)

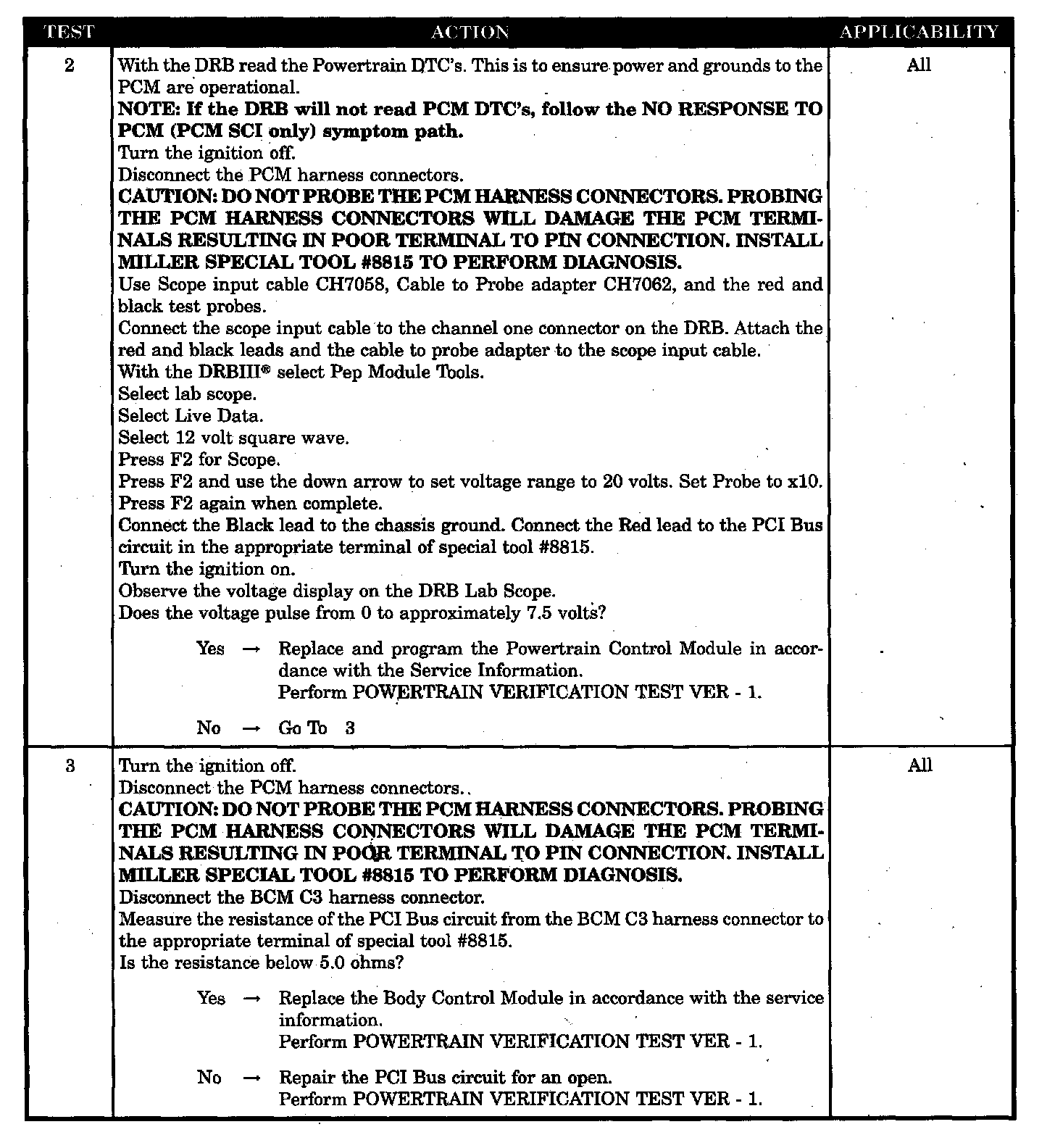

Test 1:

Test 2 - 3:

SYMPTOM
NO RESPONSE FROM PCM (PCI BUS)

POSSIBLE CAUSES
- PCM PCI no response
- Powertrain control module
- PCI bus circuit open
- Body control module
