PCI Bus Communication Failure

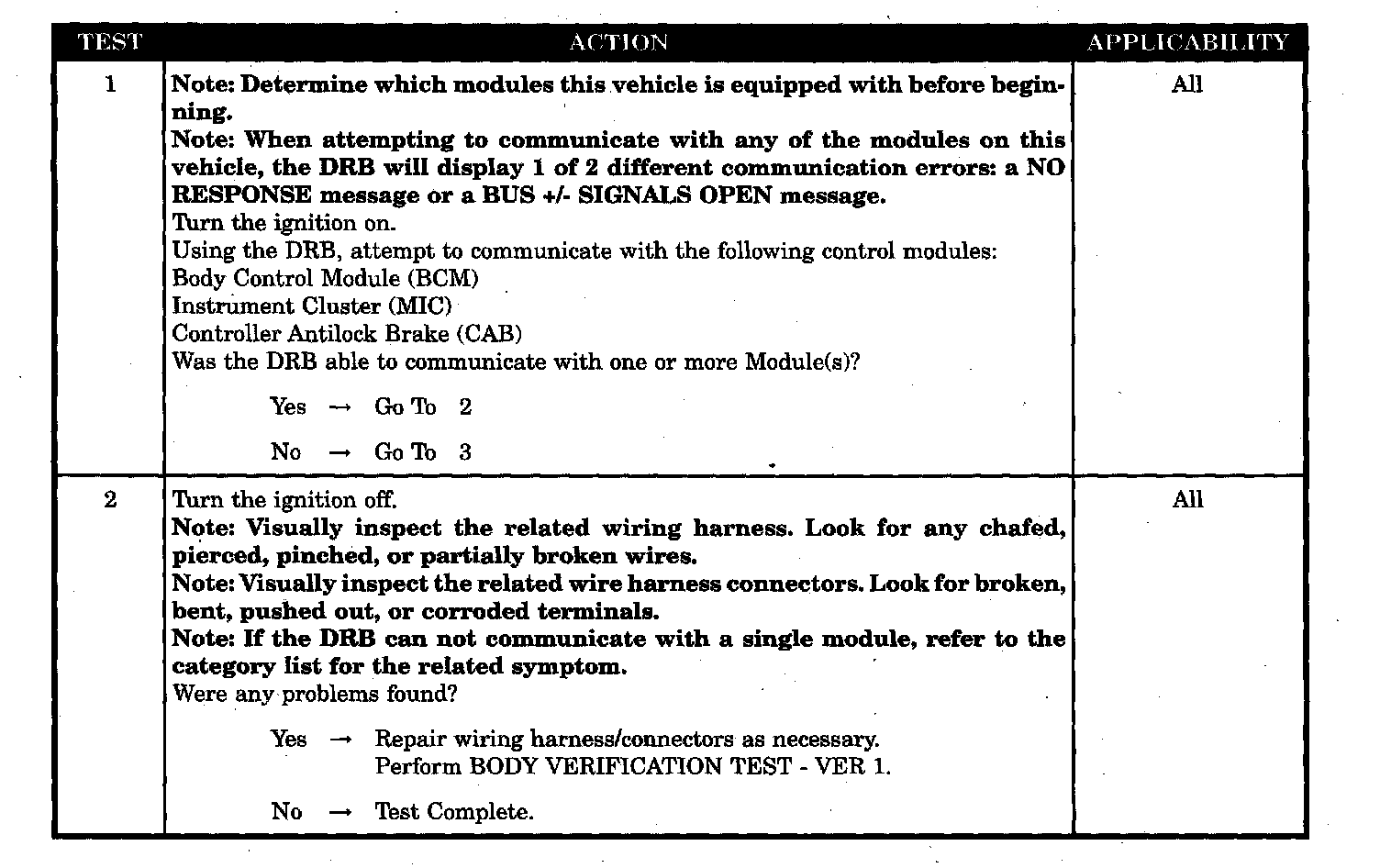

Test 1 - 2:

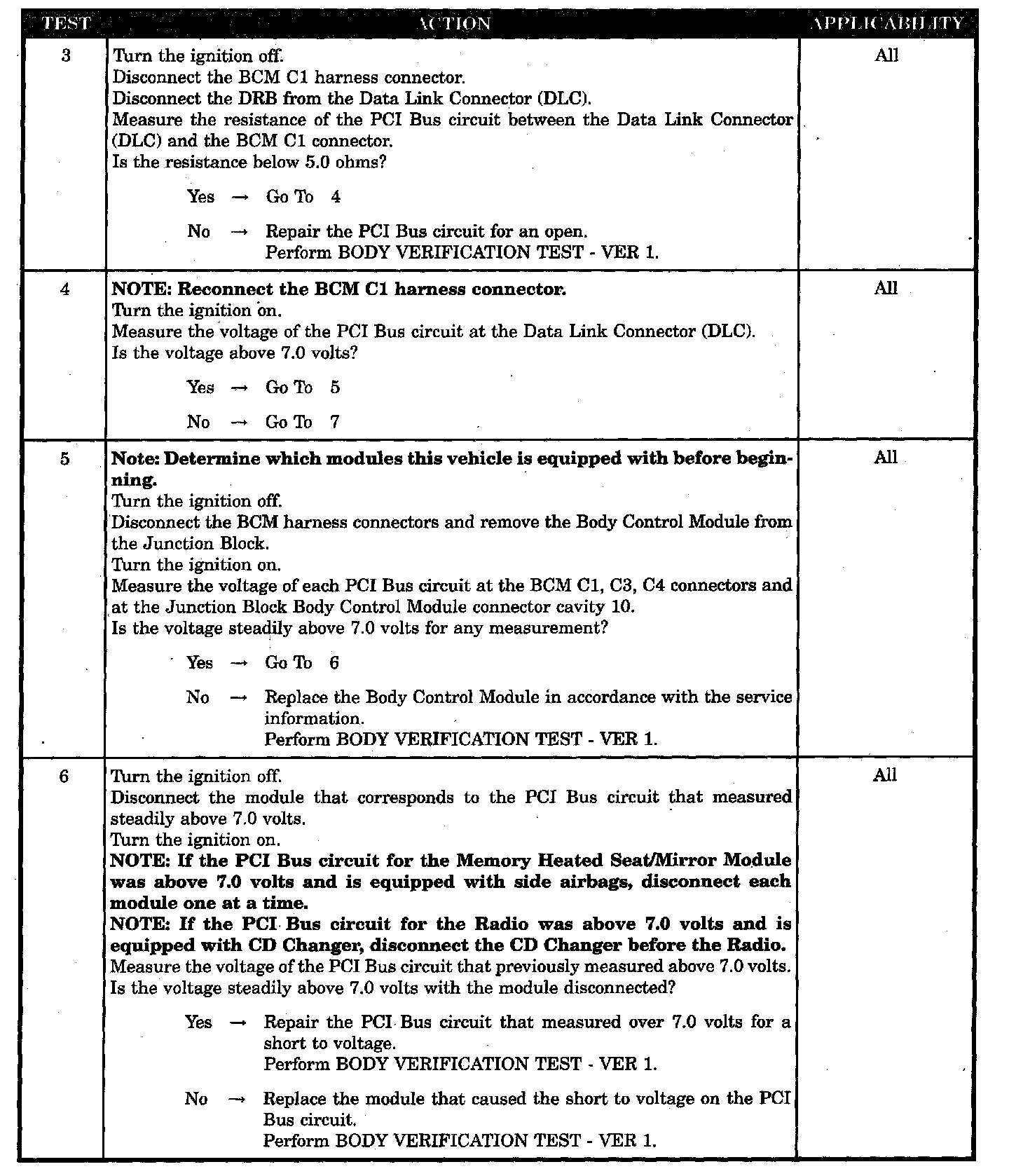

Test 3 - 6:

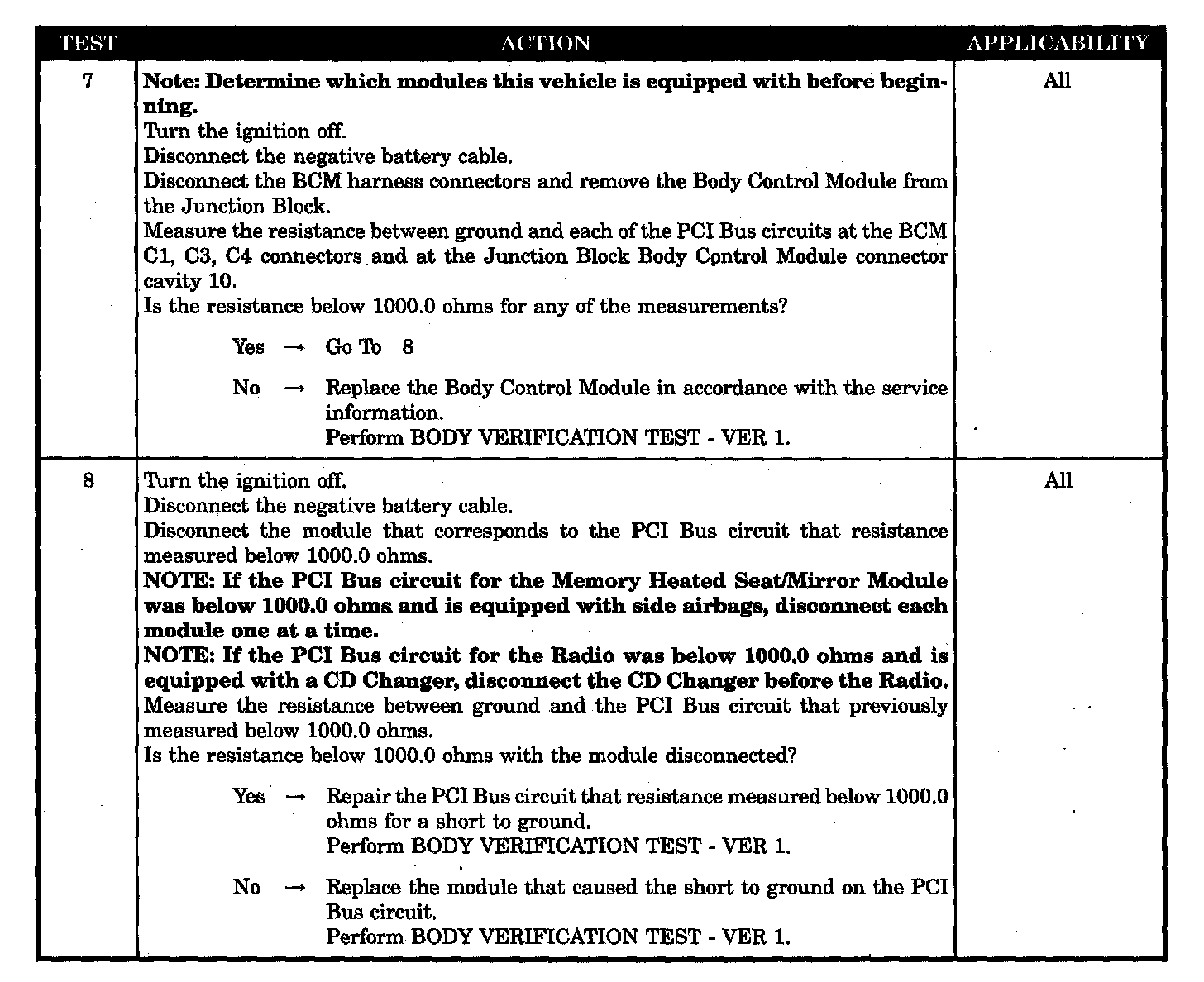

Test 7 - 8:

SYMPTOM
PCI BUS COMMUNICATION FAILURE

POSSIBLE CAUSES
- Wiring harness intermittent
- Open PCI Bus circuit at The Data Link Connector (DLC)
- High voltage on the PCI bus circuits at the BCM connectors
- Module (PCI Bus short To voltage)
- PCI Bus circuit shorted to voltage
- Low resistance to ground on the PCI Bus circuits at the BCM connectors
- Module (PCI Bus short To ground)
- PCI Bus circuit shorted to ground
