EVIC Self Test

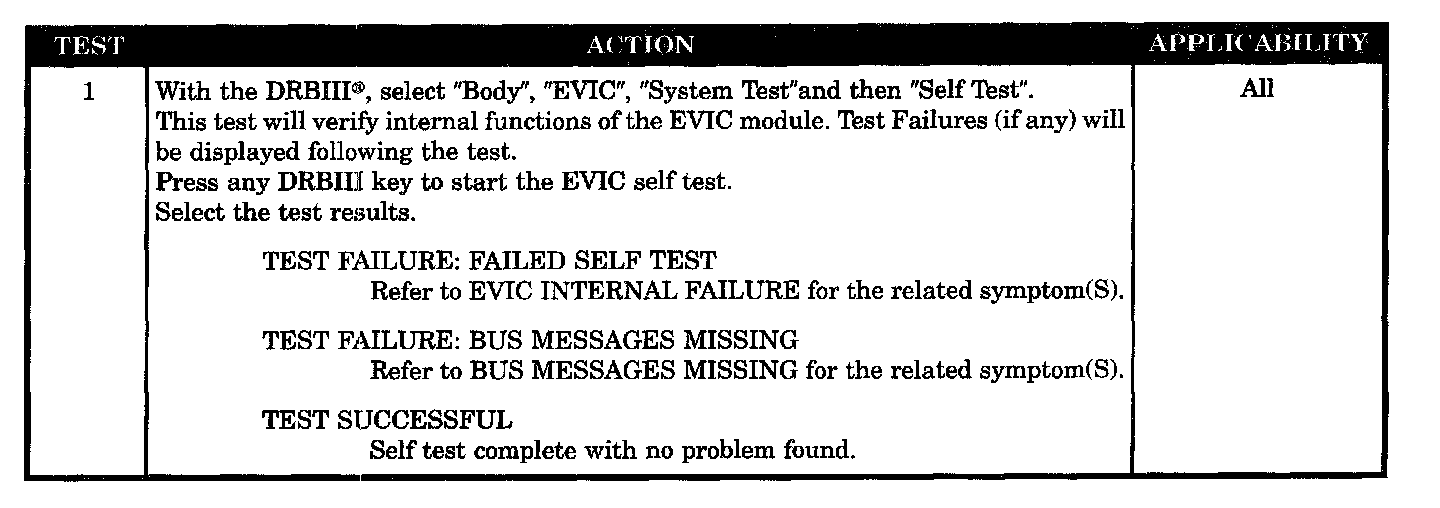

Test 1:
SYMPTOM
EVIC SELF TEST
POSSIBLE CAUSES
-
Bus messages missing
-
Failed self test
-
EVIC self test
