Oil Pan, Engine

Oil Pan
M6 Bolts 12 Nm (105 in. lbs.)
M8 Bolts 28 Nm (250 in. lbs.)

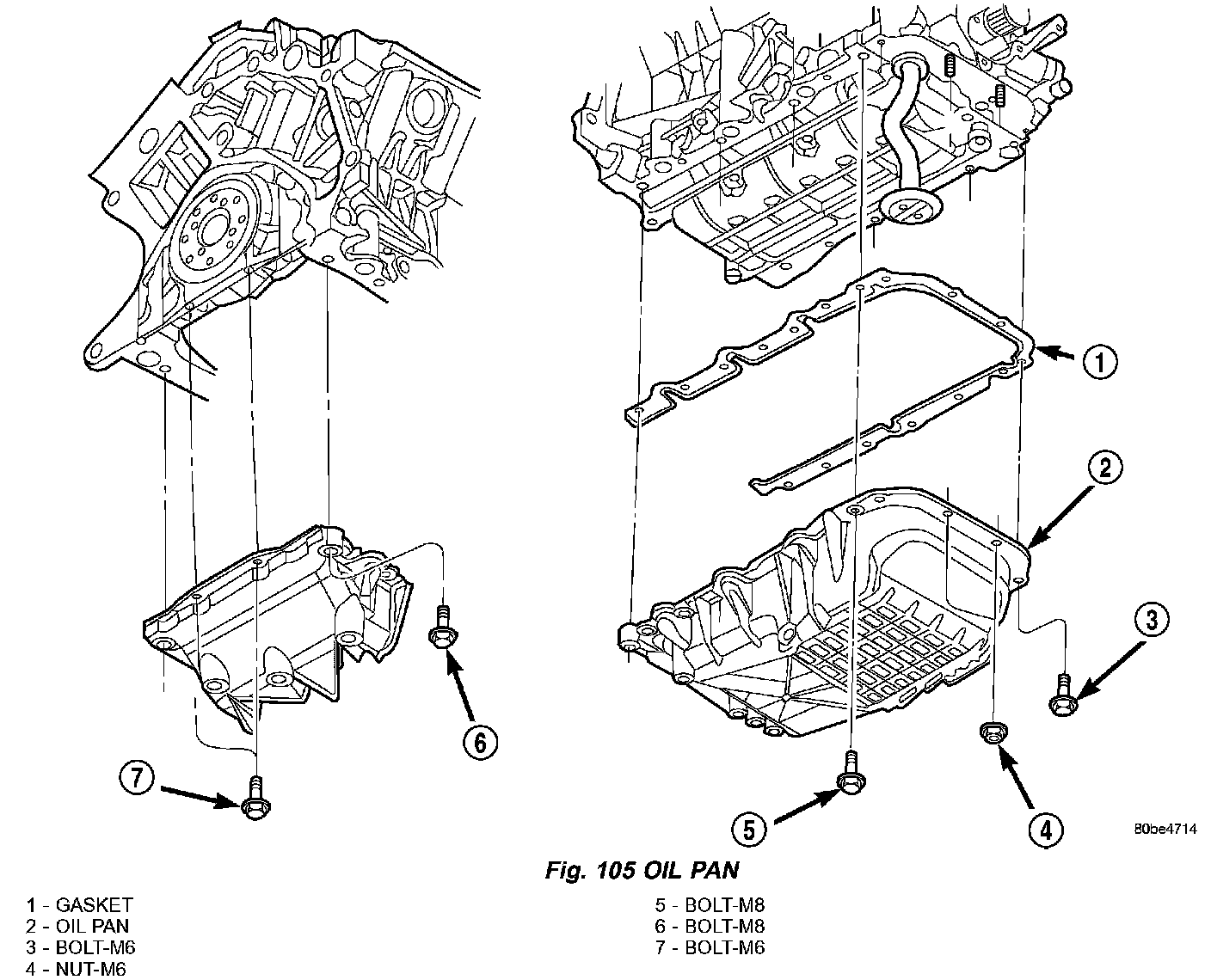

Install pan and attaching fasteners (Fig. 105).

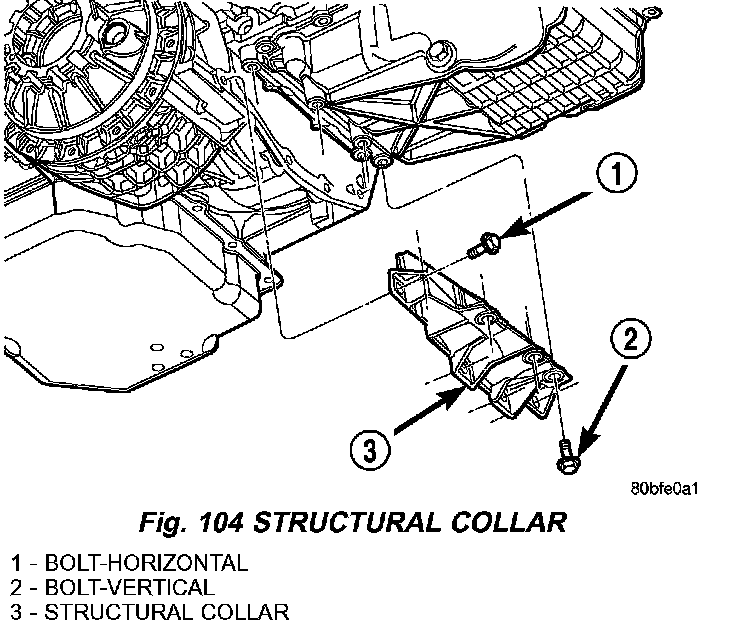

Install the structural collar (Fig. 104), using the follow procedure:
a. Install the vertical collar to oil pan bolts. Pre-torque bolts to 1.1 Nm (10 in. lbs.).
b. Install the horizontal collar to transmission bolts and tighten to 55 Nm (40 ft. lbs.).
c. Starting with center vertical bolts and working outward, final torque all bolts to 55 Nm (40 ft. lbs.).
