Engine Torque Specifications

TORQUE

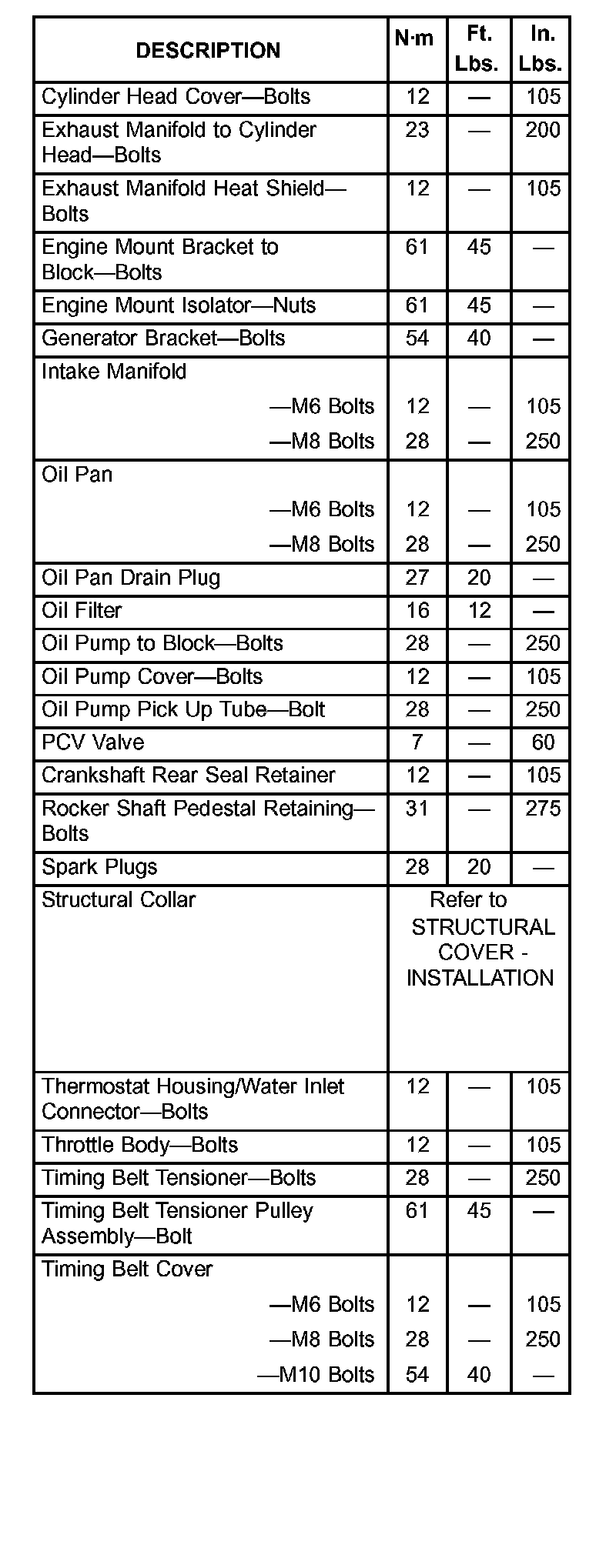

Specifications 3.5L - Part 1 Of 2:

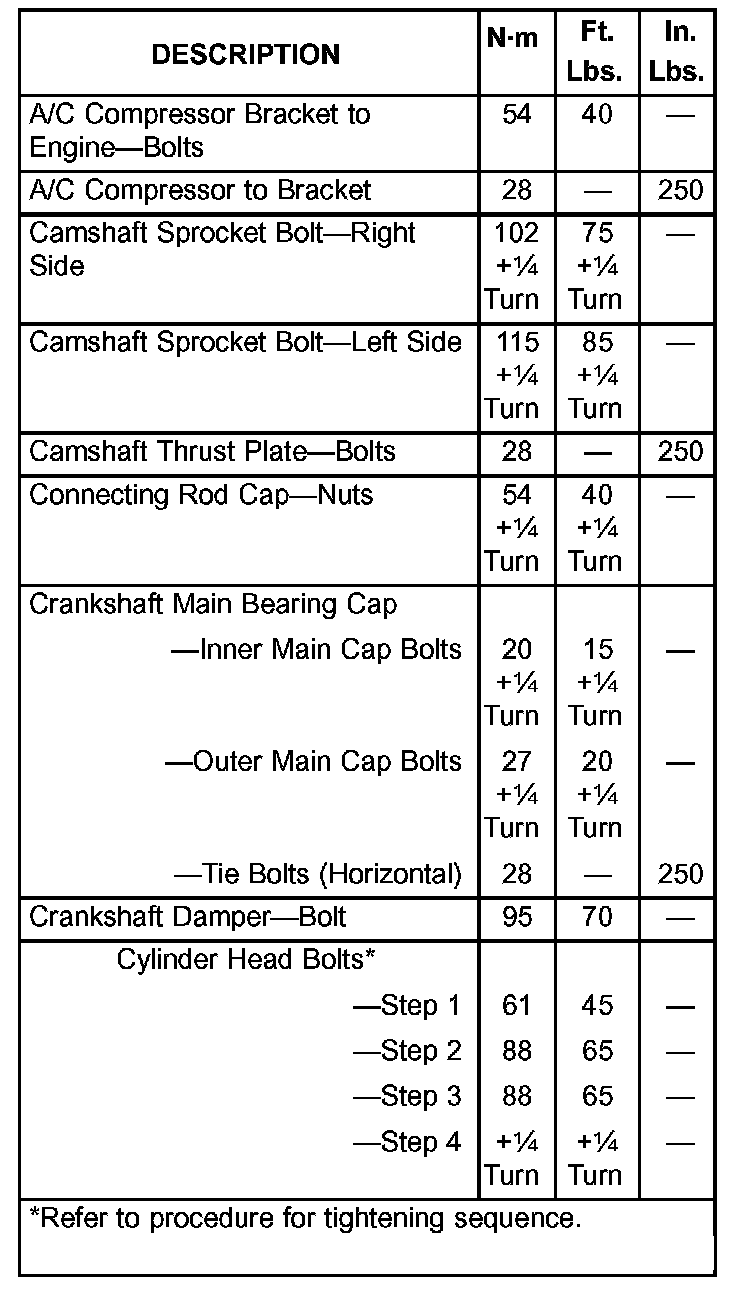

Part 2 Of 2:





For specifications regarding Flywheel/Flex Plate bolt, refer to service procedure. Service and Repair
Water Pump - Bolts 12 Nm (105 in. lbs.)
