Right Front Wheel Speed Sensor Connector End View

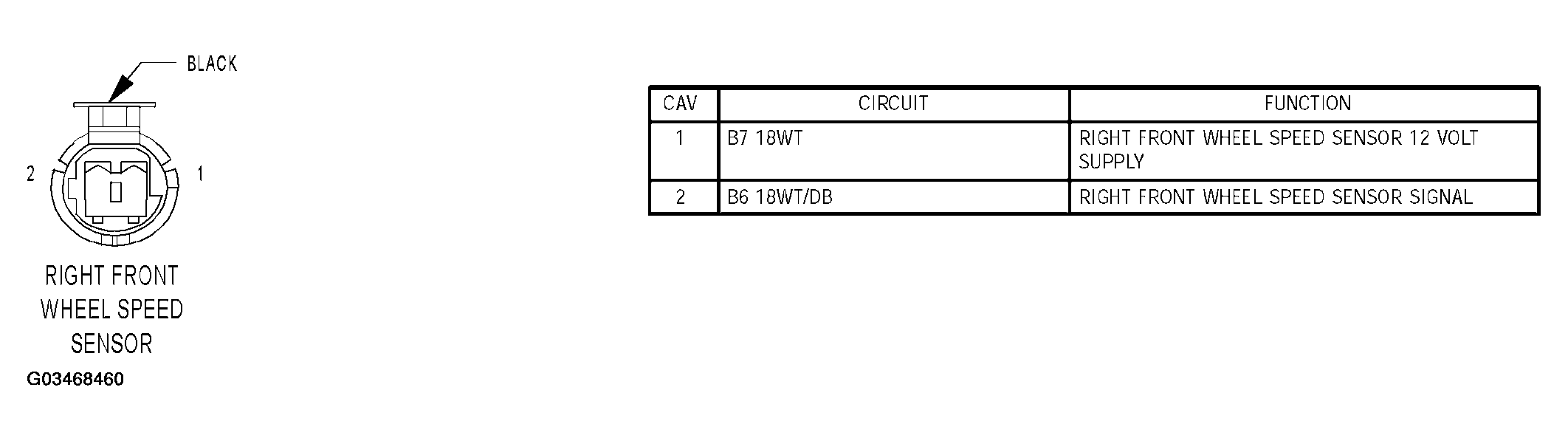

Fig 1: Right Front Wheel Speed Sensor Connector End View
G03468460Courtesy of DAIMLERCHRYSLER CORP.
