ECT Sensor Harness Connector End View

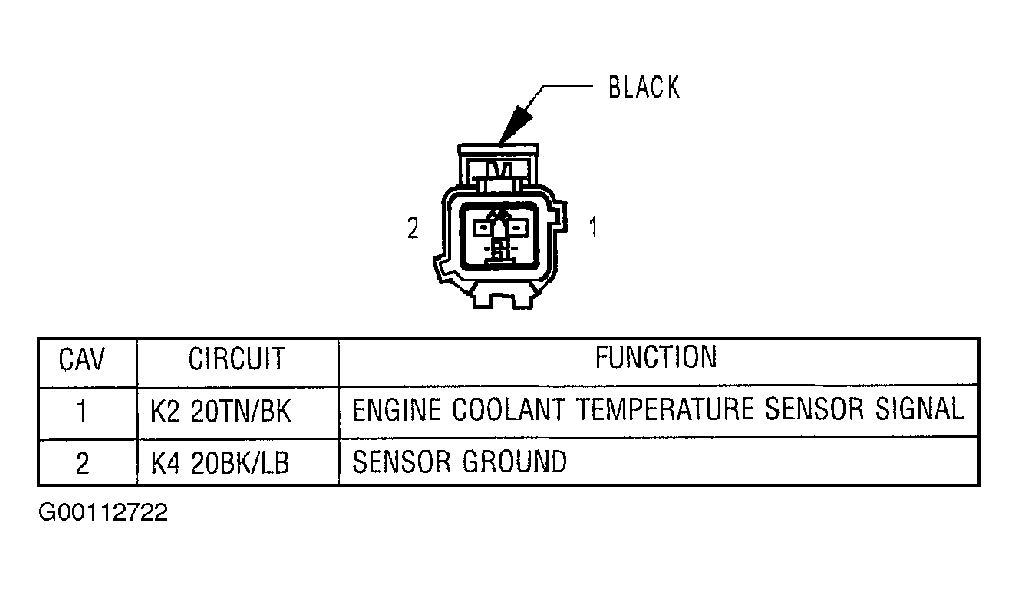

Fig 1: Identifying ECT Sensor Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
