Power Distribution Center Components & Circuits

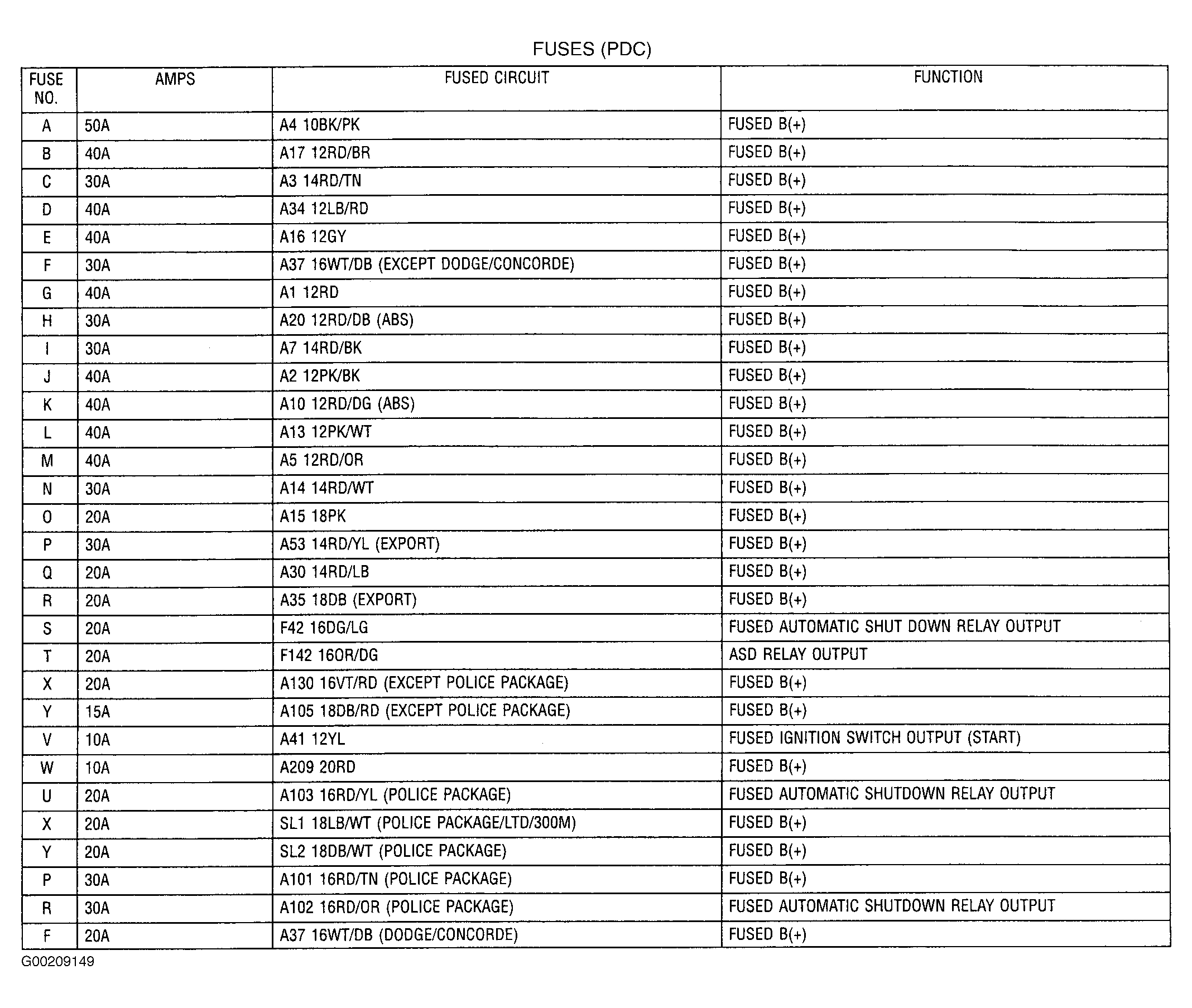

Fig 1: Identifying Power Distribution Center Components & Circuits (1 Of 3)

Courtesy of CHRYSLER CORP.

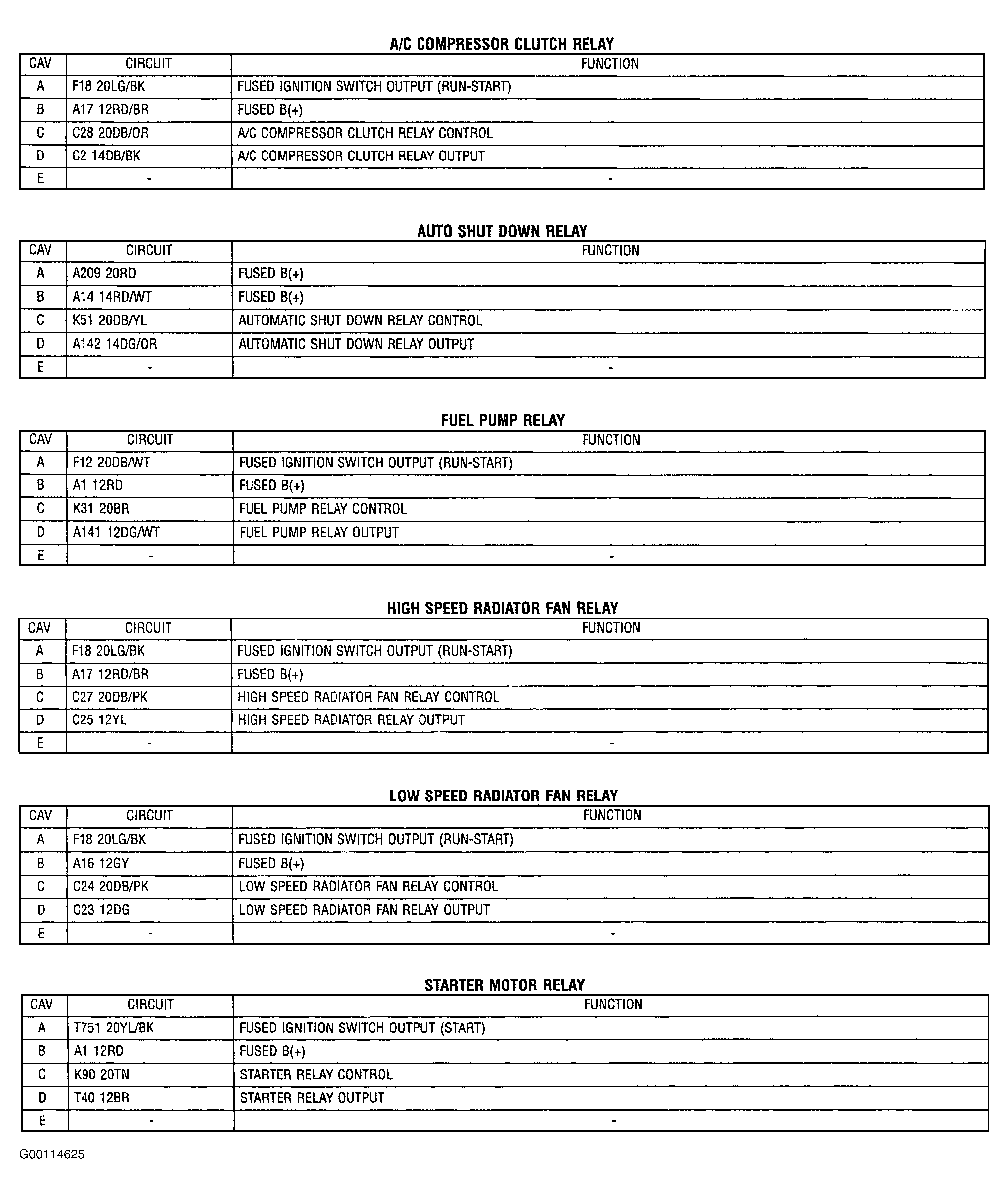

Fig 2: Identifying Power Distribution Center Components & Circuits (2 Of 3)

Courtesy of CHRYSLER CORP.

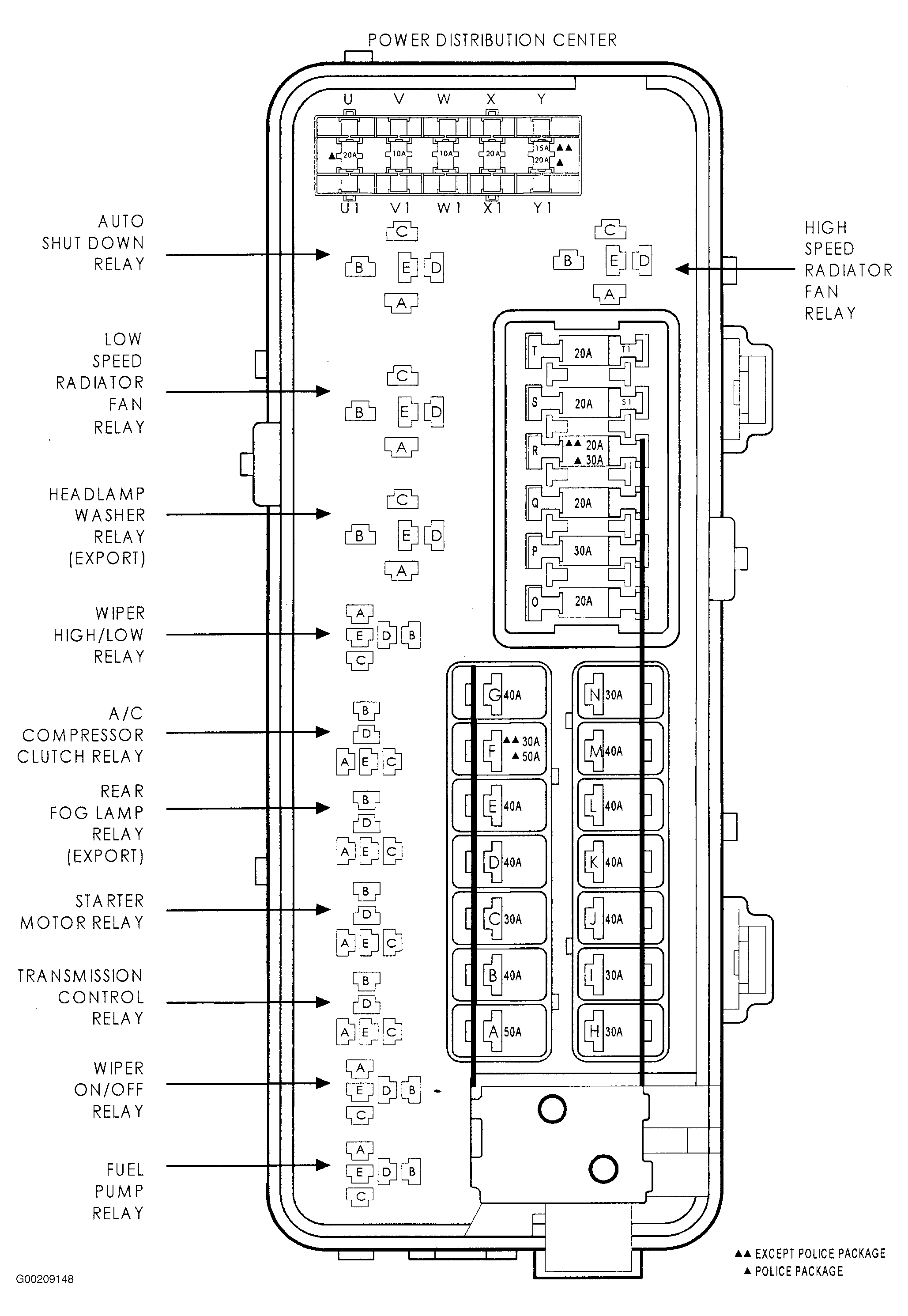

Fig 3: Identifying Power Distribution Center Components & Circuits (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
