Audio System - Midline

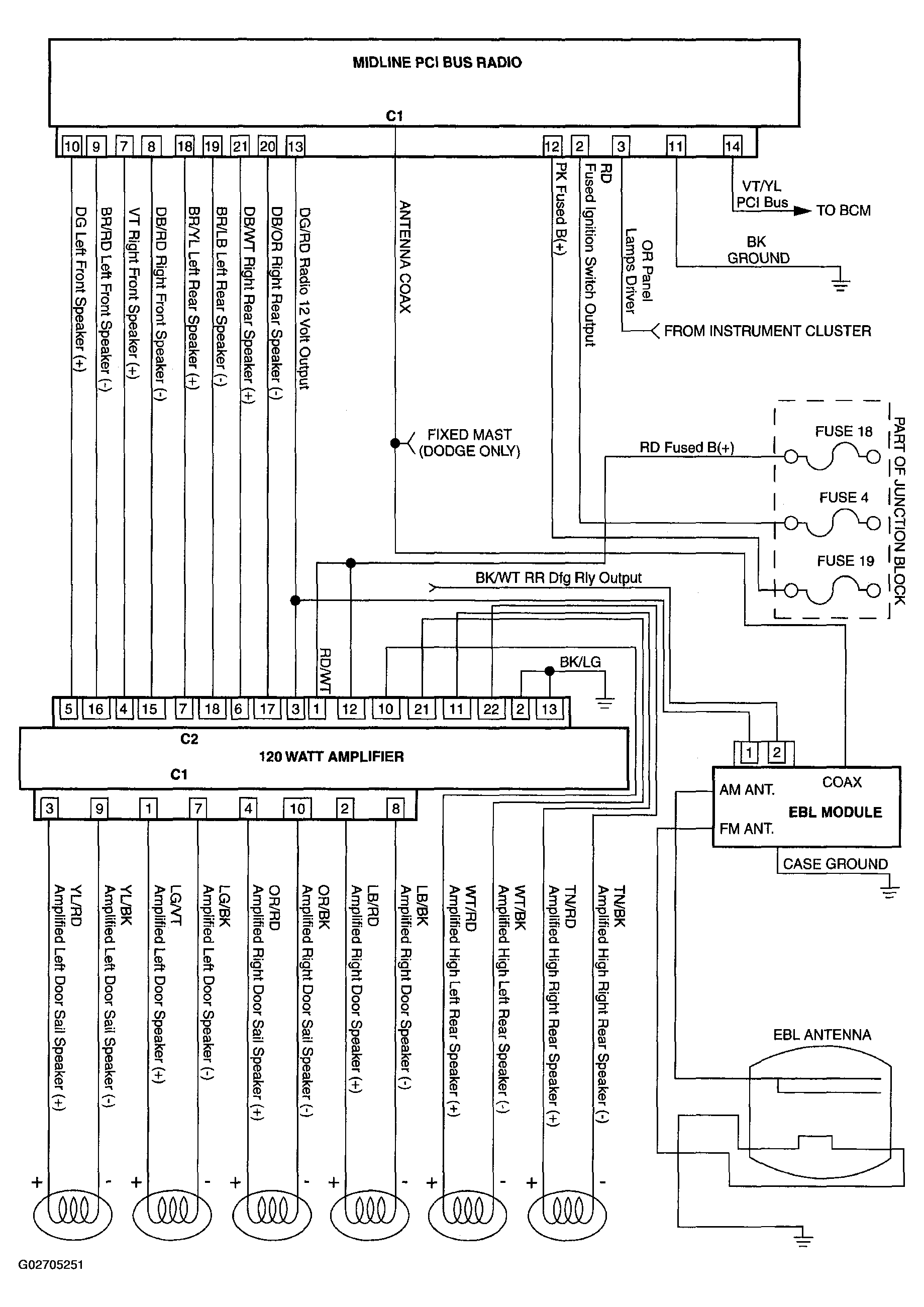

Fig 1: Schematic Diagrams - Audio System - Midline
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
