Memory Set Switch: Removal

  1. Disconnect and isolate the negative battery cable remote terminal from the remote battery post.
    WARNING: SOME VEHICLES ARE EQUIPPED WITH SEATBACK MOUNTED AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  2. Remove the drivers seat cushion side shield from the seat (Fig 1 ).
  3. From the bottom, disengage the memory set switch by gently rock through the opening.

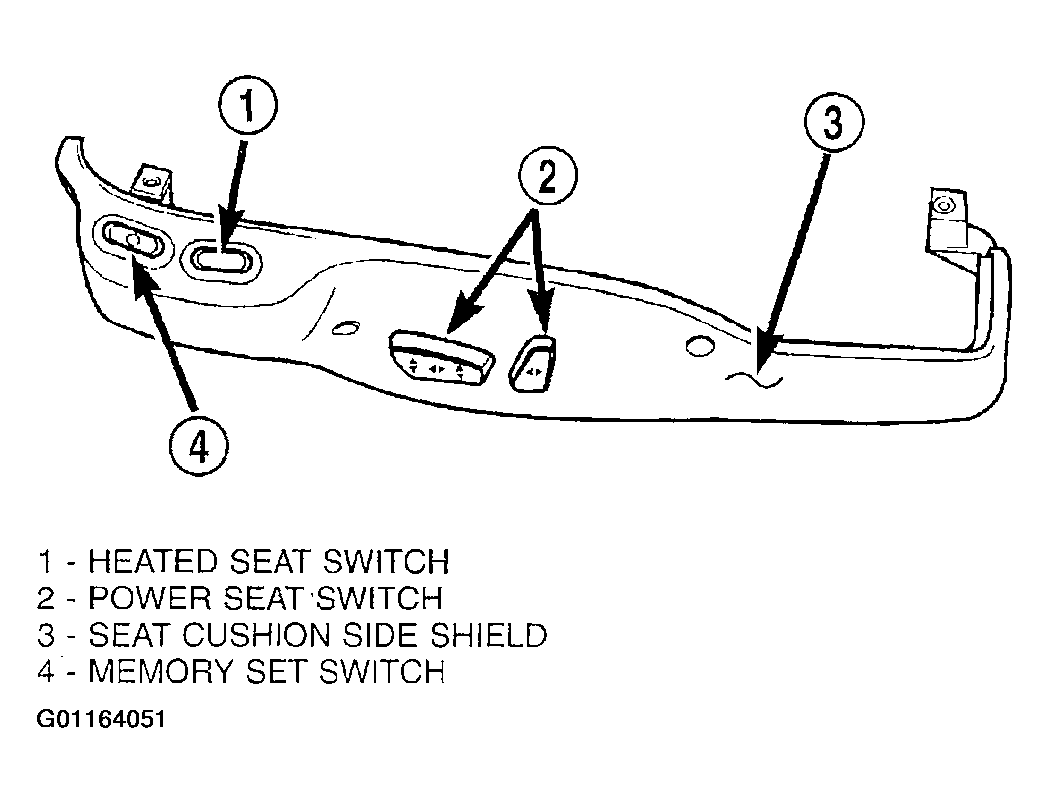

    Fig 1: Identifying Memory, Power And Heated Seat Switch Locations
    G01164051Courtesy of DAIMLERCHRYSLER CORP.
