Driver Door Lock Motor/Ajar Switch Connector End View

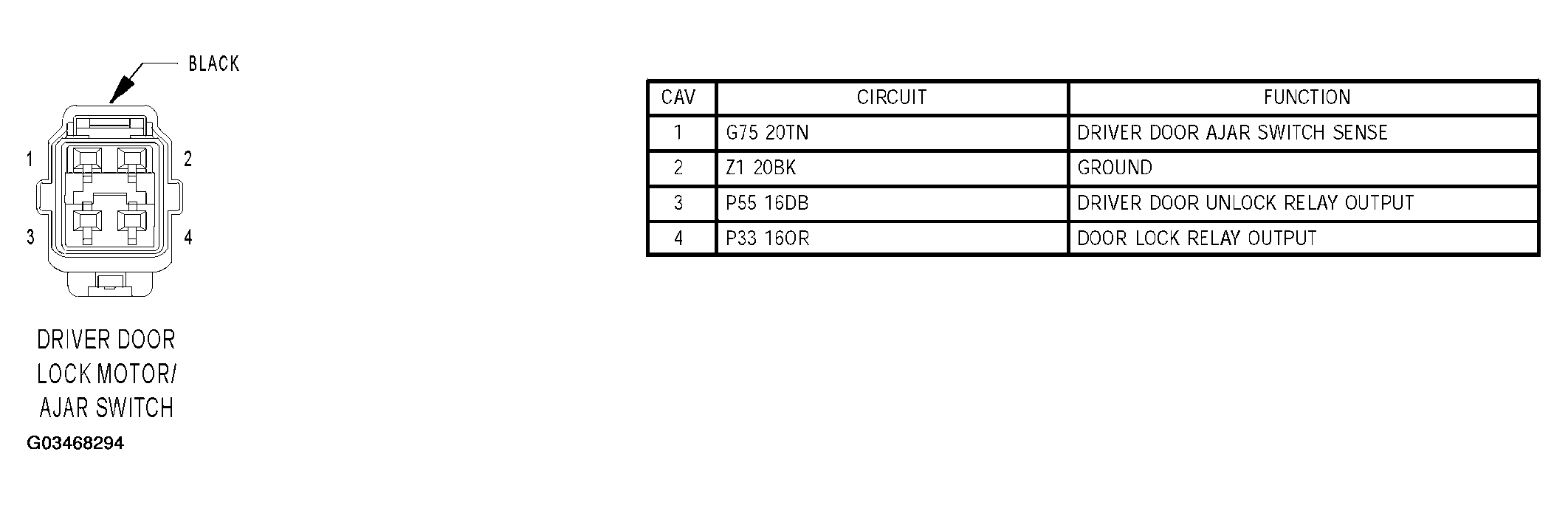

Fig 1: Driver Door Lock Motor/Ajar Switch Connector End View
G03468294Courtesy of DAIMLERCHRYSLER CORP.
