Junction Block Connector End View (C7)

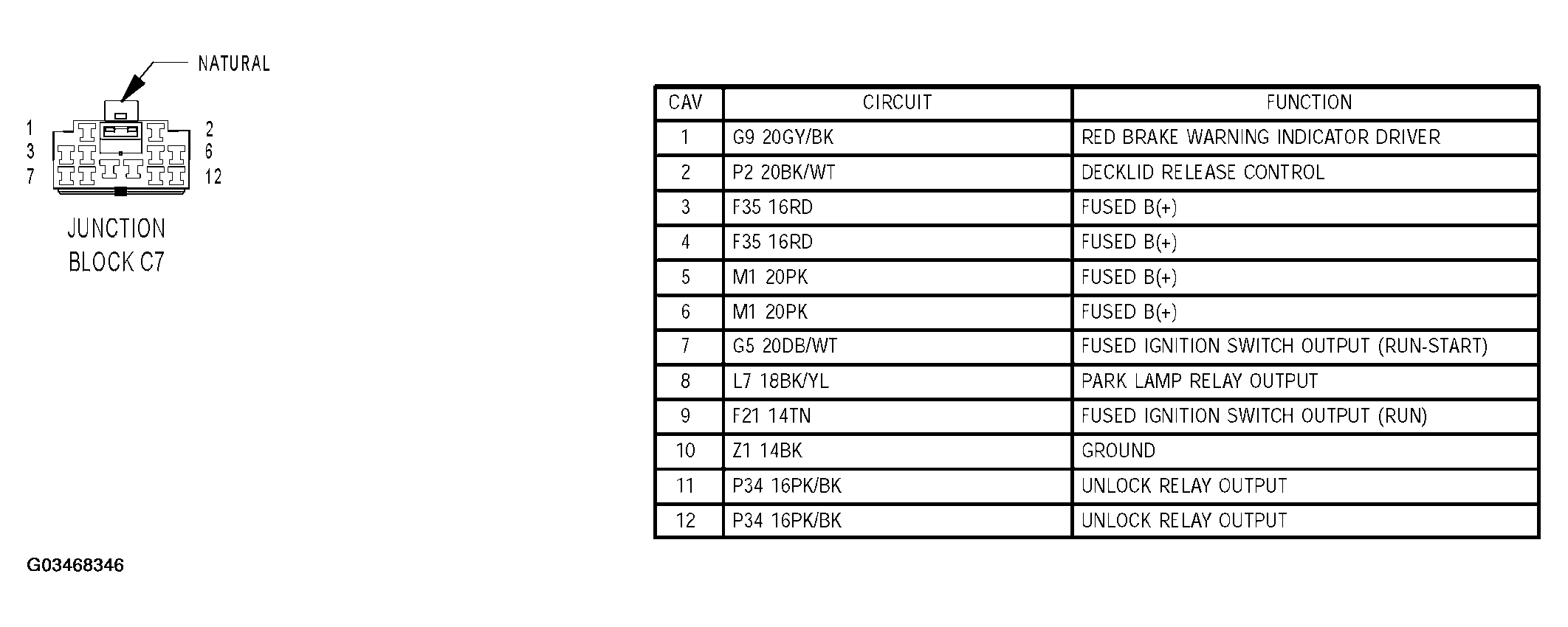

Fig 1: Junction Block Connector End View (C7)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
