Natural Vacuum Leak Detection Assembly Connector End View

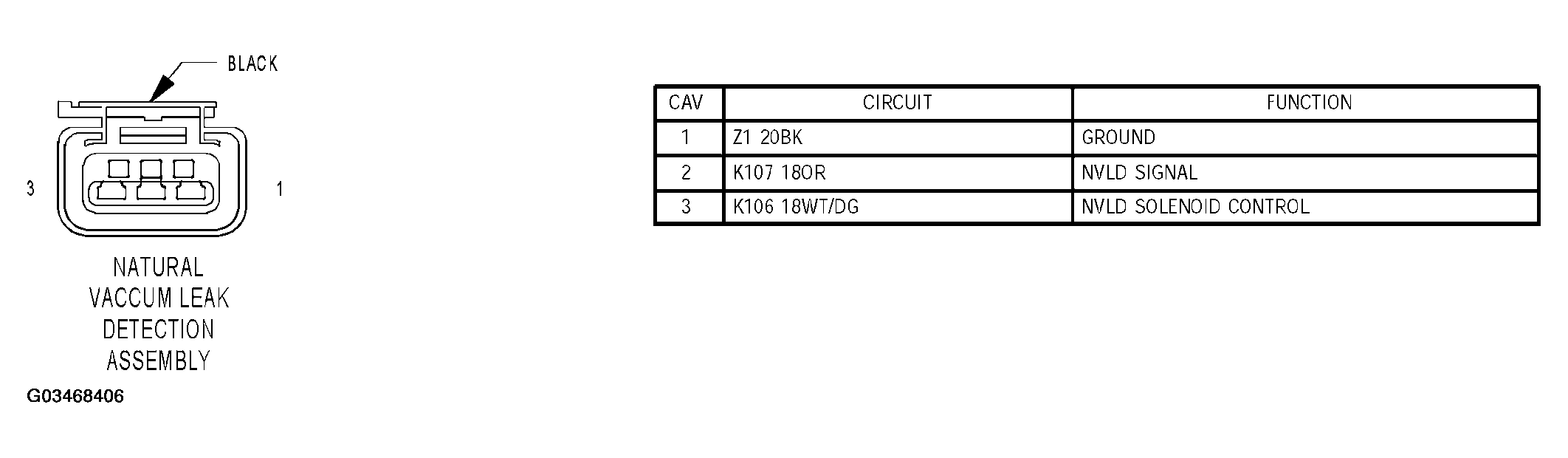

Fig 1: Natural Vacuum Leak Detection Assembly Connector End View
G03468406Courtesy of DAIMLERCHRYSLER CORP.
