Sun Sensor/VTSS LED Connector End View

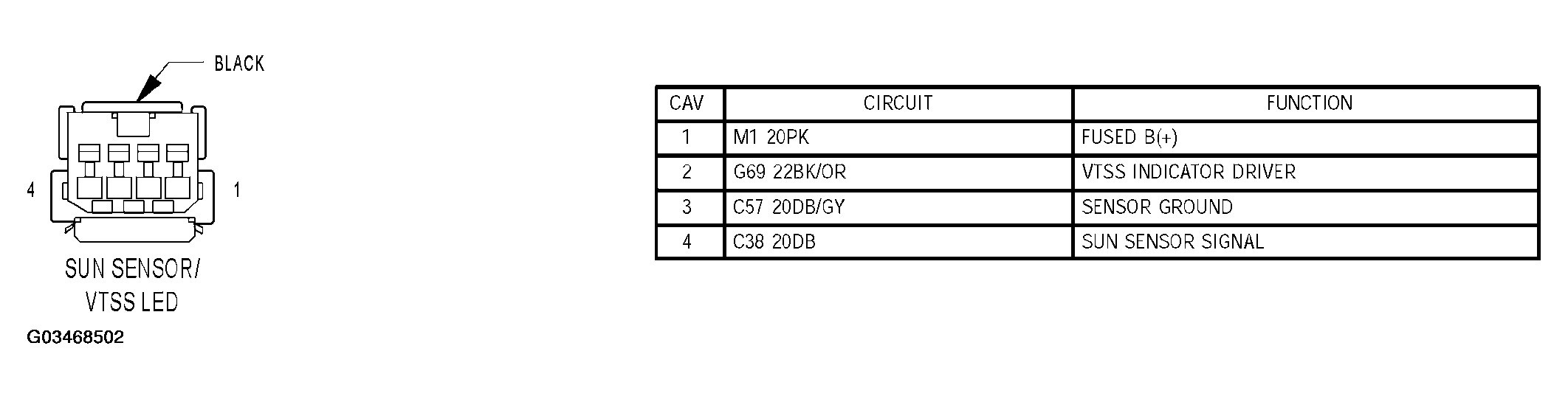

Fig 1: Sun Sensor/VTSS LED Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
